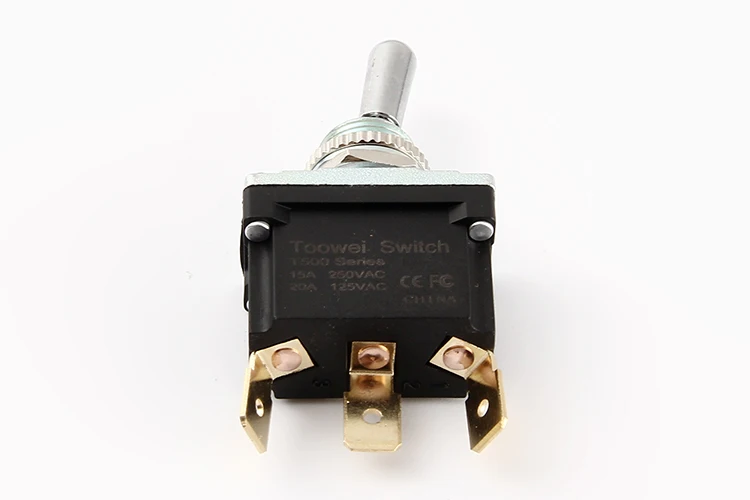

Heavy duty waterproof aircraft grade toggle ON ON toggle switch
- Category: Toggle Switches >>>
- Supplier: Zhejiang,Toowei,Electronics,Co.,Ltd.
Share on:
Product Overview
Description
Products Description
A toggle switch is to switch the circuit by turning the switch handle to make the circuit on or off. The commonly used varieties of toggle switches include single-pole double-position, single-pole three-position, double-pole double-position, and double-pole three-position, etc.
They are generally used in low-voltage circuits and have the characteristics of flexible slider action and
stable and reliable performance.
stable and reliable performance.
Mainly widely used in: various instruments/meters and equipment, various electric toys, fax machines, audio equipment, medical equipment, beauty equipment, and other electronic products.
T501BT Product Specification
Product name | Heavy duty waterproof aircraft grade toggle ON ON toggle switch |
Item Number | T501BT |
Mounting hole size | 12mm |
Operating type | Self-locking/ Latching |
Terminal | Quick Connect terminal |
Rating value | 15A/250VAC 20A/125VAC |
Mechanical life | more than 50000 cycles |
Electrical life | more than 20000 cycles |
Operating force | ≤20N |
Ambient temperature | -25℃~+80℃ |
Supply Capacity | 100000 pcs/month |
Packing | 20 pcs per inner box, 25 boxes per carton |
T500 Series Technical Drawings
Details Images
Optional accessories
Anti-Misoperation cover
Prevent electric shock
Easy and fast installation
Easy and fast installation
Waterproof cap with plastic base and metal base
Neck sealed and waterproof
Screw installation and fixation
