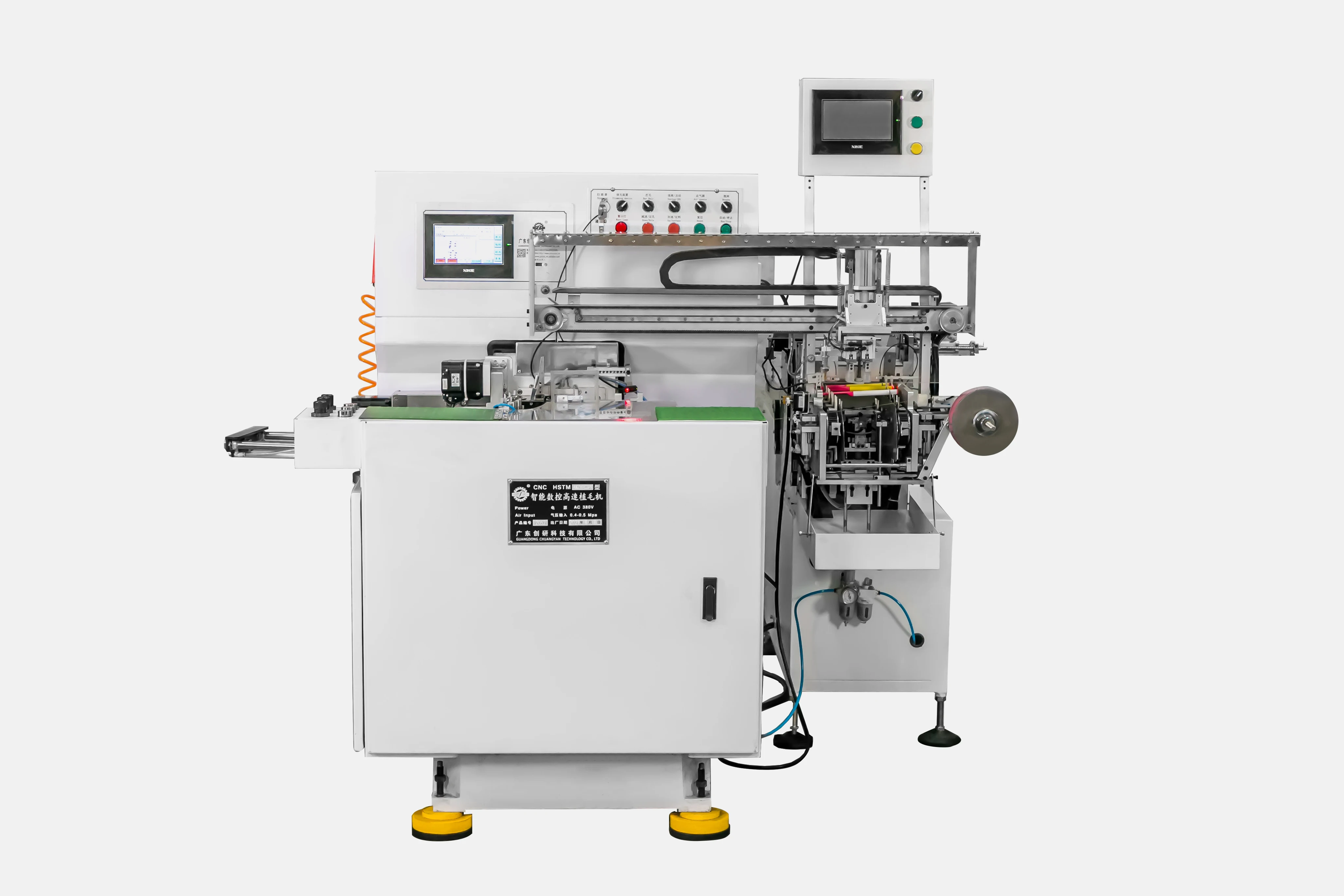

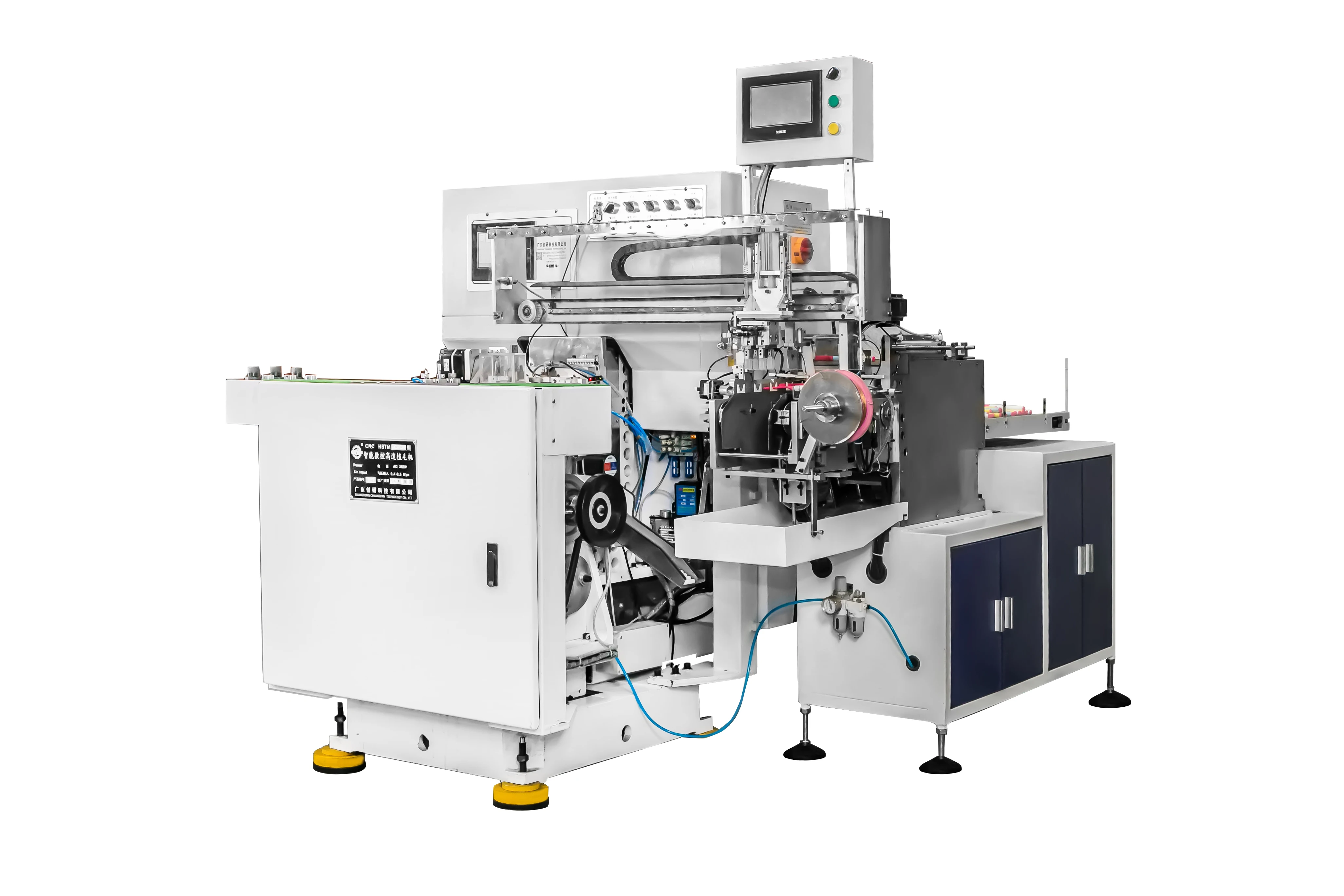

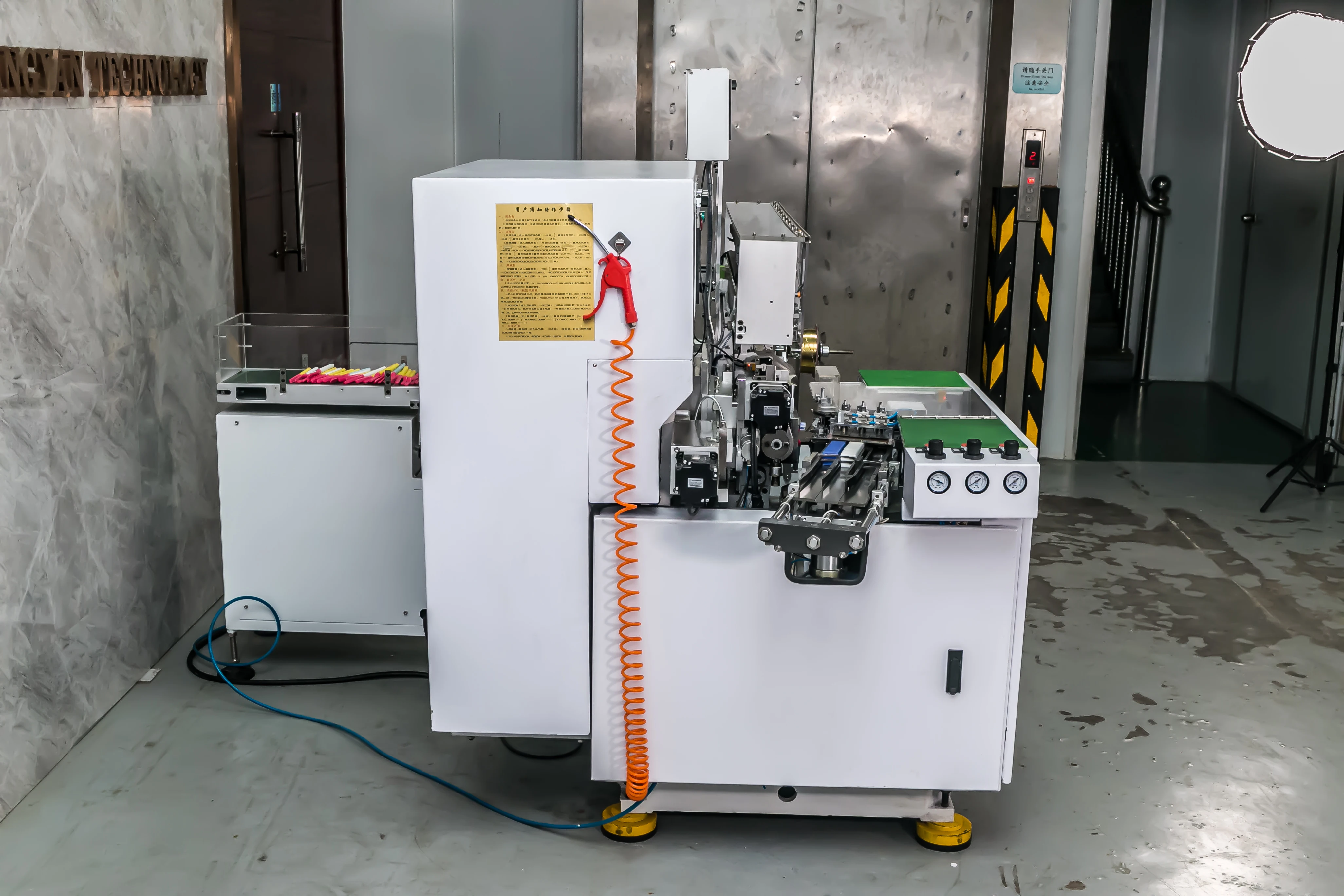

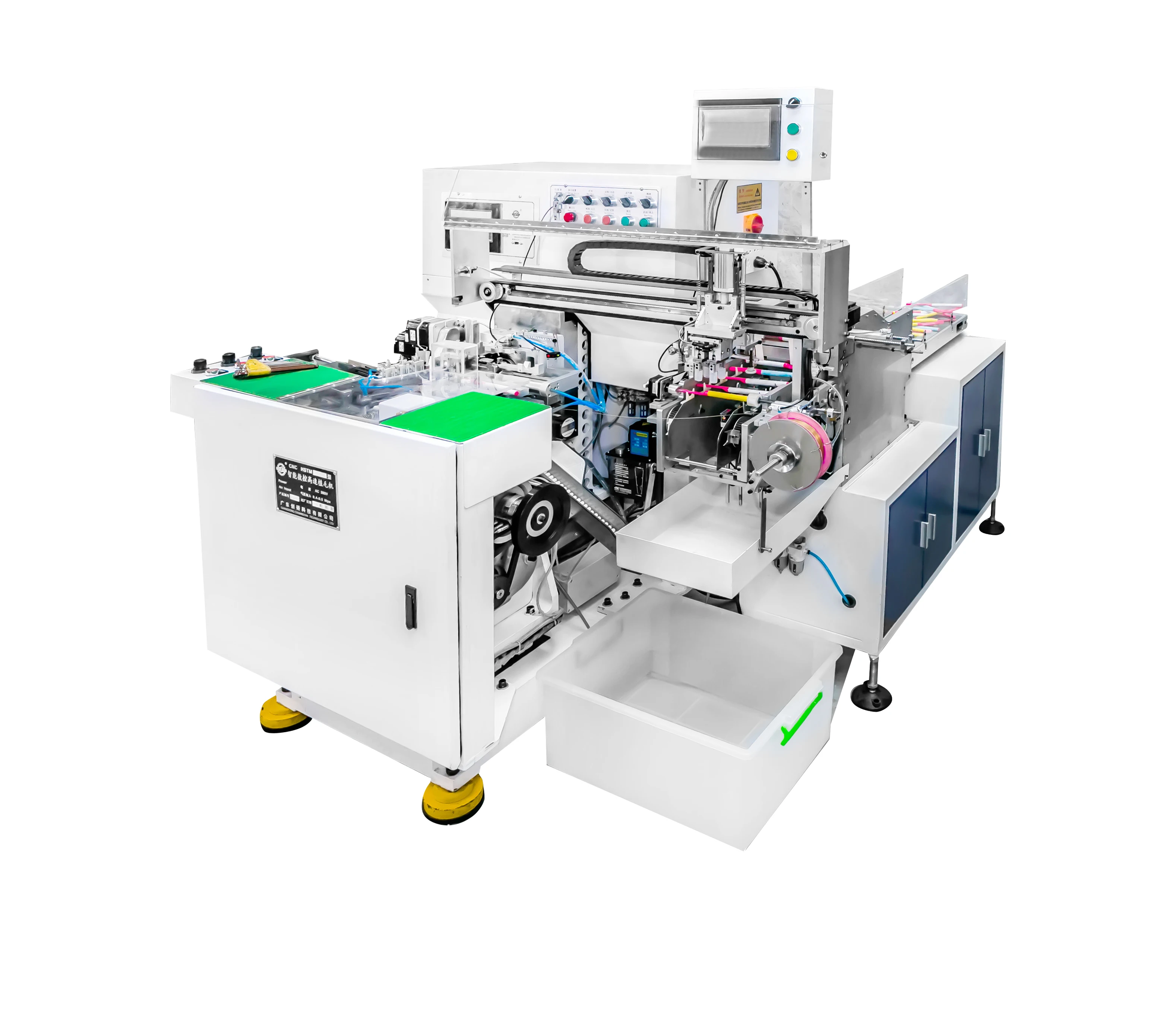

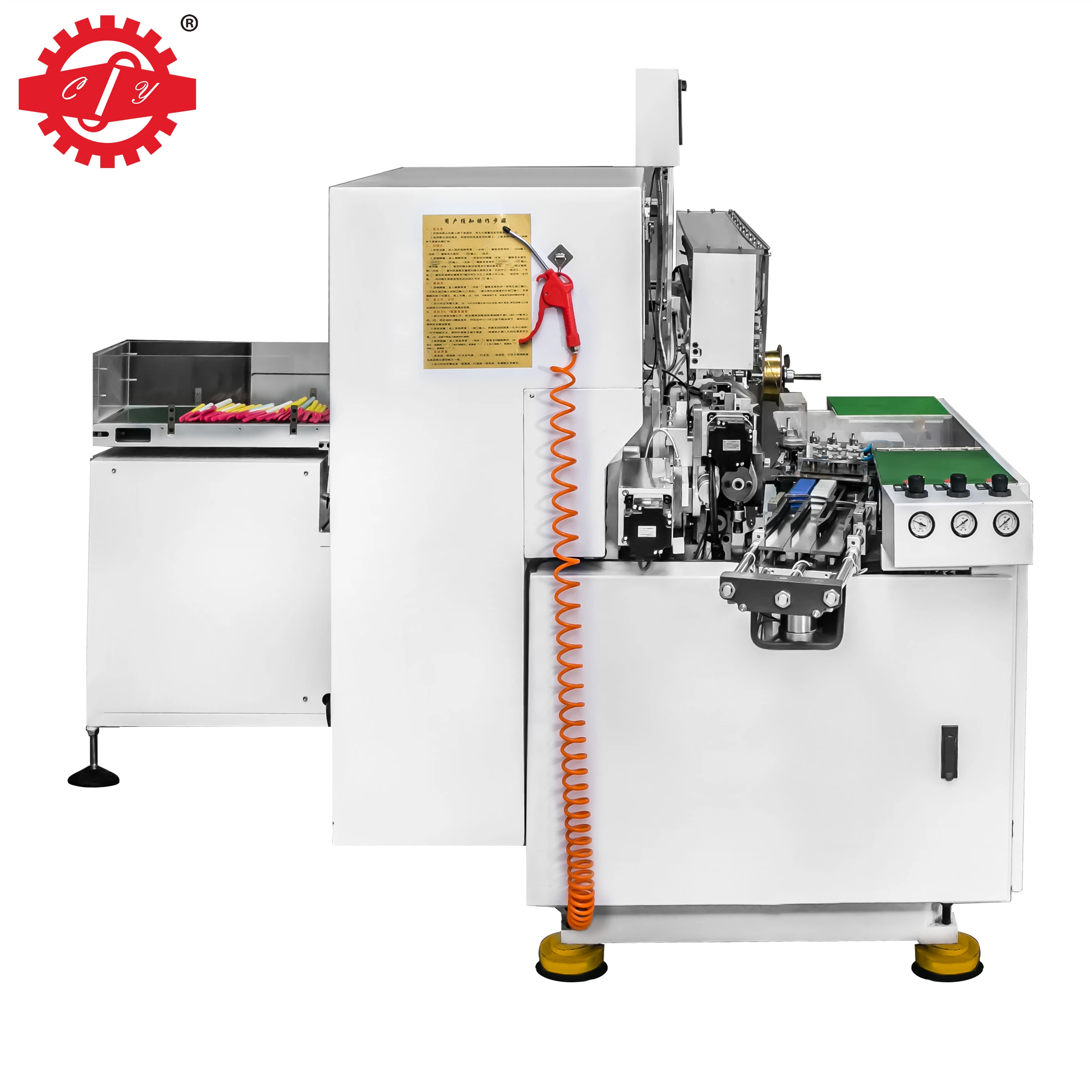

Chuangyan High Precision Automatic Square Hole Toothbrush Tufting Machine

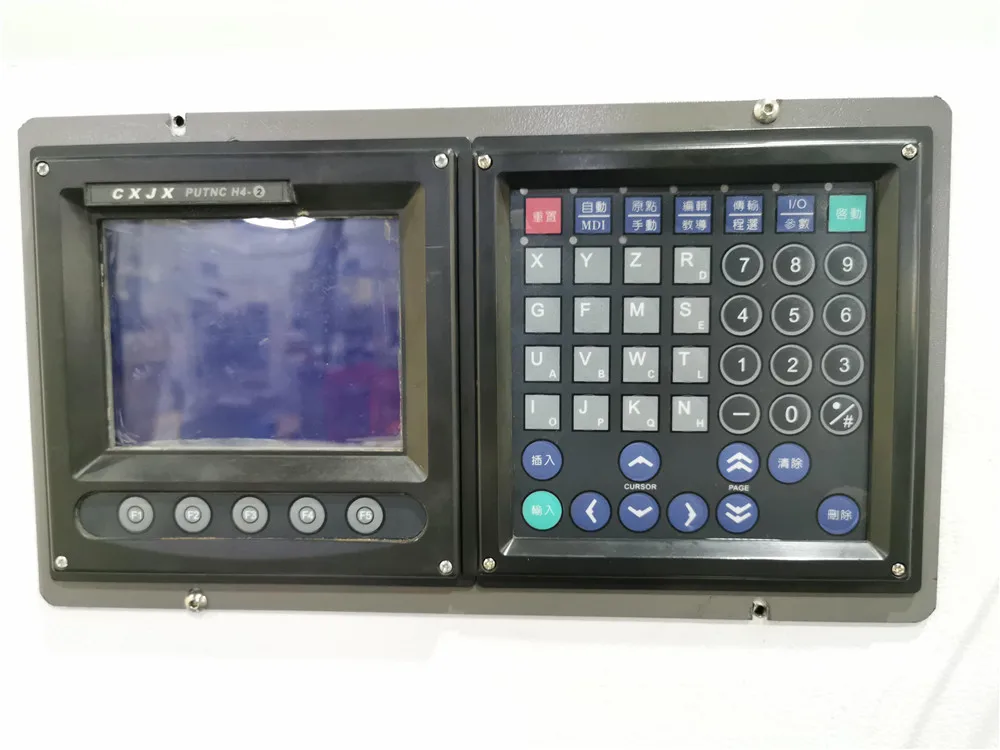

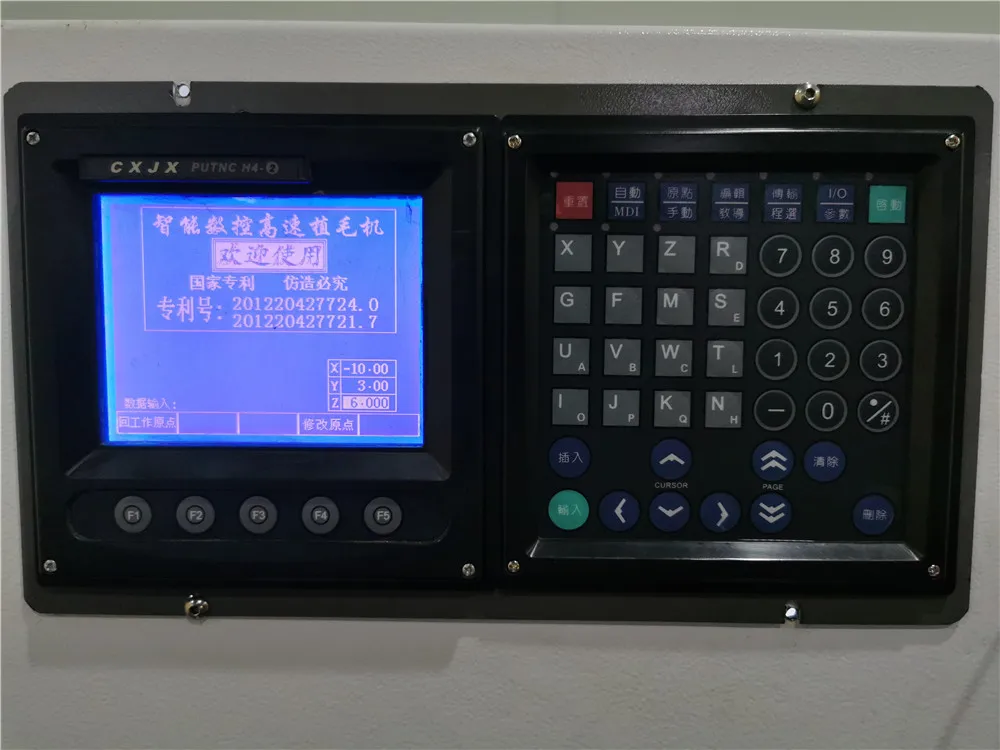

Intelligent NC Computer Parts

Features:
1) The introduction of Germany CNC technology research and development of intelligent numerical control touch screen LCD computer scanning hole coordinates.
2)Used the American import NC CPU chip, speed P4 and dual core.
3)Automatic tracking speed.
4) Positioning precision, convenient operation.

5)The system is stable and reliable, adapted to adapted to different environment.
6) The whole closed loop system, strong anti- interference ability.
7) Can be upgraded to the highest number of flocking 99 holes.(additional options)
8)Can be point to upgrade to add wool implement.(additional options)

Servo Motor Parts

Features:
1) Adopted original high precision servo motor imported from Japan for the worktable of X axis , Y axis and handle's change.
2)Use the German imported precision level C1 double thread ball screw.
3)Fast displacement:820/minute,jump hole distance can reach 8-10mm.
4)Rigid soft stability and reliability

Automatic scanning holes coodinate Parts

Features:

1)Used high-tech infrared automatic scanning brush handle hole coordinates.
2)High efficiency in changing product: 40 holes for about 5 minutes.
3)High precision positioning coordinates: tolerance +/_ 0.02 mm.
4) Easy to operate and learning, high scanning speed.
5)Less tedious steps: manual measuring pitch error precision fine tuning.

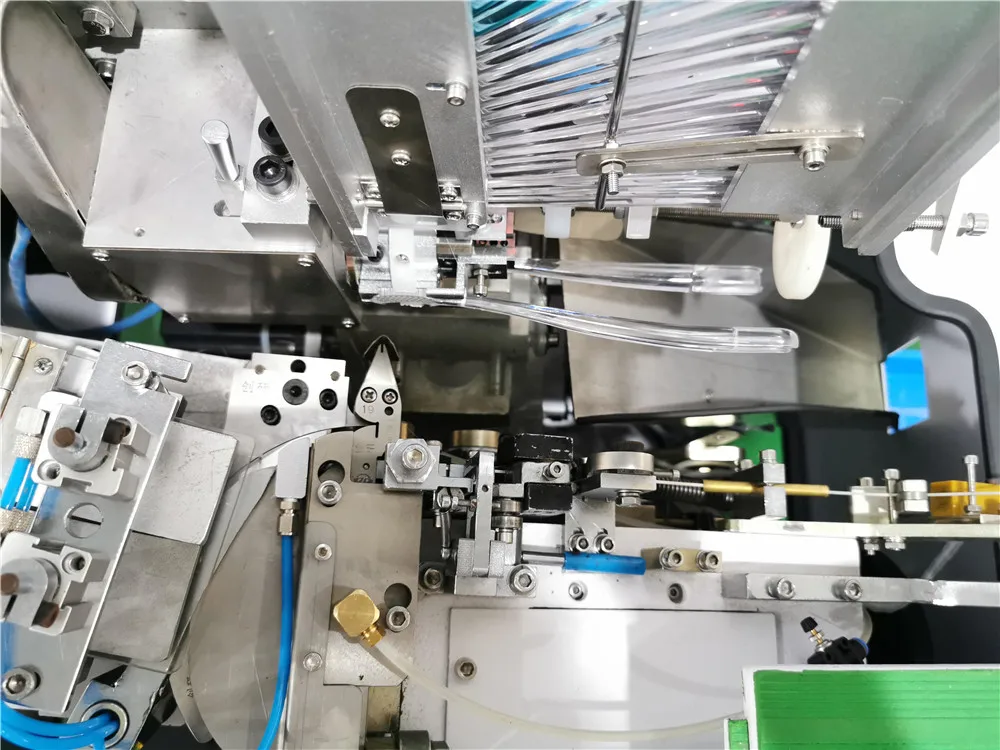

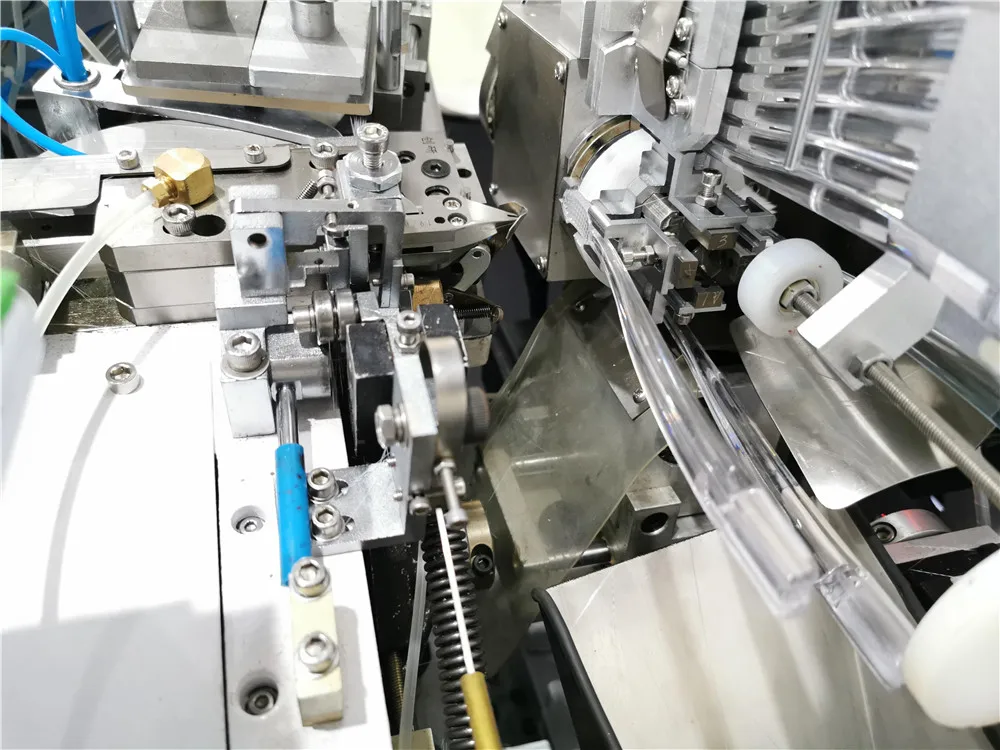

High Speed Flocking Parts

Double Color Box Parts

Features:
1)Citing Germany technology automatic cycle pressure cylinder principle: high pressure uniform and adjustable.
2)Convient adjustment adopts double dabbing cylinder hair neatly.
3)Color change the Japanese original servo motor, can support two holes in one color.
4)The electric control and wool technology, convenient operation and fast.
5)Hair knife takes hair with high stability, planting enough hair and not scatted hair.

Trimming Parts

Features:

Adding trimming device to reduce trimming process.

Nylon Rolling handle -off Box Parts

Feature:
Easy to land rubber toothbrush.
