[JT-ML750]Die cutting and paper creasing machine
US $4500-$6500
Автоматическая машина для обрезки бумаги в рулонах с вращающейся подставкой
- Category: Paper Production Machinery >>>
- Supplier: Wenzhou Binbao Machinery Co. Ltd.
Share on (1600522656199):
Product Overview
Description
Product Description
Automatic Paper Roll To Sheet Cutter Sheeter Machine With Rotary Unwinding Stands
Usage:

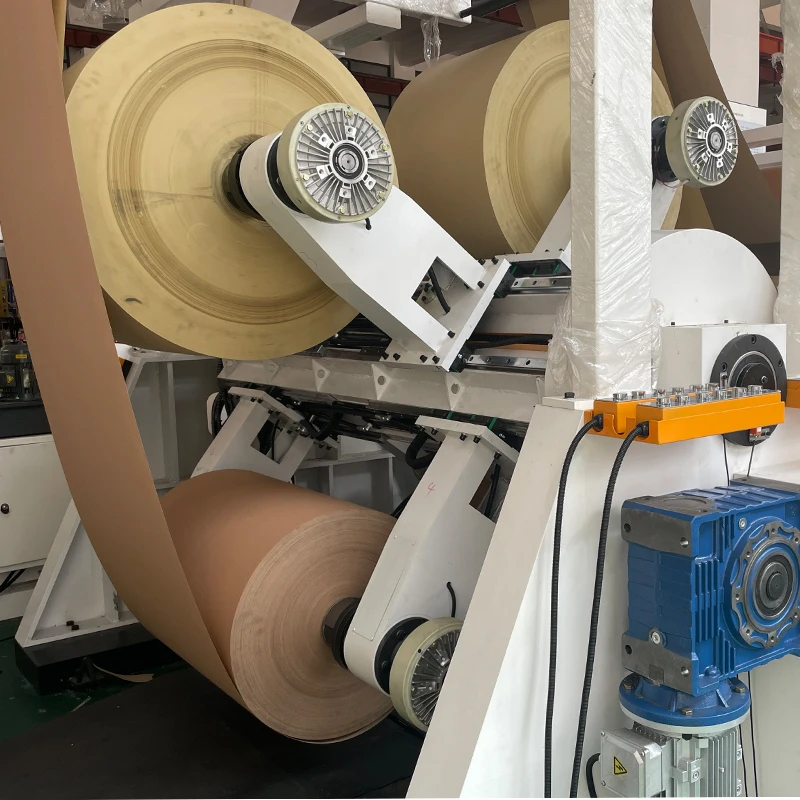

The SCL series machine is a customize size sheets cutting machine. It also be called roll to sheets cutting machine, paper sheeter machine, cutting slitting machine for cutting length sheets in the printing and packaging industry products. Rotary unwinding stands is our new designed structure for unloading paper jumbo rolls. It is a good choice for these customers who have very limited workshop space to install equipment.The machine not only can cut general and special paper material,also can cut PVC, PET, PP and other plastic film material from jumbo roll to sheets. We had export the model machine to Vietnam, Indonesia, Thailand, Malaysia, UAE, Egypt, Algeria, Tunisia, and so on country customers. They can use the Binbao company SCL series paper sheets cutting machine to cut food wrapping sheets, various type paper bags, book or files PVC covers, medical x-ray film, and cut paper cups fan sheets or in mould label sheets for packaging material.
The SCL series machine is a customize size sheets cutting machine. It also be called roll to sheets cutting machine, paper sheeter machine, cutting slitting machine for cutting length sheets in the printing and packaging industry products. Rotary unwinding stands is our new designed structure for unloading paper jumbo rolls. It is a good choice for these customers who have very limited workshop space to install equipment.The machine not only can cut general and special paper material,also can cut PVC, PET, PP and other plastic film material from jumbo roll to sheets. We had export the model machine to Vietnam, Indonesia, Thailand, Malaysia, UAE, Egypt, Algeria, Tunisia, and so on country customers. They can use the Binbao company SCL series paper sheets cutting machine to cut food wrapping sheets, various type paper bags, book or files PVC covers, medical x-ray film, and cut paper cups fan sheets or in mould label sheets for packaging material.
Feature:
1. Machine Rack: The machine rack adopt Shanghai BaoSteel company as steel raw material. 16mm thickness machine body wall make the machine more stronger and running more stable at high speeds.
2. Aluminum Rollers: All aluminum rolls installed in machine are being dynamic balance testing. Material can smoothly move in these rollers without any scratching.
3. PU-Rollers: The PU rollers are high abrasive resistance,which can insure machine feeding precision.
4. Cylinder Lifter: The jumbo roll material can be easy lift up by the cylinder from the ground. Save labor and easily operating the cutting machine.
5. Motors: The machine adopt one set servo motor and two sets asynchronous motors to drive.It make the machine working with a high level cutting precision(0.2mm error range)
6. Control System: The SCN series paper cutting machine adapt intelligent and easy operating control system with Japanese brand PLC. It have automatic counting sheets,automatic stop machine after cutting per batch,automatic detect mother rolls diameter,automatic tension control and so on functions. In the touch screen,you also can check machine working condition parameters.
7. Static Elimination:The machine have statics bar to eliminate the statics influence.
8. Automatic counting: The machine will automatic count the cutting sheets quantity and stop when it reach your desired sheets quantity setting in the PLC.

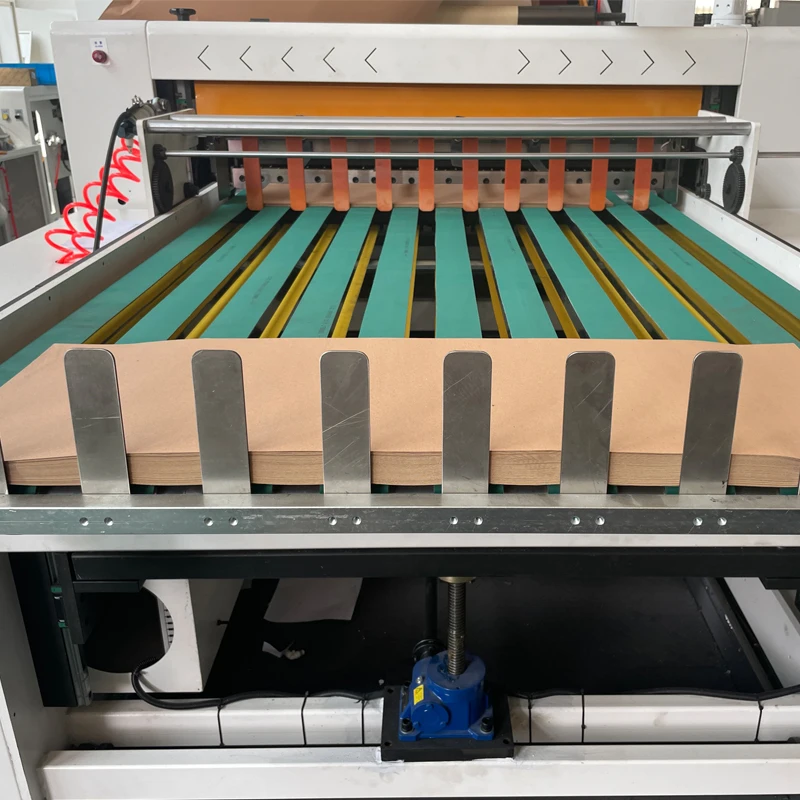

9. Non stop: When the operator collect the finished cutting sheets, the machine won’t stop and continue cut paper sheets.
2. Aluminum Rollers: All aluminum rolls installed in machine are being dynamic balance testing. Material can smoothly move in these rollers without any scratching.
3. PU-Rollers: The PU rollers are high abrasive resistance,which can insure machine feeding precision.
4. Cylinder Lifter: The jumbo roll material can be easy lift up by the cylinder from the ground. Save labor and easily operating the cutting machine.
5. Motors: The machine adopt one set servo motor and two sets asynchronous motors to drive.It make the machine working with a high level cutting precision(0.2mm error range)
6. Control System: The SCN series paper cutting machine adapt intelligent and easy operating control system with Japanese brand PLC. It have automatic counting sheets,automatic stop machine after cutting per batch,automatic detect mother rolls diameter,automatic tension control and so on functions. In the touch screen,you also can check machine working condition parameters.
7. Static Elimination:The machine have statics bar to eliminate the statics influence.
8. Automatic counting: The machine will automatic count the cutting sheets quantity and stop when it reach your desired sheets quantity setting in the PLC.
9. Non stop: When the operator collect the finished cutting sheets, the machine won’t stop and continue cut paper sheets.

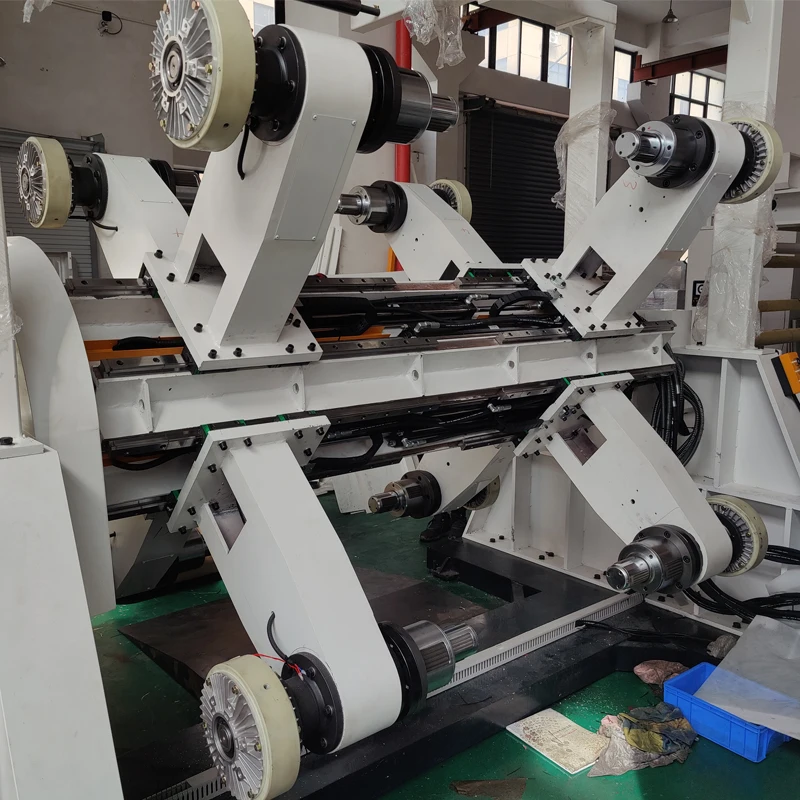

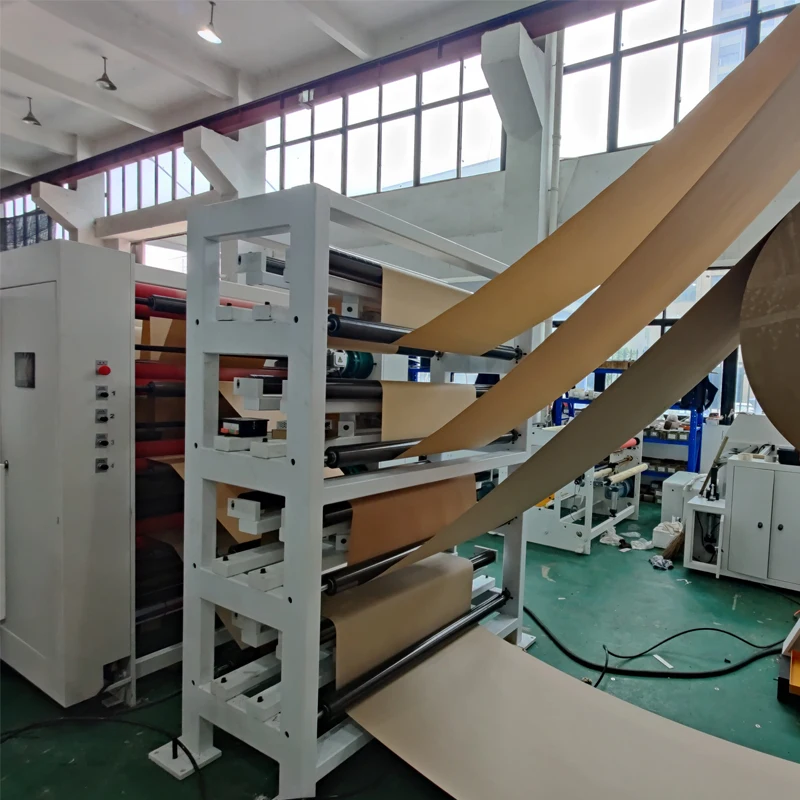

10.The rotary structure unwinding stand can save much space for installing multi-rolls paper roll to sheet cutting machine.
Specification
MAIN PARAMETERS OD SCL SHEETS CUTTING MACHINE | ||||||
Model Name | SCL-1100 | SCL-1400 | SCL-1800 | |||
Mother Roll Width(Max) | 1100mm | 1400mm | 1800mm | |||
Mother Roll Diameter(Max) | Φ1000mm | Φ1000mm | Φ1000mm | |||
Mother Roll Weight Capacity | 1200kg | 1200kg | 1200kg | |||
Paper Core Size | 3/6 inch | 3/6 inch | 3/6 inch | |||
Cutting Length | 20-800mm | 20-800mm | 20-800mm | |||
Thickness Range | 18-120gsm | 18-120gsm | 18-120gsm | |||
Cutting Precision | ±0.2mm | ±0.2mm | ±0.2mm | |||
Cutting Speed | 150 cuts per minute | 150 cuts per minute | 150 cuts per minute | |||
Application
Case One: Sticker paper sheets
Case Two: Shopping paper bags
Case Three: Plastic film
Case Four: Blue drawing paper
Customer Factory Photos
After Sales Service
Packing & Delivery
Company Profile
Binbao Machinery was co-founded by three dynamic and experienced young people, they are Alfred, Lam and Ives. They have been working in the packaging and printing machinery industry for nearly ten years. After graduating from Shanghai University of Economics and Business in 2008, Alfred has been working in a well-known bank in Shanghai, but he has never given up his love for machinery. Lam and Ives are colleagues. They have worked together for four years in a packaging and printing machinery manufacturer in Ruian, Wenzhou. Lam is a test engineer and Ives is responsible for mechanical design and assembly. They are willing to think, use their knowledge to improve the performance of the modified machine, and enjoy it.Lam and Ives met Alfred at a European packaging and printing machinery exhibition in 2014. They found that no Chinese company at the exhibition only focused on the production of paper roll slitting machines and sheets cutting machines.This subdivision field made them feel extremely excited. After they returned to China, after careful planning, their first slitting machine was finally completed in the warehouse of Ives father in early 2015. From then on, they began to process paper slitting machines and sheets cutting machines for Ruian's printing presses, paper cup machines, paper bag machines and other manufacturers.
In fact, in Ruian, the base of packaging and printing machinery, there are many machinery companies that produce slitting machines and sheets cutting machines, but they all spend their time and energy on paper products machinery with higher total prices and better profits. Slitting machine and sheets cutting machine are just a common tool, a supporting role ignored by everyone. But the founders of Binbao Machinery don't think so. They firmly believe that supporting roles also play a key role. Slitting machines and sheets cutting machines are widely used in packaging and printing production companies, and their stability and cutting quality also affect the value of the entire company's products. Out of their love for machinery, they continue to transform and upgrade the machines they develop.
Under the influence of the epidemic in 2020, their processing plants lost nearly half of their orders. Fortunately, they finally have enough time to design their own office, factory, and website, and start their brand development. Binbao Machinery will use its rich experience to continuously improve and improve the performance of slitting machines and sheets cutting machines, provide high-quality machinery and after-sales services to end users all over the world, and be the "BEST SUPPORTING ACTOR" for world packaging and printing industry.
In fact, in Ruian, the base of packaging and printing machinery, there are many machinery companies that produce slitting machines and sheets cutting machines, but they all spend their time and energy on paper products machinery with higher total prices and better profits. Slitting machine and sheets cutting machine are just a common tool, a supporting role ignored by everyone. But the founders of Binbao Machinery don't think so. They firmly believe that supporting roles also play a key role. Slitting machines and sheets cutting machines are widely used in packaging and printing production companies, and their stability and cutting quality also affect the value of the entire company's products. Out of their love for machinery, they continue to transform and upgrade the machines they develop.
Under the influence of the epidemic in 2020, their processing plants lost nearly half of their orders. Fortunately, they finally have enough time to design their own office, factory, and website, and start their brand development. Binbao Machinery will use its rich experience to continuously improve and improve the performance of slitting machines and sheets cutting machines, provide high-quality machinery and after-sales services to end users all over the world, and be the "BEST SUPPORTING ACTOR" for world packaging and printing industry.
FAQ
Q: What should I do to find the appropriate machine?
A: You should offer some info.
1. Material name
2. Material thickness or gsm
3. Max. diameter and width of mother roll
4. Minimum width of finished roll
A: You should offer some info.
1. Material name
2. Material thickness or gsm
3. Max. diameter and width of mother roll
4. Minimum width of finished roll
5.Maximum rewinding diameter
You also can send your message of your slitting processing to our sales. They will help you find the best solution.
Q: How can I operate the machine?
A: Our machine is very easy to operate. We also offer the manual and video to teach you. Welcome to visit our factory to learn more details by yourself. We also share the slitting rewinding machine and sheets cutting machine operating
videos in our YouTube Channel.
Q: What about your after-sales service?
A: Call us, email us, or video-chat, we will offer solutions within 24 hours
Q: What is your terms of payment?
A: We accept many kinds of payment. Please contact us for details.
Q: What is your advantage?
A: Not only good quality but also good service
1. Over 20 years manufacturer
2. All the accessories made by ourselves.
3. We have our own research and development design team.
4. We accept products customization.
5. 24 hours after-sales service and engineer oversea service.
You also can send your message of your slitting processing to our sales. They will help you find the best solution.
Q: How can I operate the machine?
A: Our machine is very easy to operate. We also offer the manual and video to teach you. Welcome to visit our factory to learn more details by yourself. We also share the slitting rewinding machine and sheets cutting machine operating
videos in our YouTube Channel.
Q: What about your after-sales service?
A: Call us, email us, or video-chat, we will offer solutions within 24 hours
Q: What is your terms of payment?
A: We accept many kinds of payment. Please contact us for details.
Q: What is your advantage?
A: Not only good quality but also good service
1. Over 20 years manufacturer
2. All the accessories made by ourselves.
3. We have our own research and development design team.
4. We accept products customization.
5. 24 hours after-sales service and engineer oversea service.
