Darlly factory manufacturer 304 stainless steel filter housing Liquid filtration High pressure with depth stack filter cartridge

Share on (1600523333774):


Price:$666.00 - $1,399.00

Quantity:


Product Overview

Description



It's such a pleasure and an honor that our products can be showed to you.
If you are looking for this product, please click "Send Inquiry".
If you have other inquires, also can click "Send Inquiry'' or " Contact Supplier'' with the details. With more than 25 years experiences, we believe we can provide the better service for you.

Hangzhou Darlly Filter Housing And Cartridges 316L Stainless Steel Housing Lenticular Filters Housing Disc For Brewery Equipment


Products Description

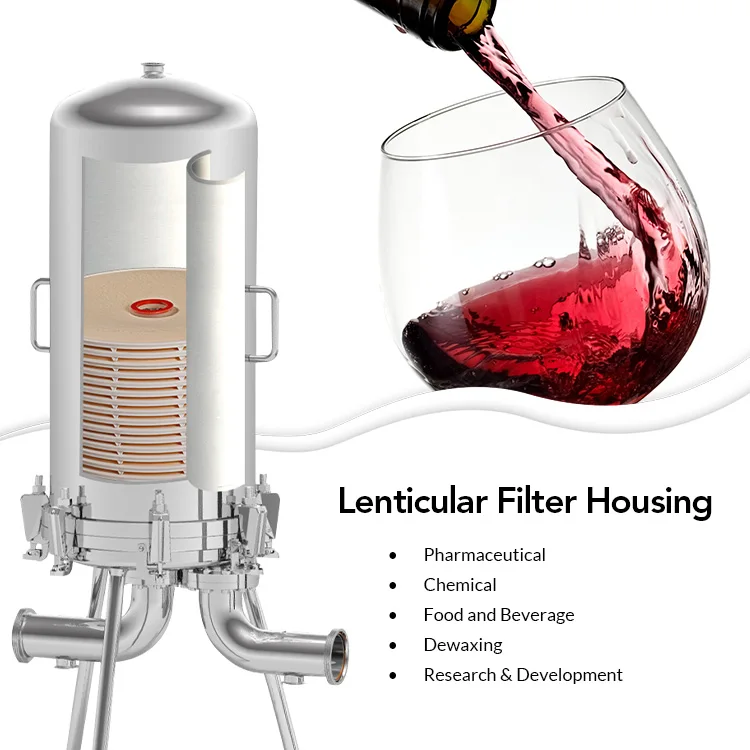

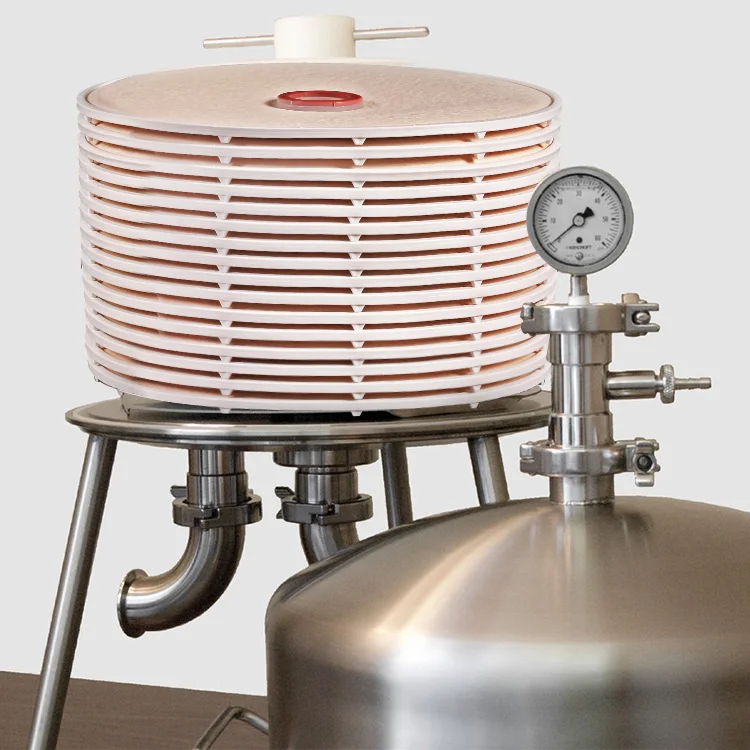

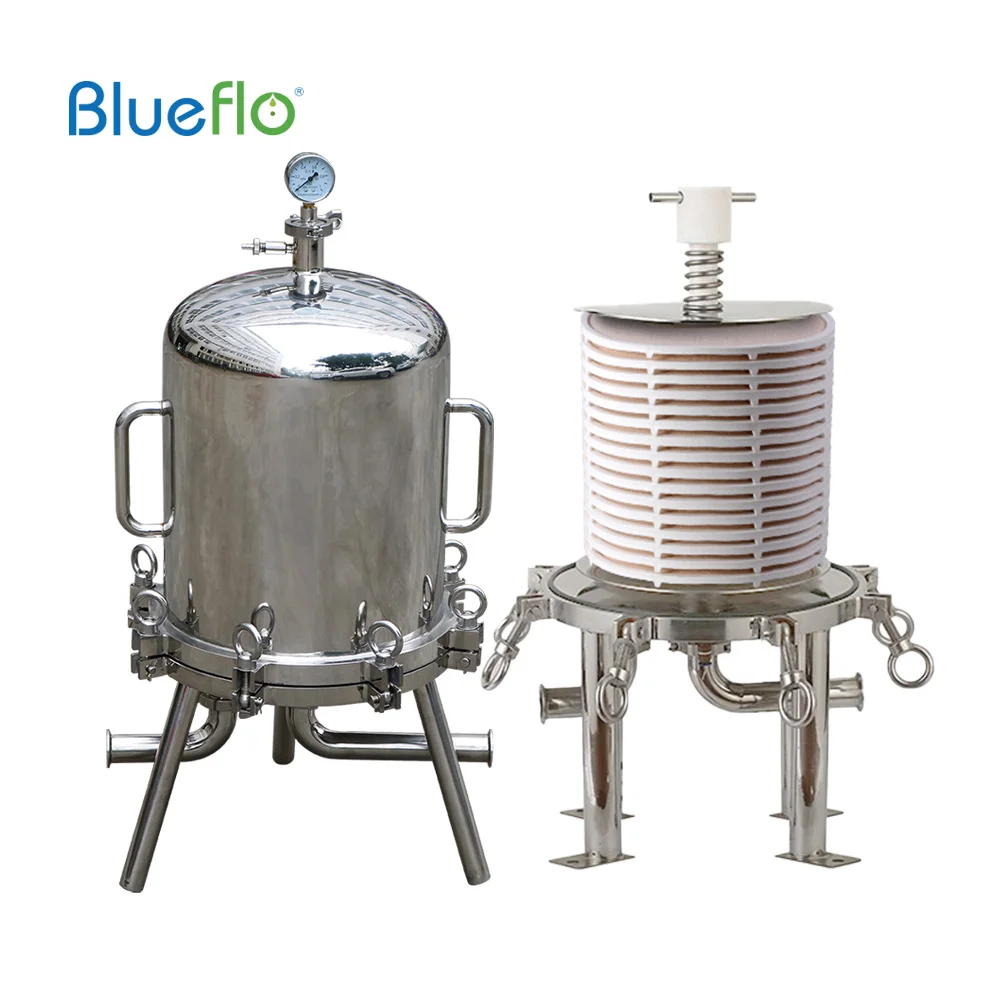

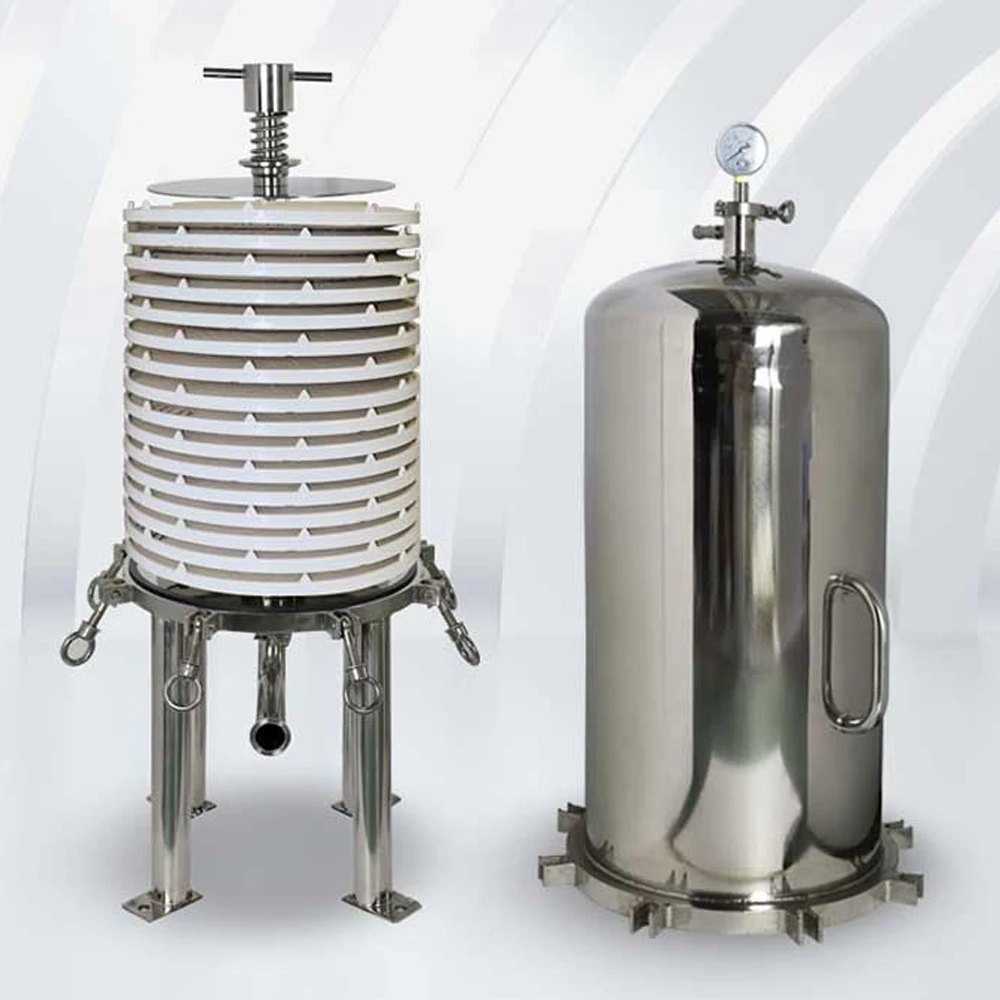

DSF Series Depth-stack Filter Housings

BluefloTM DSF Series Depth-stack Filter Housings are depth housings for Depth-stack filter cartridges. They can replace DE filter to remove the particles in kinds of liquids for filtration,clarification and purification.The housings are constructed under sanitory grade standards with high precision polishing.There is no residual liquid after using and easy to clean. With the bottom inlet and outlet design, it can avoid the turbulence of liquid effectively and improve the filtration performance. The housing can hold 4 pcs depth-stack filter cartridges at most and meet the high flow requirement.


————— Specifications —————


Material of Constructions
HousingBody
304,316L
Vent/Drain
304,316L
Eyebolt
304
Feet
304
O-Ring/Gasket
EPDM、PTFE、Silicone
Connections
Body connection
Flange
Inlet/outlet N1、N2
flange,quick install,thread

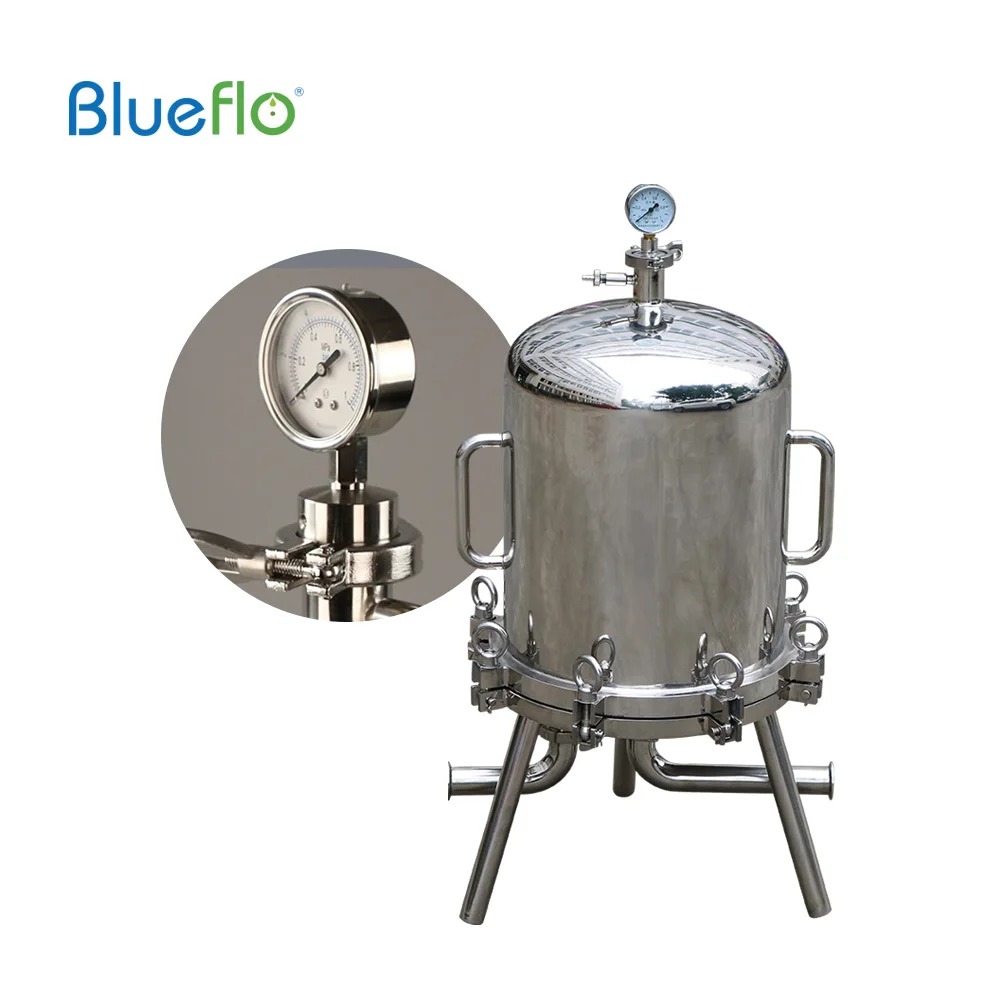

Pressure gage N3 (optional)
1.5” quick install
Drain N4(optional)
1” quick install
Vent N5(optional)
1/2” quick install
Surface polishing
Polishing type:
mechanical polishing, electrolytic polishing
polishing precision
inside 0.3μm,outside 0.4μm
Performance
Max. Operation pressure
0.6MPa
Max. Operation temperature
150 ℃
Sterilization
SIP or steam,121 ℃/30min



————— Feature —————


Bottom inlet and outlet design, easy to clean, optional drain valve for easy operation of drain.
For multi-cartridges housing, there is style of multistage housing body which is easy for cartridge changing and reduce the exudation.

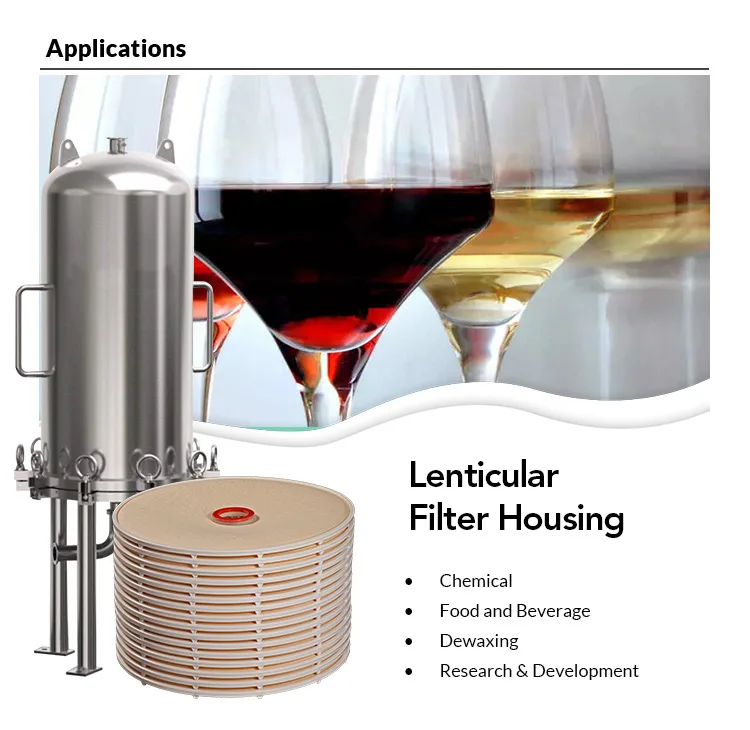

————— Application —————


• The particle filtration of wine,beer, syrup.
• The prefiltration of juice.
• The final filtration of juice.
• The clarification of wine,liquid gel,olive oil.
• The liquid filtration in chemical,microelectronics industry.

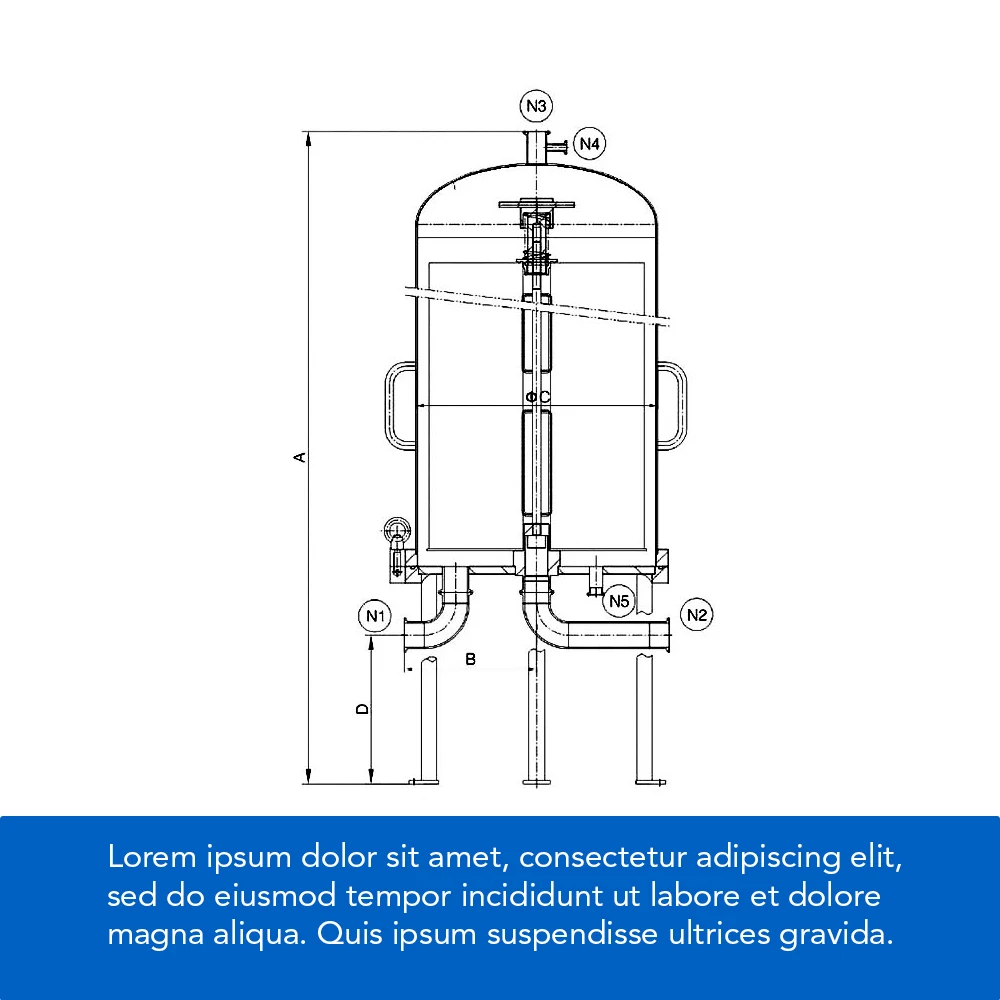

Dimensions
12” Depth-stack cartridge
16” Depth-stack cartridge
1PC
2PC
3PC
4PC
1PC
2PC
3PC
4PC
A:Total height(except pressure gage)
650
1210
1490
1760
960
1230
1500
1770
B:Inlet center distance
200
2500
C:Diameter
Φ325
Φ450
D:Terrain clearance of inlet/outlet N1, N2
280
280
Inlet/outlet N1, N2
2"
2"
