Manufacture Automatic High Speed Low Noise Cold Heading Nut Bolt Screw Making Machines Price

Manufacture Automatic High Speed Low Noise Cold Heading Nut Bolt Screw Making Machines Price

Category: Metal Forging Machinery >>>
Supplier: Fasto Industrial Co. Ltd.

Price:$4,000.00 - $4,900.00

Quantity:

Product Overview

Description

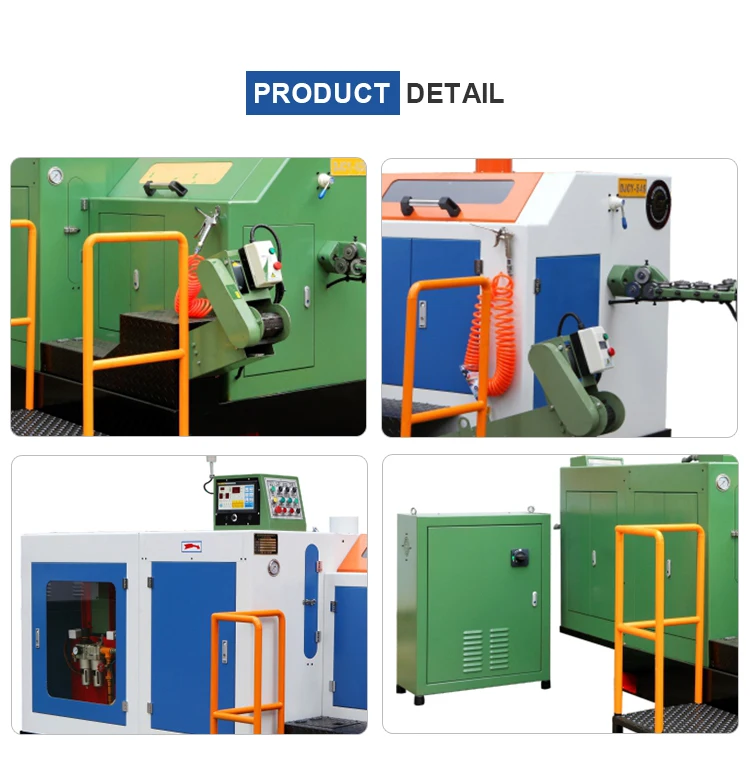

Details Images

Product Description

Manufacture Automatic High Speed Low Noise Cold Heading Nut Bolt Screw Making Machines Price

Product Name	Manufacture Automatic High Speed Low Noise Cold Heading Nut Bolt Screw Making Machines Price
Condition	New
Marketing Type:	Ordinary Product
Core Components	Motor
Key Selling Points	Long Service Life
Place of origin	Tianjin, China
Brand	Fasto
Warranty	1 year

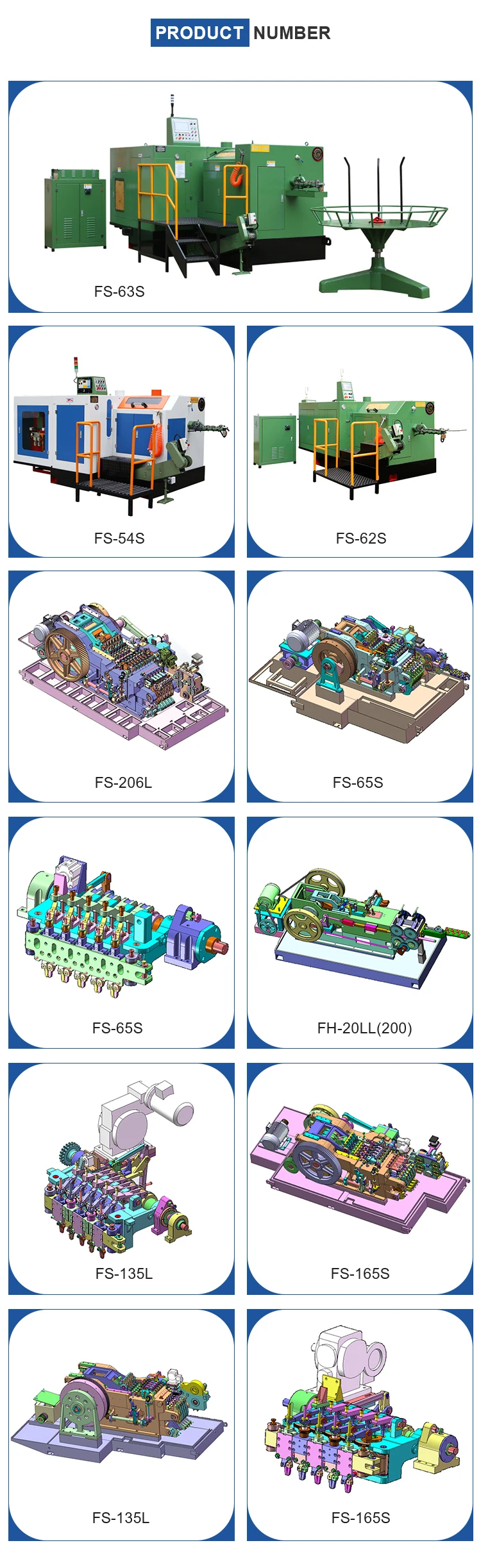

Product Number

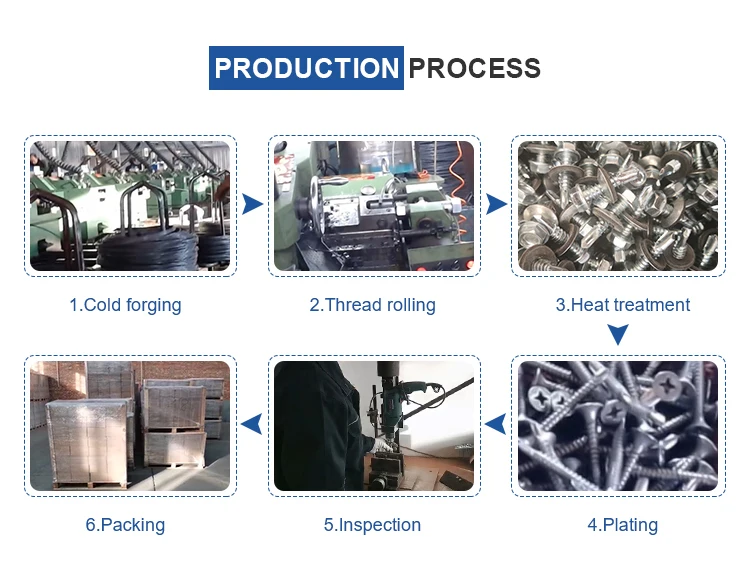

Production Process

Specifications

Bolt cold heading machine Fomer Specifications

model	unit	FS-63S	FS-83S	FS-83L	FS103S	FS-103L	FS-133S	FS-133L
Foring tation	NO	3	3	3	3	3	3	3
forging force	kgf	35,000	60,000	60,000	80,000	80,000	115,000	115,000
Max.cutoff dia.	mm	φ8	φ10	φ10	φ13	φ13	φ15	φ15
Max.cut-off length	mm	95	120	135	155	192	190	250
Clutch Torque 5.5 bar	Nm	7312	17568	17568	20340	20340	40925	40925
Speed range	pcs/min	60-270	65-210	55-160	60-180	50-120	60-140	60-90
P.K.O.stroke	mm	12	15	16	24	30	26	25
K.O.stroke	mm	70	90	115	80	162	180	230
Main slider stroke	mm	110	146	192	190	280	200	350
Main motor	KW	11	18	22	22	30	30	37
Cut-off die.dia	mm	φ30*45L	φ35*50L	φ35*50L	φ45*59L	φ45*59L	φ63*69L	φ55*70L
Punch die.dia	mm	φ40*90L	φ45*115L	φ45*140L	φ53*115L	φ53*112L	φ60*130L	φ60*179L
Main die.dia	mm	φ50*85L	φ60*125L	φ60*150L	φ75*135L	φ75*200L	φ86*135L	φ86*265L
Die pitch	mm	60	78	78	90	90	98	110
Approx.weight	Kg	7,800	13,000	16,000	17,000	195,000	21,000	31,000
Normal bolt size	mm	3-6	5-8	5-8	6-10	6-10	8-12.7	8-12.7
Shank length of blank	mm	8-65	15-90	30-107	15-125	25-152	20-172	70-210

Model	Unit	FS-54S	FS-62S	FS-64S	FS-64L	FS-84S	FS-104S	FS-104L	FS-134L
Foring tation	NO	4	2	4	4	4	4	4	4
Forging force	kgf	30,000	30,000	35,000	40,000	60,000	80,000	80,000	120,000
Max. cutoff Dia.	mm	φ7	φ7	φ8	φ8	φ10	φ13	φ13	φ15
Max. cut-off length	mm	75	75	95	100	120	155	185	210
Clutch Torque 55ber	nm	7312	/	7312	10105	17568	20340	20340	40925
Speed range	pcs/min	80-300	80-300	60-270	60-240	60-200	55-160	50-135	50-120
P.K,O,Stroke	mm	15	15	12	12	19	24	30	34
K.O.Stroke	mm	55	55	70	90	90	130	160	180
Main slider stroke	mm	110	110	110	146	146	210	260	290
Main motor	KW	11	7.5	15	15	22	30	30	37
Cut-off die.dia	mm	φ25*40L	φ25*40L	φ30*45L	φ30*50L	φ35*50L	φ45*59L	φ45*59L	φ63*69L
Punch die.dia	mm	φ35*82L	φ35*82L	φ40*90L	φ40*90L	φ45*115L	φ53*115L	φ60*130L	φ60*130L
Main die.dia	mm	φ45*85L	φ45*85L	φ50*85L	φ50*110L	φ60*125L	φ75*135L	φ75*135L	φ86*190L
Die pitch	mm	53	53	60	60	78	90	90	110
Approx.weight	kg	4,700	3,500	8,500	8,500	14,500	24,000	27,000	30,000
Normal bolt size	mm	3-5	3-6	3-6	3-6	5-8	6-10	6-10	8-12.7
Shark length of blank	mm	10-50	10-50	8-65	10-80	12-85	15-125	20-152	30-170

model	Unit	FS-134LL	FS-164S	FS-164LL	FS-204L	FS-204LL	FS-254S	FS-254L
Foring tation	NO	4	4	4	4	4	4	4
Forging force	kgf	120,000	210,000	210,000	350,000	350,000	430,000	430,000
Max.cutoff dia.	mm	φ15	φ20	φ20	φ32	φ32	φ40	φ40
Max.cut-off length	mm	285	210	350	290	360	253	320
Clutch torque 5.5 ber	Nm	40925	36425	36425	56345	56345	40925	40925
Speed range	pcs/min	45-70	50-100	40-60	50-80	40-60	40-60	35-50
P.K.O.stroke	mm	40	35	46	60	46	40	46
K.O.stroke	mm	280	180	320	270	325	175	280
Main slider stroke	mm	380	290	490	386	496	330	446
Main motor	KW	37	55	46	60	46	40	46
Cut-off die.dia	mm	φ63*59L	φ60*88L	φ64*100L	φ94*128L	φ75*120L	φ99*130L	φ99*150L
Punch die.dia	mm	φ60*229L	φ75*185L	φ75*185L	φ90*235L	φ90*215L	φ120*270L	φ120*270L
Main die.dia	mm	φ86*305L	φ100*190L	φ100*345L	φ125*280L	φ125*345L	φ140*250L	φ148*300L
Die pitch	mm	110	120	120	140	140	160	160
Approx. weight	kg	38,000	45,000	63,000	70,000	70,000	105,000	131,000
Normal bolt size	mm	8-12.7	10-16	10-16	12-20	12-20	14-25.4	16-25.4
Shank length of blank	mm	75-262	20-172	100-305	25-255	100-305	35-175 35-165	60-254

model	unit	FS-65S	FS-85S	FS-105S	FS-135S
Foring tation	NO	5	5	5	5
forging force	kgf	35,000	80,000	80,000	130,000
Max.cutoff dia.	mm	φ8	φ10	φ13	φ18
Max.cut-off length	mm	95	105	155	210
Clutch torque 5.5ber	Nm	7312	17568	20340	40925
Speed range	pcs/min	50-240	50-145	50-160	50-110
P.K.O.Stroke	mm	32	26	24	34
K.O.Stroke	mm	70	85	130	180
Main slider stroke	mm	110	146	210	290
Main motor	KW	15	22	30	45
Cut-off. die.dia	mm	φ30*45L	φ35*62L	φ45*59L	φ63*69L
Punch die.dia	mm	φ40*90L	φ45*115L	φ53*115L	φ60*130L
Main die.dia	mm	φ50*85L (110L)	φ60*125L	φ75*135L	φ86*190L
Die pitch	mm	60	78	90	110
Approx. weight	Kg	9200	16,000	24,000	32,000
Normal bolt size	mm	3-6	5-8	6-10	8-12.7
Shank length of blank	mm	8-65	15-80	15-125	30-170

model	unit	FS-165S	FS-205L	FS-225L	FS-106S	FS-136L	FS-206L
Foring tation	NO	5	5	5	6	6	6
forging force	kgf	220,000	350,000	440,000	90,000	140,000	390,000
Max,.cutoff.dia	mm	φ23	φ32	φ40	φ15	φ18	φ32
Max.cut-off length	mm	210	290	370	155	210	290
Clutch Torque 5.5ber	Nm	36425	56345	40925	20340	40925	56345
Speed range	pcs/min	40-90	40-60	35-50	55-130	55-90	40-65
P.K.O.Stroke	mm	35	60	45	24	34	60
K.O.Stroke	mm	180	270	315	130	180	270
Main slider stroke	mm	290	386	510	210	290	386
Main motor	KW	55	90	110	37	45	8E-90
Cut-off die.dia	mm	φ60*88L	φ94*128L	φ99*150L	φ45*59	φ63*69L	φ94*128L
Punch die.dia	mm	φ75*185L	φ75*185L	φ120*270L	φ53*115	φ60*130L	φ90*235L
Main die.dia	mm	φ100*190L	φ125*280L	φ148*355L	φ75*160L	φ86*190L	φ125*280L
Die pitch	mm	120	140	160	90	110	140
Approx. weight	kg	47,000	75,000	140,000	25,000	35,000	85,000
Normal bolt size	mm	10-16	12-20	14-25.4	6-10	8-12.7	12-20
Shank length of blank	mm	25-172	25-255	60-305	15-125	20-172	25-255
