Product Overview

Description



Xuchang Huarui Machinery Co., Ltd
All our machine supply 2 years warranty ,life-long time technical support ,quality and service all can be guaranteed .
Our nail machines have been exported to Algeria, Russia, Uzbikistan, Kazakhstan, Turkmenistan, Iran, Lebanon, Egypt, Saudi Arabia,Kenya, Tanzania, Ethiopia, Tunis, Zimbabwe, Zambia, Indonesia, Philippines, Bangladesh, Pakistan, Belarus, Canada, America,Mexico, Peru etc... and got very good feedback.
Amy Peng (Mobile/Whatsapp/Wechat): +86 132 7125 3712


Products Description

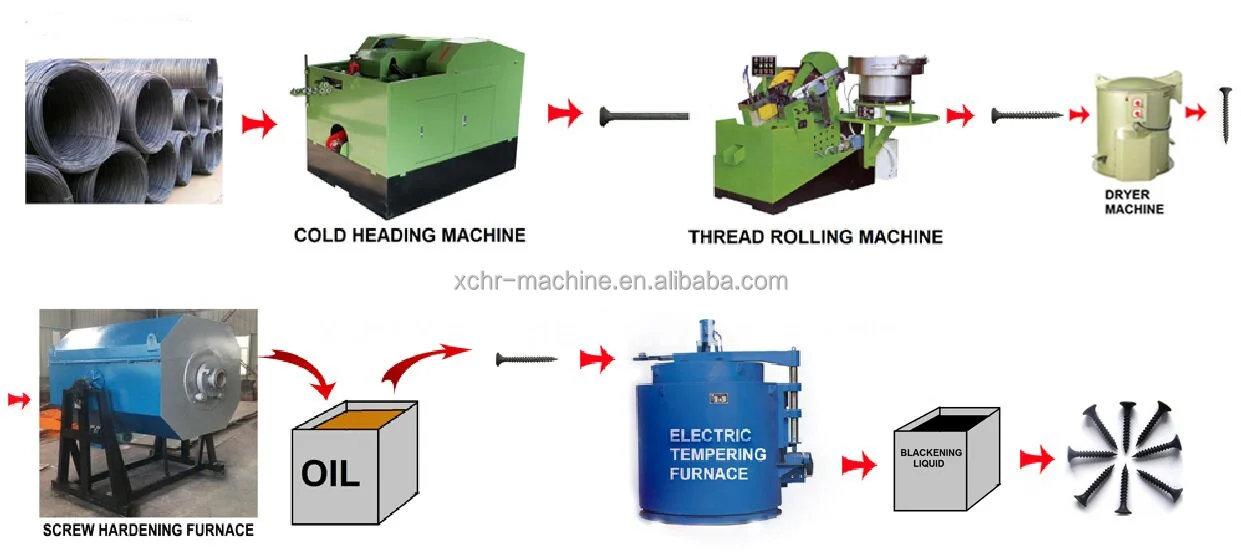

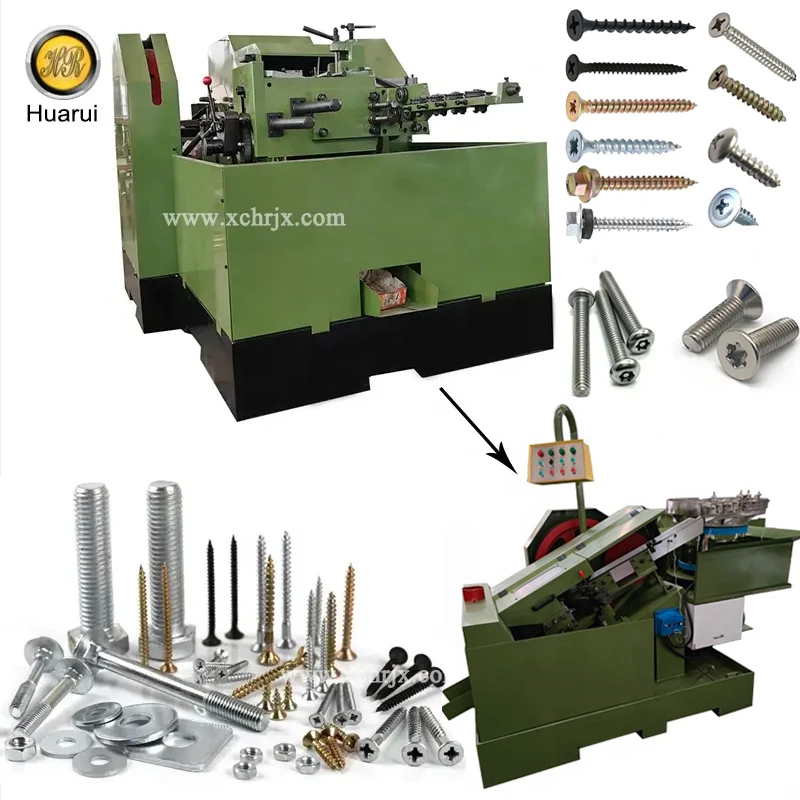

Complete Screw Production Machine Line for Screw Making Cold heading machine thread rolling machine hardening furnace
Wire-Rod---Cold Heading Machine---Thread Rolling Machine---Dryer Machine---Hardening Machine---Tempering Machine-----finished Screws




Specification of Each Machine

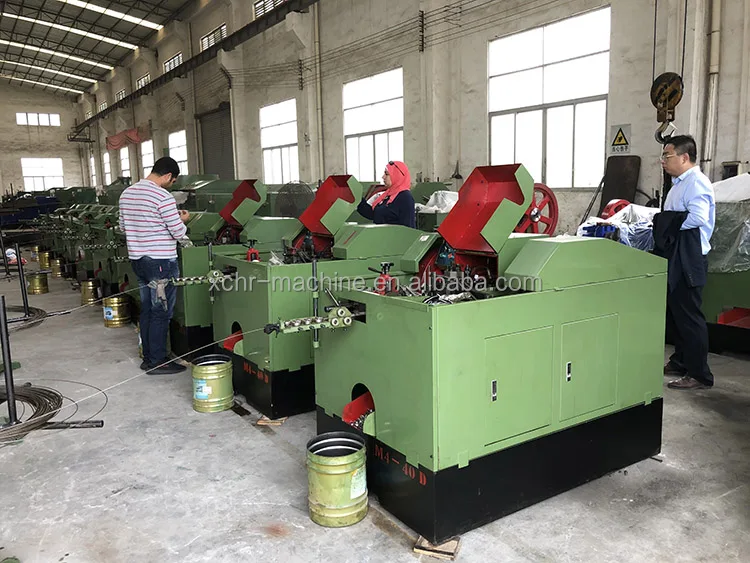

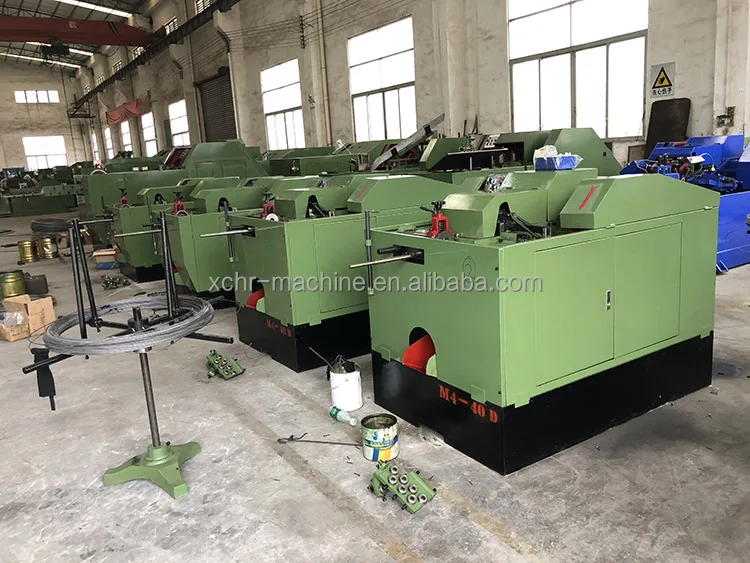

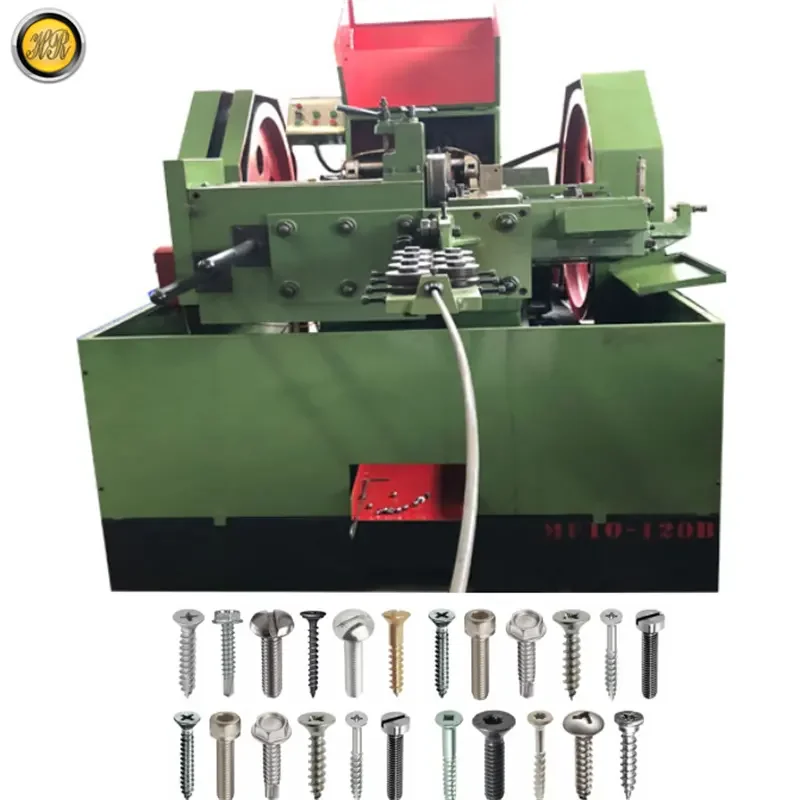

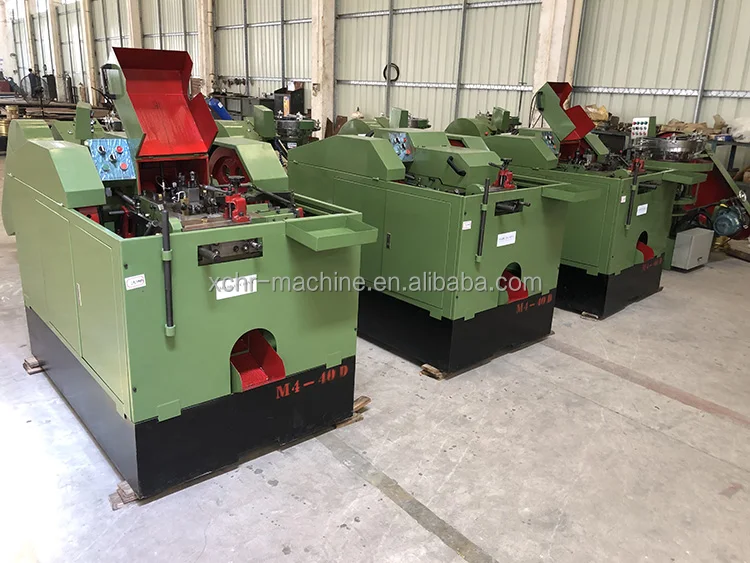

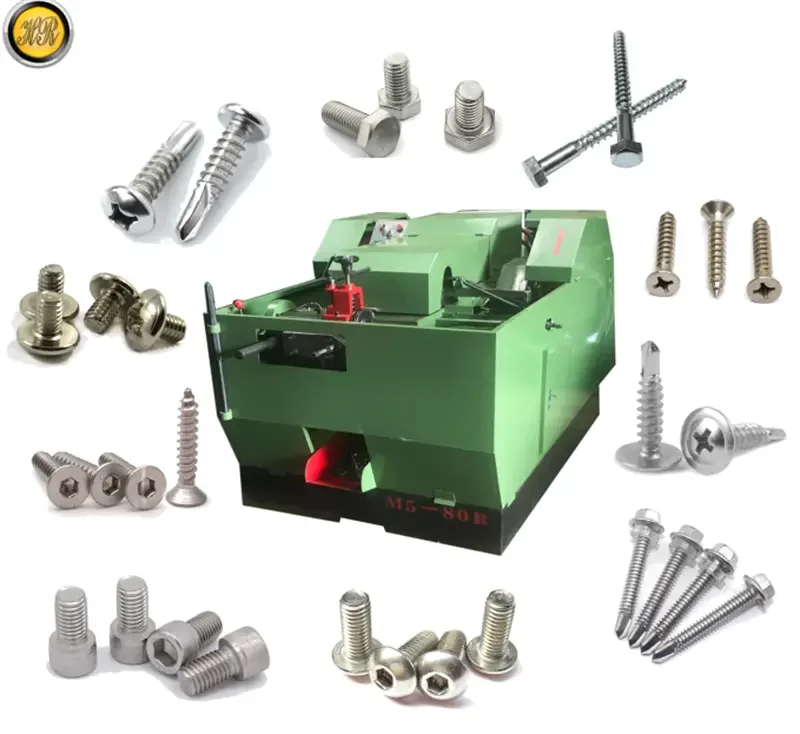

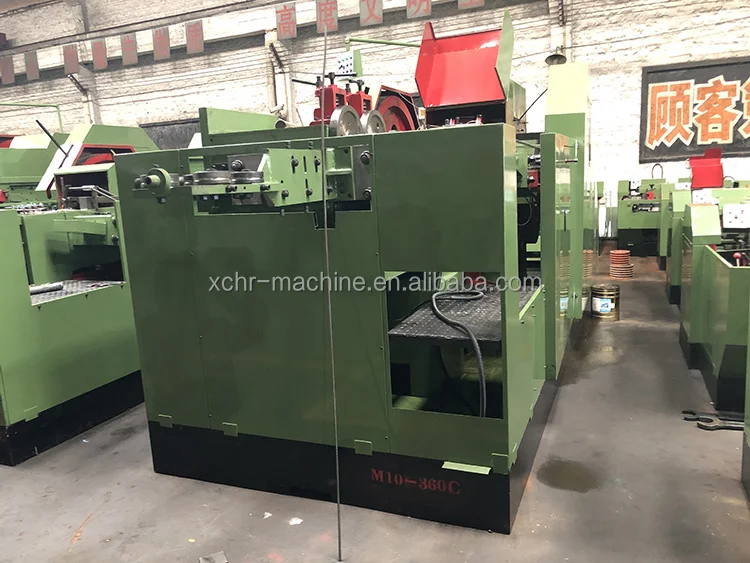

1. Automatic Cold Heading Machine
This equipment adopts cold heading way to make the wire rod upsetting by double-click the whole mould form. Finished Feeding, straightening, cutting material, forming, discharging by one machine.










Model
Max. Screw Dia. (mm)
Max. Screw length(mm)
Capacity (pcs/min)
Motor (kw)
Weight (Ton)
Overall size (m)
ZM3-18A
3
18
160-180
0.75/0.37
0.6
1.3*0.75*0.9
ZM3-18B
3
18
160-180
0.75/0.37
0.6
1.3*0.75*0.9
ZM3-28A
3
28
160-180
0.75/0.37
0.6
1.3*0.75*0.9
ZM3-28B
3
28
160-180
0.75/0.37
0.6
1.3*0.75*0.9
ZM4-28B
4
28
120-160
1.5/0.37
0.97
1.5*0.9*0.9
ZM4-28D
4
28
180-200
1.5/0.37
1.2
1.6*1*1.2
ZM4-40B
4
40
120-150
1.5/0.37
1.08
1.6*1*1.2
ZM4-40D
4
40
180-200
1.5/0.37
1.4
1.6*1.1*1.1
ZM4-60D
4
60
110-160
1.5/0.37
1.5
2*1*1.2
ZM5-40B
6
40
120-150
2.2/0.37
1.8
1.8*1.1*1.1
ZM5-60B
6
60
110-140
2.2/0.37
1.8
1.8*1.1*1.1
ZM5-80B
6
80
80-100
2.2/0.37
1.9
2*1.1*1.2
ZM5-100B
6
100
60-80
3/0.18
2.1
2.4*1.2*1.2
ZM5-120B
6
120
50-70
3/0.37
2.3
2.8*1.3*1.3
ZM6-60B
8
60
80-110
4/0.37
2.8
2.3*1.3*1.3
ZM6-100B
8
100
60-90
4/0.37
2.7
2.3*1.3*1.3
ZM6-120B
8
120
60-70
4/0.37
3
2.4*1.3*1.4
ZM6-170B
8
170
40-70
4/0.37
3.7
3*1.3*1.5
ZM6-200B
8
200
40-55
4/0.37
3.7
3*1.3*1.5
ZM6-320C
8
320
25-30
7.5/0.37
4.5
5.2*1.8*2.1
ZM8-90B
10
90
70-90
5.5/0.37
4.2
3.4*1.5*1.5
ZM8-90C
10
90
70-90
5.5/0.37
4.2
3.4*1.5*1.5
ZM8-130B
10
130
50-90
5.5/0.37
4.6
3.4*1.5*1.5
ZM8-130C
10
130
50-90
5.5/0.37
4.6
3.4*1.5*1.5
ZM8-150C
10
150
40-50
5.5/0.37
5
3.5*1.7*1.7
ZM8-200C
10
200
25-60
7.5/0.37
6
3.8*1.6*1.7
ZM10-120B
12
120
40-70
11/0.75
7
3.3*1.71.7
ZM10-170C
12
170
40-60
11/0.75
7.5
4.2*1.81.7
ZM10-220C
12
220
35-60
11/0.75
7.5
4.2*1.81.7
ZM10-250C
12
250
30-45
11/0.75
8.5
5*1.8*1.7
ZM10-300C
12
300
25-35
15/0.75
9
5*1.9*2.1
ZM10-360C
12
360
20-30
15/0.75
12
6.7*2*2.6
ZM12-150C
14
150
40-50
15/0.75
10
3.9*1.9*1.8
ZM12-250C
14
250
35-50
15/0.75
11
5.3*2.2*1.9
ZM14-150C
16
150
40-50
11/0.75
10
4.5*2.2*2.15
ZM14-250C
16
250
35-45
15/0.75
11
5*2.2*2.15
ZM16-160C
18
160
45
18.5
15
4.2*2.6*1.8

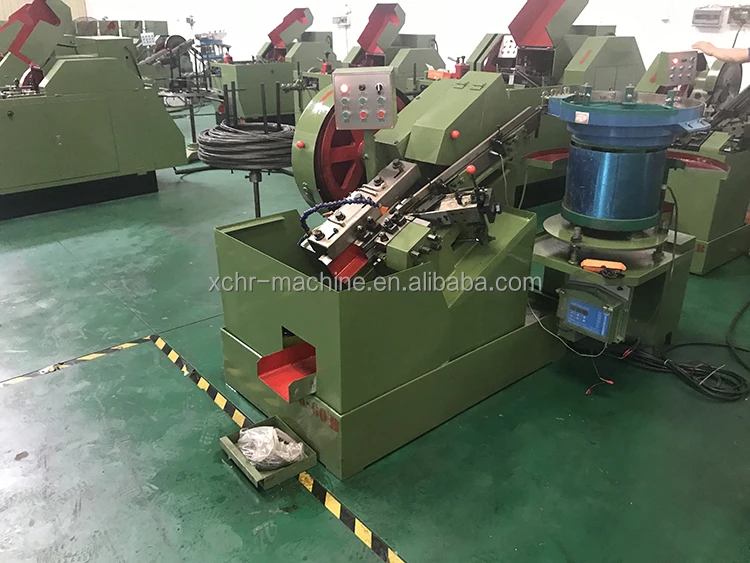

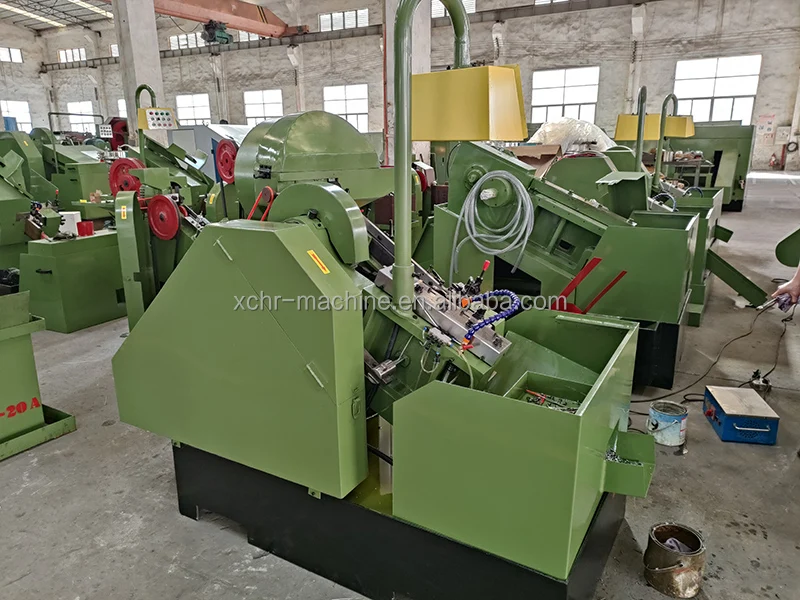

2. Thread Rolling Machine
1. T0his equipment adopts two thread profile thread rolling plate staggered 1/2 screw distance design, dead plate is fixed, movable plate equal to dead plate do straight line motion back and forth, when the work piece feed between two plates, movable plate move forward twist work piece, make its surface plastic deformation into thread.
2. Thread rolling machine is portable, flexible, high efficiency and has some irreplaceable advantages compared with similar equipment, avoid the limit of lathe, drill or hand tapping, save time, labor, not easy to rotten teeth, screw tap not easy to break off.
3.The machine is easy to operate, convenient to maintenance, which greatly decrease the technical requirements for workers.






Model
Max. Screw Dia (mm)
Max. Screw length(mm)
Motor (kw)
Capacity (pcs/min)
Weight (Ton)
Overall size (m)
HR3-20A
M2.6
20
1.1
350
0.3
1.1*0.53*1.2
HR3-20B
M2.6
20
1.1
350
0.3
1.1*0.53*1.2
HR4-25A
M4
25
1.5
320
0.45
1.3*0.63*1.32
HR4-25B
M4
25
1.5
320
0.45
1.3*0.63*1.32
HR4-40A
M4
40
2.2/0.37
280
0.97
1.5*1.15*1.35
HR4-40B
M4
40
2.2/0.37
280
0.97
1.5*1.15*1.35
HR5-55A
M5
55
3+0.37
170
1.2
1.6*1.35*1.7
HR5-55B
M5
55
3+0.37
170
1.2
1.6*1.35*1.7
HR5-65A
M5
65
3+0.37
130
1.3
1.75*1.4*1.65
HR5-65B
M5
65
3+0.37
130
1.3
1.75*1.4*1.65
HR6-60A
M6
60
4/0.37
180
1.5
1.7*1.65*1.3
HR6-60B
M6
60
4/0.37
180
1.5
1.7*1.65*1.3
HR6-100B
M6
100
5.5+0.37
110
1.9
2.7*1.3*1.3
HR8-80B
M8
80
5.5/0.37
110
1.8
2.1*1.55*1.3
HR8-100B
M8
100
7.5+0.37
100
2.1
2.4*1.7*1.3
HR8-120B
M8
120
7.5
100
2.1
2.4*1.7*1.3
HR10-120B
M10
120
7.5
80
2.35
2.4*1.95*1.4
HR12-120B
M12
120
11
60
3
2.45*2*1.45
HR12-160B
M12
160
13
60
3
2.45*2*1.45
HR12-220B
M12
220
15
50
3.5
2.5*2*1.45
HR16-120B
M16
120
15
50
3.8
2.5*2.1*1.45
HR16-160B
M16
160
15
50
4
2.5*2.1*1.45
HR16-220B
M16
220
15
45
4.8
3.7*1.9*1.7


3. Screw Deoiling Equipment
Function: for deoiling and drying the screws.


Model No.
500 type
400type
Size of the rotary drum
500*350mm
400*300mm
Motor power
1.1KW
750W
rotational speed
520r/min
600r/min
Electric wire power
3KW
3KW
Load capacity
50kg
35kg

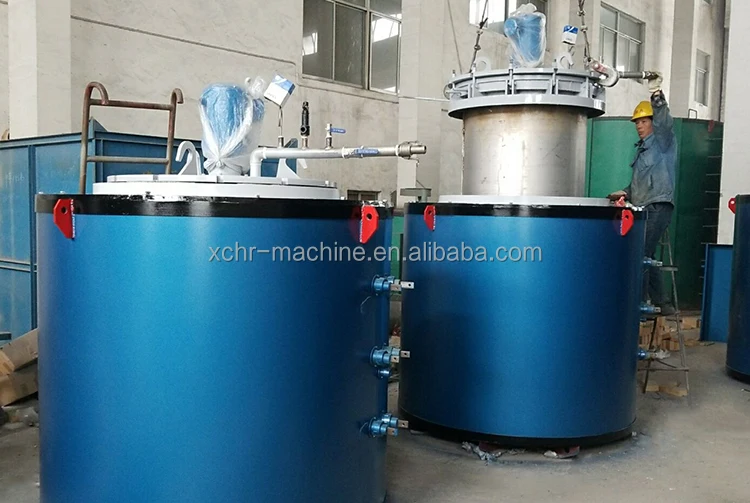

4. Quenching Furnace
Function: The furnace is mainly used for quenching, and other heat treatment of bicycle parts, sewing machine parts, standard parts, steel ball bearings, rollers, nails, screws and other small parts.

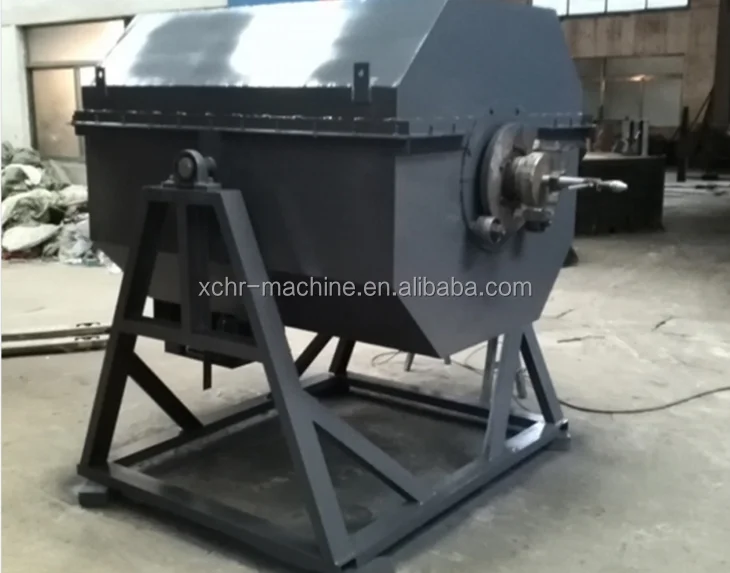

5. Tempering Furnace
Function: The furnace is mainly used for quenching, and other heat treatment of bicycle parts, sewing machine parts, standard parts, steel ball bearings, rollers, nails, screws and other small parts.

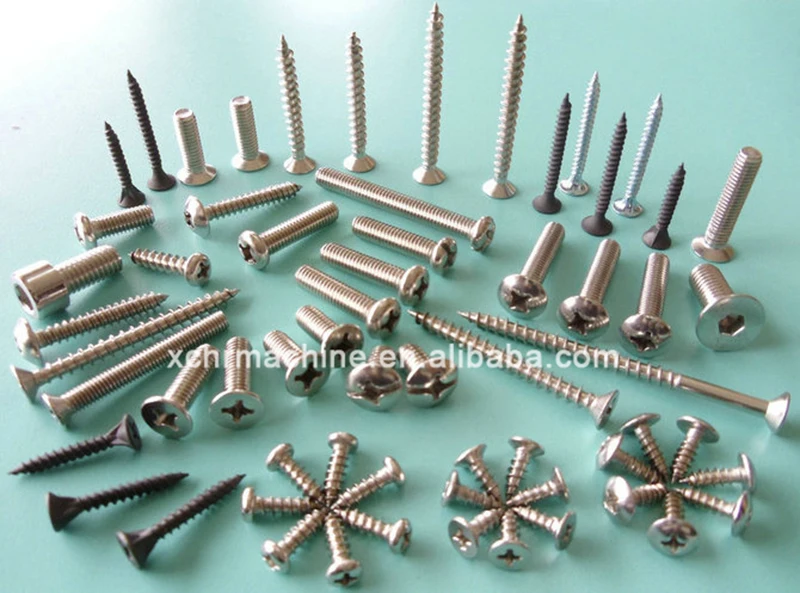

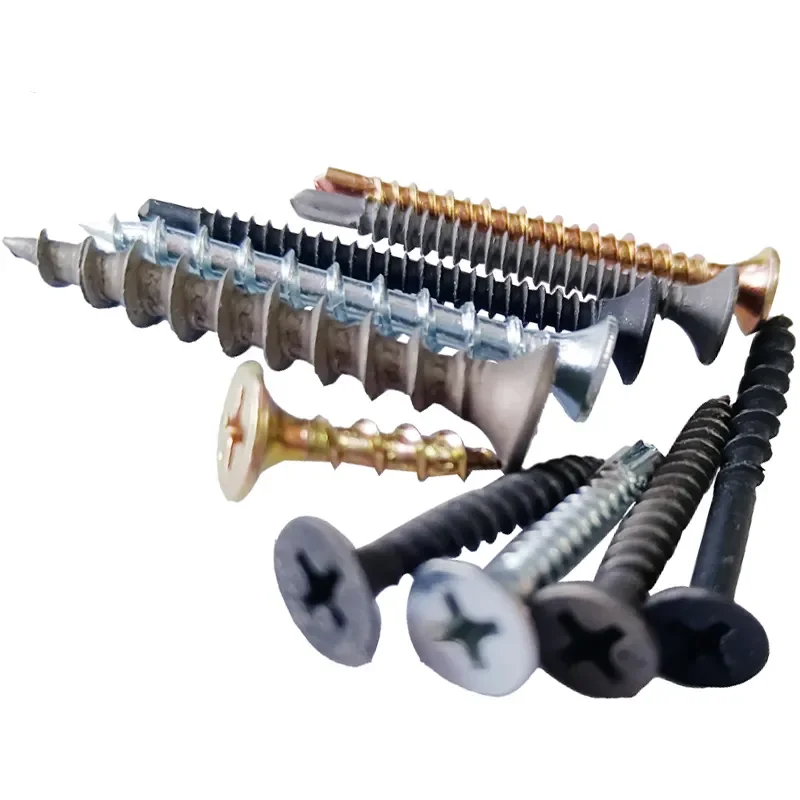

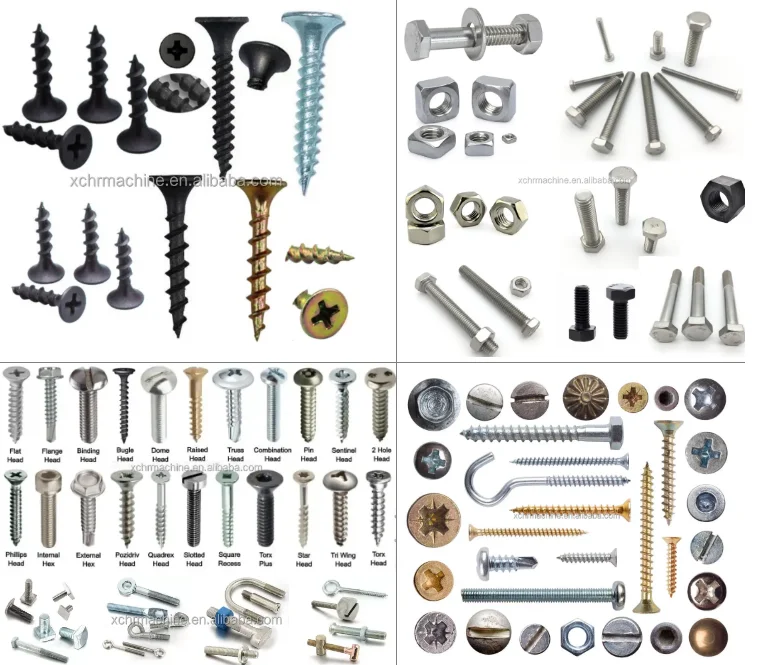

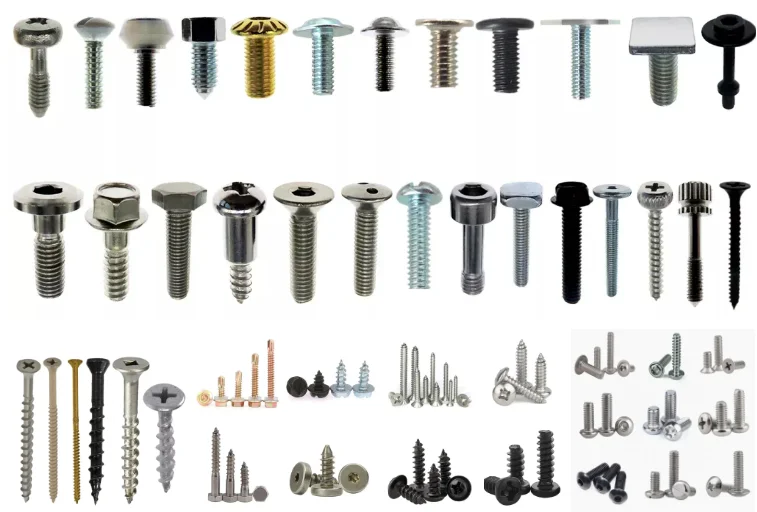

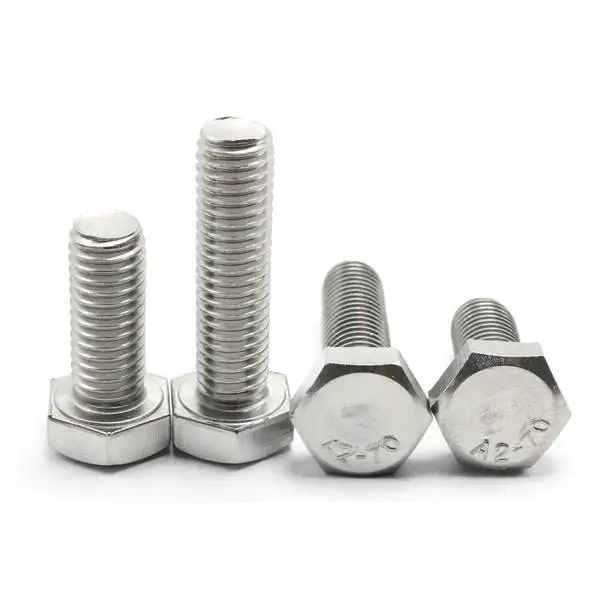

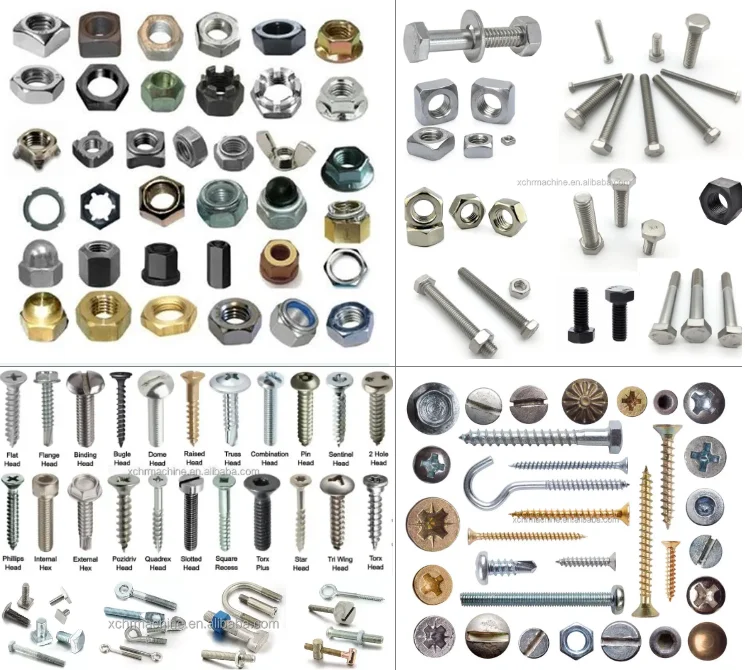

Finished Screw








Packing and Shipping






CE Certifications




FAQ


1. Make response to customer's inquiry or requirement within 24 hours.
2. Assist customer to select the most suitable machine and give them our professional suggestion.
3. Produce machine by our experienced team according to customer requirement.
4. Provide customer operation manual or video for machine to help them operate machine more efficiently.
5. Provide customer layout of workshop with machine to help them install machine.
6. Assign engineer to assist customer to install machine.
7. Offer 2 year guarantee for our machines.
