GD PL100 питьевой соломы один group упаковка комбинированная машина онлайн
- Category: Packaging Machines >>>
- Supplier: Wenzhou Gaoda Paper Tube Machinery Co. Ltd.
Share on (1600523549728):
Product Overview
Description
Product Description
GD-PL100
Drinking straw packing machine-online
Scope of Application:
This machine is suitable for packing groups drinking straw in one bag , 50-500pcs can be packed together.

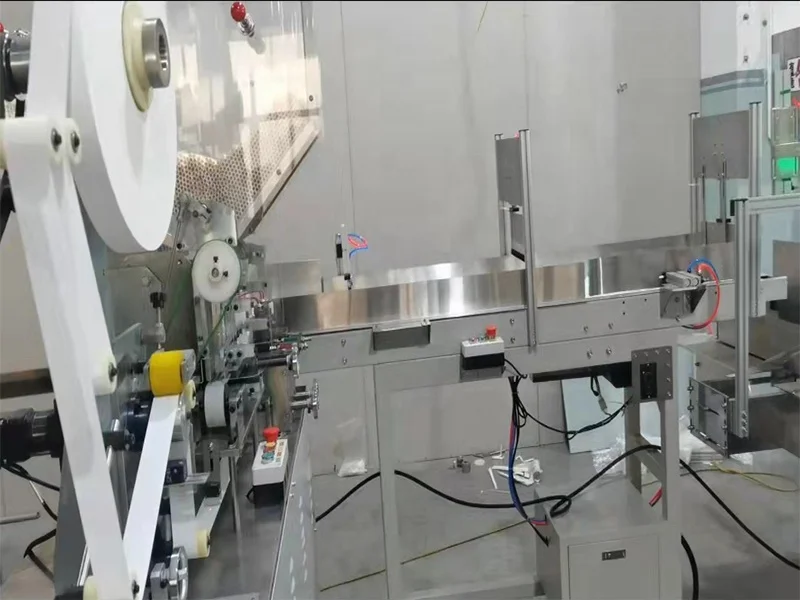

Single straw package

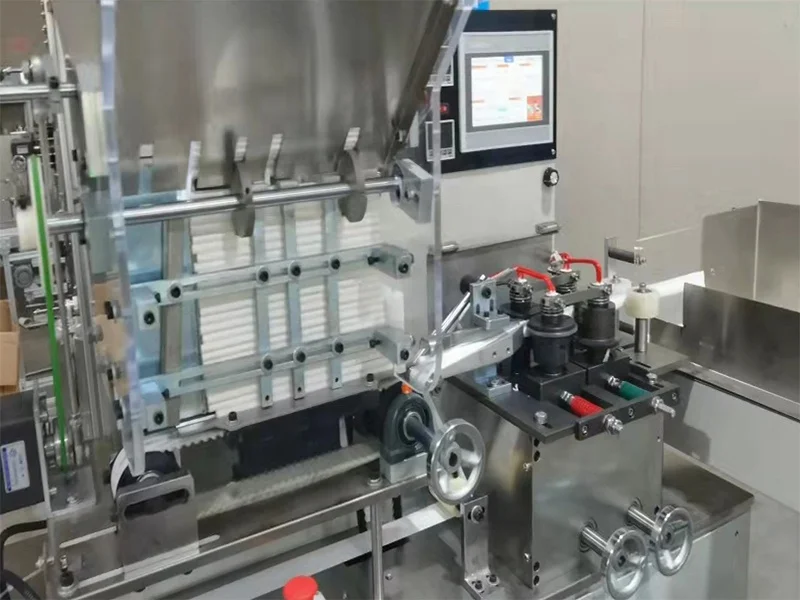

There is a single packaging machine for single packaging

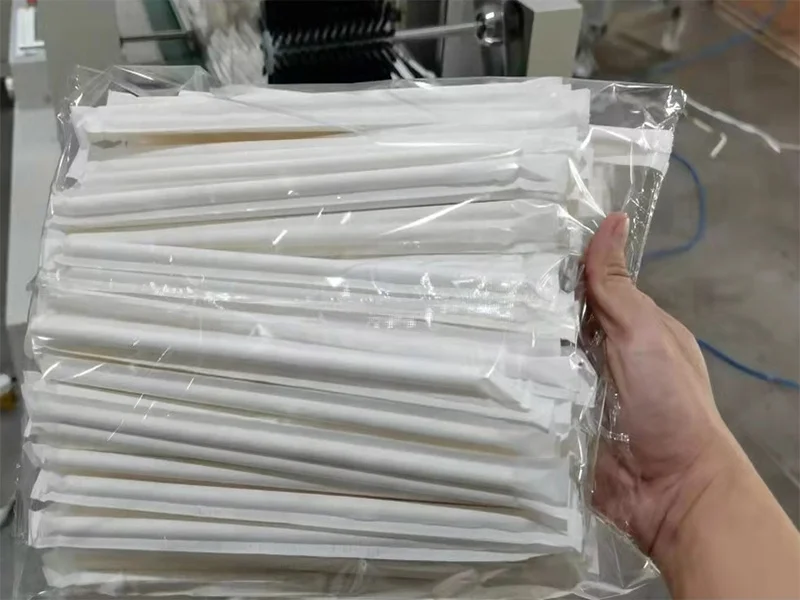

After a single package, multiple packages are carried out

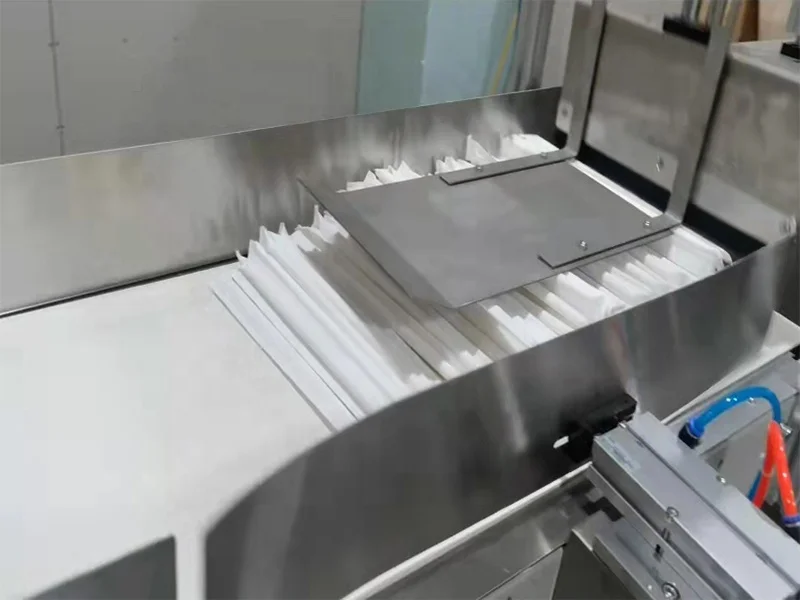

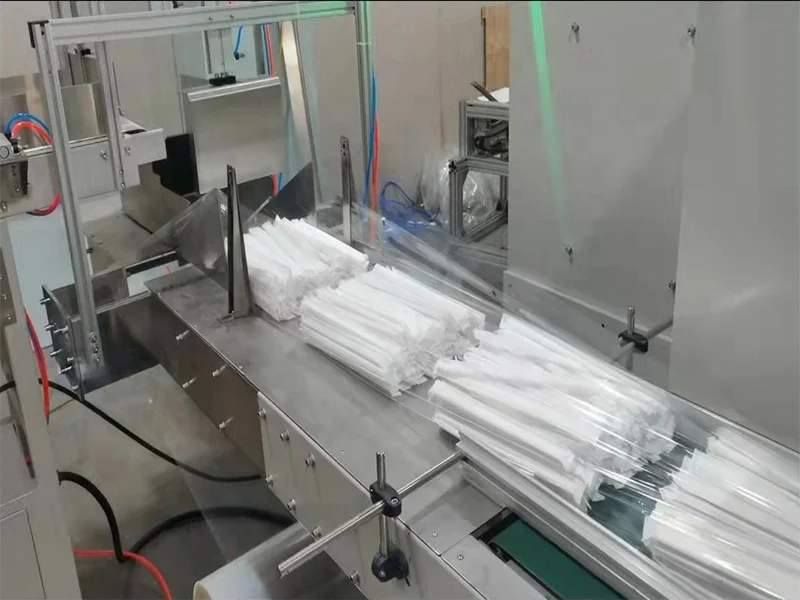

After single packaging, it is transported to multiple packaging machines for overall packaging
Features :
1．Human-Machine Interface in English, adopt touch screen.
2．Bag length can be set in touch screen and cut in one step.
3．Adopt high accuracy photocell tracking systems.
4. Automatic counting function.
5．Single straw packing machine adopt 4 sets servo motor for control.
6. Panasonic sensor for straw and paper detection, no straw feeding or no paper, machine stopped automatically.
2．Bag length can be set in touch screen and cut in one step.
3．Adopt high accuracy photocell tracking systems.
4. Automatic counting function.
5．Single straw packing machine adopt 4 sets servo motor for control.
6. Panasonic sensor for straw and paper detection, no straw feeding or no paper, machine stopped automatically.
Main Technical Parameters
S.N | Model | GD-PL100 (Single pack) |
1 | Drive motor | 3kw |
2 | Speed | 200~600pcs/minute |
3 | Seal | Back side sealing |
4 | Material | BOPP or paper material |
5 | Diameter | Φ4～Φ12mm (Other size made by order ) |
6 | Length | 150～280mm (Other size made by order ) |
7 | Machine size and weight | 1500 × 800×1750mm 350kg |
S.N | Model | GD-PL100 (Bulk pack) |
1 | Max. film width | 850mm |
2 | Packing Speed(Adjustable) | 3-10 bag/min |
3 | Film thickness | 0.03-0.06mm |
4 | Bag Length | 90–600mm |
5 | Bag Width | 80–250mm |
6 | Straw quantity | 50-500pcs |
7 | Power Supply | 220V , 50/60 Hz , 4 KW, 1 Phase |
Machine Size (L x W x H) | 3100 × 1500 x 1550 mm 2000 x 800 x 1200mm | |
8 | Machine Weight | 750 Kg |
Main Parts
GD-PL100 (Single pack)
Name | Model | Quantity | Brand |
Touch screen | TPC-7062HW | 1 | Weinview |
PLC | FPOR-C32T | 1 | Panasonic |
Servo motor | 1300W | 1 | Inovance |
Servo motor | 750W | 1 | Inovance |
Servo motor | 400W | 1 | Inovance |
Relay | HHC68A | 1 | Xinling |
Air switch | C20C16 | 1 | CHNT |
Power supply | 1 | Smuk | |
Photoelectric switch | CX-441 | 1 | Panasonic |
GD-PL100 (Bulk pack)
Name | Model | Quantity | Brand |
Touch screen | TK6071iQ | 1 | Weinview |
PLC | FP-X0 M60R | 1 | Panasonic |
Servo motor | HJ-KS102J | 1 | Mitsubishi |
Relay | RXM2LB2BD | 7 | Schneider |
Air switch | C25/C10 | 1/4 | Schneider |
Power supply | ABL2REM24015H | 1 | Schneider |
Valve | 1 set | Smuk | |
Photoelectric switch | Z3N-TB22 | 1 | Julong |
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
Gaoda Paper Tube Machinery Co., Ltd. is located at Wenzhou city of China. We are a leading supplier of paper straw machine and equipment integrating the R&D, manufacture, marketing and service.
Our company has a strong ability to design and develop new products, specializing in the manufacture and sale of paper straw machine, straw packing machine, paper slitting machine, paper color printing machine. Products are exported to all parts of the country and overseas countries and regions.
Gaoda Machinery has always adhered to the "high quality" business philosophy, to provide customers with quality products, reasonable prices and excellent service, so that our customers are satisfied with our products.
Our company has a strong ability to design and develop new products, specializing in the manufacture and sale of paper straw machine, straw packing machine, paper slitting machine, paper color printing machine. Products are exported to all parts of the country and overseas countries and regions.
Gaoda Machinery has always adhered to the "high quality" business philosophy, to provide customers with quality products, reasonable prices and excellent service, so that our customers are satisfied with our products.
FAQ
1. who are we?
We are based in Zhejiang, China, start from 2015,sell to Domestic Market(80.00%),North America(5.00%),South Asia(4.00%),Northern Europe(4.00%),Southeast Asia(2.00%),Western Europe(2.00%),South America(1.00%),Africa(1.00%),Southern Europe(1.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Paper Drinking Straw Machine,Paper Packing Straw Machine,Paper Slitting Machine,Paper Flex Printing Machine,Paper Tube Machine
4. why should you buy from us not from other suppliers?
Gaoda is a leading supplier of paper drinking straw machinery and equipment integrated with R&D, production, sales and service in China. We have a history with paper tube machines for more than 10 years, and our technical and service team are experienced.
5. what services can we provide?
Accepted Delivery Terms: FOB,Express Delivery；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T;
Language Spoken:English,Chinese
We are based in Zhejiang, China, start from 2015,sell to Domestic Market(80.00%),North America(5.00%),South Asia(4.00%),Northern Europe(4.00%),Southeast Asia(2.00%),Western Europe(2.00%),South America(1.00%),Africa(1.00%),Southern Europe(1.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Paper Drinking Straw Machine,Paper Packing Straw Machine,Paper Slitting Machine,Paper Flex Printing Machine,Paper Tube Machine
4. why should you buy from us not from other suppliers?
Gaoda is a leading supplier of paper drinking straw machinery and equipment integrated with R&D, production, sales and service in China. We have a history with paper tube machines for more than 10 years, and our technical and service team are experienced.
5. what services can we provide?
Accepted Delivery Terms: FOB,Express Delivery；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T;
Language Spoken:English,Chinese
