Компактная струйная мельница с скоростью ZK BPM50
- Category: Grinding Equipment >>>
- Supplier: Dongguan,Zhik,Energy,Technology,Co.,Ltd.
Share on:
Product Overview
Description
Product Description
COMPACT JET MILL

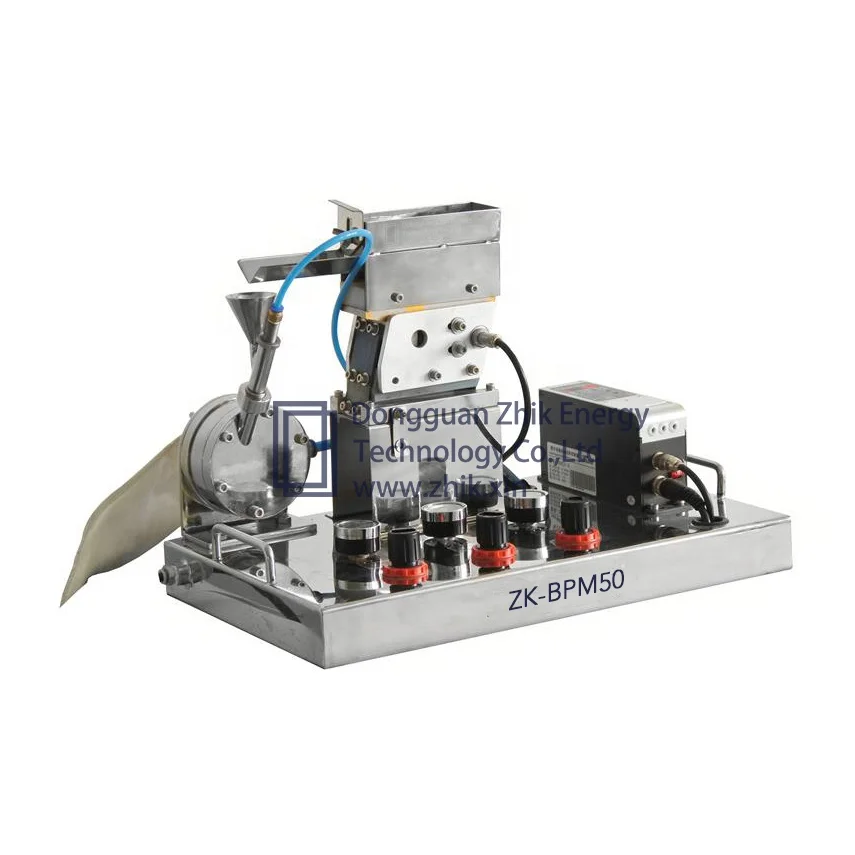

Zk-BPM50 is a lab-scale jet mill for materials with various hardness and properties. It grinds materials such as ceramic, magnet,ferrite and metallic alloy into micron-scale powder (2-5 microns) with an output rate of 50 - 500g/hr. The jet mill grinds with a high-speed jet of compressed air or inert gas to collide the particles with each other. It is capable of outputting particles with the right size while continue milling particles above the desired size. Therefore, the ground product comes in narrow size distribution and good uniformity. Particles are separated from the gas stream by cyclonic separation.
Technical Parameter
Working Power | 100 - 240V AC, 50/60Hz 350 W |
Required Air Pressure | Recommended 0.6 - 1.0 MPa Pressure Recommended gas consumption rate: 0.25 - 0.5 m3/ minute An air compressor is required but is NOT included. (Please order one from a local store ) |
Particle | Input: 100 - 200 mesh Output: 2 - 15 micron, 50-500g/hr The output particle size is depended on material hardness and input particle size. Coarse particles may need 3-5 times milling to obtain the finest size. |
Particle collecting | One output particle collecting bag is included for immediate use |
Mill Liner | High purity fully sintered alumina |
Powder Feeder | Automatic powder feeder controlled by vibration frequency Frequency: 40-400Hz adjustable |
Net Weight | 15 kg |
Shipping Weight | 70 lbs |
Dimensions | L520xW350xH340mm |
