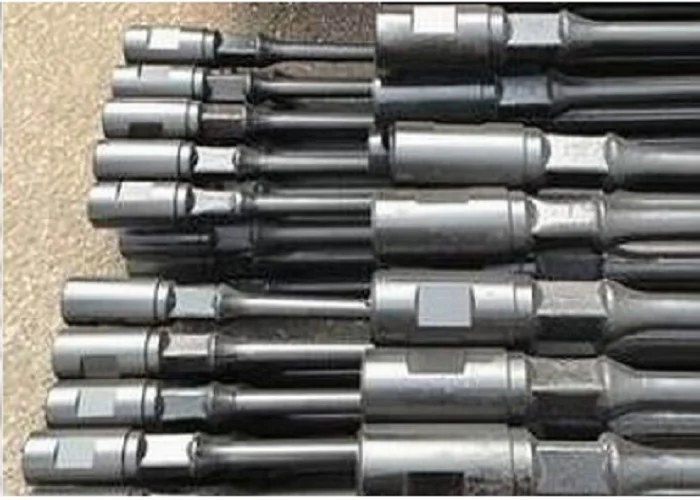

Puyang Zhongshi API Sucker Rod Price Grade D Alloy Steel Material Sucker Rod With Coupling
- Category: >>>
- Supplier: Puyang Zhongshi Group Co. Ltd.
Share on (1600524511481):
Product Overview
Description
Puyang Zhongshi API Sucker Rod Price Grade D Alloy Steel Material Sucker Rod With Coupling
Product Description
Products Description:

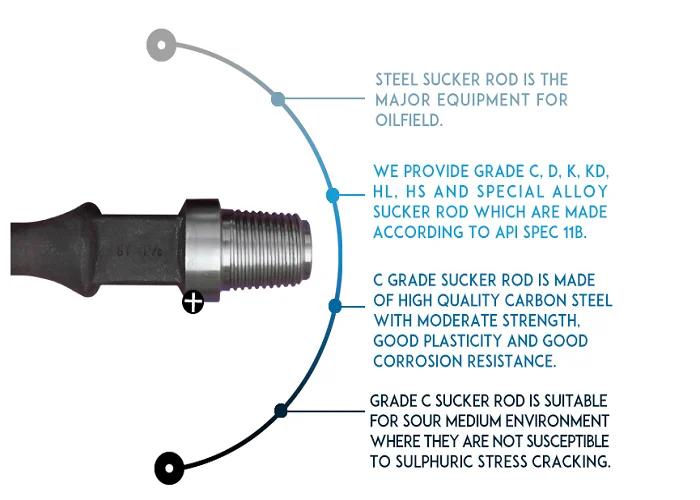

The steel sucker rod is one of the important equipment of oilfield. We can provide seven kinds of sucker rod which including C, K, D, KD, HL, HY and KH. The C, K, D sucker rod press design and manufacture standard of API Spec 11 B, KD, HL, HY grade rod design and manufacture according to standard API, KH level rod according to standard within the company.
Sucker Rod Manufacturing Process:
1. Inspection rod bars for any demage, fault and discontinuities.
2. Rod Bars are machine straightened and cold drawn to the required size.
3. The rod bar ends are hot forged according to API designed sizes
4. The rods are then heat treated over the full length
5. The rod is then again checked for straightness.
6. Rods are cleaned by shot-blasting to remove any scale and oxidation.
7. The forged ends are machined on C. N. C. Lathe machines as per API dimensions and checked with API approved gauges.
8. Packaging the sucker rods and carefully palletized the rods in bundles for safe transport and handling.
9. Rods are coated with rust inhibitors.
10. Storage The sucker rods or shipping out to clients
Grade Detail:
1. Grade D sucker rod: Made of quality heat treated steel alloy, with high tensile and yield strength; suitable for non-corroding or mildly corroding environment.
2. Grade C sucker rod: Moderate strength, not susceptible to sulfide stress cracking, suitable in sour medium.
3.. Grade HL and HY sucker rod: High strength; structure and size matching with grade D sucker rod; withstanding 966-1, 136 MPa (140, 000-164, 720 psi); suitable for deep and large displacement wells
4. Grade K, KD sucker rod: With good corrosion resistance in H2S, CO2 and NaCl media, superior tensile strength.
Technical Specifications:
| SIZE (in) | ROD D.(in) | THREAD D. (in) | LENGTH (ft) | OUTSIDE DIAMETER OF PIN SHOULDER(mm) | LENGTH OF PIN(mm) | LENGTH OF WRENCH SQUARE(mm) | WIDTH OF WRENCH SQUARE(mm) |
| 5/8" | 5/8" | 15/16 | 2 4 6 8 10 25 30 | 31.75 | 31.75 | ≥31.75 | 22.23 |
| 3/4" | 3/4" | 1-1/16 | 38.10 | 36.51 | 25.40 | ||
| 7/8" | 7/8" | 1-3/16 | 41.28 | 41.28 | |||
| 1" | 1" | 1-3/8 | 50.80 | 47.63 | ≥38.10 | 33.34 | |
| 1-1/8" | 1-1/8" | 1-9/16 | 57.15 | 53.98 | ≥41.28 | 38.10 |

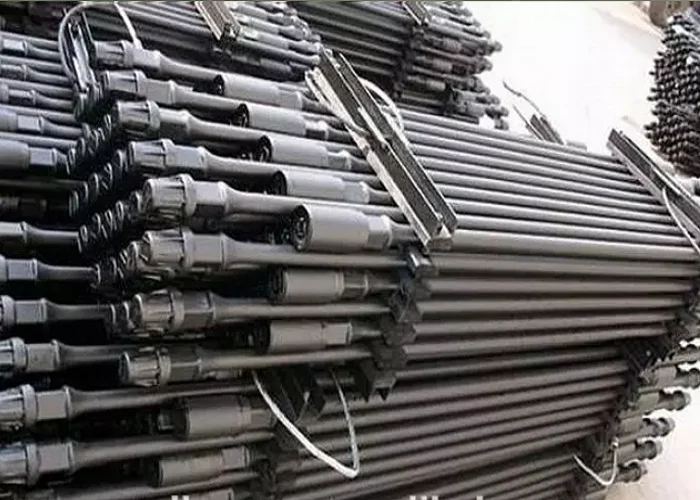

Packaging Detail
1,Wooden box package for cargo which quantity less than one 20FT/40FT container.
2. Group packing with Anti-collision foam for cargo which quantity more than 20FT/40FT container
3. According to customer' requirements
