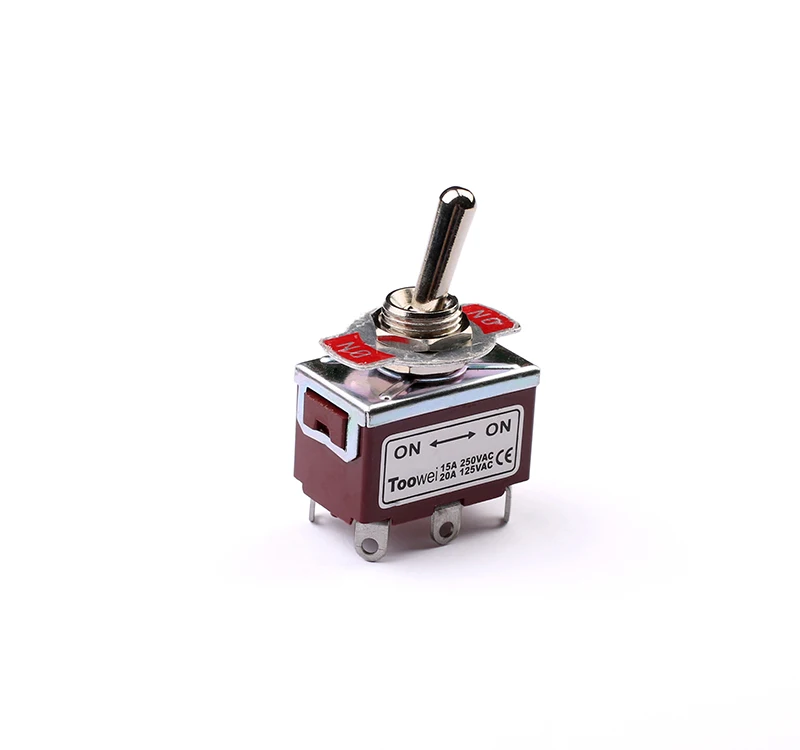

12V 20A Auto Car Boat Truck Illuminated Car Aircraft Led Toggle Switch Control On/Off 20a push off switch momentary switches
- Category: Toggle Switches >>>
- Supplier: Zhejiang Toowei Electronics Co. Ltd.
Share on (1600524525729):
Product Overview
Description
Products Description
product name | toggle switch |
model | T702BU |
country of origin | China |
Minimum order quantity | 100 |
payment method | T/T, PayPal, Western Union |
Logistics model | Express delivery, By sea, Land transportation, air transport |
Sea port | shanghai |
Supply Capacity | 100000 pcs/month |
Packing | Carton |
Rated value | 20A 250V 15A 125V |
Terminal form | Quick connect terminal |
Installation size | 12MM |
Mechanical life | 50000 |
Poles | DPDT |
Product parameter
1. Rating Value: 15A 250VAC/20A 125VAC
2. Operating Force: 8N-24N
3. Ambient temperature: -25℃~+85℃
4. Withstand voltage: 1500VAC 50/60hz
Leakage current: 5mA
5. Insulation resistance ≥100mΩ
6. Electrical life: 20,000 times
Mechanical life: 50,000 times
7. Humidity: below 85% RH
8. Terminal form: Quick connect terminal
Solderable soldering iron: 345±5° 1~2S
Solder resistance soldering iron：345±5° 3~5S
9. Protection degree: IP67
2. Operating Force: 8N-24N
3. Ambient temperature: -25℃~+85℃
4. Withstand voltage: 1500VAC 50/60hz
Leakage current: 5mA
5. Insulation resistance ≥100mΩ
6. Electrical life: 20,000 times
Mechanical life: 50,000 times
7. Humidity: below 85% RH
8. Terminal form: Quick connect terminal
Solderable soldering iron: 345±5° 1~2S
Solder resistance soldering iron：345±5° 3~5S
9. Protection degree: IP67

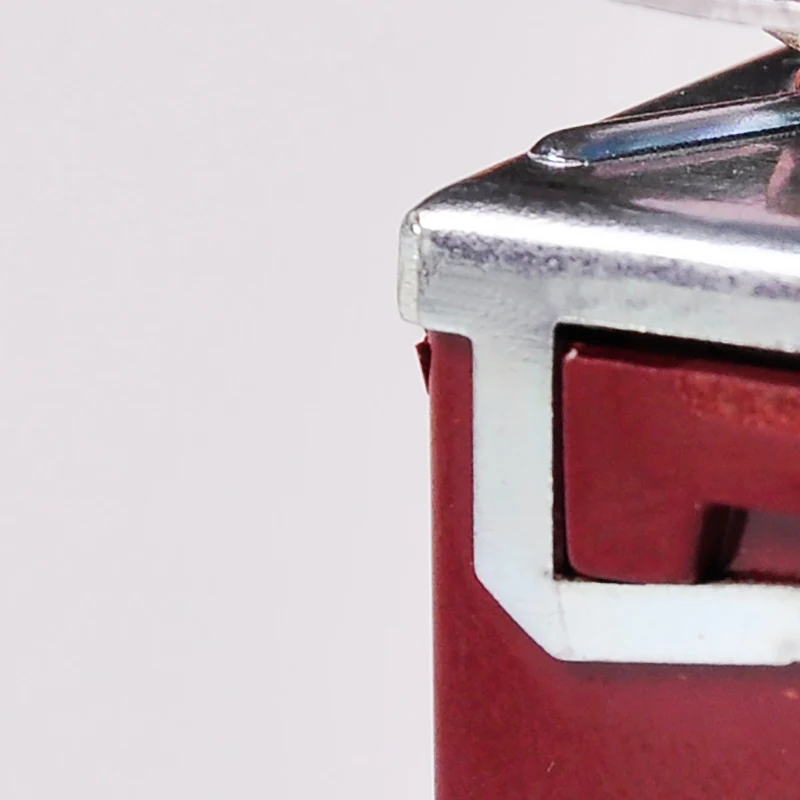

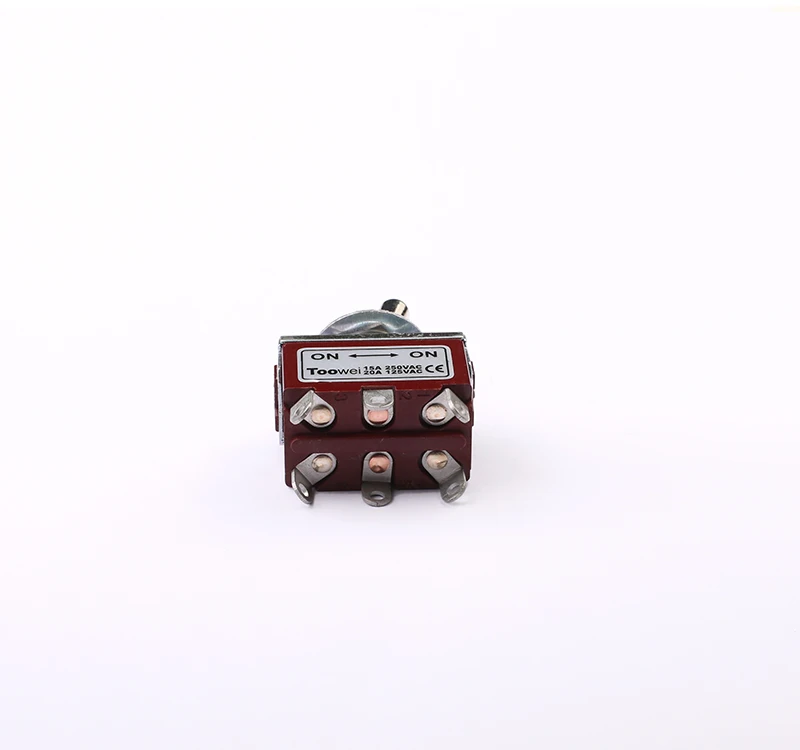

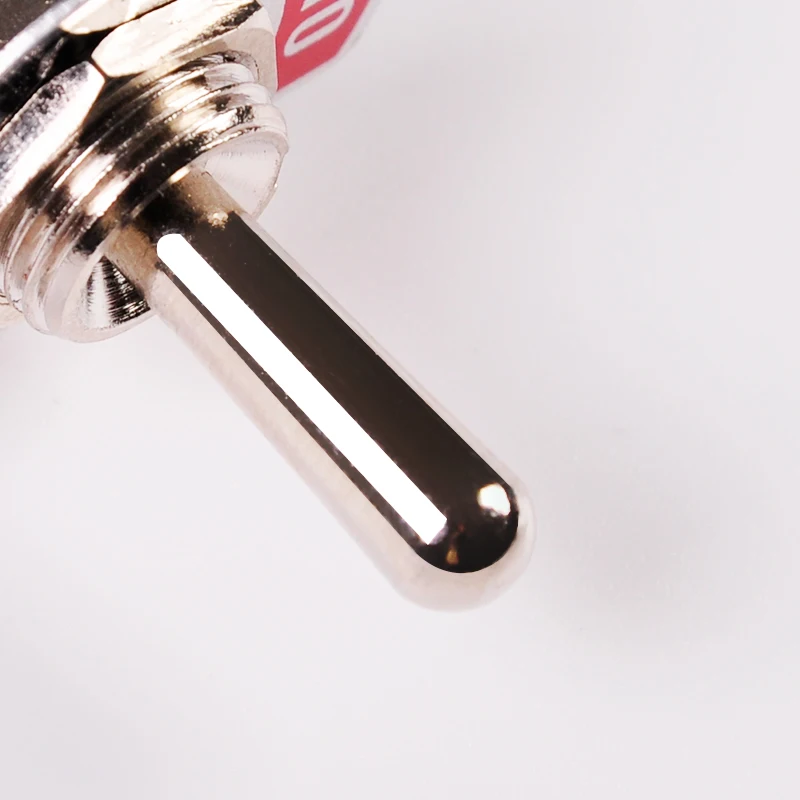

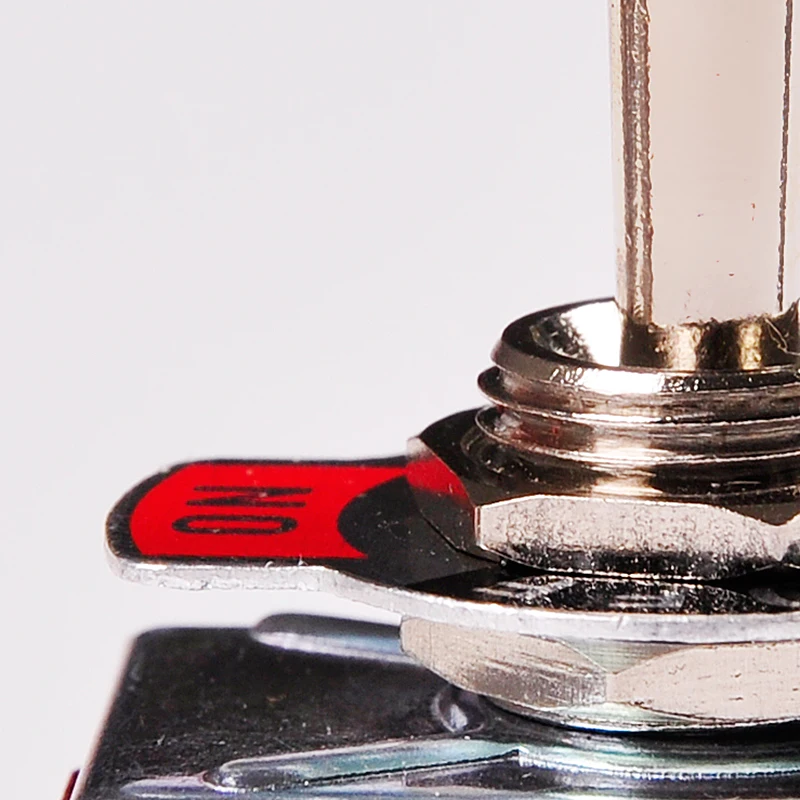

Details Images
