Jet Pulse Bag House Filter Dust Collector Dust Cleaning Equipment for Paper Production

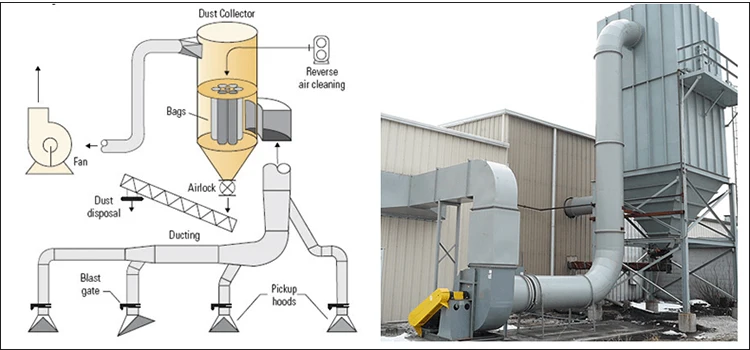

The dust collector is mainly composed of an upper box body, a middle box body, an ash hopper, an air inlet equalizing pipe, a support filter bag, an injection device, and an ash discharge device. Dust-containing gas enters the ash hopper of each
sub-chamber from the air inlet equalizing pipe of the dust collector, and under the guidance of the ash hopper guide device, large particles of dust are separated and directly fall into the ash hopper, while the finer dust enters evenly The middle box is adsorbed on the outer surface of the filter bag, and the clean gas penetrates the filter bag into the upper box, and is discharged into the atmosphere through the off-line valves and exhaust pipes. With the progress of the filtering conditions, the dust on the filter bag accumulates more and more. When the equipment resistance reaches a limited resistance value (generally set to 1500Pa), the dust cleaning control device sets the differential pressure or the dust cleaning time. After the set value is automatically closed, the off-line valve of the first room is opened, and the electronically controlled pulse valve is opened according to the set procedure to stop the air blowing. The compressed air is instantly blown to increase the pressure in the filter bag, and the dust on the filter bag is shaken off. (Even if sticky fine dust can be removed more thoroughly) into the hopper, it is discharged by the ash discharge mechanism.

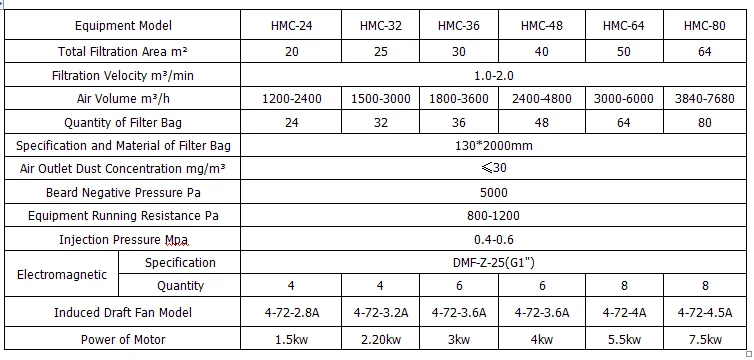

Product Parameter

Photo Show

Company introduction

Botou Xintian Environmental Protection Equipment Co., Ltd is a professional dust removal equipment and dust removal accessories manufacturer in collection of research and development, design, equipment manufacturing, field installation, and commissioning Our company mainly produces:electric dust collector, high voltage electrostatic dust collector.

Product packaging

Our Services


1. Q: Are you a factory or a trading company?
Answer: We have 1 factory. Botou Xintian Equipment Environmental Protection Co., Ltd. is a trading company.We have an improvement team from design, manufacturing ... to installation, commissioning and personnel training.
2. Q: Where is your factory?
Answer: Our factory is located in Botou City, Cangzhou.
3. Q: How does your factory perform quality control?
A: We test the machine before shipment. Our factory has obtained ISO9001: 2008 certification.
4. Q: How long is the warranty period?
During use, two years warranty and free consultation.
5. Q: How to pay for the product?
Provide letter of credit, wire transfer and Western Union.
