Product Overview
Description
Products Description
ADU502 series industrial AI edge computer based on NVIDIA Jetson AGX Xavier module, AI computing power up to 32TOPS, CPU computing power up to 180800 + DMIPS. Its software supports DeepStream SDK, CUDA, cuDNN and TensorRT for deep learning, computer vision processing, accelerated computing, depth estimation, route planning and object detection. It supports multi-sensor access and suitable for autonomous robot, vehicle-road collaborative road perception, large unmanned forklift, laser radar or multi-channel image visual processing and other fields.
Application Scenarios: Road Perception, Autonomous Machine, Unmanned Forklift, Track Inspection, AGV Guide Vehicle.
Specifications
Item | ADU502-A01 | ADU502-A02 | ADU502-B01 | ADU502-B02 | |||
SOC | NVIDIA Jetson AGX Xavier | ||||||
AI Power | 32 TOPS | ||||||
GPU | 512-core Volta GPU with 64 Tensor Cores 11 TFLOPS (FP16) , 22 TOPS (INT8) | ||||||
CPU | 8-core Carmel ARM v8.2 64-bit CPU, 8MB L2 + 4MB L3 | ||||||
Memory | 32GB 256-bit LPDDR4 | 64GB 256-bit LPDDR4 | |||||
Storage | 32GB e.MMC 5.1 | ||||||
Visual Accelerator | 7-line VLIW vision processors | ||||||
DL Accelerator | 2 pieces NVDLA engine | ||||||
Video Coding | 2x1000MP/sec, 4x 4K @ 60 (HEVC), 8x 4K @ 30 (HEVC), 16x 1080p @ 60 (HEVC), 32x 1080p @ 30 (HEVC) | ||||||
Video Decoding | 2x1500MP/sec, 2x 8K @ 30 (HEVC), 6x 4K @ 60 (HEVC), 12x 4K @ 30 (HEVC), 26x 1080p @ 60 (HEVC), 52x 1080p @ 30 (HEVC), 30x 1080p @ 30 (H.264) | ||||||
OS | Ubuntu 18.04 | ||||||
Name | ADU502-A01 | ADU502-A02 | ADU502-B01 | ADU502-B02 | |||

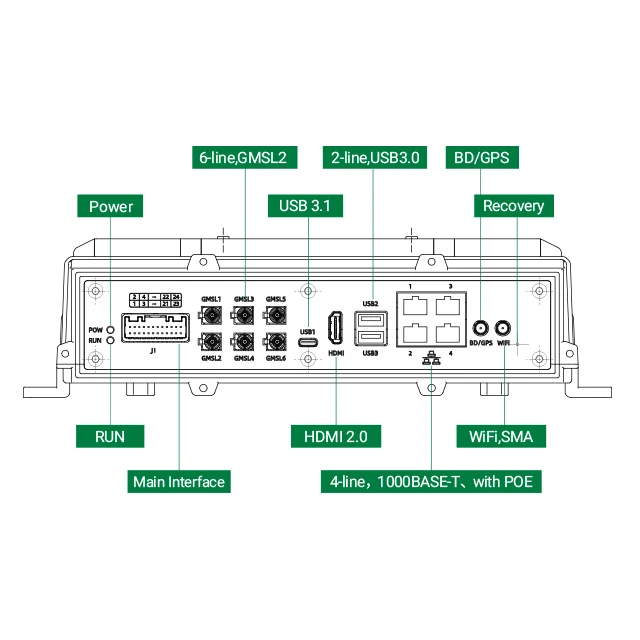

GMSL | 6-line， coaxial digital input FAKRA interfaces | ||||||
GPS Sec Pulse | 2-line，1PPS-5V-OUT | ||||||
GPS RS232 | 2-way，GPS-RS232-TX | ||||||
Hi-speed CAN | 2-line | ||||||
RS485 | 1-line | ||||||
RS232 | 1-line | ||||||
USB | 2-line，USB 3.1 Type-A | ||||||
Ethernet | 4-line，RJ45 Interfaces（1000BASE-T） | ||||||
I/O Interface | 4-line | ||||||
Display Interface | 1-line，HDMI 2.0、TYPE-A interface | ||||||
Power Input | 1-line，DC 24V，DC in 9~36V | ||||||
Power Output | 2-line，output 12V ，lilmiting current 1A | ||||||
Debug Interface | 1-line, use for developing and debugging,including USB,UART,etc.singnals | ||||||
Storage Extension | 1-line，M2.M SSD solid-state disk interface | ||||||
Beidou/GPS | 1-line，SMA（external screw +inner hole） | ||||||
WiFi | 1-line，SMA（external screw +inner hole） | ||||||
Recovery Button | 1 piece，use for developing and debugging | ||||||
Indicator | 2pieces,power status indicator and working status indicator. | ||||||
Voltage | Rated input DC 24V | ||||||
Operating Temperature | -20°C ~ +70°C | ||||||
IP | (IP43) | ||||||

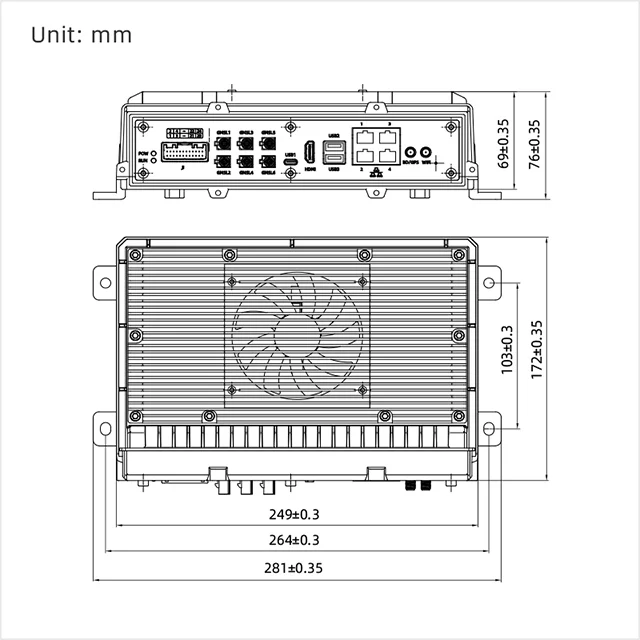

Size | 249* 172*69mm（L*W*H） (Connectors and mounting brackets are not included) | ||||||
