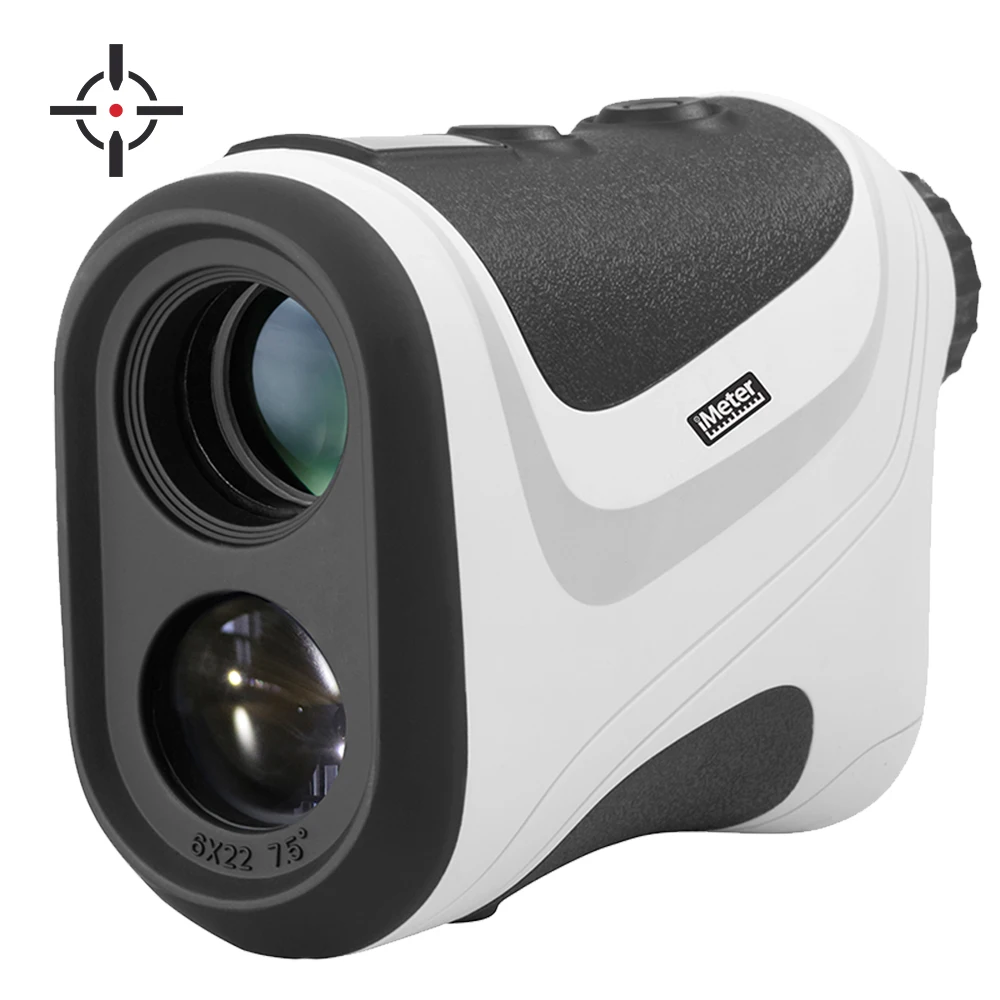

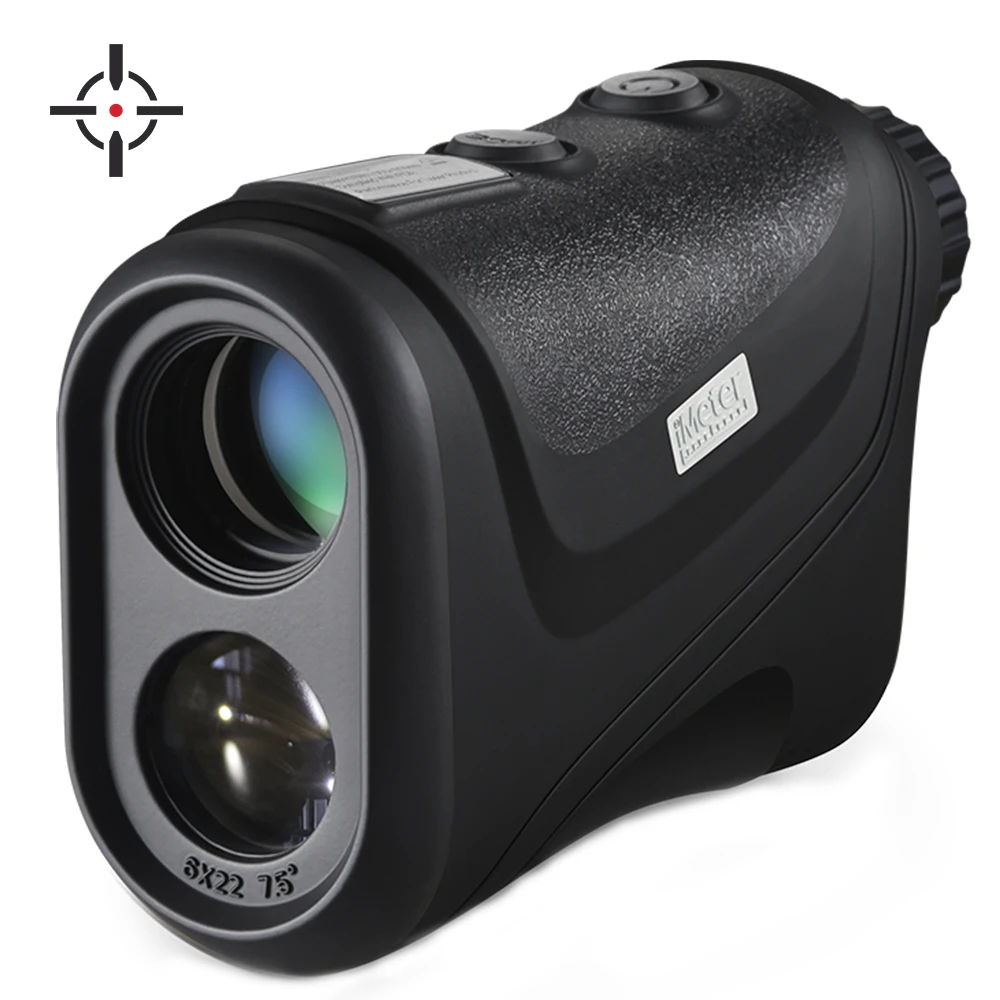

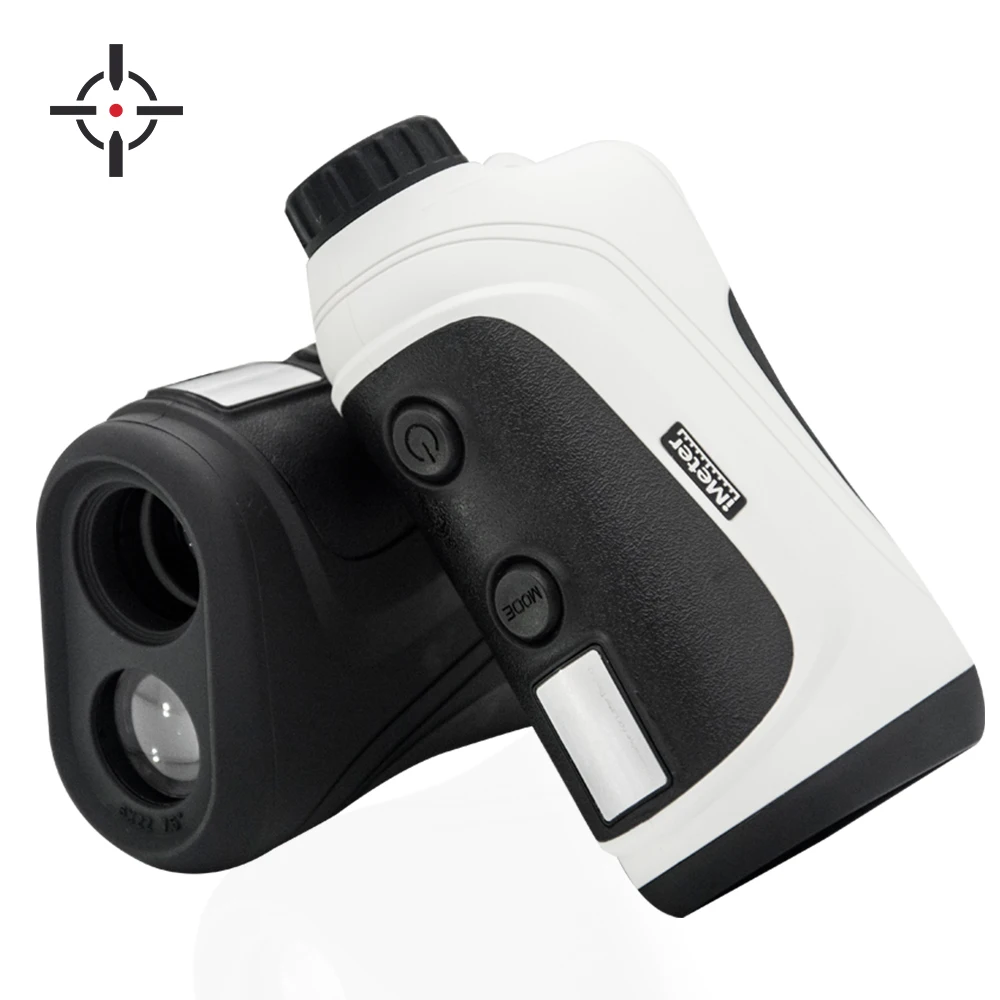

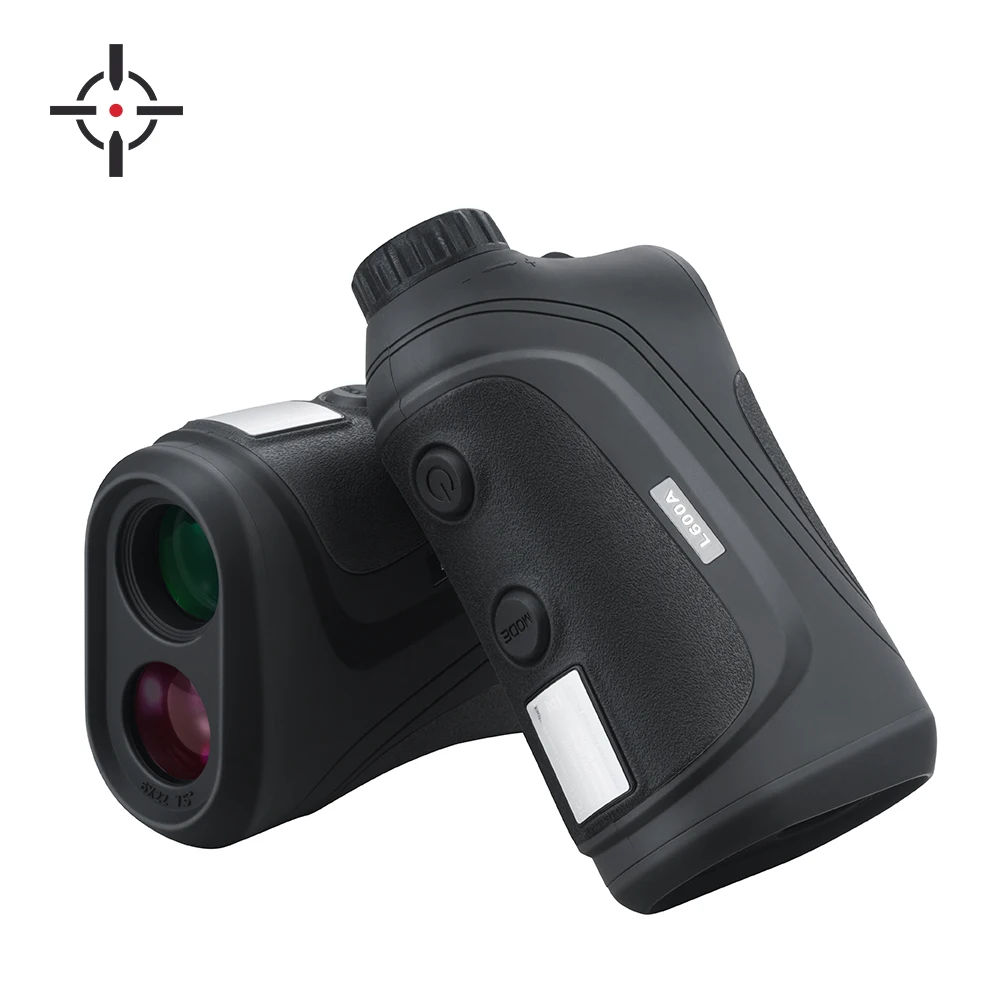

imeter L series Precise and Professional rangefinder golf rangefinder Telescope OEM Customized Logo
- Category: Laser Rangefinders >>>
- Supplier: Suzhou Valueplus2 Electronic Corp. Ltd.
Share on (1600526005641):
Product Overview
Description
Recommended features
【700Yards Measurement Range】
Long range up to 300 yards to lock a flag automatically. Read distance immediately. accurate to 1 yards, Meters & Yards can be converted.
【Flag-Lock &Slope Technology】
【Flag-Lock &Slope Technology】
Flag Lock Rangefinder with Smart Slope Compensation, automatically lock the flag, a short vibrating alert once the flag is locked. Specially designed for golf sports.
【Solid Build Quality】
【Solid Build Quality】
HD FMC Lens delivers optimal light transmission. Textured rubber armor provides a secure, non-slip grip, make the laser ranger easy to pack and keep handy.
【Safety without eye injury】
【Safety without eye injury】
Certified Class I eyes-safe laser,less than 0.5mW power.
Product Parameter | ||
Place of Origin | China (Shenzhen) | |
Brand Name | iMeter | |
Model No. | L series | |
Max Distance | 5-600M | |
Distance Measure Accuracy | ±1m (<400m); ±1m+D*0.2%(>400m) | |
Measuring units | M/Yd | |
Angle Measure Range | ±60° | |
Angle error | ±1° | |
Pin seeker Range | 5-250M~400M( max) | |
Measuring Time | 0.5-1 sec | |
Magnification x Obj. Lens | 6X22 | |
Field of view | 7.5 | |
Eye Relief | 16mm | |
Exit Pupil Diameter | 3.7mm | |
Battery | CR2-3V(5000 times) | |
Net Weight | 178g | |
Dimensions | 125 * 77* 45（mm） | |
Operating temperture | -10℃-50℃ | |
Lens Coatings | Fully Multi-Coated (FMC) | |
Tripod interface | YES | |
Housing Material | ABS plastic | |
Water Resistant | Yes | |
Laser Type | 905nm( Class 1 EN 60825, Eye safe) | |
Certification | FCC,CE,ROHS,60825 | |

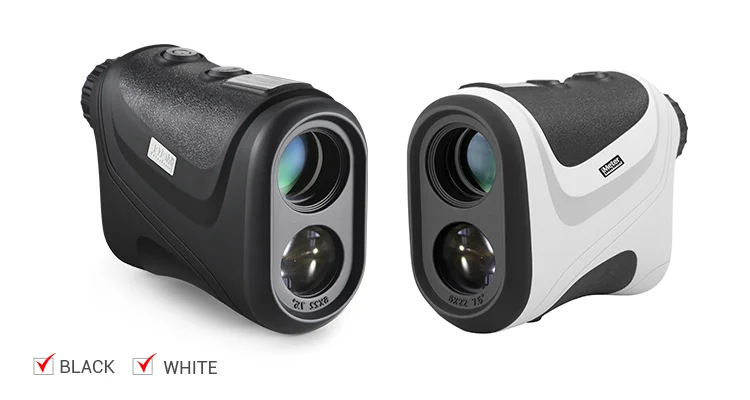

Product display
Details Images

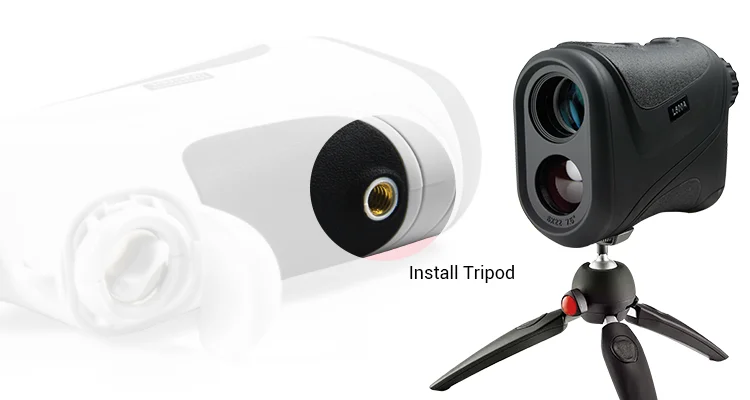

Install Tripod
This rangefinder has a tripod mounting hole. You can mount it on a tripod, which is more stable.

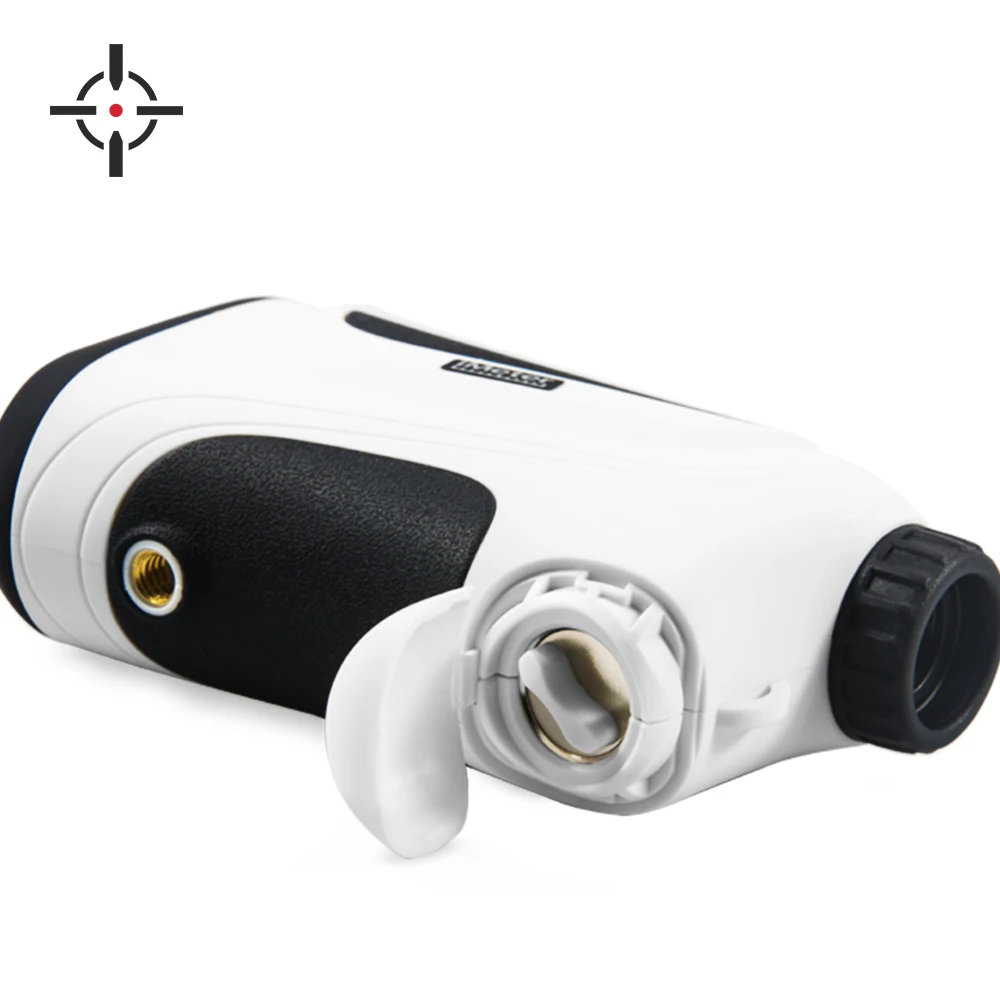

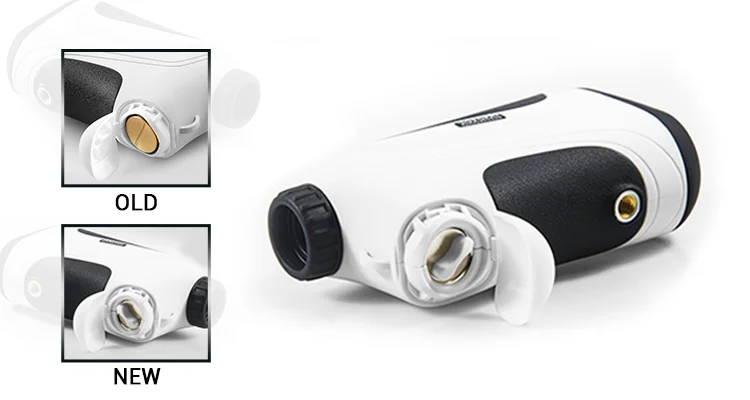

Battery Cover
New battery cover design, more convenient to use, and not easy to lose.
Your Logo
Anti-slip Rubber Grip

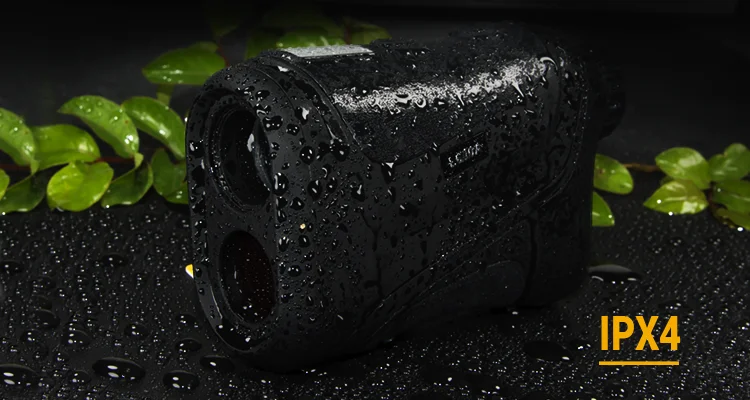

Waterproof and dustproof
Prevent Water drops and moisture from entering the machine. enjoy outdoor activities carefree.
Package
Model No.：L series
Single package：160*105*70mm，0.32Kg
Out carton package：30pcs/carton, 50*36*25cm，11Kg

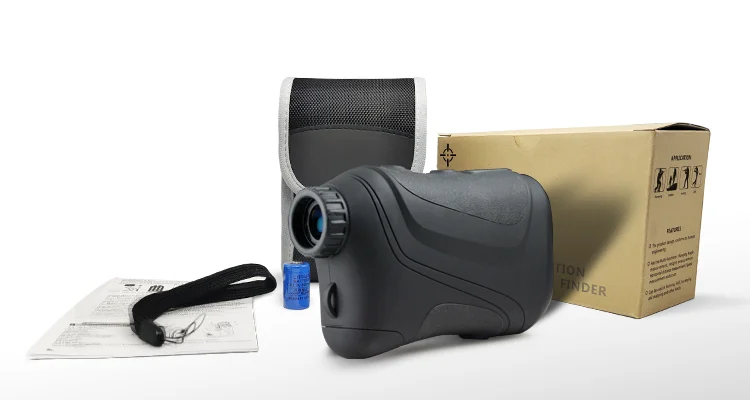

Packing content：Gift box, Soft bag, Manual, Hand rope, Cleaning cloth, Drier, Battery
Features
Ranging, Speed, Angle, Height, Horizontal distance. Continuous scanning, Flag locking, Slope correction.
【Ranging + Angle Mode】
Short press the button after targeting, the angle would be displayed on the top of the screen ,and the distance would be displayed on the bottom. (long press for continuous measurement)
【Ranging + Horizontal Distance Mode】
Short press the button after targeting, the horizontal distance data would be displayed on the top of the screen ,and the distance would be displayed on the bottom.
【Ranging + Height Mode】
Short press the button after targeting, the height data would be displayed on the top of the screen ,and the distance would be displayed on the bottom.
【Speed Mode】
Short press the power button after targeting the moving object, the speed will be displayed on the screen. The smaller the angle between the measuring direction and the moving direction of the object,and the faster the moving speed of the object, the higher the accuracy of the measuring speed.

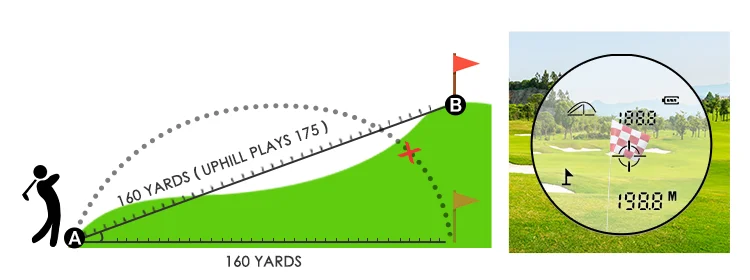

【Flag-Lock &Slope Technology】
Aim at the flagpole or other targets, and short press power button, move the cross sign on the screen slowly from one side to the other side of the target, when the flag sign stop flashing(about 1 second),the machine vibrate, range data to the flag will show on the bottom of the screen.
Golf model built in high-precision angle sensor, while during the measuring process, it will calculate the driving distance (compensation distance) by Golf trajectory equation with distance AB and the angle, and the compensation distance shows on the top of the screen.
Golf model built in high-precision angle sensor, while during the measuring process, it will calculate the driving distance (compensation distance) by Golf trajectory equation with distance AB and the angle, and the compensation distance shows on the top of the screen.
Applications
Certifications
All our products have been certified by FCC, CE and ROHS ,before being sold to the market.
About US
Valueplus2 was founded in 2008 , specializing in the development and production of rangefinder and Lidar, sensor, thermometer.At present, our research and development instruments have been spread all over the china.We was awarded the national high-tech enterprise in china in 2017. At present, we R&D team exceed more than 100 engineers. We could provide OEM / ODM services for you.
Production qualification &capacity
We has an independent manufacture base more than 7000㎡ , always strictly implemented the ISO9001 quality management system.We adhere to the high standards of product quality, strict requirements, advance management and production experience.
Warehousing Logistics
We has an independent warehousing base. It integrates instrument research and development, manufacturing, warehousing and delivery. It supports small batch spot delivery and mass customization.
OEM&ODM Service
We could customize for you brand , customize the product according to the color you like, silkprint your logo on the shell, design your own box ,customize the function for your product, even develop new products for you
FAQ
Q1:Are you a trading company or manufacturer ? A1:We are manufacturer. Q2:What about the payment method? A2:T/T, Paypal, Western Union, L/C is available. Q3:Does your company accept customization? A3:We do customizing service for customers. Q4:What about the Shipment? A4:We'll choose proper transportation mode based on the weight of goods, usually arrange shipment by air express such as DHL,FEDEX,TNT or UPS. Q5:What about after-sale service? A5:12 months warranty for all kinds of products. | ||||||||
12 months warranty and lifetime customer support.
Always get fast & effective solution in 24 hours.
