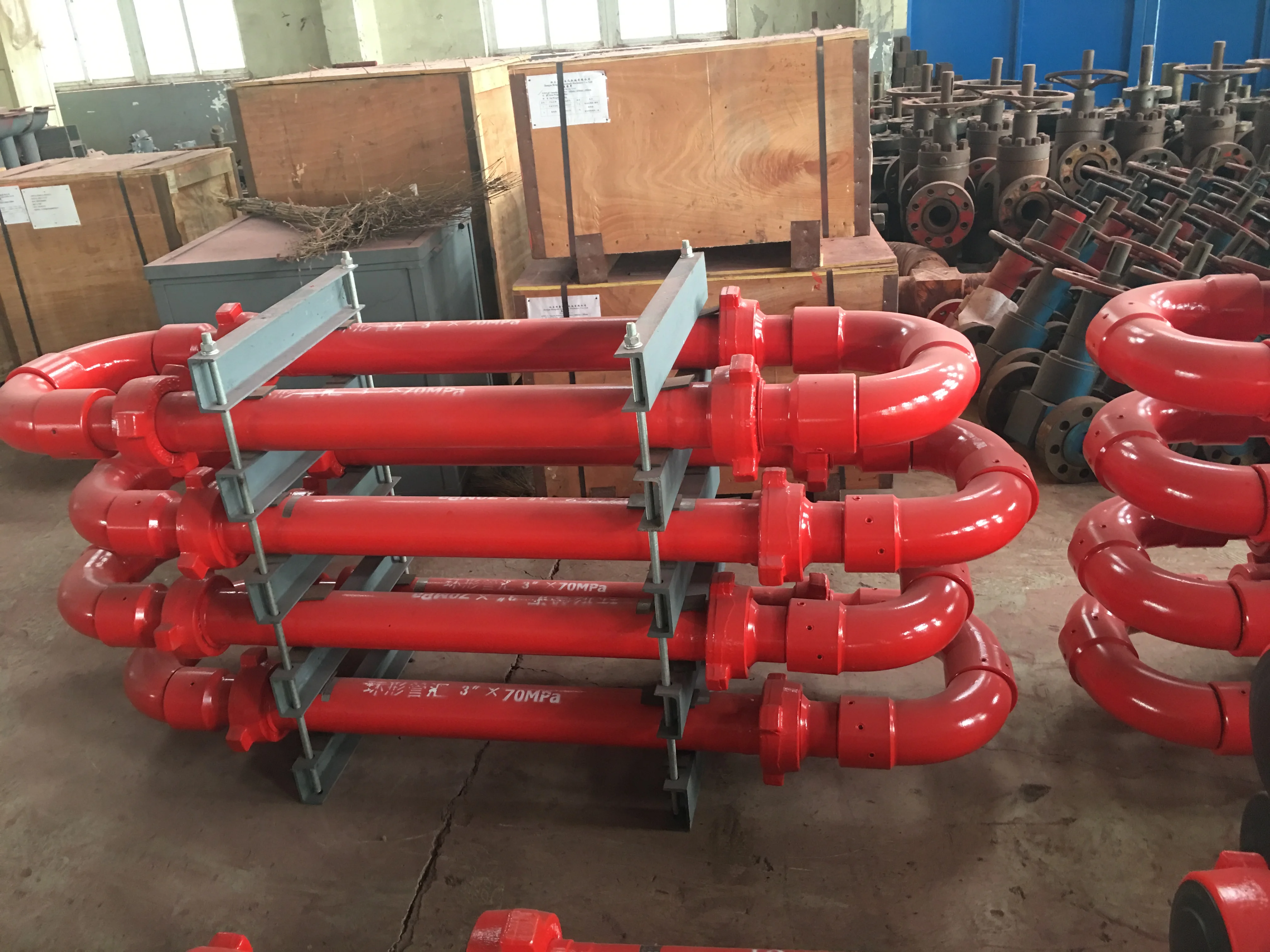

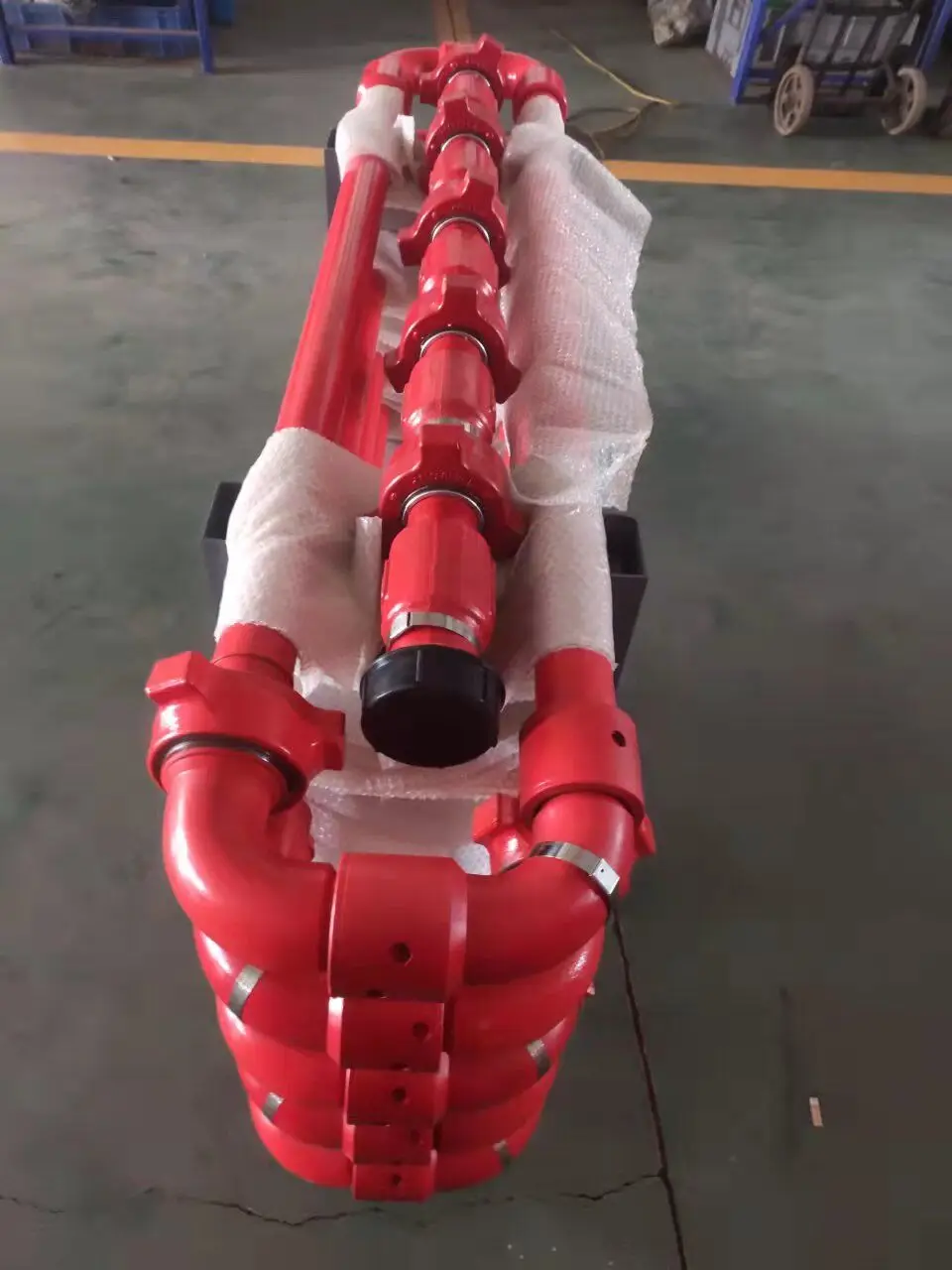

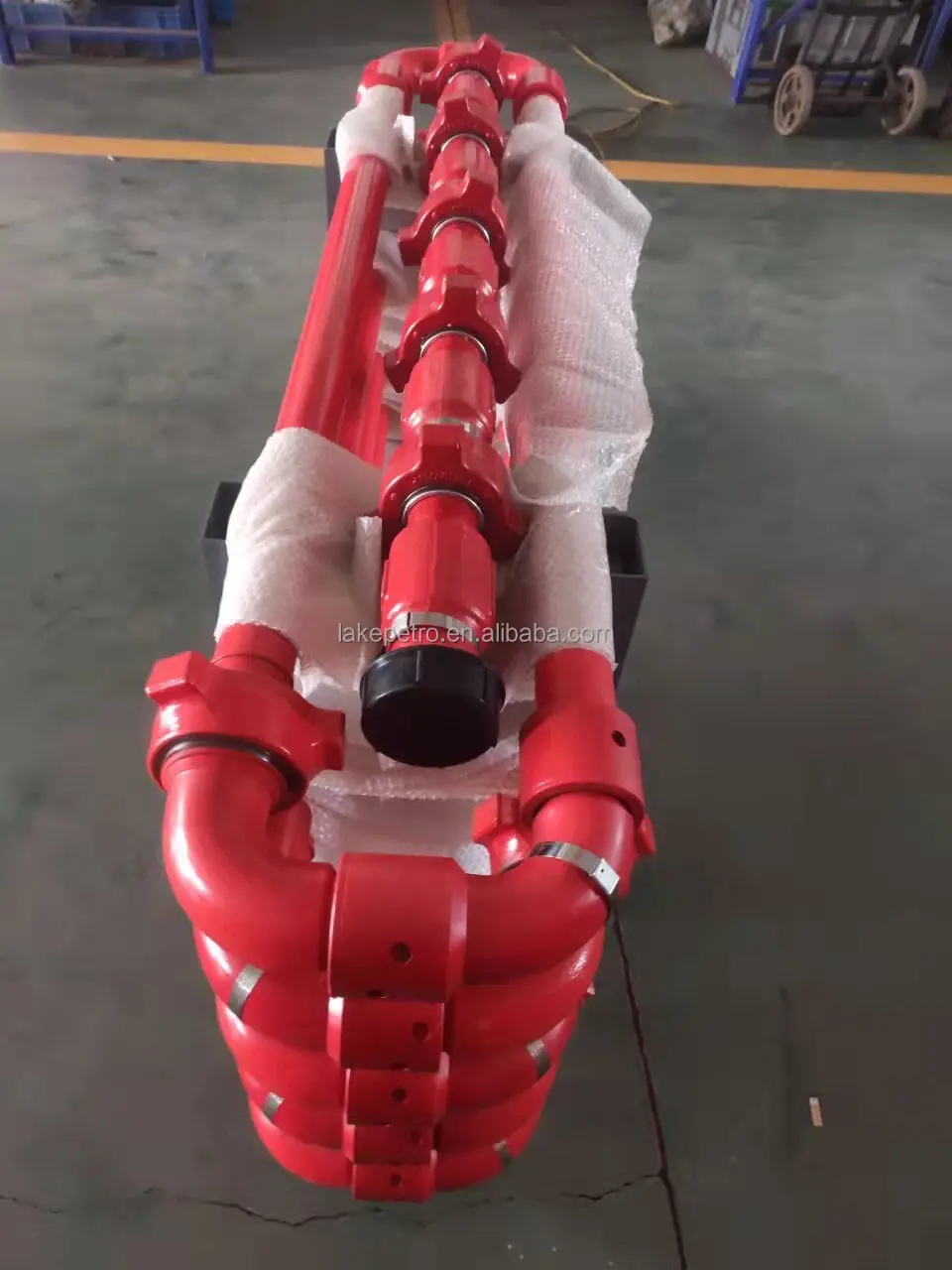

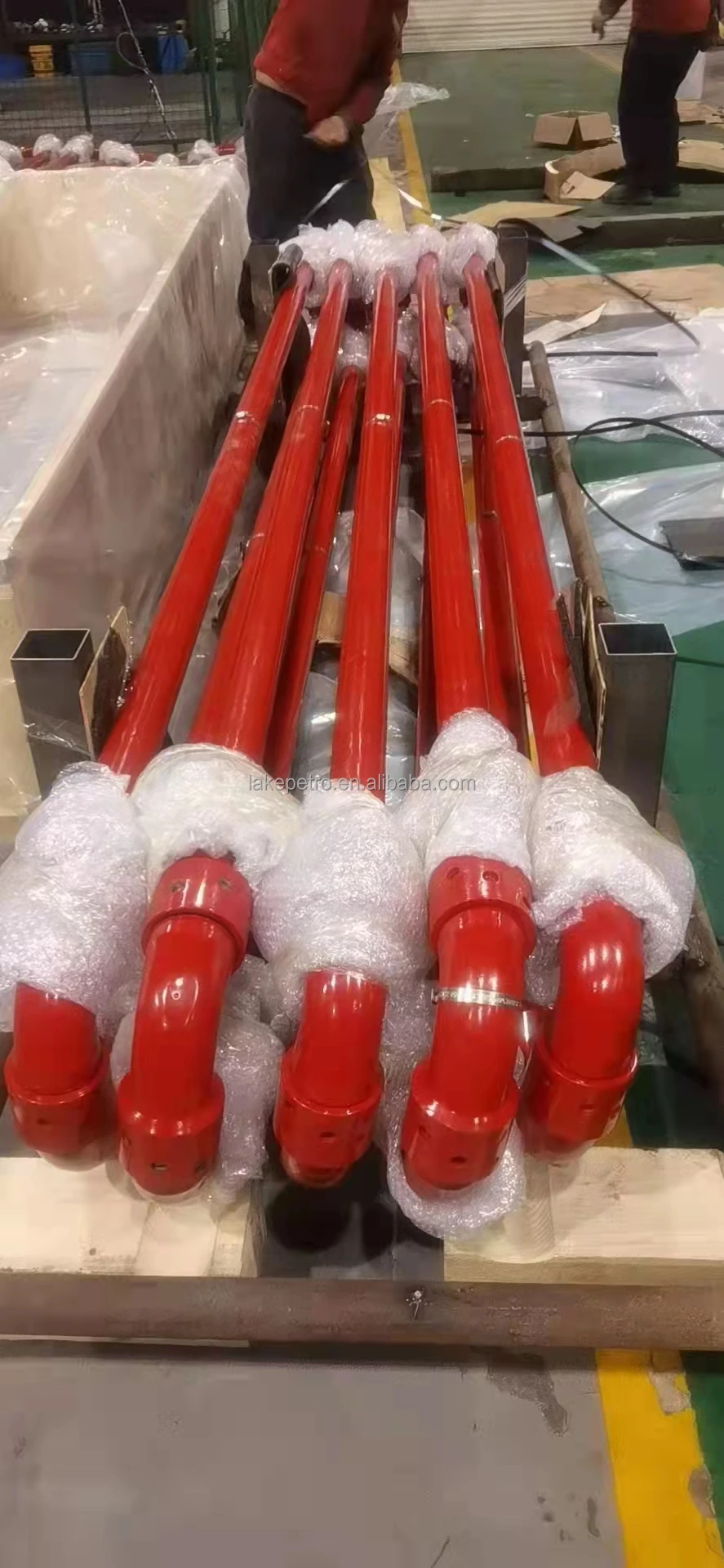

API Standard Fig 1502 Chiksan Circulating Hose Loop

Hose Loops are mainly used for transporting fluid in high pressure discharge line, well testing line and cementing slurry line.

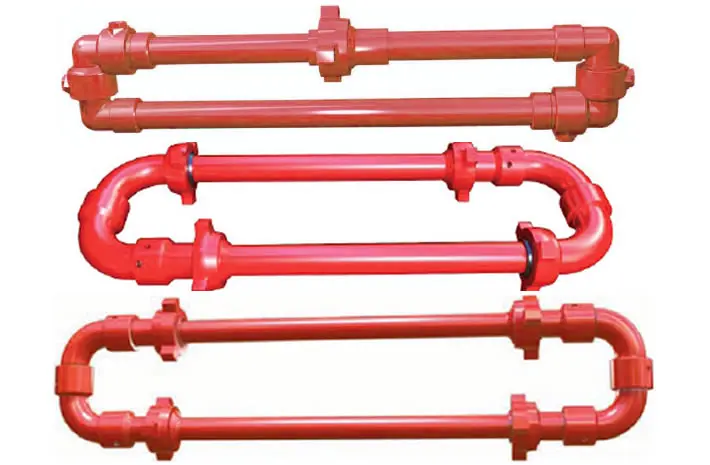

Lake Hose Loops include long radius type and flexible type.

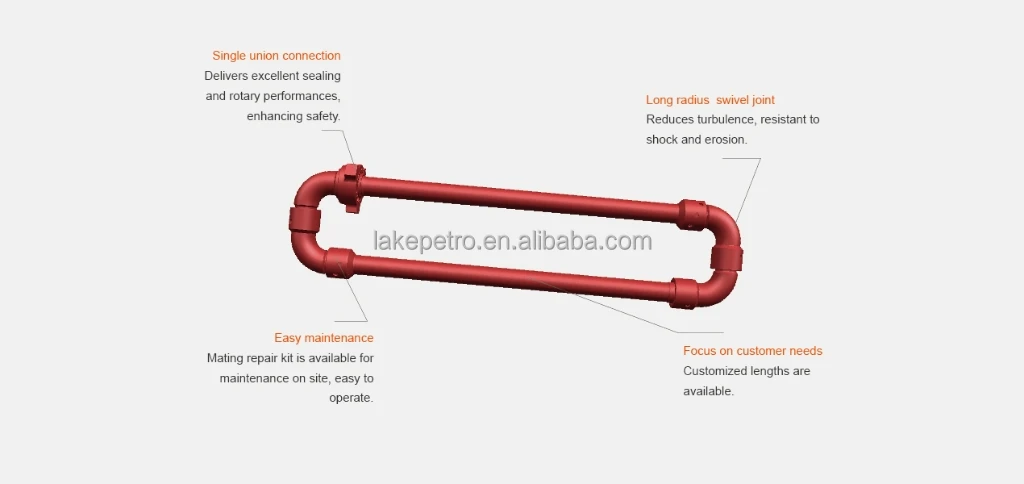

Long radius type combines long radius swivel joint and integral pup joint, featuring high erosion resistance, less vibration, impact resistance and large flow.

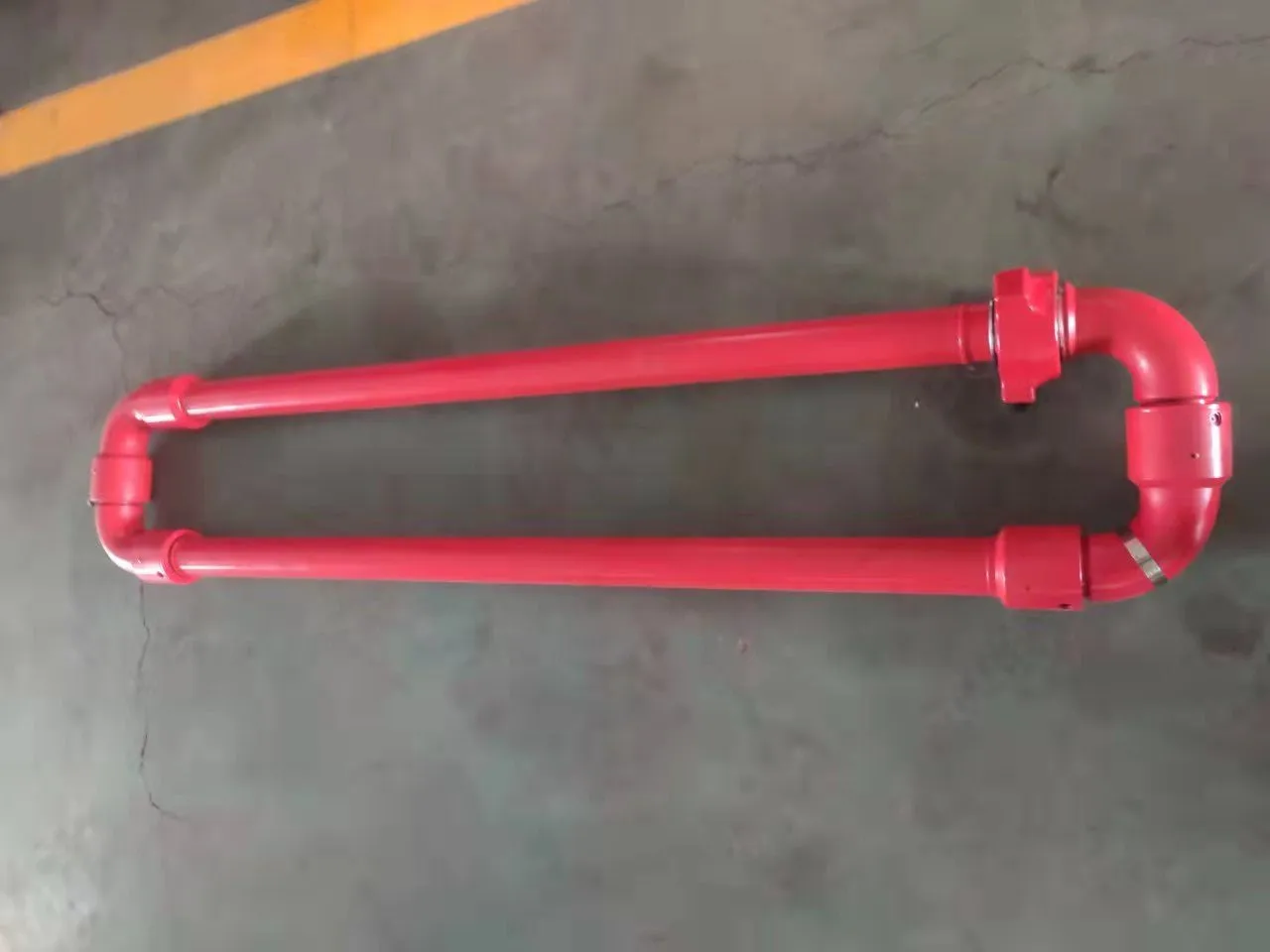

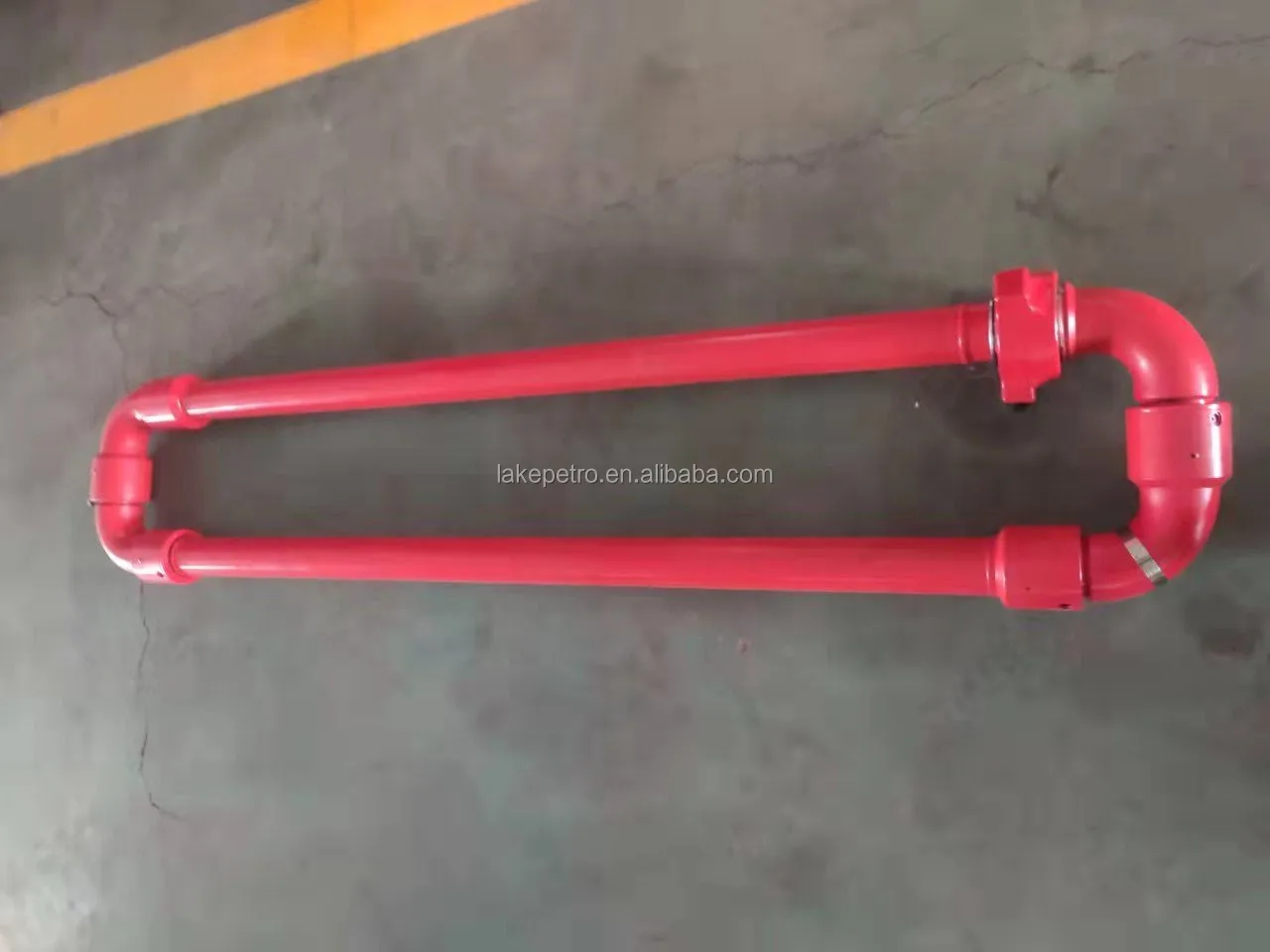

Flexible type has single union connection, featuring excellent seal and rotary performance.

Lake Hose Loops are available in both standard service and H2S service, applicable to cementing, fracturing, acidizing and testing lines. Customized design is also available to meet various demand.

Features:

•


  Special repair kit is available for quick and inline maintenance.





•

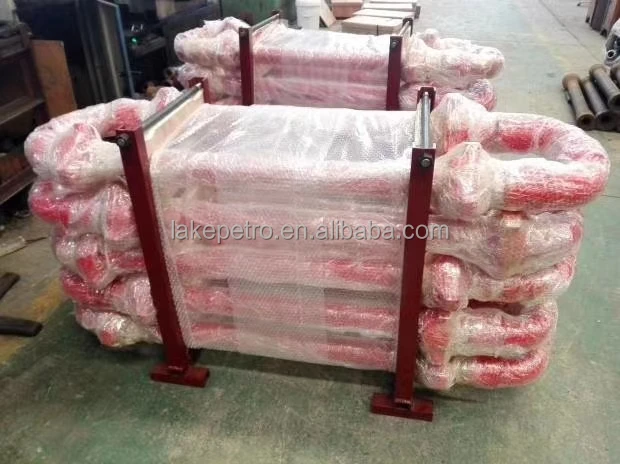

  Easy to fold, store and transport.





•


  High flexibility, less vibration, impact resistance and large flow





•


  Integral hammer union connection is easy for assembly and disassembly.




• Working Pressure Scope: 6000-15000psi


• Nominal Size: 1"-4"


• Spec. size: 2”x 10’, 2” x 12’, 3” x 12'


• Working Temperature: -29-121 C°(PU)


• Medium: Standard Trim or H2S


• Standard: API Spec 16C or NACE MR 0175

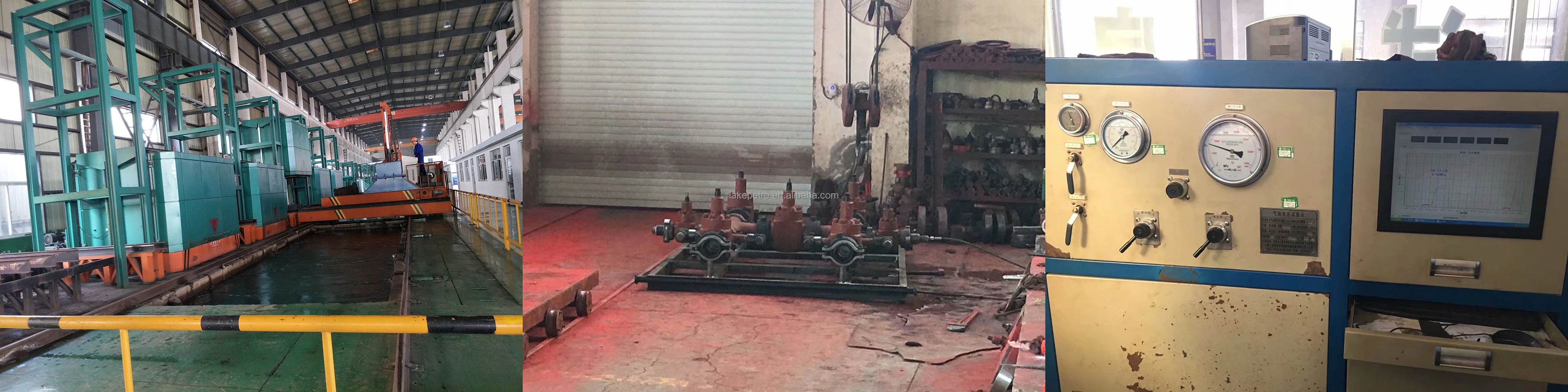

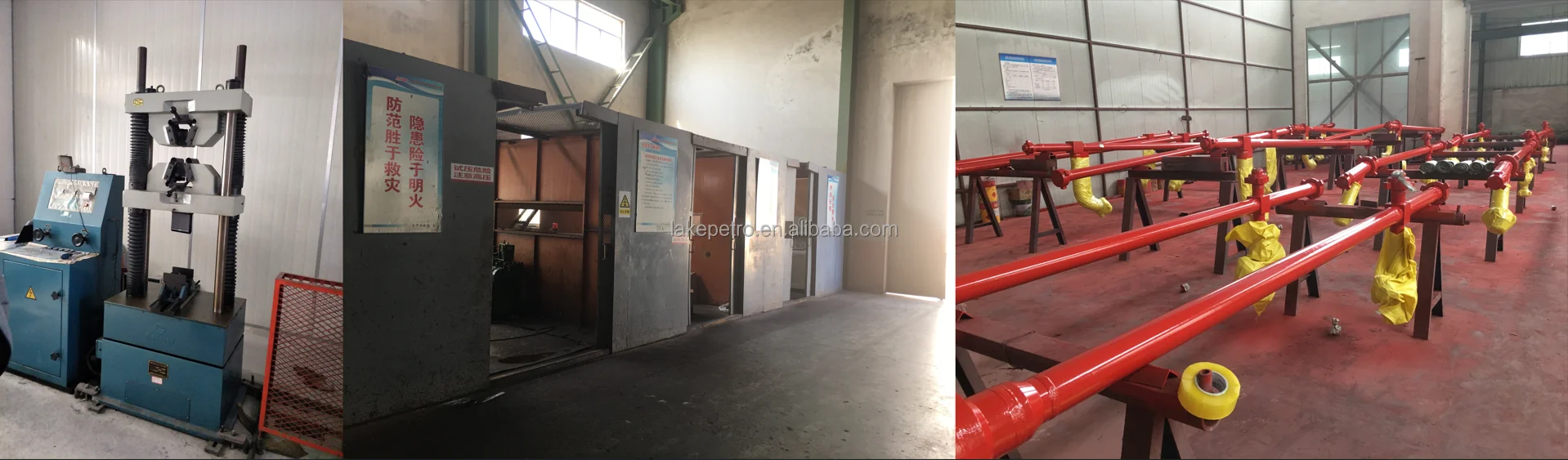

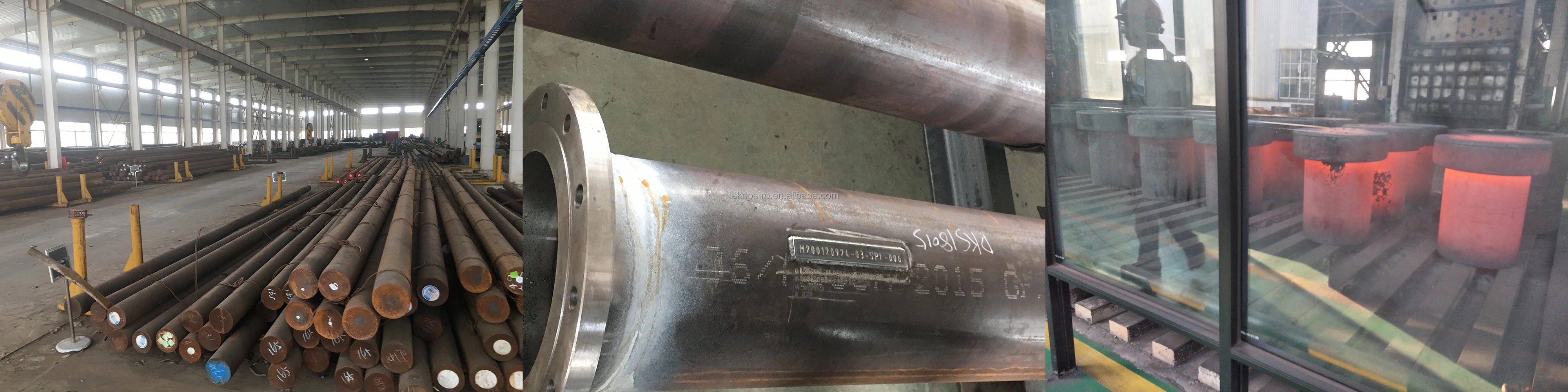

Hydrostatic Test, Ultrasonic Detection, Magnetic Particle Examination, Tension Test at room temperature, Charpy Impact Test, Chemical Analysis, Appearance Inspectionetc, etc, will be done for each product and every batch of raw material.

Strict serial numbers tracking will be easy for you in after-sales or spare parts replacement.

Quality is the premise of everything. All goods will be qualified to arrive in your hand we promise.

Lake Petro company is a professional supplier of various oilfield equipment, including oil drilling and service equipment, oil production equipment, OCTG, wellhead & downhole tools and spare parts. Our products have already been exported to USA, South America, Africa, Middle East, Russia and some other countries (regions). Lake Petro company has become VIP (assigned) supplier and built strategic partnership with some countries' national petroleum companies.
