Hot Laser Welding Embossed Design Heat Resistant Plate
US $100.00-$1200

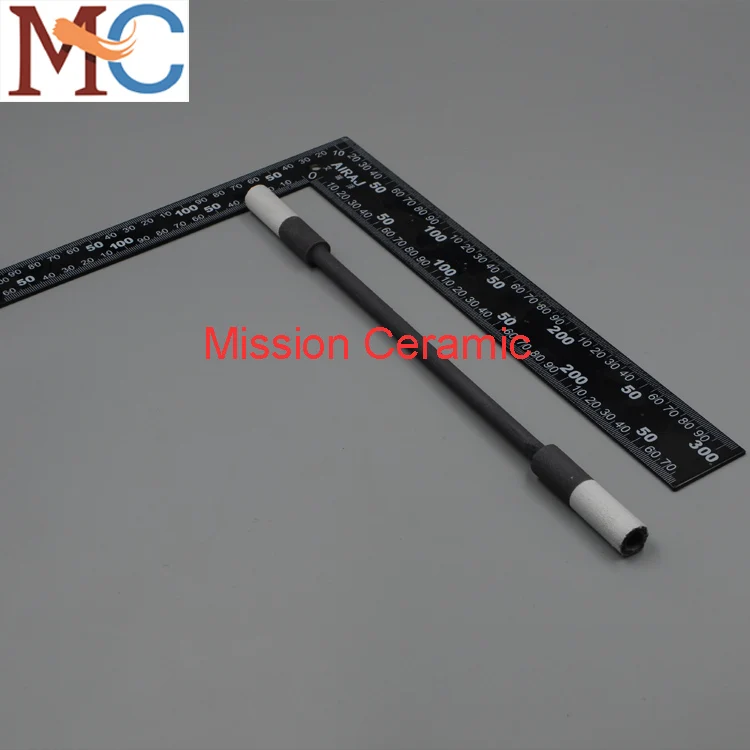

14mm Diameter Silicone Carbide Heating Rods
- Category: Heating Equipment >>>
- Supplier: Zhengzhou,Mission,Ceramic,Products,Co.,Ltd.
Share on:
Product Overview
Description
14mm Diameter Silicone Carbide Heating Rods is our main product.Mission can supply high quality Silicon Carbide (SiC) heating elements.
14mm Diameter Silicone Carbide Heating RodsSpecifications
1. High working temperature: 1400C.
2. Long time last.
3. Varous type available. Rod, U, W, Single Spiral, Double Spiral
2. Long time last.
3. Varous type available. Rod, U, W, Single Spiral, Double Spiral
14mm Diameter Silicone Carbide Heating Rods Advantage .
1. High working temperature: 1500C (Surface Temperature)
2. Various shapes: Rod, U, W, Single Spiral, Doule Spiral shapes are availible.
3. Large size range: Diameter 14-54mm, Length 200-4500mm.
4. Fast Delivery: Normal quantity can be ready in 10 days.
5. Very competitive prices.
14mm Diameter Silicone Carbide Heating Rods Standard Sizes .
Diameter | Heating zone Length | Cold zone Length | Overall length | Range of resistance |
14mm | 100-500mm | 150-350mm | 400-1200mm | 0.7-5.6 ohms |
16mm | 200-600mm | 150-350mm | 500-1600mm | 0.7-4.4 ohms |
18mm | 200-800mm | 150-400mm | 500-1600mm | 0.7-5.8 ohms |
20mm | 200-800mm | 200-600mm | 600-2000mm | 0.6-6.0 ohms |
25mm | 200-1200mm | 250-700mm | 700-2600mm | 0.4-5.0 ohms |
30mm | 300-2000mm | 250-800mm | 800-3600mm | 0.4-4.0 ohms |
35mm | 400-2000mm | 250-800mm | 900-3600mm | 0.5-3.6 ohms |
40mm | 500-2700mm | 250-800mm | 1000-4300mm | 0.5-3.4 ohms |
45mm | 500-3000mm | 250-750mm | 1000-4500mm | 0.3-3.0 ohms |
50mm | 600-2500mm | 300-750mm | 1200-4000mm | 0.3-2.5 ohms |
54mm | 600-2500mm | 300-750mm | 1200-4000mm | 0.3-3.0 ohms |
Other sized SiC elements can be made according to your need!
How to Order 14mm Diameter Silicone Carbide Heating Rods
1. Choose the shape you need, like Rod, U, W, Single Spiral etc.
2. Out Diameter (OD)
3. Heating Zone Lengh (HZ)
4. Overall Length (OL)
5. Resistance you need.
Order Sample: Rod type, OD30mm, HZ300mm, OL800mm, Resistance 0.4ohms.
14mm Diameter Silicone Carbide Heating Rods is widely used in high temperatue furnaces, It can be used in air, vacuum and other protection gase enviroments.
I believe you will like our SIC heating element.
Tips:
Customized production is available, for more information, please do not hesitate to tell me.
