Model | PMD085DB | PMD120DB | PMD09DB | |||||||
Function | Cooling/Heating | Cooling/Heating | Cooling/Heating | |||||||
Capacity | Cooling | W | 2600 | 3600 | 2680(1070~2930) | |||||
Heating | W | 2400 | 3400 | 2500(1120~2800) | ||||||
Power Supply | Ph.V.Hz | 1Ph/220~240V/50Hz | 1Ph/220~240V/50Hz | 1Ph/220~240V/50Hz | ||||||
Power Input | Cooling | W | 1160 | 1270 | 890(520~1260) | |||||
Heating | W | 1000 | 1170 | 750(430~920) | ||||||
Airflow Volume(H) | Indoor side | m3/h | 330 | 350 | 350 | |||||
Dehumidifying Volume | L/h | 1 | 1 | 1 | ||||||

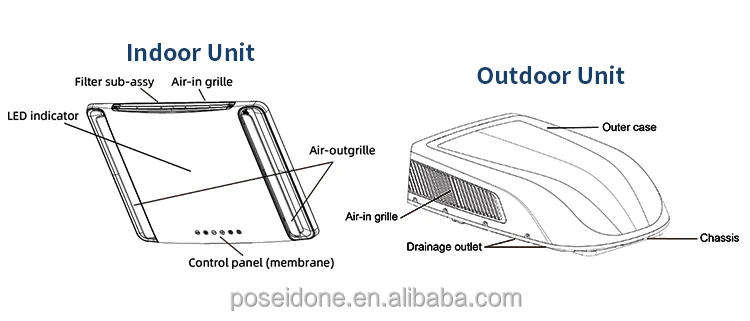

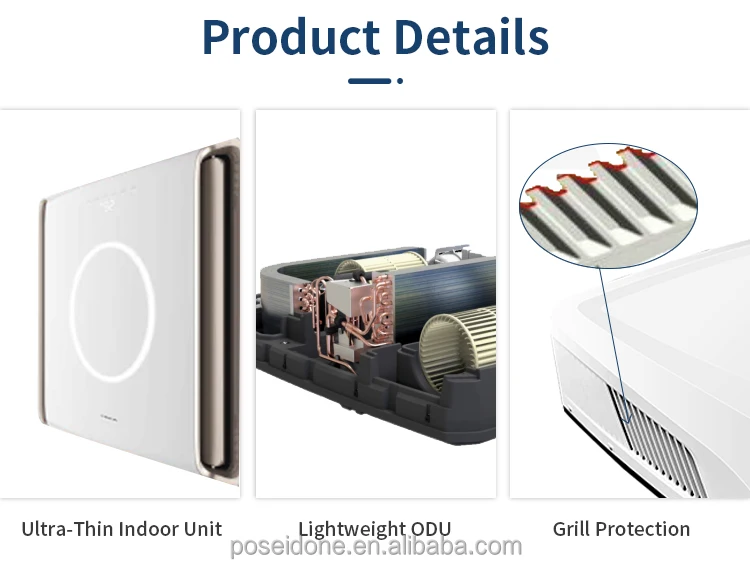

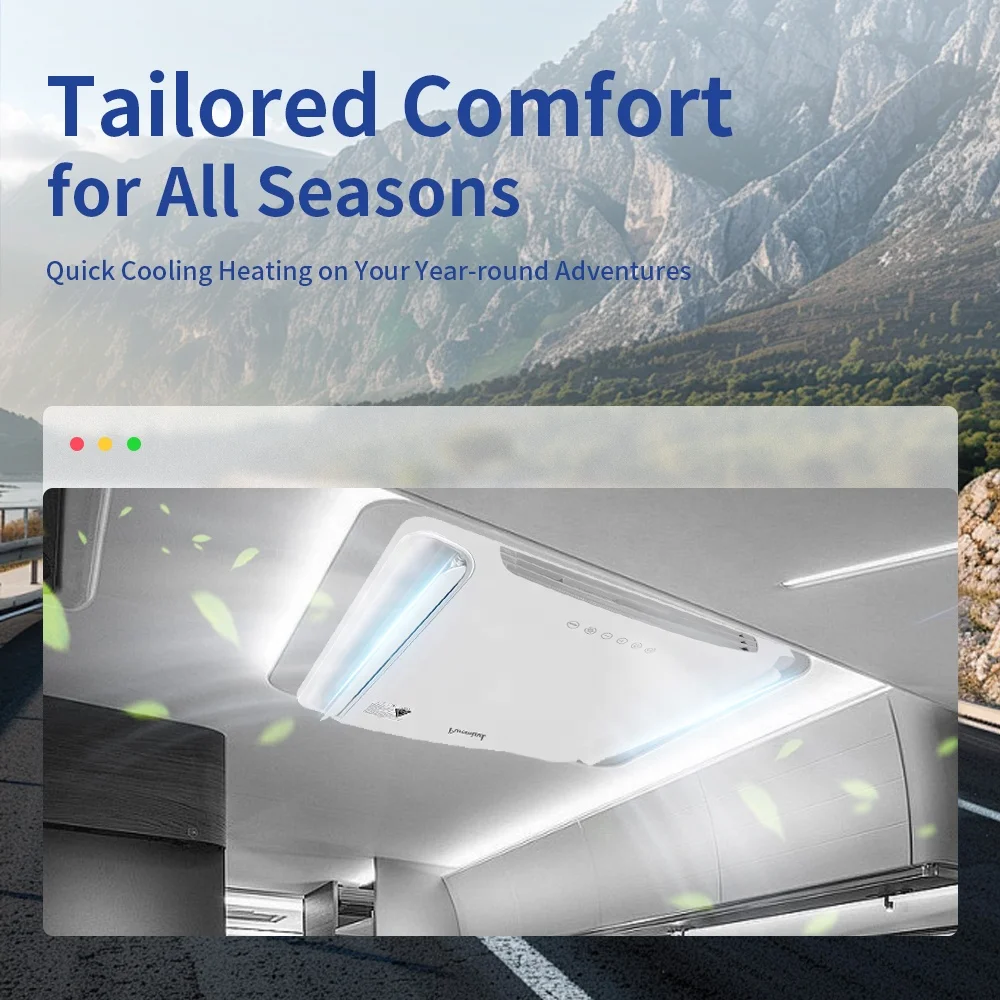

Indoor Unit | ||||||||||

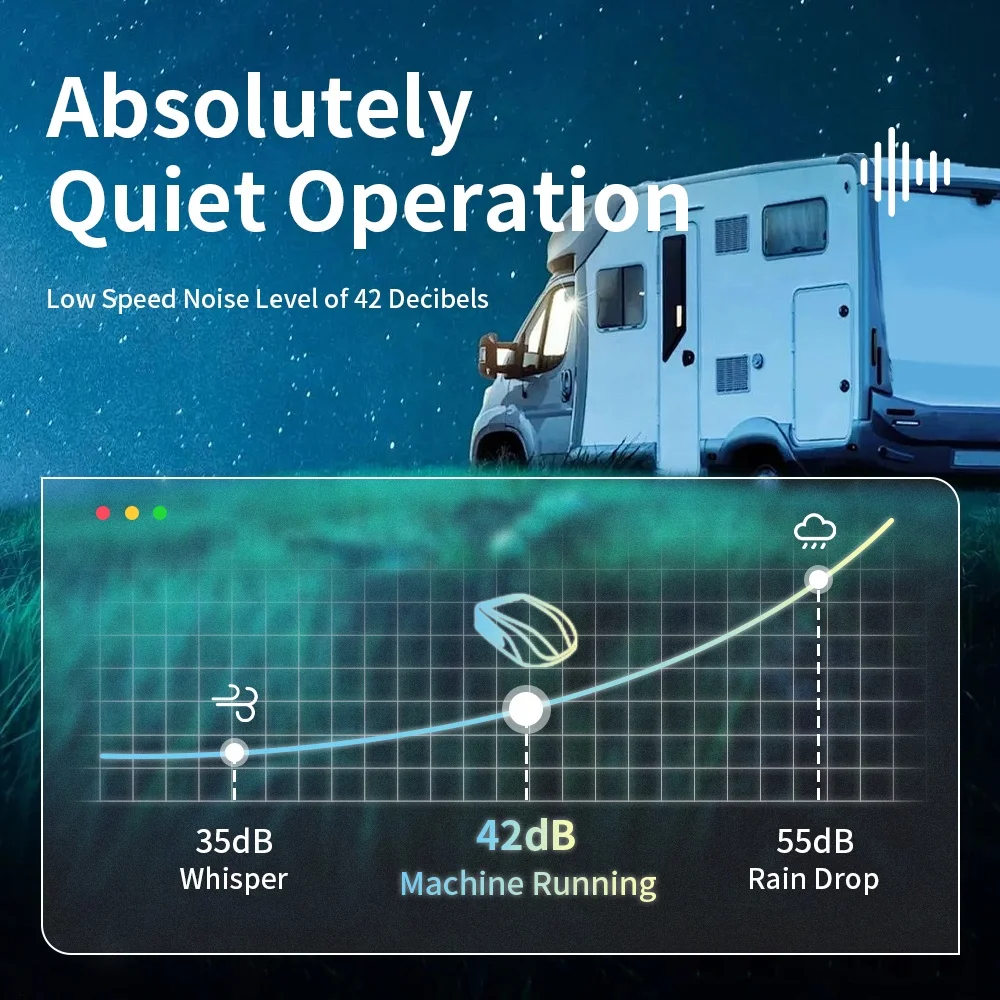

Sound Pressure Level | Indoor side | dB(A) H/M/L | 53/47/42 | 54/48/43 | 53/48/42 | |||||

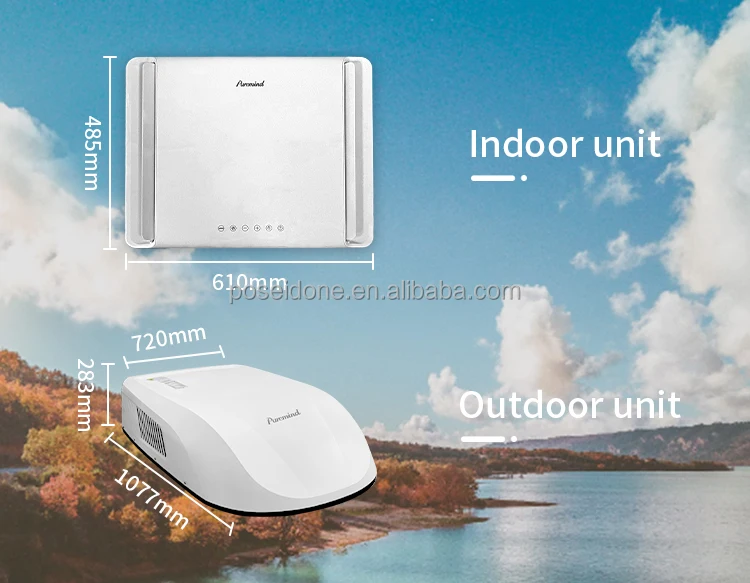

Outline Dimension | W*H*D | mm | 610*485*49 | 610*485*49 | 610*485*49 | |||||
Package Dimension | W*H*D | mm | 668*547*109 | 668*547*109 | 668*547*109 | |||||
Net Weight/Gross Weight | Indoor | Kg | 2.7/4 | 2.7/4 | 2.7/4 | |||||

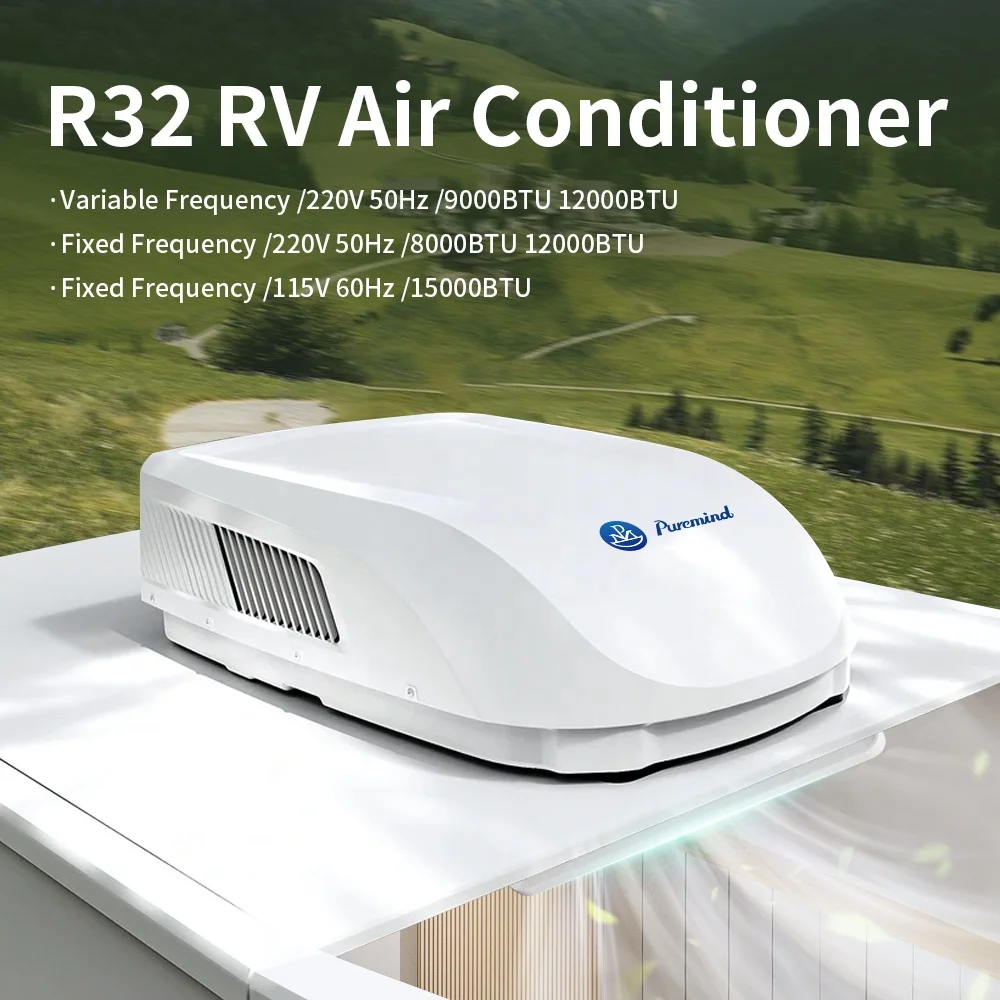

Outdoor Unit | ||||||||||
Sound Pressure Level | Outdoor | dB(A) | 53 | 54 | 54/46 | |||||
Outline Dimension | W*H*D | mm | 1077*720*283 | 1077*720*283 | 1077*720*283 | |||||
Package Dimension | W*H*D | mm | 1146*783*322 | 1146*783*322 | 1146*783*322 | |||||
Net Weight/Gross Weight | Outdoor | Kg | 35/44 | 35/44 | 29.5/37.5 | |||||
Loading Quantity | 40`GP | sets | 165 | 165 | 165 | |||||
40`HQ | sets | 191 | 191 | 191 | ||||||
