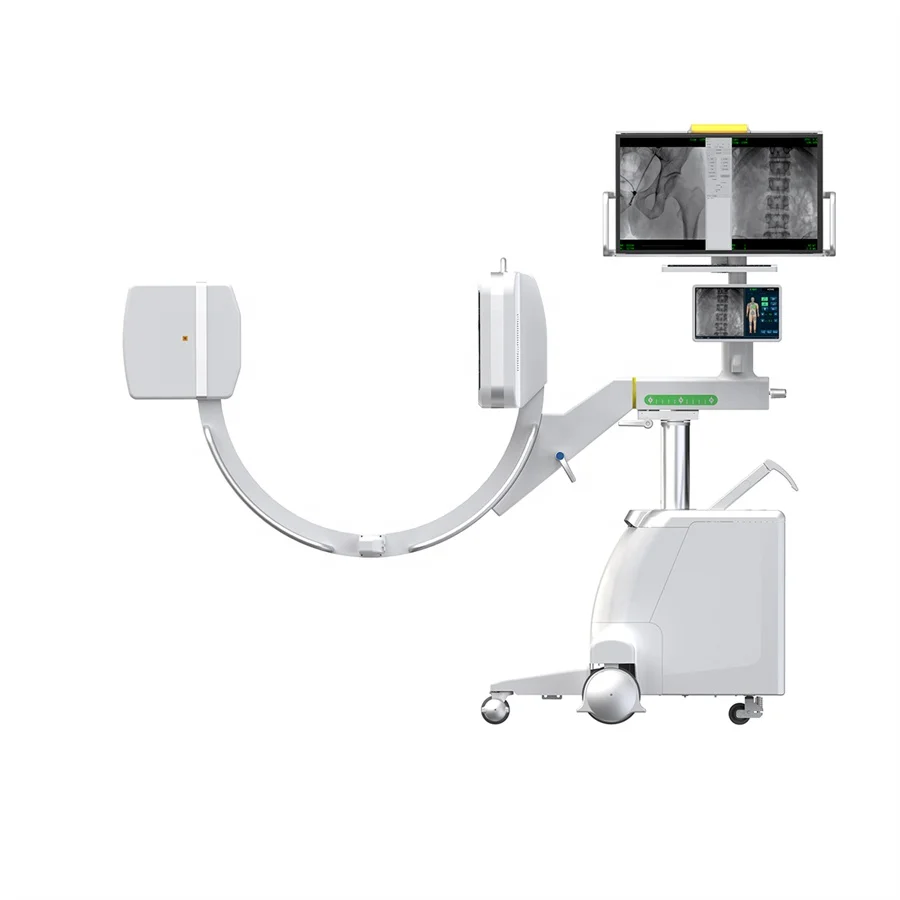

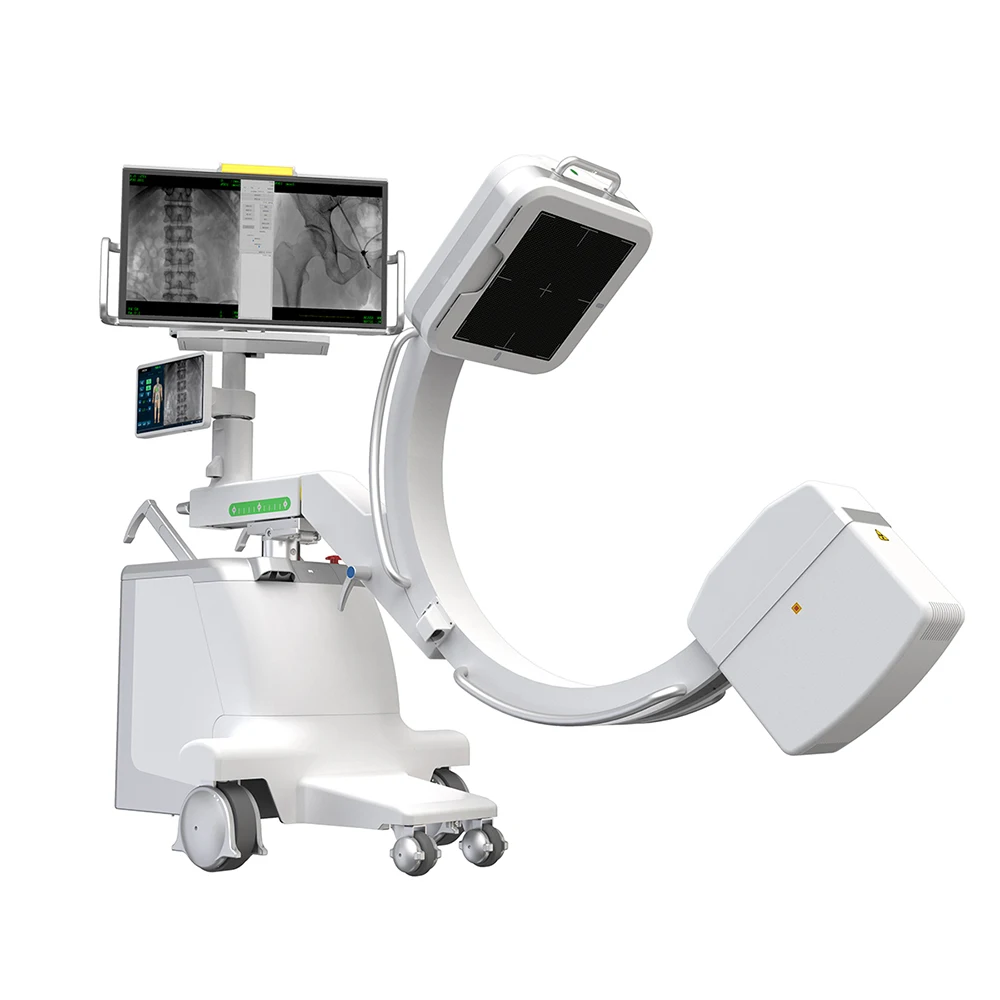

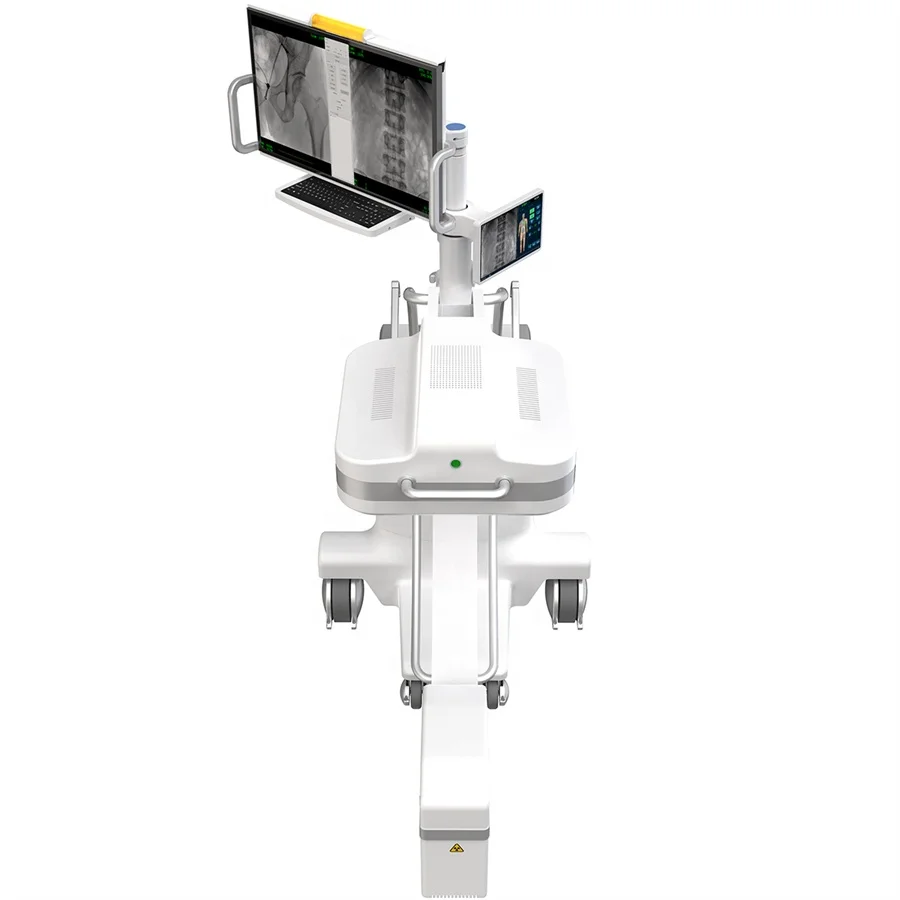

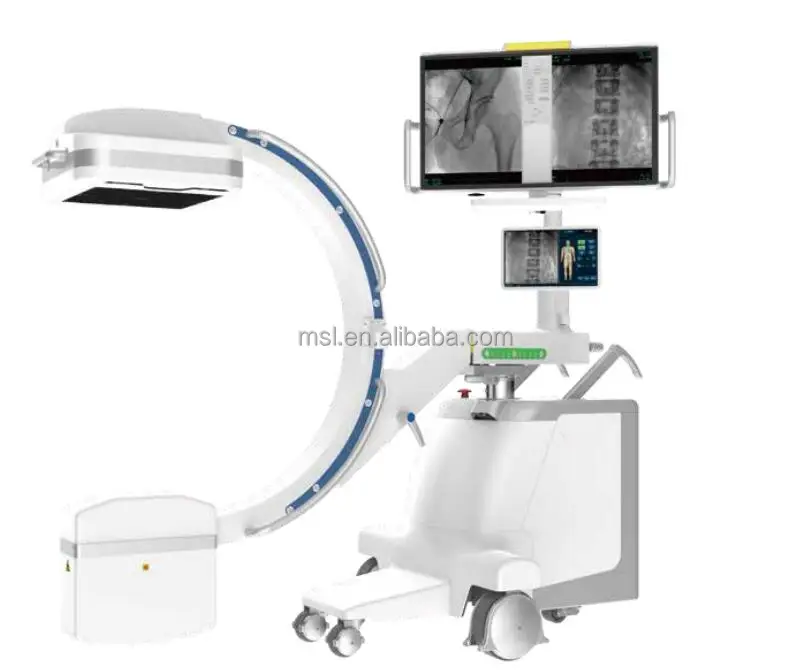

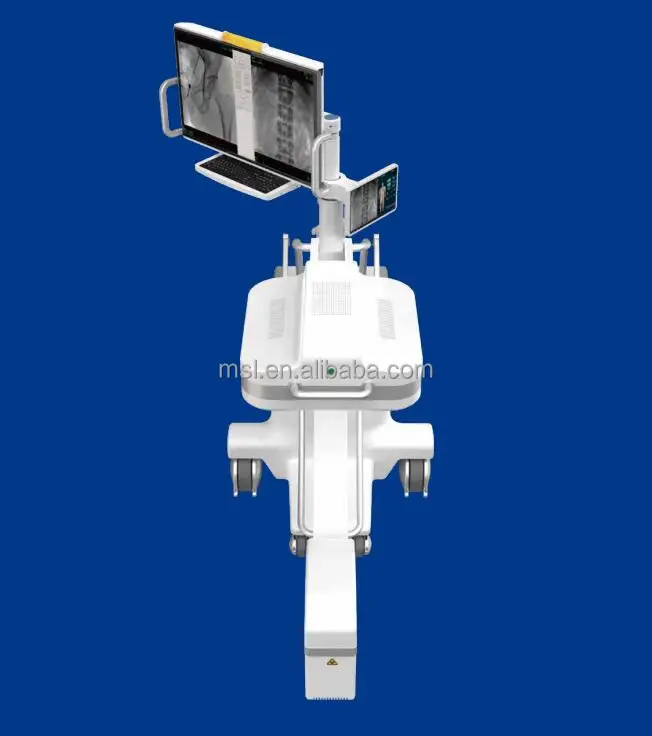

100mA C Arm X Ray Machine Price/ Radiology Scanner C Arm Fluoroscopy Machine

Share on (1600527196785):


Price:

Quantity:


Product Overview

Description



Product Description




Large view
Small footprint
TECH CONTRIBUTES HEALTH

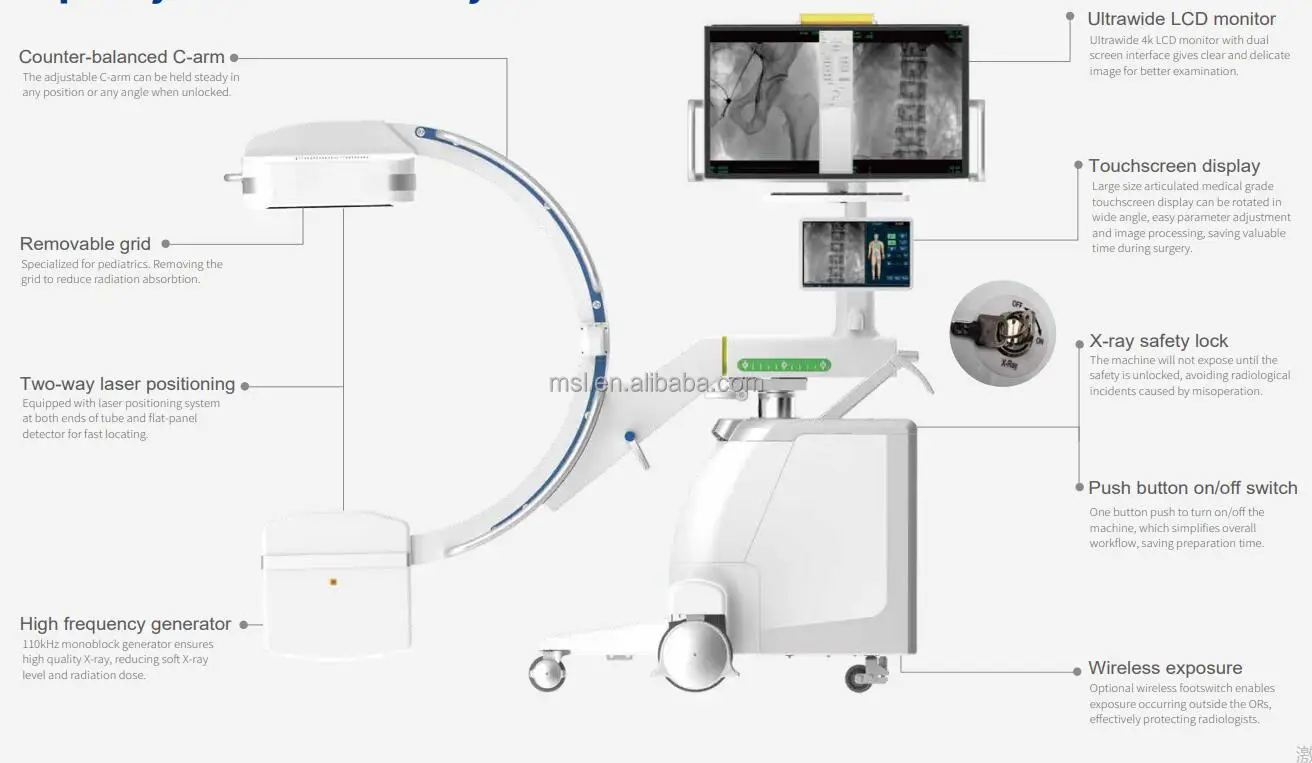

Simplicity revealed in every details:
Counter-balanced C-arm
Removable grid
Two-way laser positioning
High frequency generator

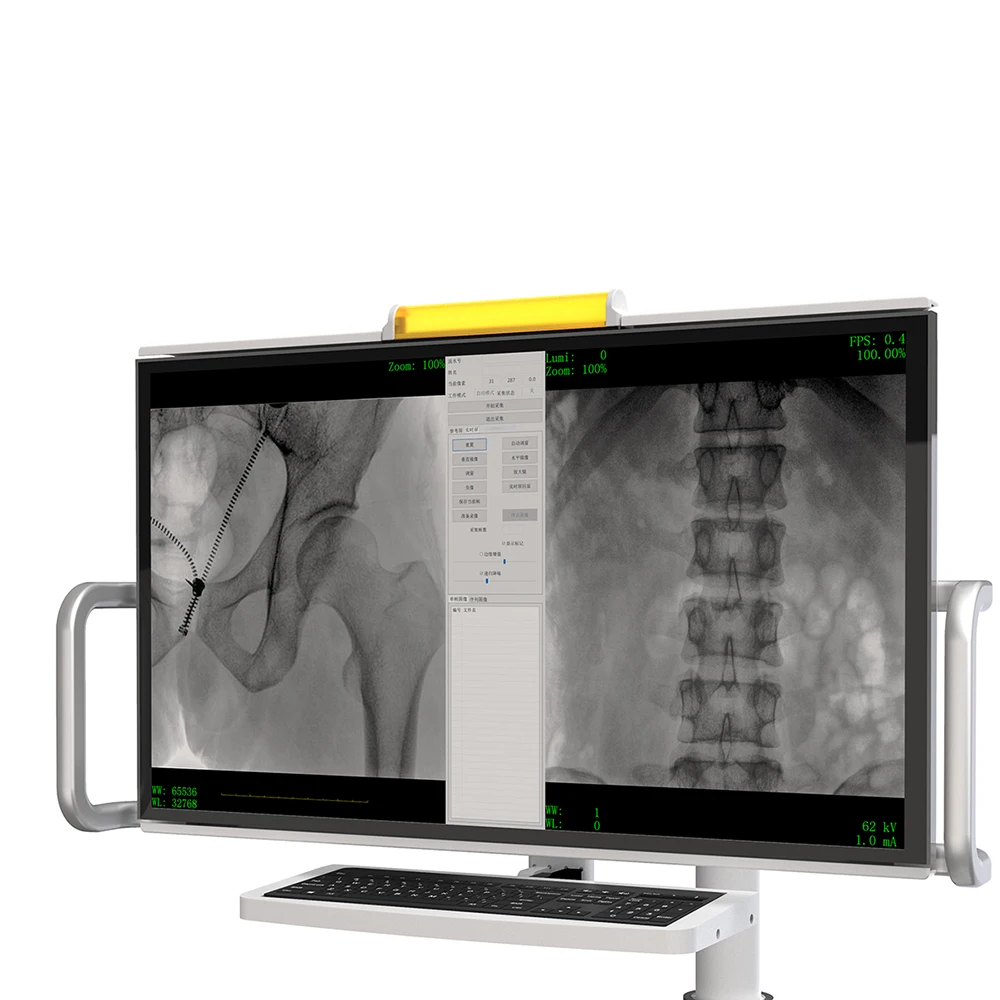

Ultrawide LCD monitor

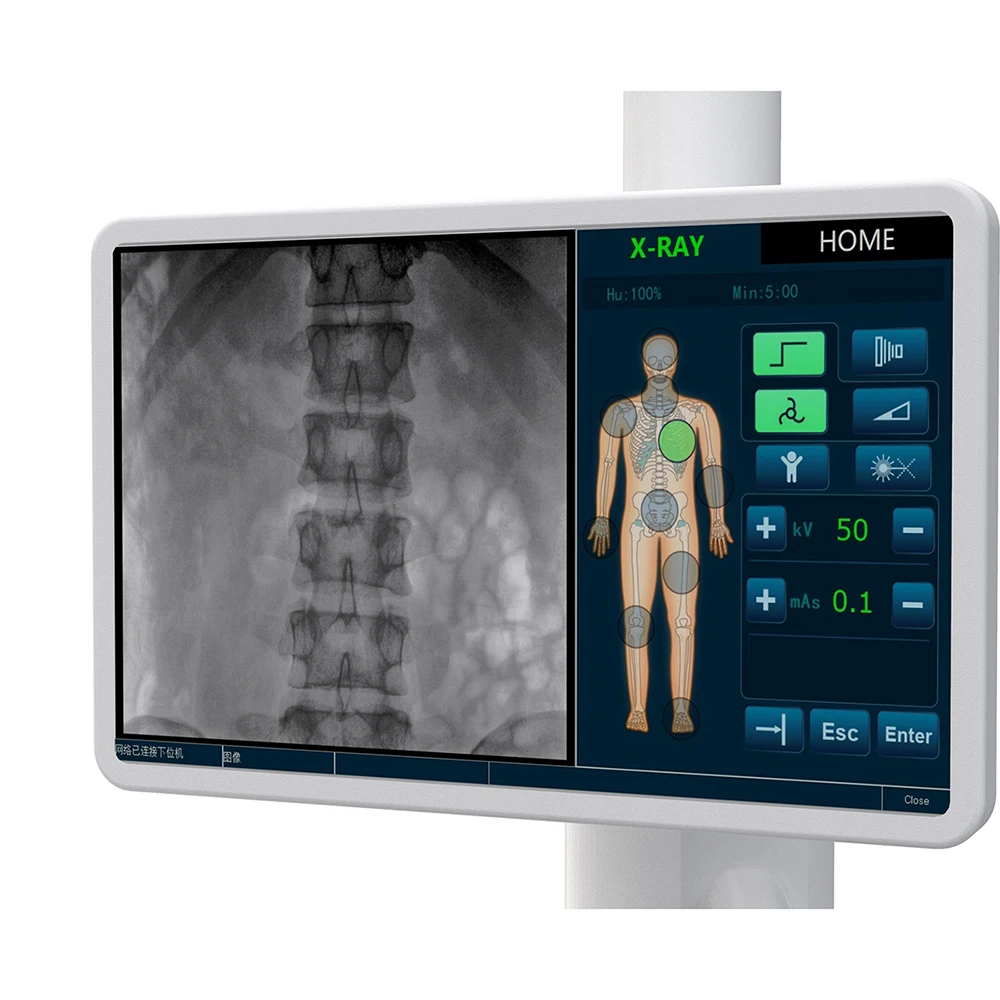

Touchscreen display
X-ray safety lock
Push button on/off switch
Wireless exposure


Upgraded FPD
Revealing more anatomical details
Increasing 100% of Field of View
Crystal-clear image with delicacy


Double the image size
Decrease exposure times

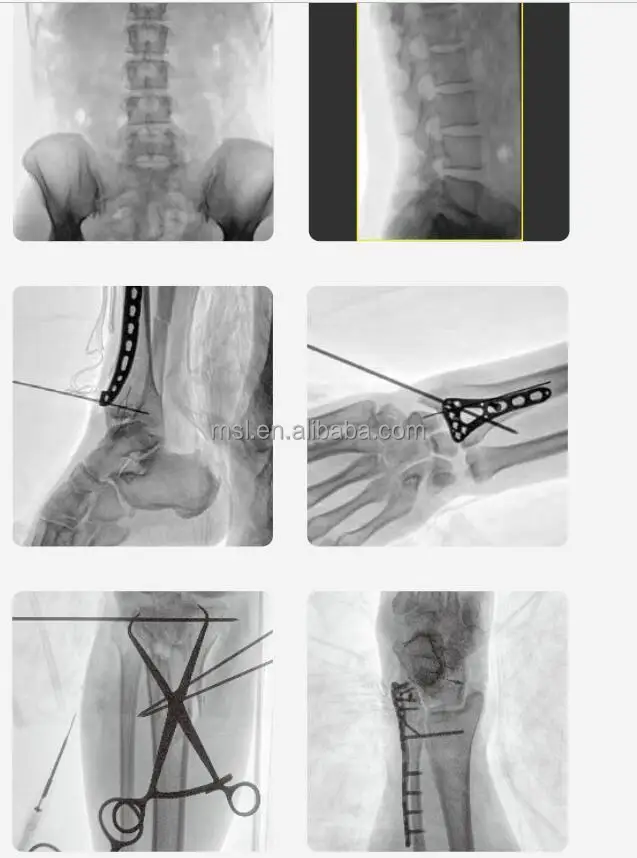

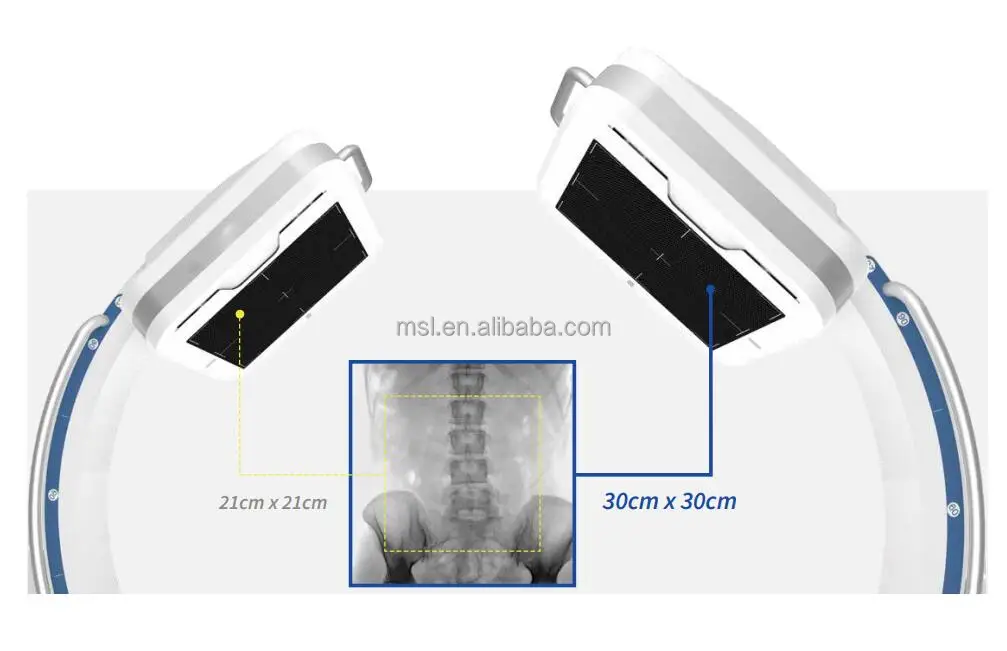

Full lumbar vertebrae imaging
5 lumbar vertebrae can be photographed within one image by a 30cm x 30cm FPD, largely decreasing exposure times caused by insufficient image FOV, making it easier for surgeon to locate lesions and to make surgical plan in the procedure like pedicle screw fixation or procedure with strict imaging demand.
Entire pelvic imaging
Image taken by 30cm x 30cm FPD can basicly cover the entire pelvic floor. In the surgery of bilateral-pevic fractures or pelvic ring internal fixation, all the fracture site can be revealed by a single exposure, which significantly improves overall efficiency.


Low dose management Multiple protection
High frequency pulsed fluoroscopy
Dose area product monitoring
Intelligent parameter adjustment
Virtual collimator




Flexible and efficient Instant surgery share

All-in-one compact design

Standby power

Fast imaging



Application
hospital clinic

Application
Joint surgery
Trauma surgery
Spine surgery
Pain management







Clinical


Specification


Item Name
100mA C Arm X Ray Machine Price/ Radiology Scanner C Arm Fluoroscopy Machine
Generator
5.0kW,40 kv~120kv
Power supply
High frequency inverter
Power output: 5.0kW
Main inverter frequency: 110 kHz
Automatic fluoroscopy
tube voltage 40 kv~120kv,adjust automatically
tube current : 0.3mA~~4mA adjust automatically
Manual fluoroscopy
tube voltage 40 kv~120kv, continuous
tube current : 0.3mA~~4mA continuous
Pulse fluoroscopy
tube voltage 40 kv~120kv, continuous
tube current : 0.3mA~~30mA continuous
Photography tube voltage, mA
40KV~120KV, 25mA~100mA, 1.0mAs~280mAs
X-ray tube special for high frequency
Dual focus:0.6/2.0mm
thermal capacity: 650Kj (867kHu)
Medsinglong Detector
Medsinglong 12*12 inch Dynamic flat panel detector
Amorphous silicon cesium iodide
Image acquisition matrix: 1024*1024
Gray scale of image acquisition: 16bit
Pixel size:205μm
Monitor
32 inch ultra-wide 4K LCD display *1 sets
Workstation software
Image W/L adjust, grayscale conversion, interest area balance, turn, noise reduction, enhancement, smoothing, sharpening,
compression, zoom, measure, mark, print layout, Dicom image sending, Dicom image print and movie playback, etc.
Imaging system
Equipped with proprietary intellectual property rights---"Vinci" image processing system:
RCDPS --- rapid calculate display platform
GPU --- based dynamic real-time image processing technology and automatic brightness tracking makes it easy to get sharp image of
various body parts and meet the diverse needs of customers.
Direction wheel and main wheel
Direction wheel can rotate in any direction, and main wheel can rotate in ±90°.
C-arm movement
The up and down(motorized): 400mm.
Forward and backward movement: 200mm; Revolution around horizontal axis : ±180°; Revolution around vertical axis: ±15°,
Distance from focus to screen: 1000 mm;
C-arm open distance: 800mm
C-arm arc depth: 660mm;
Slipping on orbit : 135°
