Electric Automatic Water Activated Wet Kraft Paper Gummed Tape Cutter Tape Dispenser
- Category: Tape Dispenser >>>
- Supplier: Beijing Bcd Technology Co. Ltd.
Share on (1600527288095):
Product Overview
Description

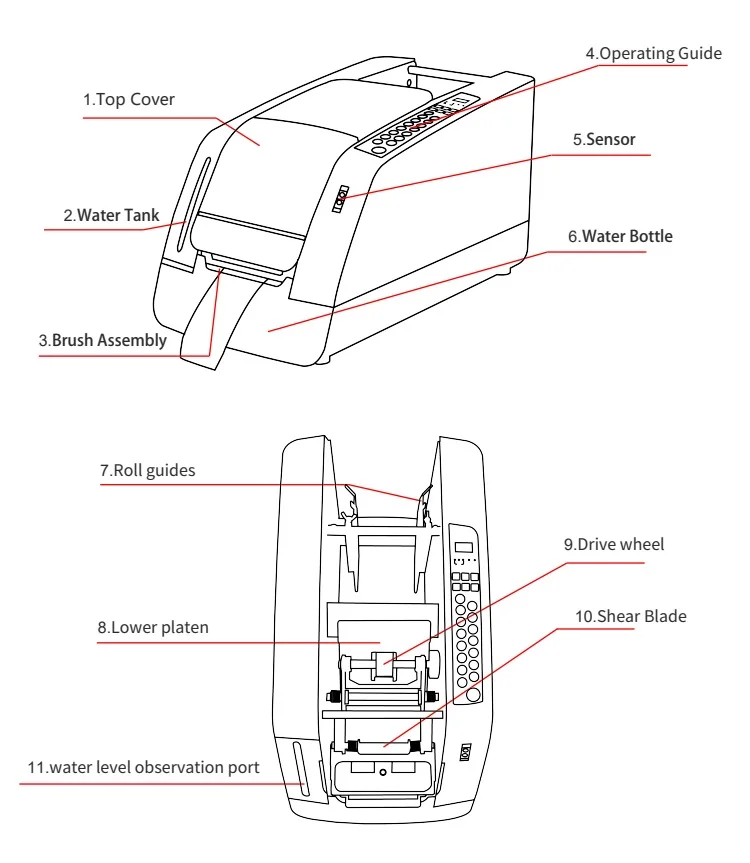

Details of Automatic Water Activated Tape Dispenser

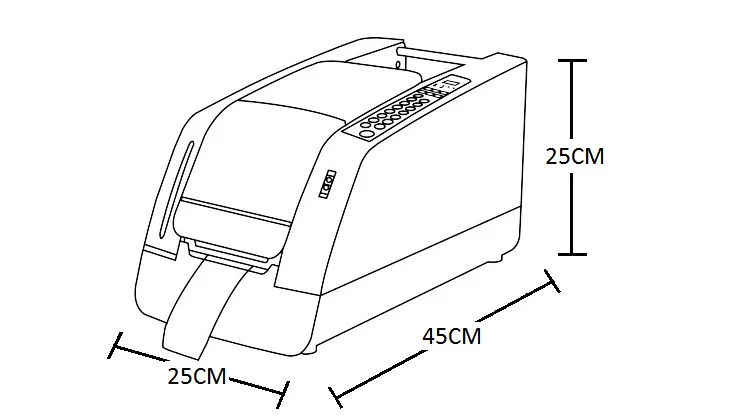

Dispenser Parameter & Safety Notice
| Voltage | Power | Speed | Weight | Size |
| 100-220V | 100W | 50CM/S | 14KGS | 45*25*25CM |
| Safety notice | ||||
| 1. Please use 100V-220V power supply. 2. Avoid placing in direct sunlight and outdoors. 3. Please cut off the power quickly when break down. 4. Please disconnect the power supply and remove the plug, when cleaning or repairing equipment. 5. Do not disassemble or repair equipment without the knowledge of engineer. | ||||

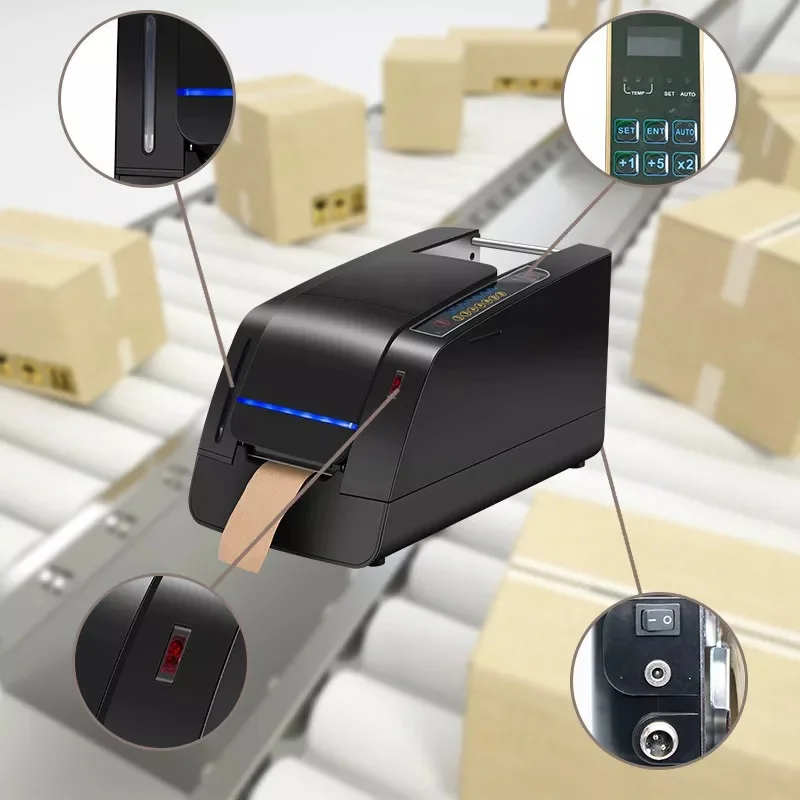

Features of Automatic Water Activated Tape Dispenser

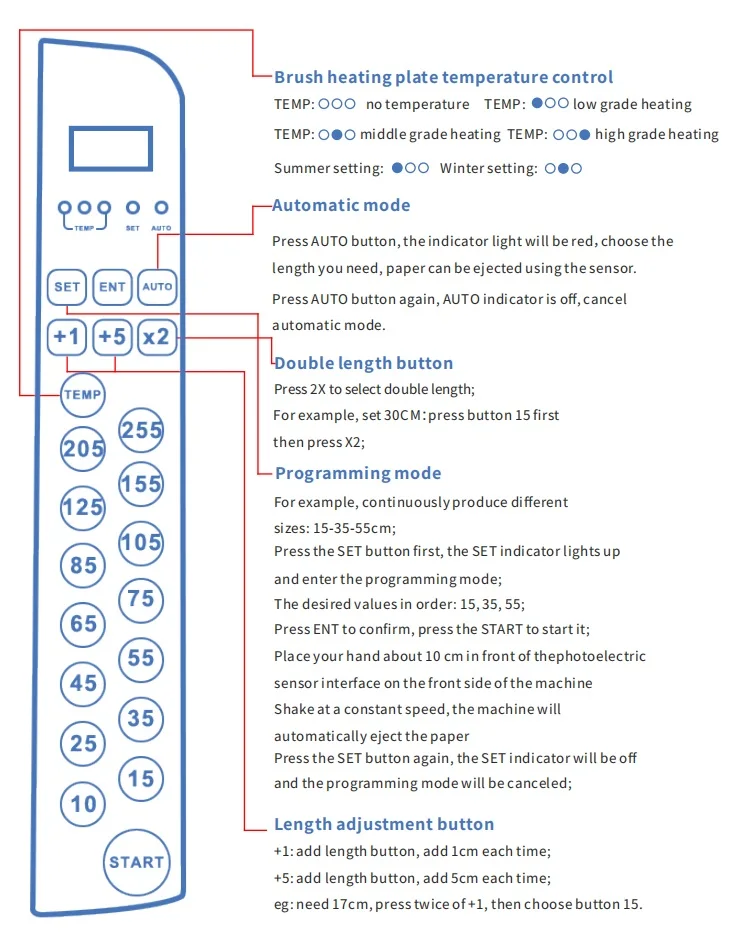

Description of the Operation Panel

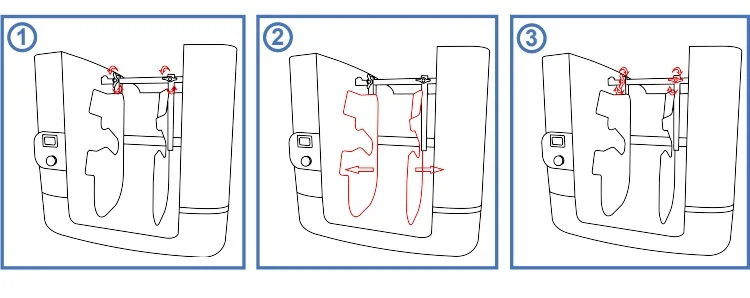

Roller Installation Instructions
According to the actual tape width, install the roll guides at its proper position.
As shown in figure 1, loosen the screws at both ends of the limit plate counterclockwise.
As shown in figure 2, move the limit plate to the appropriate width.
As shown in figure 3, tighten the screws at both ends above the limit plate clockwise.

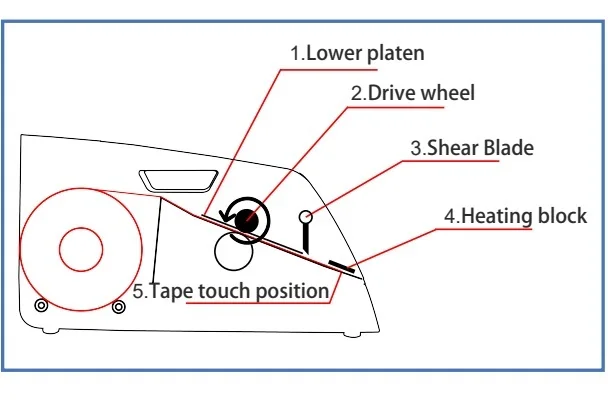

Tape Installation Instructions
Before put on the tape, be sure the front end of the tape is cut flat;The tape is passed through the platen, and the transmission wheel is manually turned to make the tape move forward until it passes through the cutter.

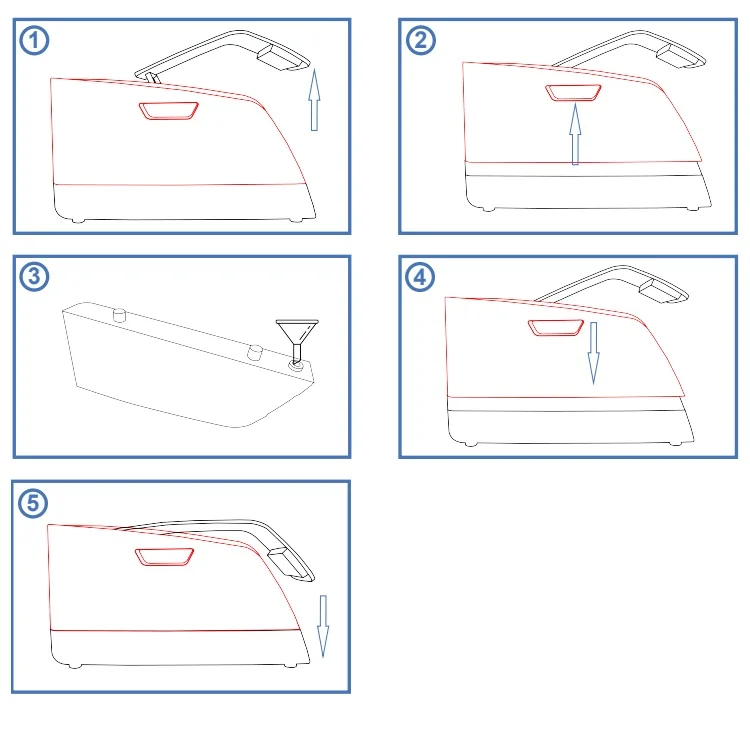

Water Bottle Operating Instructions
As shown in figure 1, raise the cover halfway (there should be a gap at the connection to facilitate lifting the water tank)
As shown in figure 2, lift up to take out the water tank
As shown in figure 3: Fill the water tank
(it is more convenient to use the matching funnel to fill the water)
As shown in figure 4: After filled with water, put the water tank back to original position, pay attention to the buckle on the side of water tank, which needs to be buckled to the machine.
As shown in figure 5, put the cover back
Note: When using, please pay attention to the remaining water in the water tank to ensure that the brush is kept moist.
Brush Operation Instructions

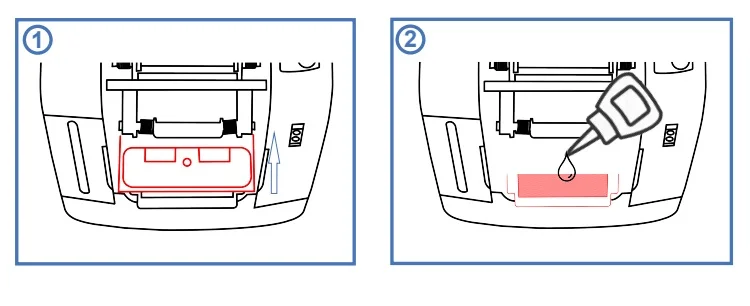

As shown in figure 1: Raise the heating block
As shown in figure 2: Use a kettle to add water to the brush, the more the better
Pay attention to check whether the brush is installed in place and flat
