Product Overview
Description
Product Description

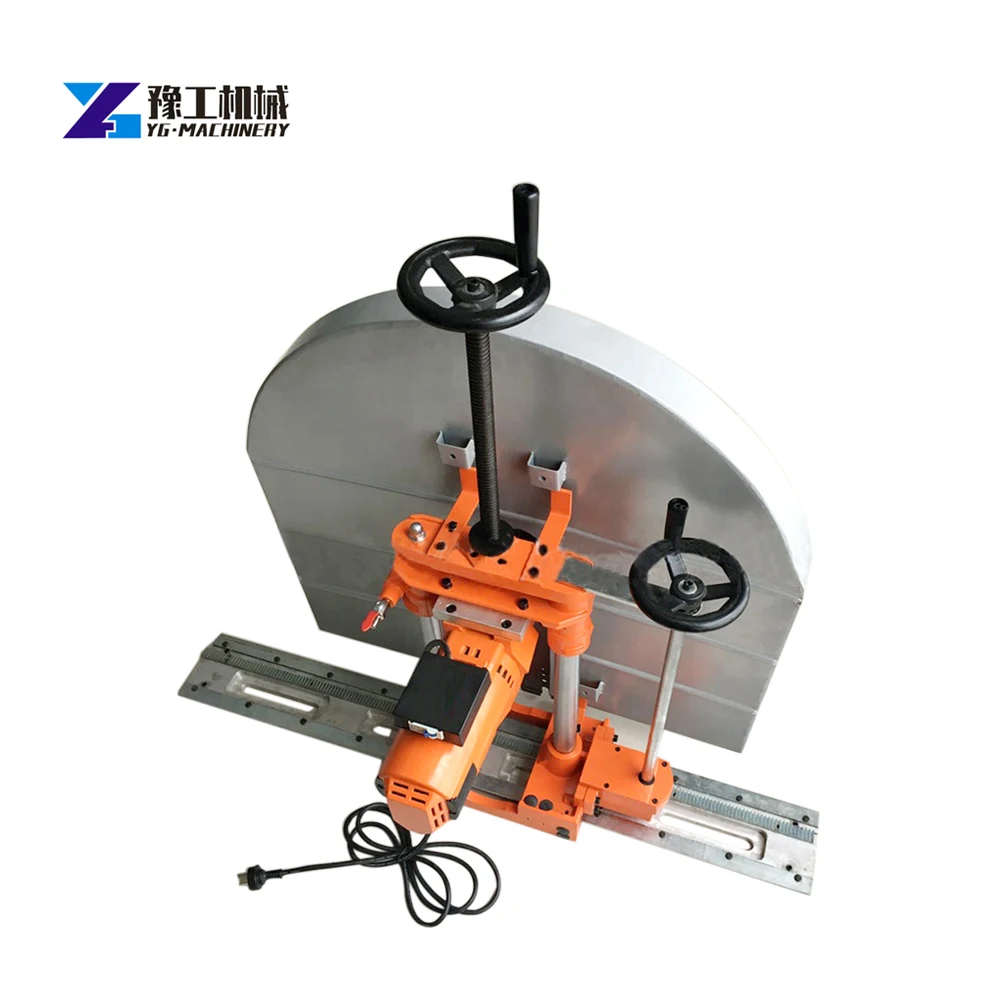

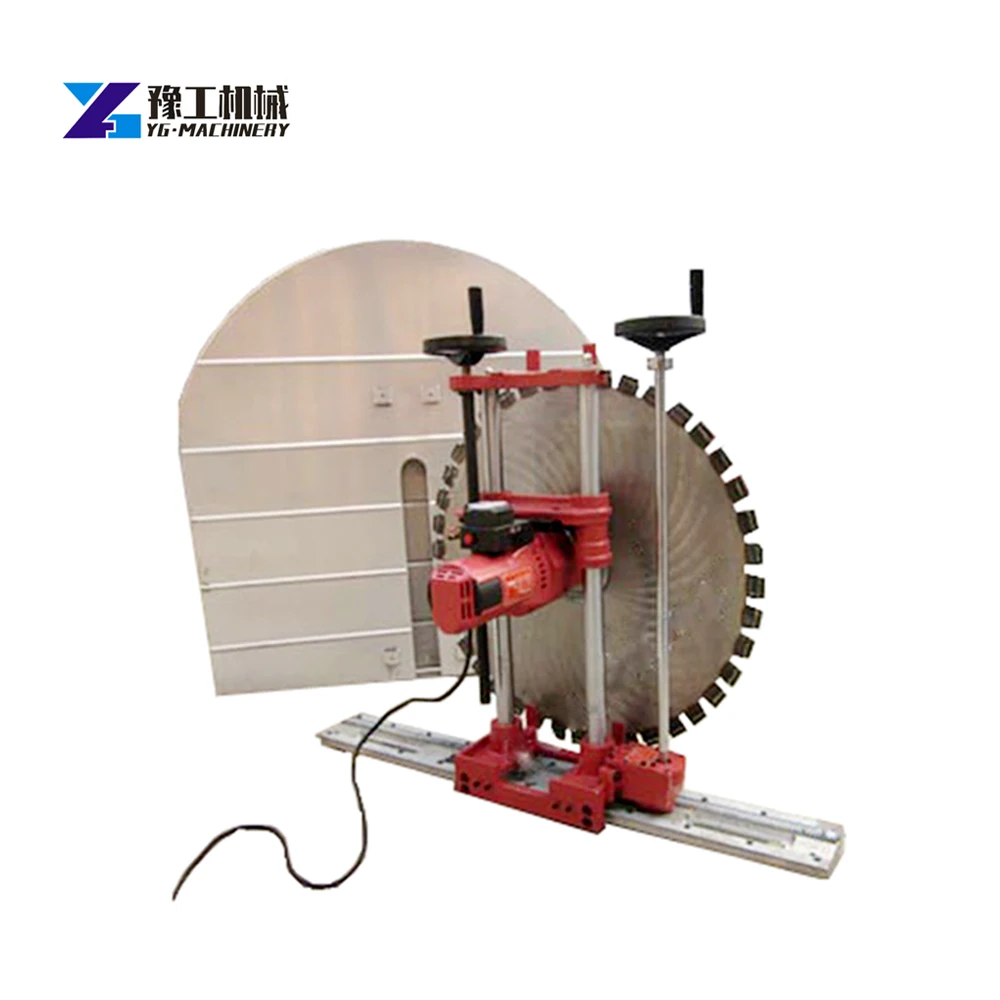

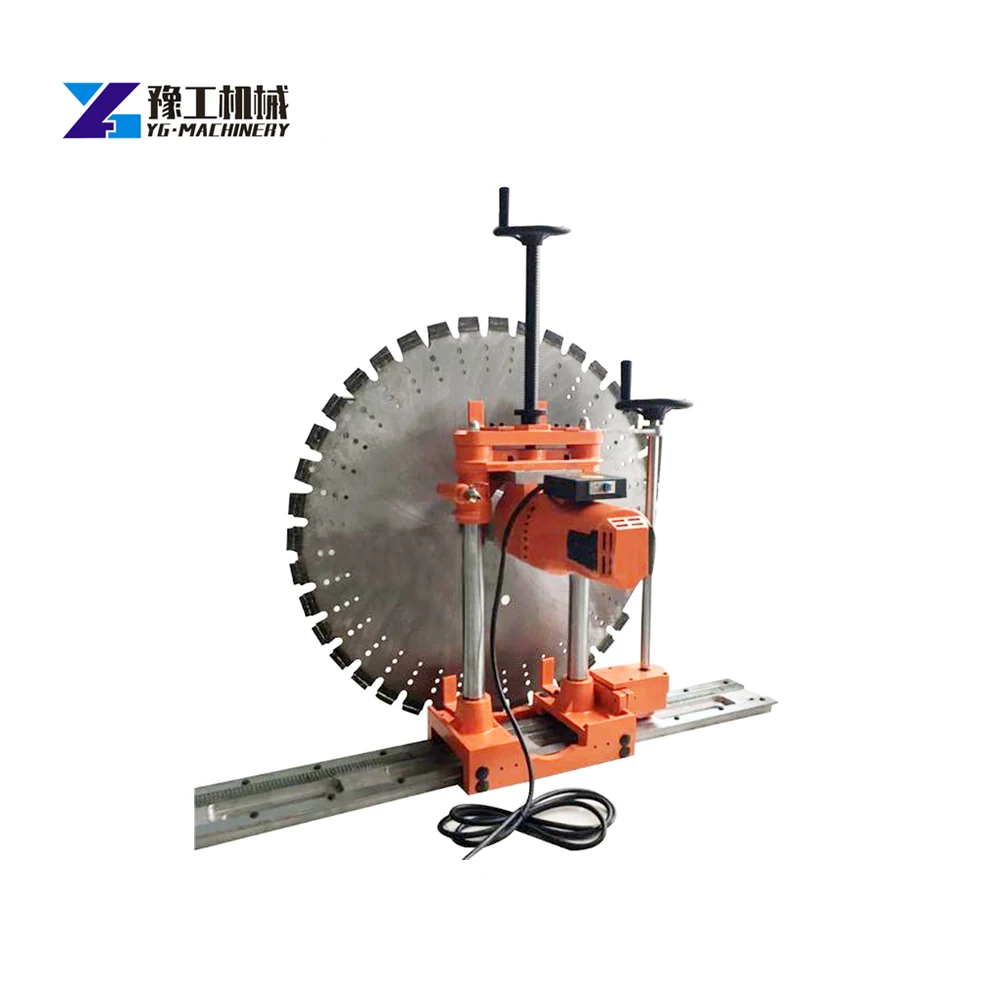

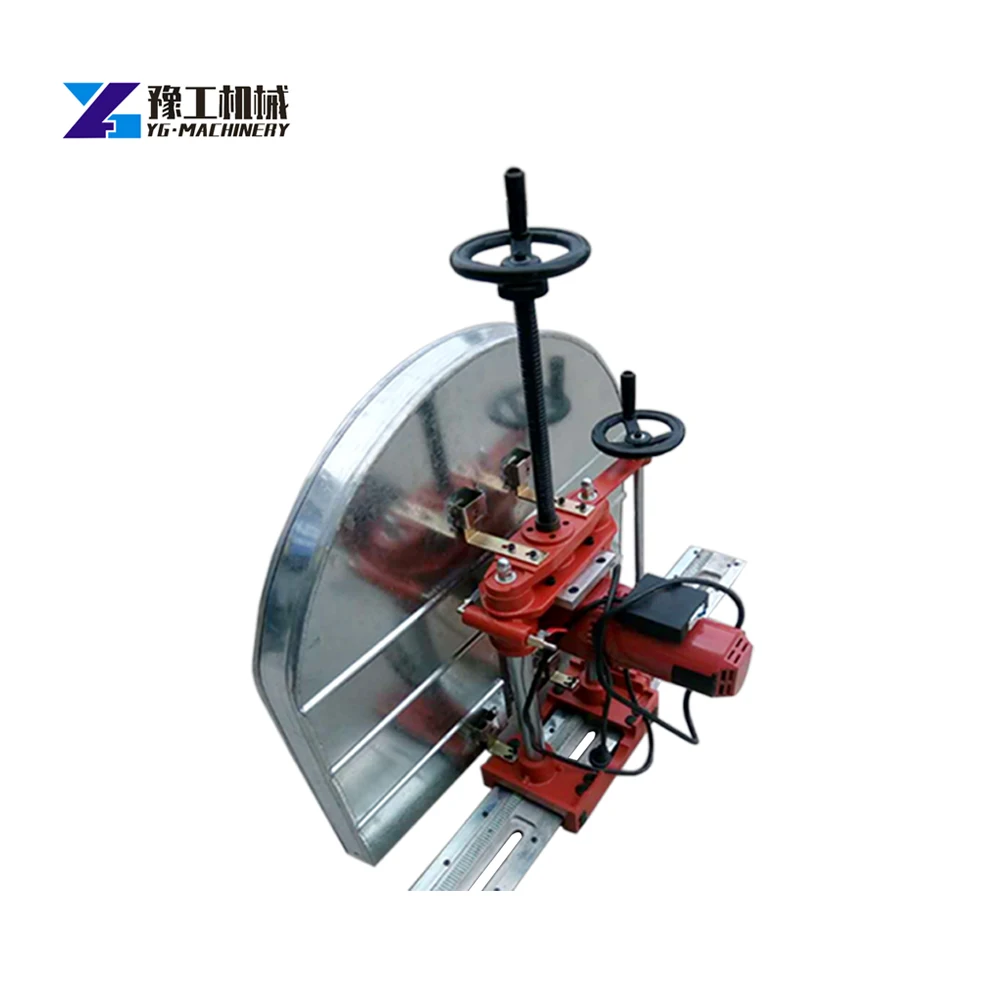

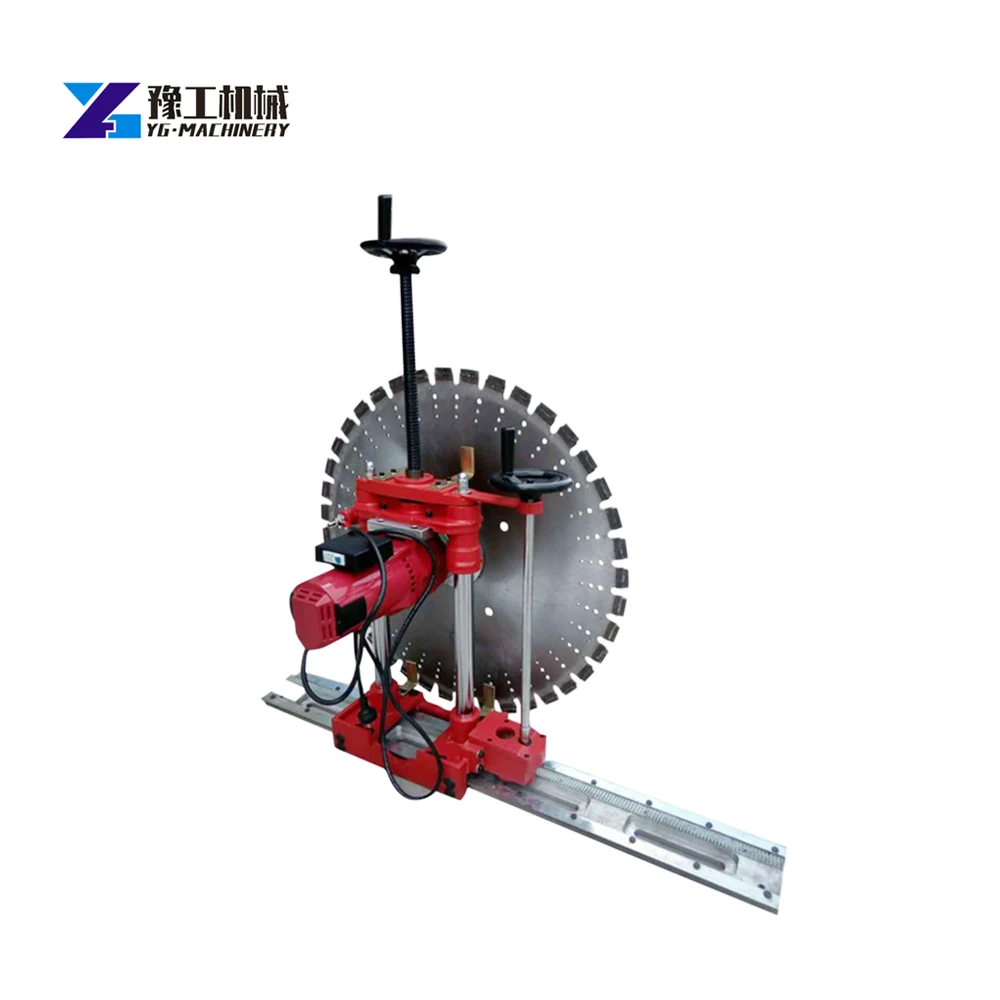

Wall saw cutting machine is mainly used for cutting or slitting of reinforced concrete wall, brick wall or stone, building or old building renovation, reinforcement, change design, etc. It can cut large-area wall such as door hole, window or elevator hole.
Application of the machine:
1. general reinforced concrete walls, board cutting, demolition or the door hole.
2. cutting surface required to be a smooth, straight, beautiful concrete cutting.
3. cutting depth according to the blade size adjustment, the current use 1600 mm blade maximum cutting depth up to 600mm.
Application of the machine:
1. general reinforced concrete walls, board cutting, demolition or the door hole.
2. cutting surface required to be a smooth, straight, beautiful concrete cutting.
3. cutting depth according to the blade size adjustment, the current use 1600 mm blade maximum cutting depth up to 600mm.
Specification
Model | YG-800 | YG-1000 | YG-1200 |
Voltage | 220 V | 220 V | 220 V |
Blade Diameter | 800 mm | 1000 mm | 120 mm |
Cutting Depth | 320 mm | 400 mm | 500 mm |
Power | 6200 W | 6580 W | 6980 W |

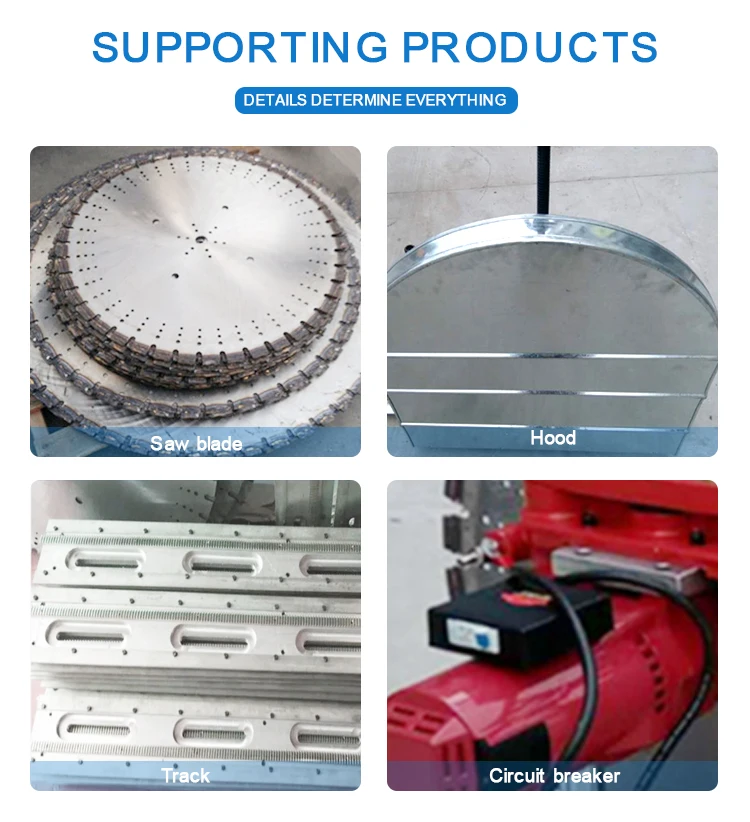

The whole set of machine inculdes:
1. one frame with an electric motor, 220 V, 50 HZ, 6580 W(We could customize the motor according to your requirement)
2. one saw blade, 800-1200 mm or customized.
3. one saw cover.
4. one set of rails, 1.2 m*2 pcs.
5. one set of anchors
1. one frame with an electric motor, 220 V, 50 HZ, 6580 W(We could customize the motor according to your requirement)
2. one saw blade, 800-1200 mm or customized.
3. one saw cover.
4. one set of rails, 1.2 m*2 pcs.
5. one set of anchors
Simple Operation instructions:
1. fix the rails on the wall with anchors.
2. put the frame in the rails.
3. fix the saw blade and saw cover.
4. power on, then move the handle to cut.
(Middle handle is for blade in/out, side handle is for machine movement.)
1. fix the rails on the wall with anchors.
2. put the frame in the rails.
3. fix the saw blade and saw cover.
4. power on, then move the handle to cut.
(Middle handle is for blade in/out, side handle is for machine movement.)
