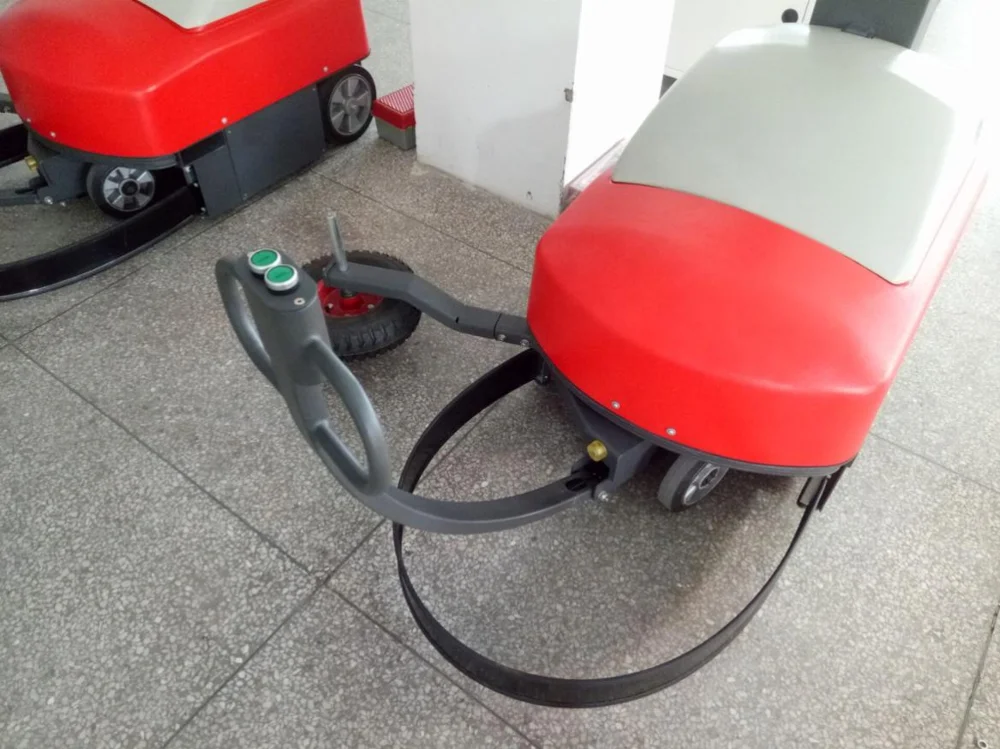

Mobile pallet stretch film wrapper machine robot
- Category: Packaging Machines >>>
- Supplier: Qingdao Stars Creativity Technology Co. Ltd.
Share on (1600527732046):
Product Overview
Description
Product Overview

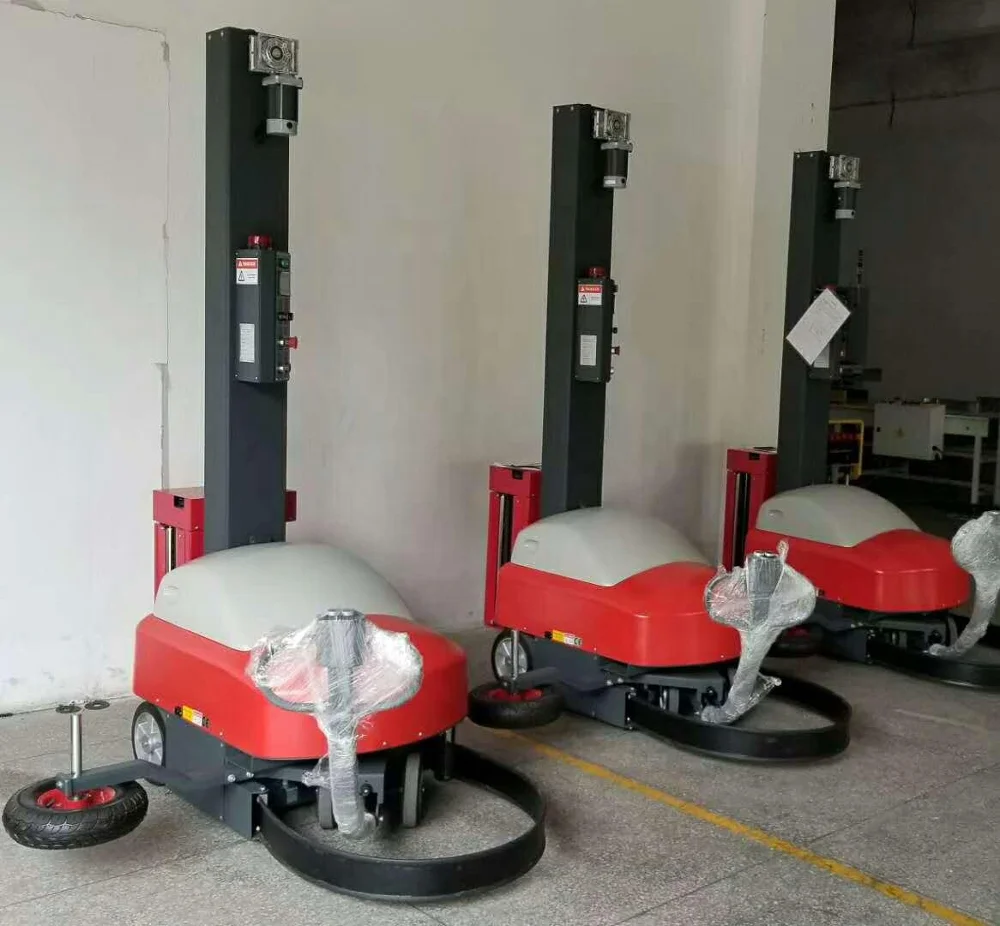

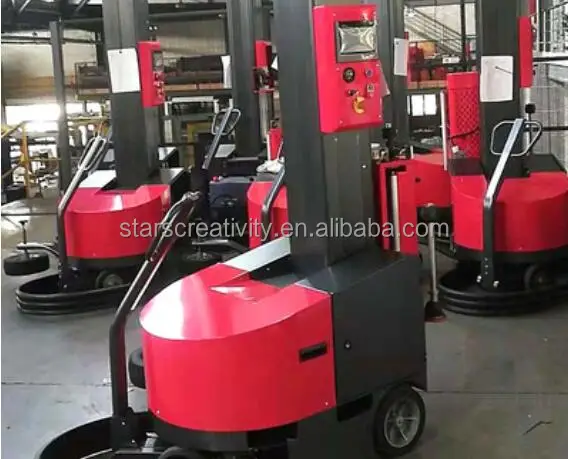

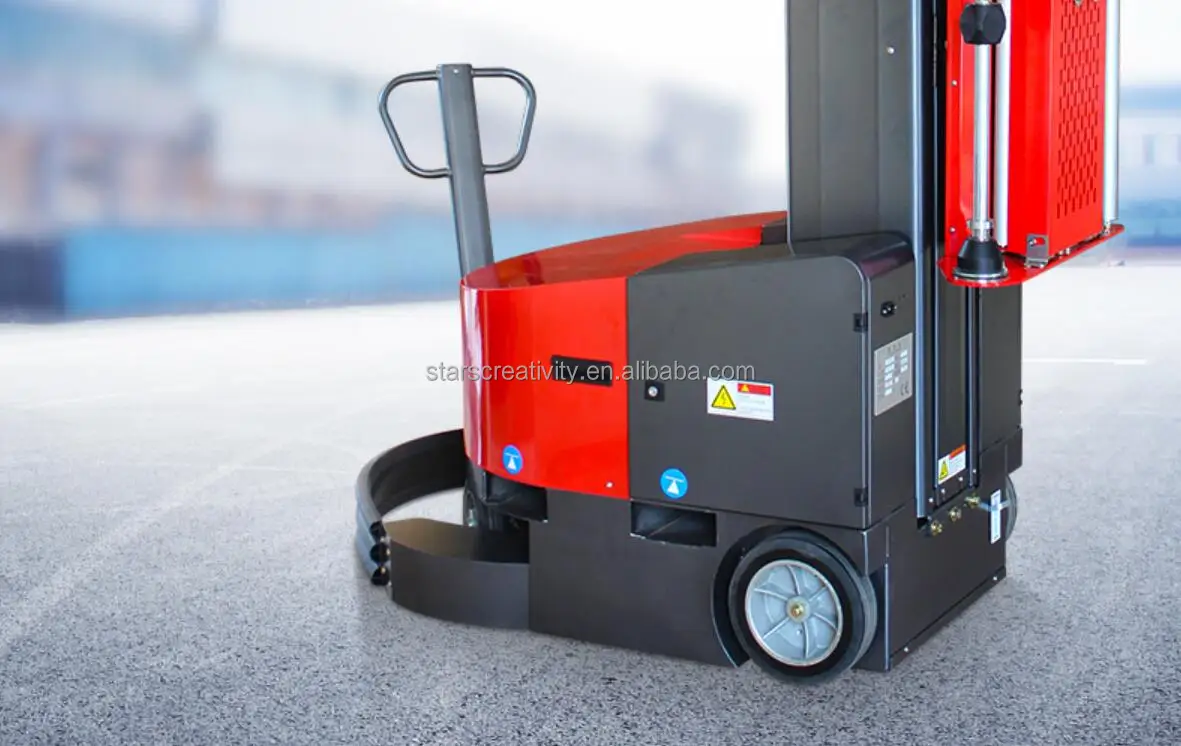

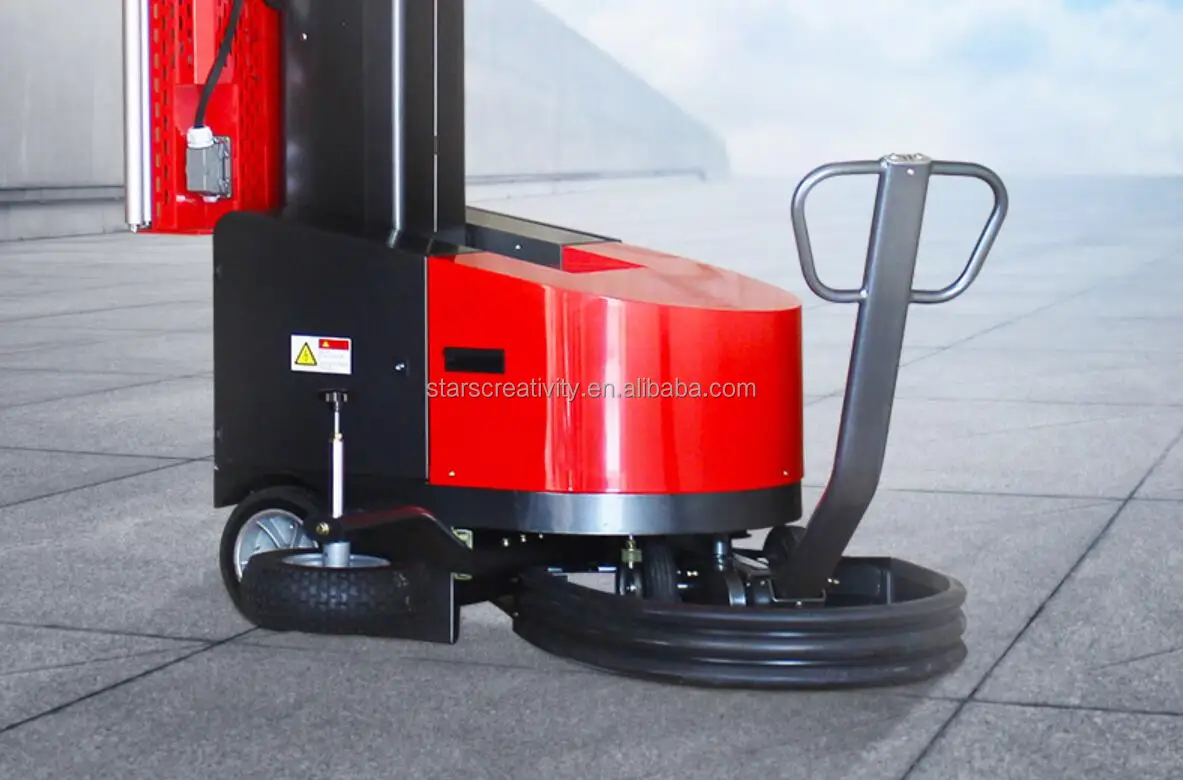

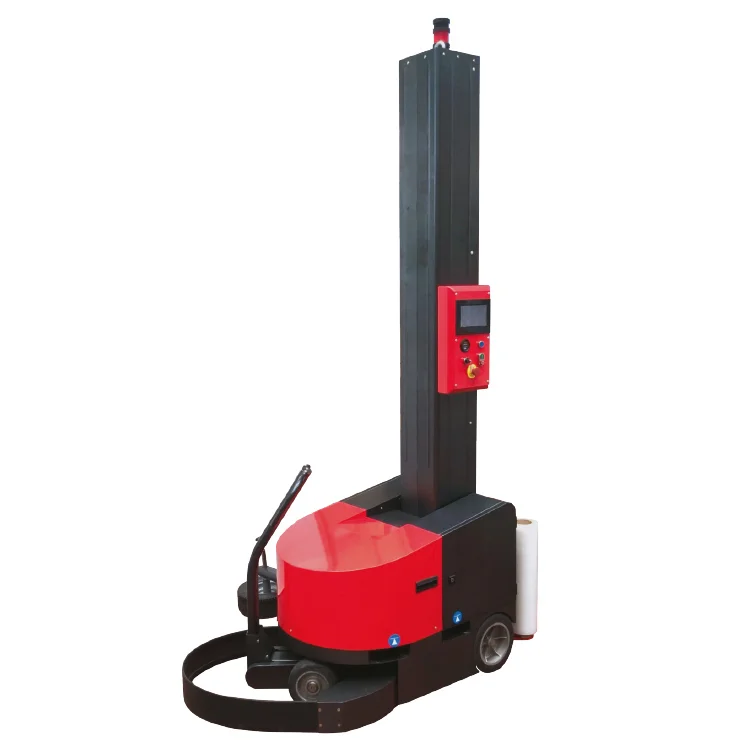

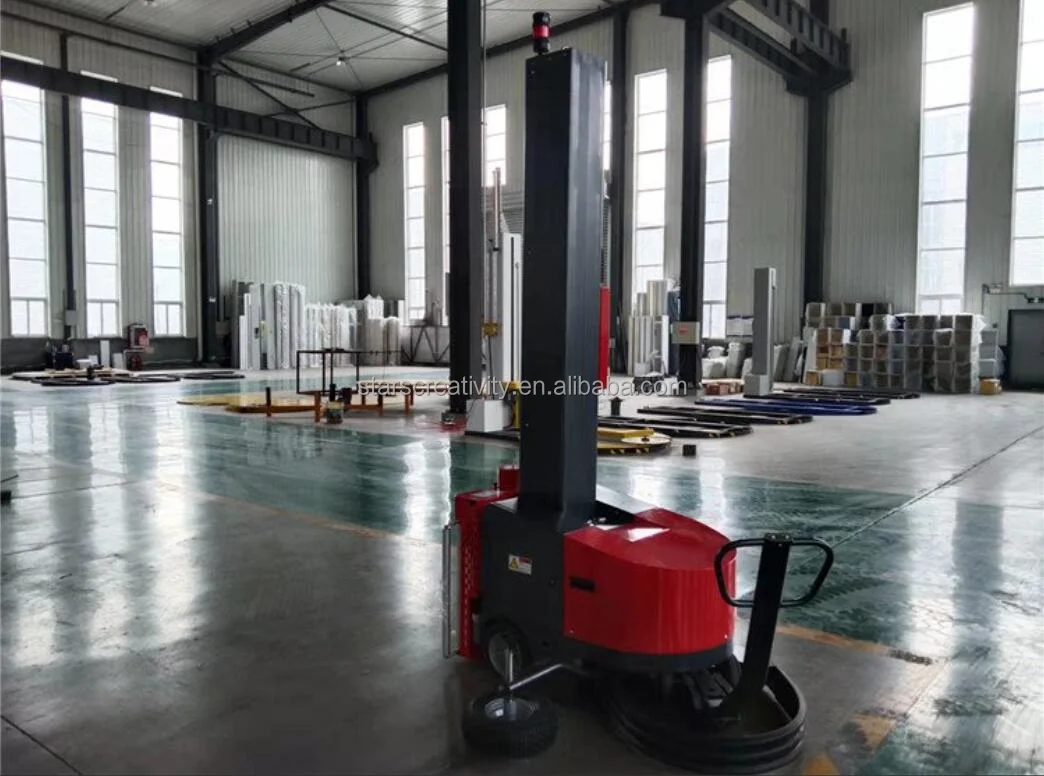

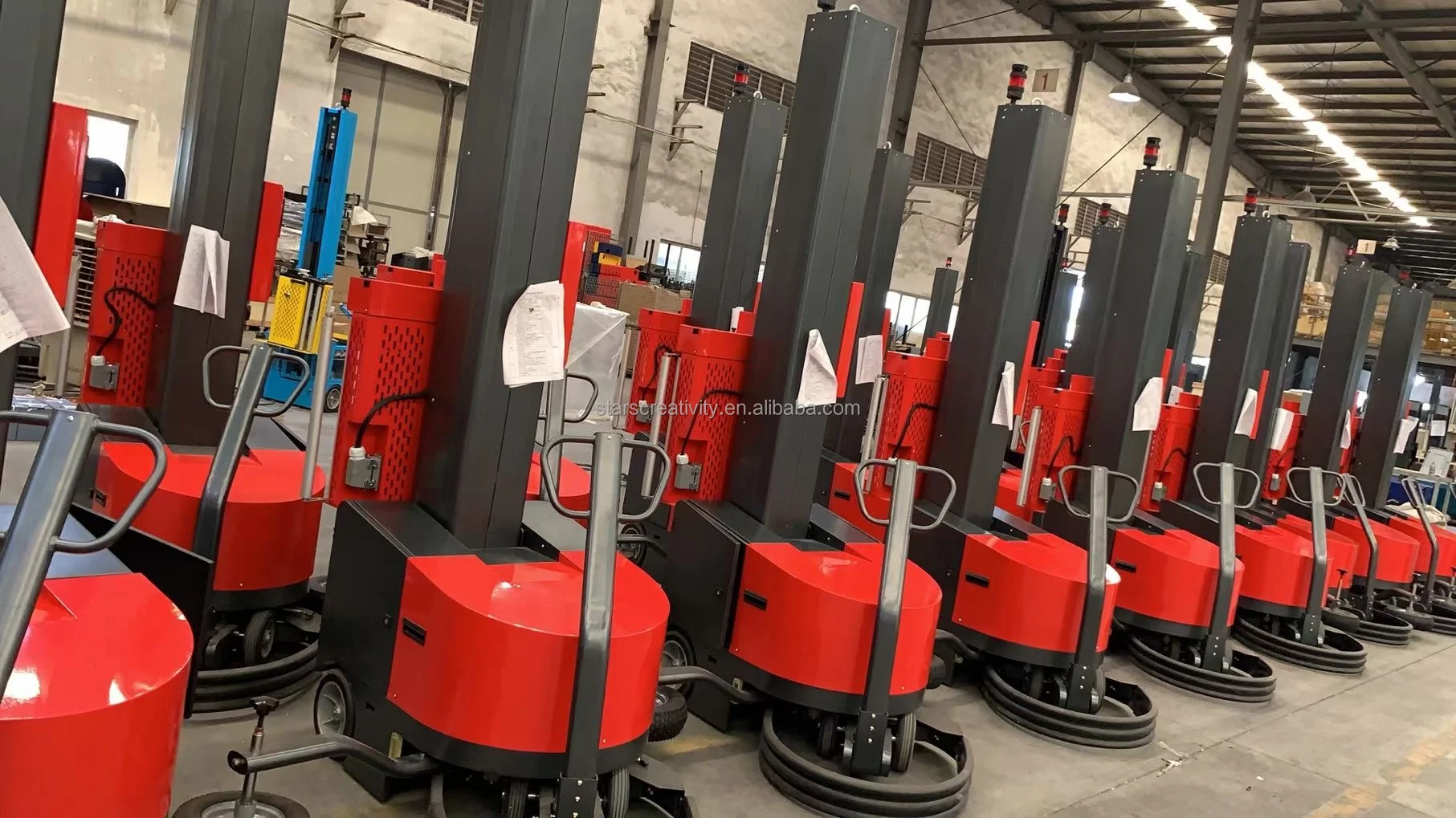

Mobile pallet wrapper

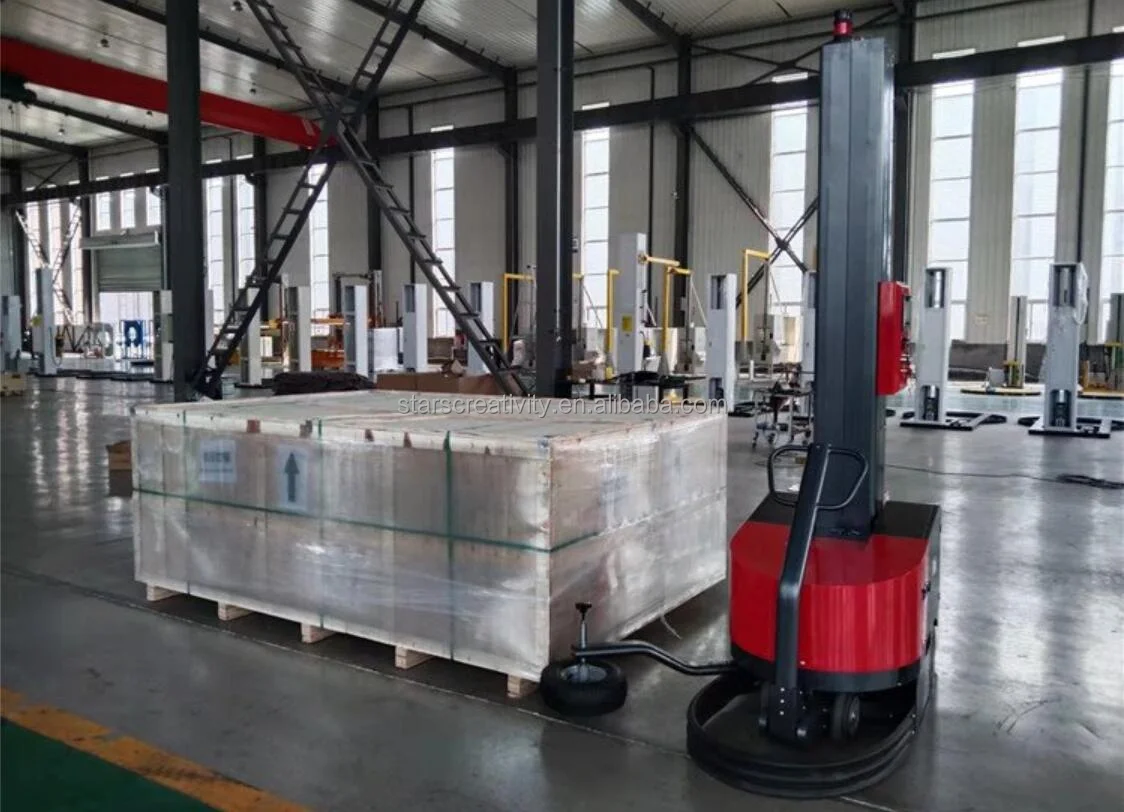

Mobile pallet wrapper is belong to a movable machine that with two rechargeable lithium batteries. After the battery is fully charged, the mobile pallet wrapper can work continuously for 8 hours. It is suitable for heavy goods or special-shaped pallets. The pallet is stationary on the ground. The mobile pallet wrapper automatically rotates 360 degrees around the pallet to automatically detect the height of goods. The wrapping height of the standard machine can reach 2.4m and the maximum customized height can reach 2.8m. The mobile pallet wrapper adopts Siemens PLC control system, and the performance of the whole machine is stable.
Why choice this machine?
1.Adopt movable power, can be continuous used 8 hours.
2.Photoelectric detect pallet height up 2.4m. 3.Rotating speed
adjustable,accurate resetting after wrapped.
adjustable,accurate resetting after wrapped.
4.Die carrier up and down speed can be adjustable. 5.There has emergency switch in
front of the machine to avoid run into the wrapping. 6.Siemens PLC control system will be more stable
front of the machine to avoid run into the wrapping. 6.Siemens PLC control system will be more stable
7. Wrapping number of turns
can be setting, bottom:adjustable 1-9 turns; up: adjustable1-9turns.
can be setting, bottom:adjustable 1-9 turns; up: adjustable1-9turns.
PRODUCT SPECIFICATIONS
Item | Mobile pallet wrapper | Data | |||||
Battery quantity | 2pieces(each battery 12V) | 37.5KW | |||||
Battery with MSDS certificate and CE certificate | Yes,also with transportation identification certificate | ||||||

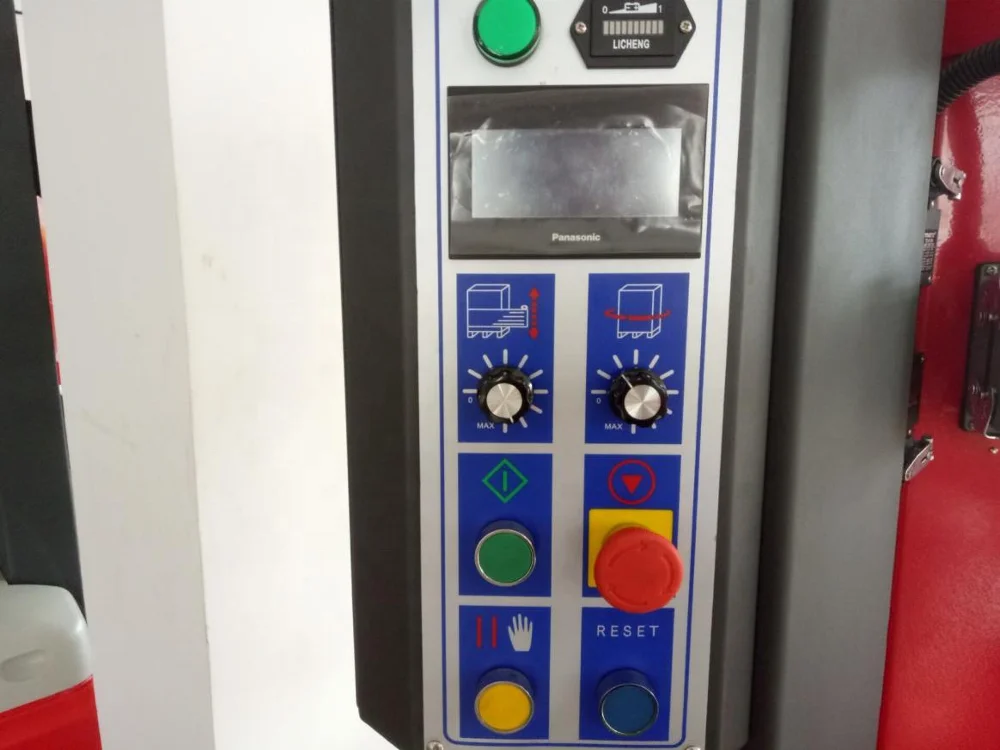

Control panel | touch screen | 2.8 M3 | |||||
Control system | Siemens PLC | 125Ton | |||||
Max wrapping height(standard machine) | 2.4m(2.8m, 3.2 m can customized) | 96kN | |||||
Battery charging time | 7-8hours | 96kN | |||||
Continuous working time | 8hours | 60kN | |||||
Pallet size | Min L600*W600mm, Max no limit | 6750ml | |||||
Suitable for film roll | Wide 500mm, inner diameter 76mm | 500N.m | |||||
Voltage | 100-240V 1Phase available | ||||||

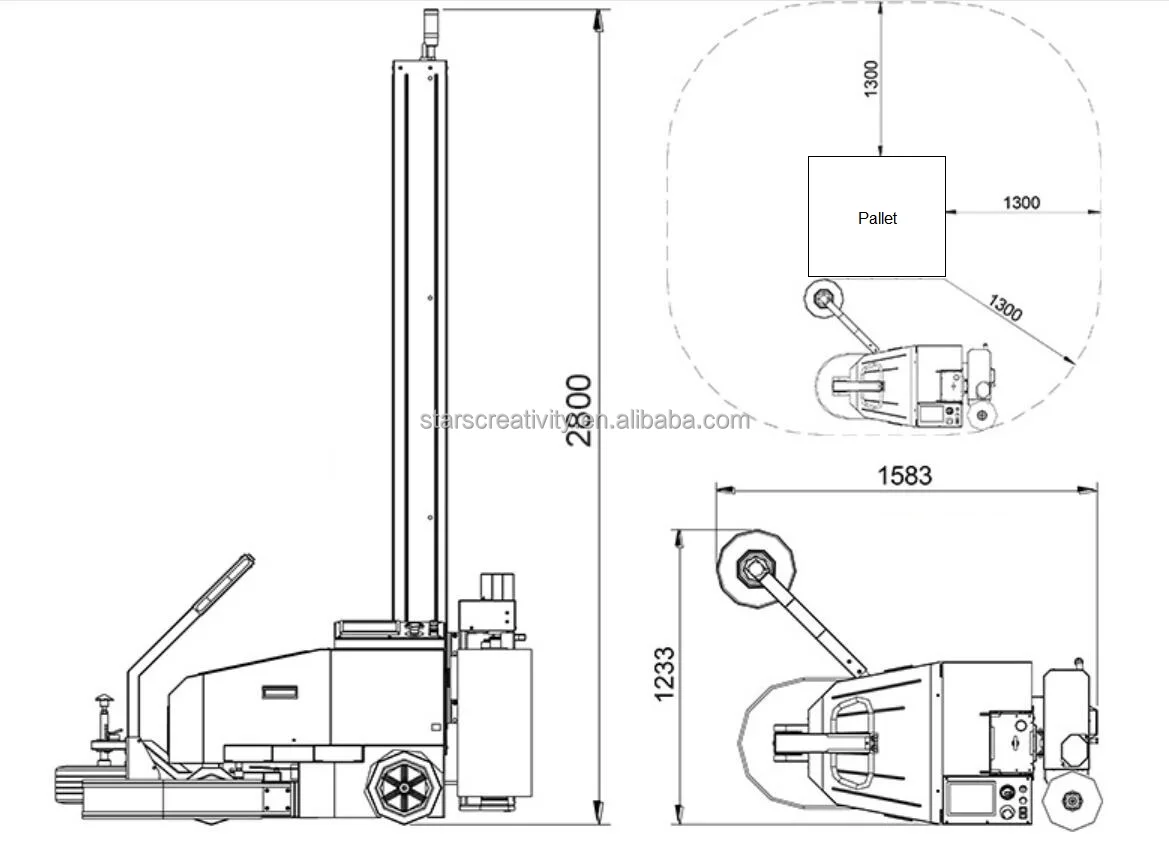

Machine size | L1583*W1233*H2800mm | ||||||
Machine weight | 410kg | ||||||
FEATURES AT A GLANCE

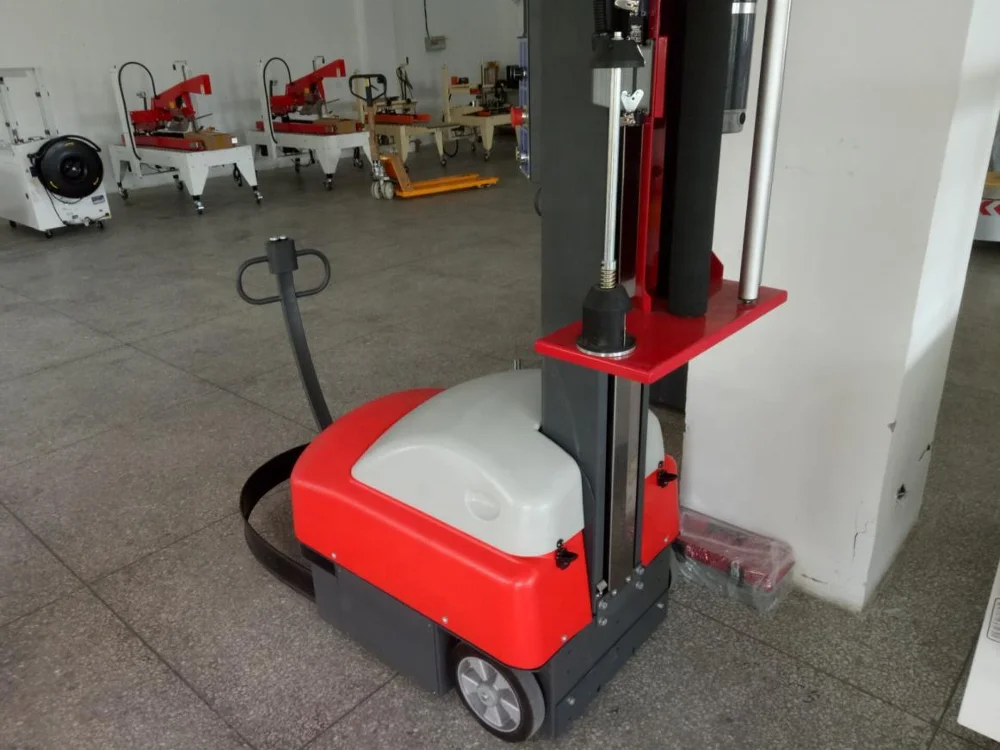

Machine column foldable
Battery capacity 120AH, full charged can wrapping 150-200 pallets
Portable mobile
PRODUCT CONFIGURATION
Super capacity battery with 2pieces
Siemens PLC control system
Film carriage can open and easy to install film roll and pre-stretching system
SIMILAR PRODUCTS

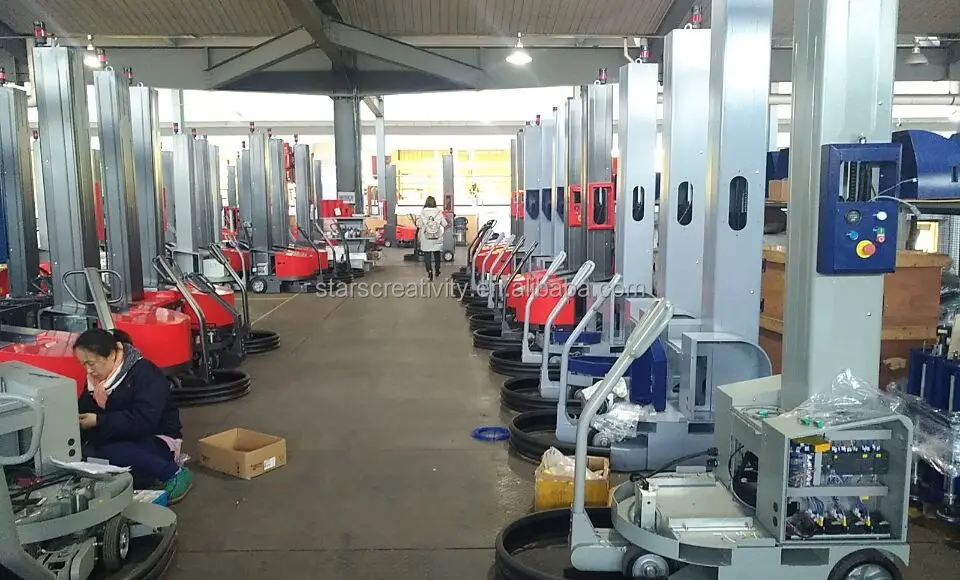

Company Profile
About Us:
Qingdao Stars Creativity Technology Co., Ltd. specializes in sales of packaging equipment. It is one of the professional equipment and solution providers in the field of automatic packaging in China. In recent years, through the continuous development of new products and new fields, we have accumulated rich experience in the design and development of case erector,case sealer,stretch wrapper and so on.we will build up a strong and professional team to provide strong technical support and timely after-sales service in the future.

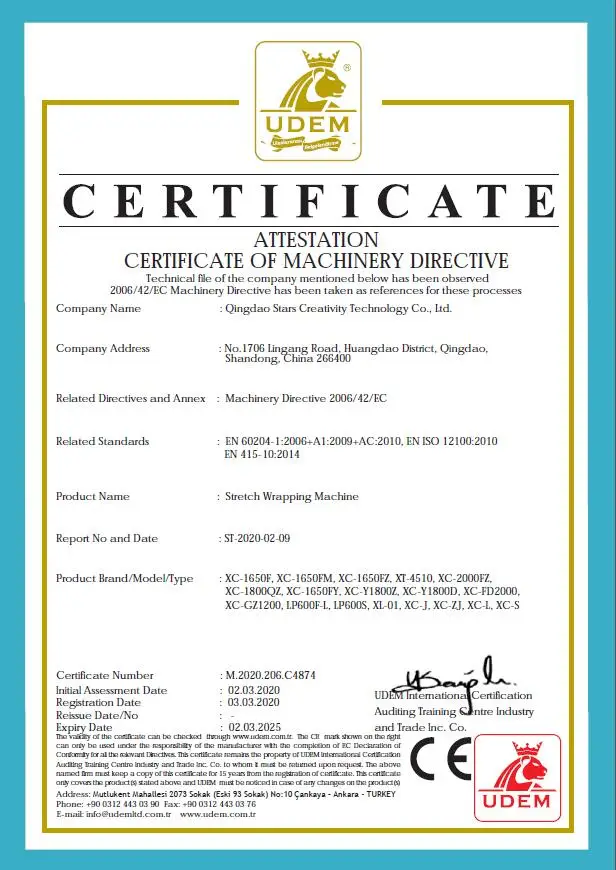

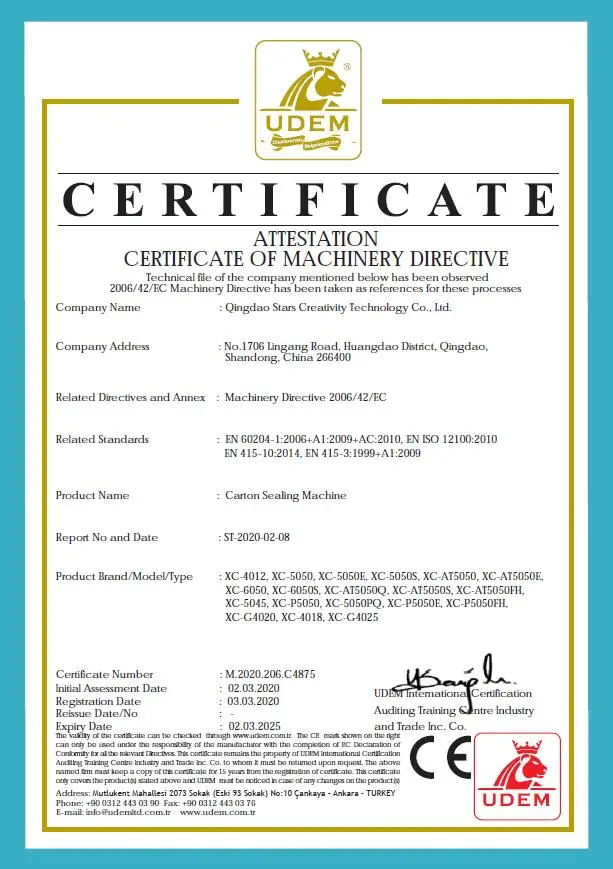

Certifications
FAQ
Q1:how about the MOQ if we place an order?
A1:MOQ 1set.
Q2:custom made service is available?
A2:Yes,we can custom made all machines if standard one does not meet your requirements.
Q3:how many days of the lead time for standard machine?
A3:5working days
Q4:how long time of your warranty period?
A4:12months since received the machine.
Q5:how to fix the problems if equipments got fault in working?
A5:take a video to us first,we will check and let you know how to do.we will send new spare parts to you if needs.
Q6:does the machine approved CE certificated?
A6:Yes,our machine had approved CE certificate.
