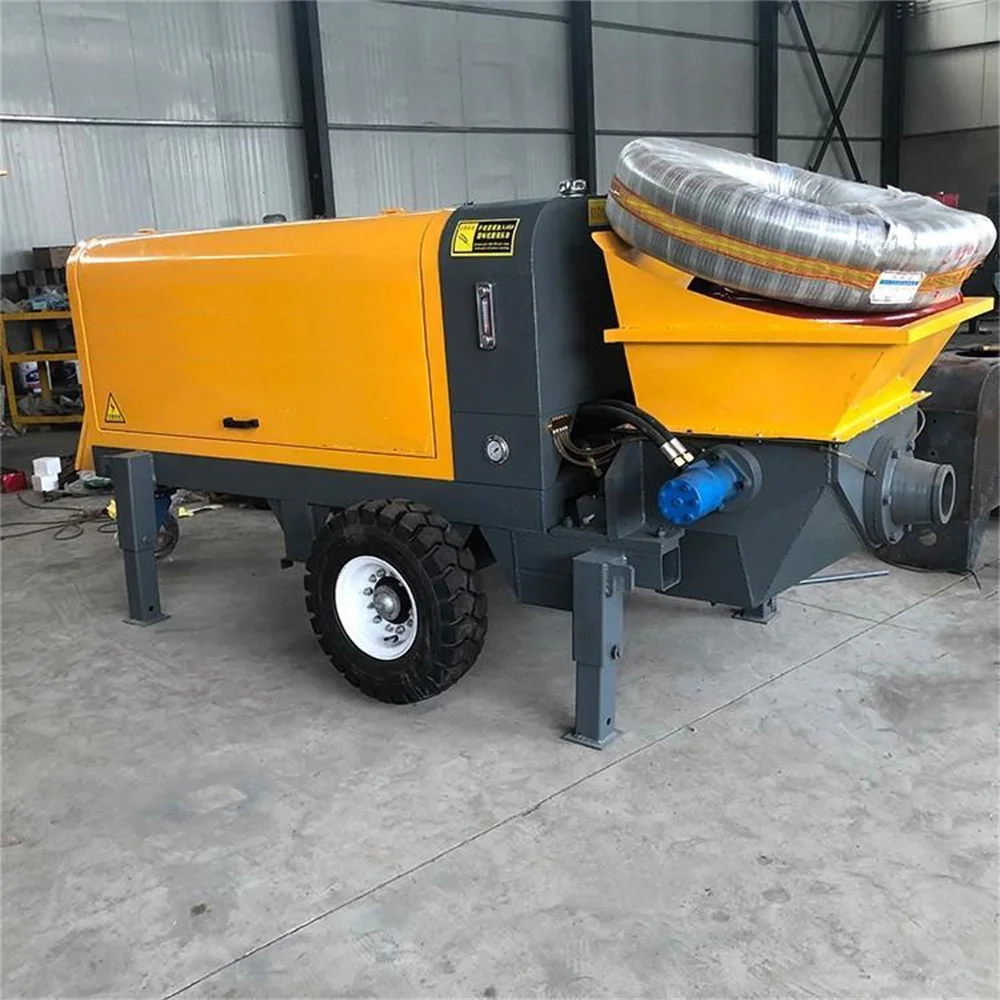

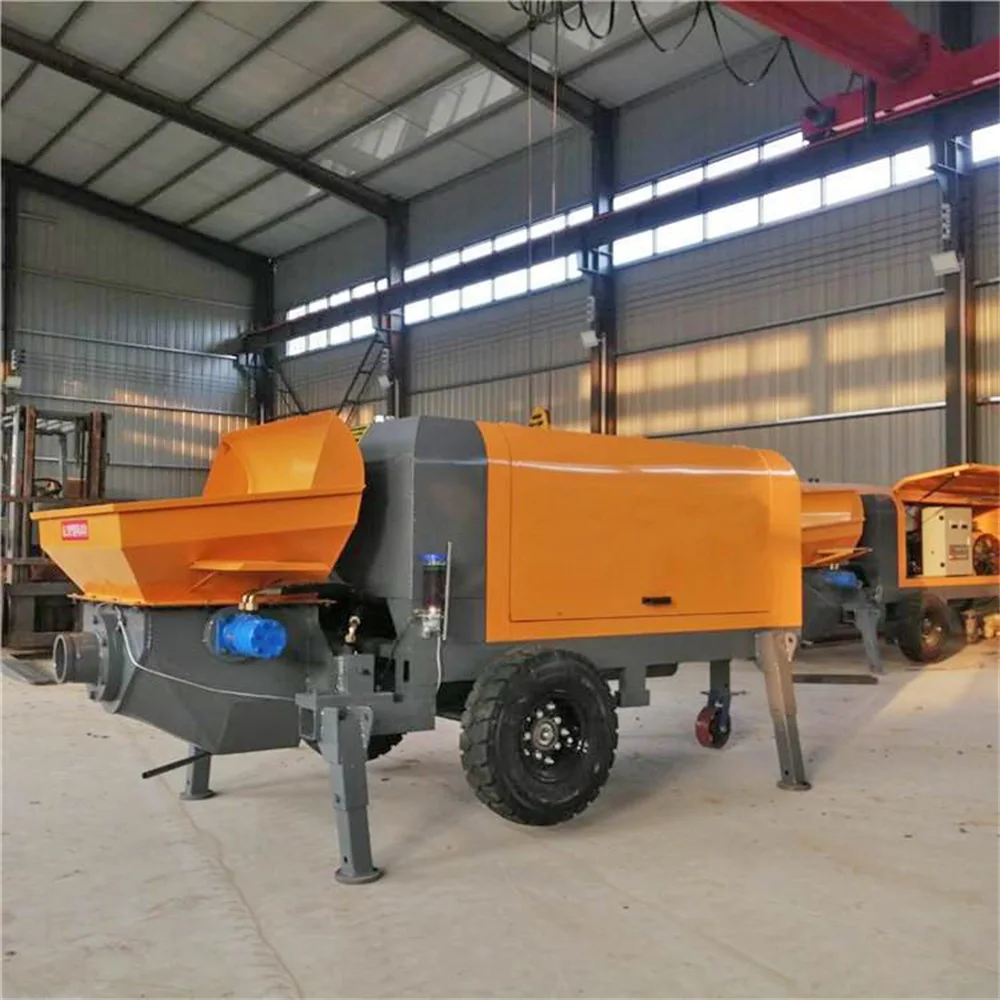

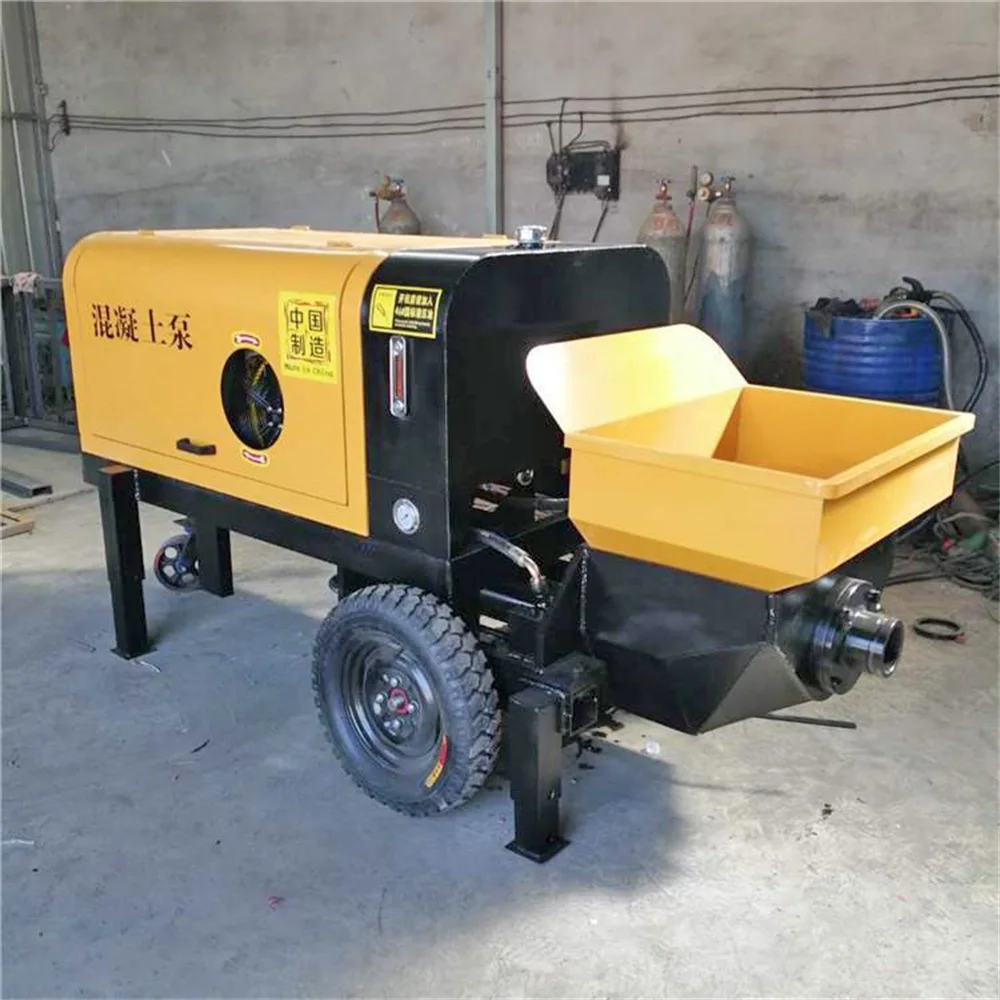

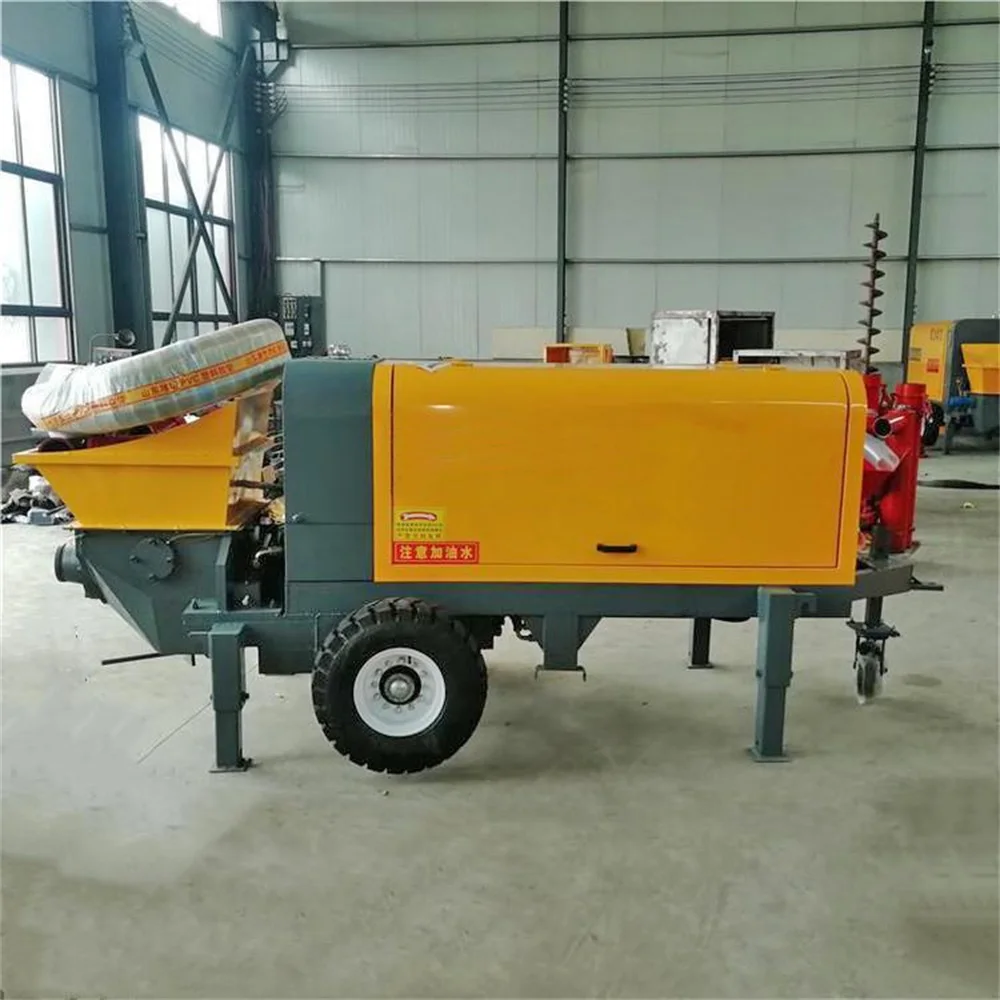

Factory direct sales mini concrete pump diesel diesel concrete pumping machine
- Category: Concrete Machinery >>>
- Supplier: Shandong Aolai Machinery Co. Ltd.
Share on (1600528024143):
Product Overview
Description
Products Description
The main features of concrete pump:

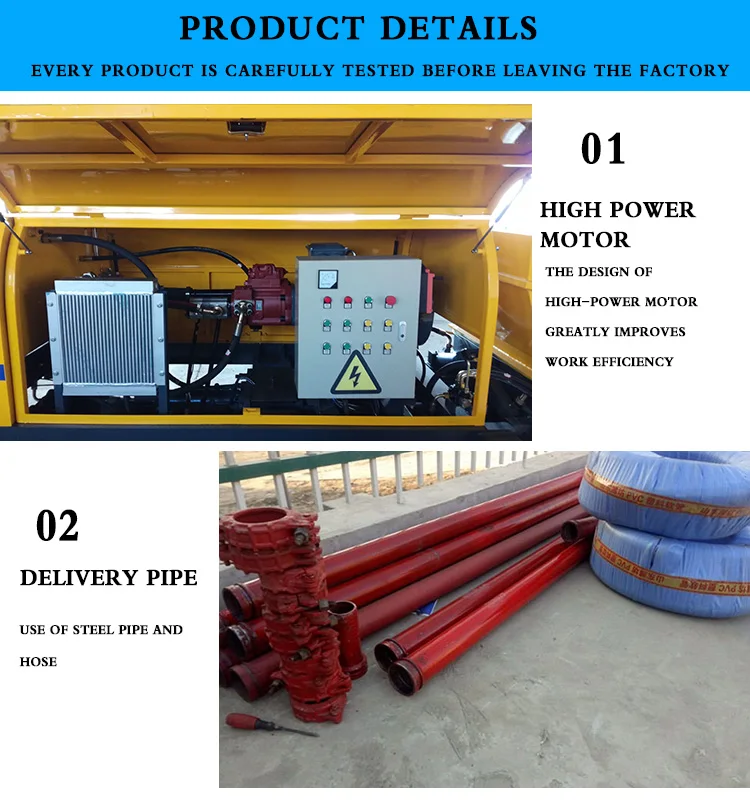

Hydraulic system: The pumping circuit adopts an open system, and the hydraulic pump adopts a Kawasaki large displacement axial plunger swash plate variable pump to ensure the hydraulic system has strong impact performance, low temperature rise and convenient maintenance; the distribution circuit adopts a constant pressure variable control system , Hydraulic control reversing, reducing the impact of system reversing and improving the service life of hydraulic components.

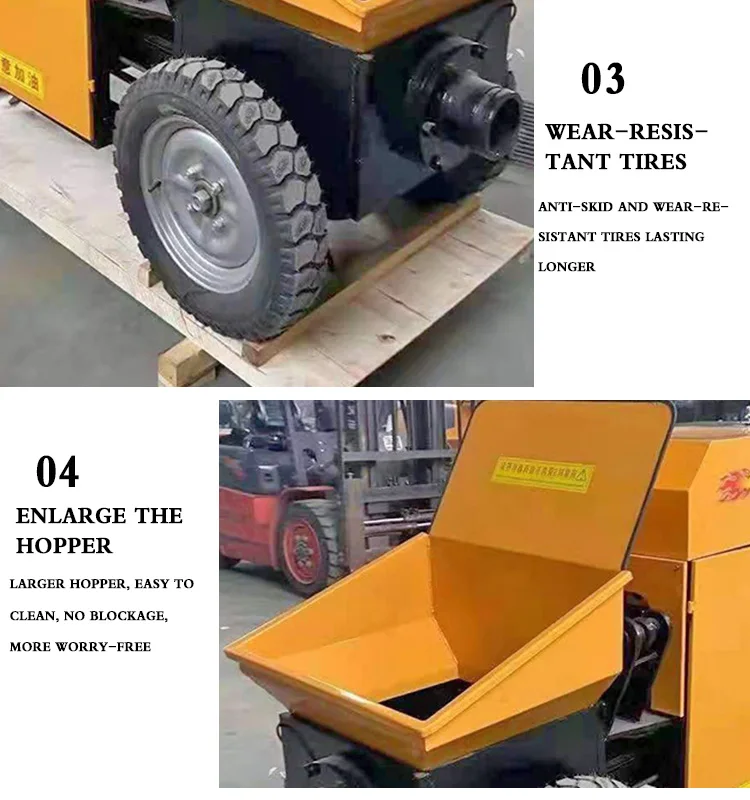

Pumping system: The use of a large-diameter concrete cylinder with good wear resistance, a small installation angle and an optimized design of the hopper, make it have strong suction performance. The S pipe distribution valve is assembled with a floating wear ring to automatically adjust the gap to ensure good sealing performance and easy replacement of the distribution valve. The main oil cylinder adopts a proximity switch to pick up the reversing signal in a non-contact state, which is reliable and easy to adjust; at the same time, it is equipped with a buffer replenishing device, and the piston is equipped with a metal ring seal to ensure sealing and reliability. The concrete cylinder piston adopts split wear-resistant polyurethane rubber, which has low impact and good wear resistance. The pumping system of the whole machine has the characteristics of high reliability, low operating cost and good maintainability.
Mine concrete pumps are widely used in construction facilities such as high-rise buildings, highways, water conservancy, bridges and freight yards.
Since the prices of raw materials fluctuate in different periods, the online prices are for reference only. Please feel free to consult us for specific prices. We can guarantee to maintain the best quality and lowest price among our peers.
Hydraulic system: The pumping circuit adopts an open system, and the hydraulic pump adopts a Kawasaki large displacement axial plunger swash plate variable pump to ensure the hydraulic system has strong impact performance, low temperature rise and convenient maintenance; the distribution circuit adopts a constant pressure variable control system , Hydraulic control reversing, reducing the impact of system reversing and improving the service life of hydraulic components.
Pumping system: The use of a large-diameter concrete cylinder with good wear resistance, a small installation angle and an optimized design of the hopper, make it have strong suction performance. The S pipe distribution valve is assembled with a floating wear ring to automatically adjust the gap to ensure good sealing performance and easy replacement of the distribution valve. The main oil cylinder adopts a proximity switch to pick up the reversing signal in a non-contact state, which is reliable and easy to adjust; at the same time, it is equipped with a buffer replenishing device, and the piston is equipped with a metal ring seal to ensure sealing and reliability. The concrete cylinder piston adopts split wear-resistant polyurethane rubber, which has low impact and good wear resistance. The pumping system of the whole machine has the characteristics of high reliability, low operating cost and good maintainability.
Mine concrete pumps are widely used in construction facilities such as high-rise buildings, highways, water conservancy, bridges and freight yards.
Since the prices of raw materials fluctuate in different periods, the online prices are for reference only. Please feel free to consult us for specific prices. We can guarantee to maintain the best quality and lowest price among our peers.
Product Specification
AL-20 | AL-25 | Al-30 | Al-40 | Al-50 | |
Delivery volume: | 8-10m³/h | 10-12m³/h | 12-15m³/h | 15-20m³/h | 20-25m³/h |
Maximum vertical conveying distance: | 40m | 60m | 100m | 120m | 150m |
Maximum horizontal conveying distance: | 100m | 150m | 260m | 350m | 400m |
Fuel tank capacity: | 75 liters | 120 liters | 120 liters | 150 liters | 180 liters |
Working form: | s tube valve type | s tube valve type | s tube valve type | s tube valve type | s tube valve type |
Through aggregate: | <2cm | <2cm | <3cm | ≤3cm | <4cm |
Maximum pressure: | 15MPa | 18MPa | 20mpa | <4cm | <4cm |
Bore*Stroke: | 120*550 | 140*650 | 140*850 | 160*1000 | 200*1100 |
Main oil pump: | 63 oil pump | 80 oil pump | 100 oil pump | 112 oil pump | 140 oil pump |
Motor: | 22KW | 30KW | 37KW | 45KW | 55KW |
Weight: | 1000Kg | 1500Kg | 2000Kg | 2400Kg | 2800Kg |
Machine size | 2800*1100*1300mm | 3600*1300*1400mm | 3800*1300*1400mm | 4000*1500*1400mm | 4400*1500*1500mm |

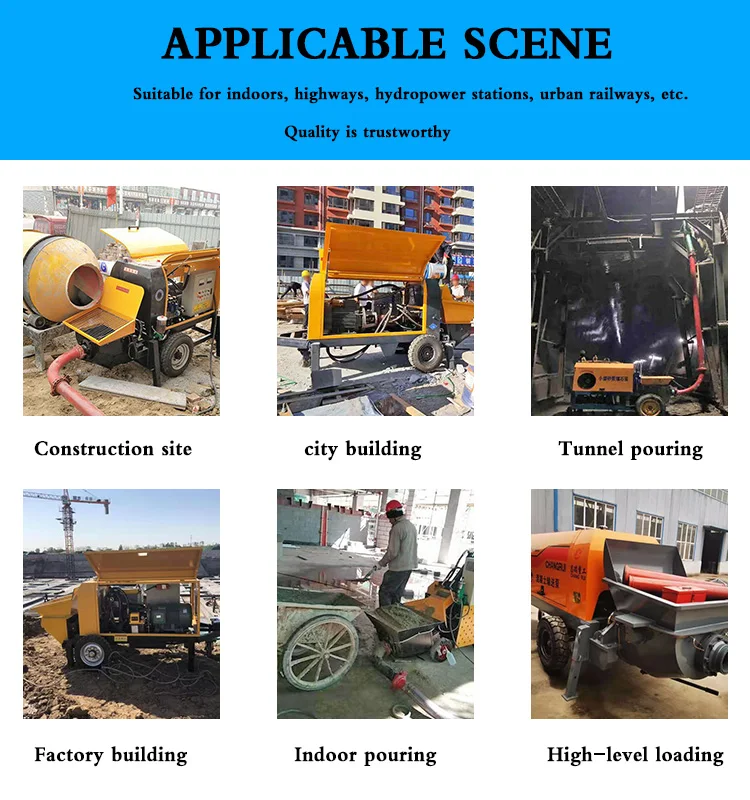

Applicable scene
Our Company
Packaging And Shipping
Our Service
Before sale
1. Quick response
2. Professional technical consulting services
3. Provide a variety of related information about the product
2. Professional technical consulting services
3. Provide a variety of related information about the product
On sale
1. Delivery on schedule
2. Strict factory acceptance
3. Use negotiated or suitable packaging for transportation
2. Strict factory acceptance
3. Use negotiated or suitable packaging for transportation
After sale
1.24 hours technical support
2. Long warranty
3. Sufficient spare parts guarantee
2. Long warranty
3. Sufficient spare parts guarantee
FAQ
1: What kind terms of payment can be accepted?
A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted
2: What certificates are available in Machinery?
A: For the certificate, we have CE, ISO,EPA(USA),CCC
3: What about the delivery time?
A: 7-20 days after receiving the deposit.
4: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occuts first.
5. What about the Minimum Order Quantity?
A: The MOQ is 1 pcs
6.What about the service?
1). Quick response to every inquiry.
2). Professtional and detailed answer to any of customer's questions.
3). Strict QC and in time delivery.
4). Offer all relative material for customer to know and better use the machine.
5). Periodically after service follow up, offer any necessary support if needed.
6).For the new machine, within determined limits, the manufacture guarantees warranty for a period of 12 months after bought or 20
00 working hours(whichever comes first).
7).The warranty includes repairation or replace the parts for free which were proved to be defective in origin by the technical
department of the manufacture.
8).The repairation or replacement for the parts should not exceed the warranty period.
9).The warranty is valid on the condition of all the terms listed in the contract was observed.
A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted
2: What certificates are available in Machinery?
A: For the certificate, we have CE, ISO,EPA(USA),CCC
3: What about the delivery time?
A: 7-20 days after receiving the deposit.
4: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occuts first.
5. What about the Minimum Order Quantity?
A: The MOQ is 1 pcs
6.What about the service?
1). Quick response to every inquiry.
2). Professtional and detailed answer to any of customer's questions.
3). Strict QC and in time delivery.
4). Offer all relative material for customer to know and better use the machine.
5). Periodically after service follow up, offer any necessary support if needed.
6).For the new machine, within determined limits, the manufacture guarantees warranty for a period of 12 months after bought or 20
00 working hours(whichever comes first).
7).The warranty includes repairation or replace the parts for free which were proved to be defective in origin by the technical
department of the manufacture.
8).The repairation or replacement for the parts should not exceed the warranty period.
9).The warranty is valid on the condition of all the terms listed in the contract was observed.
