Unique design BESST USB Programming Cable for Bafang M510 M600 M620 CAN bus Mid drive Motor Kits Reprogramming Cable

Product Overview

Description

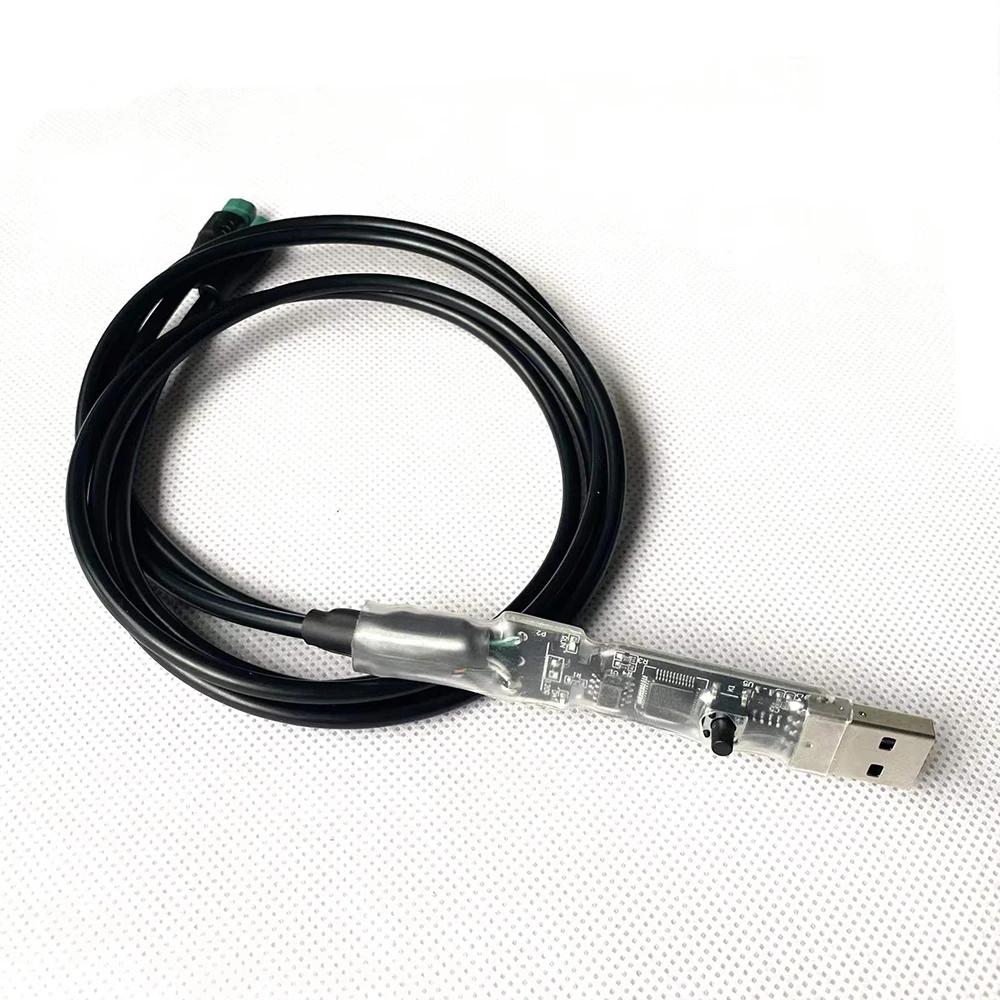

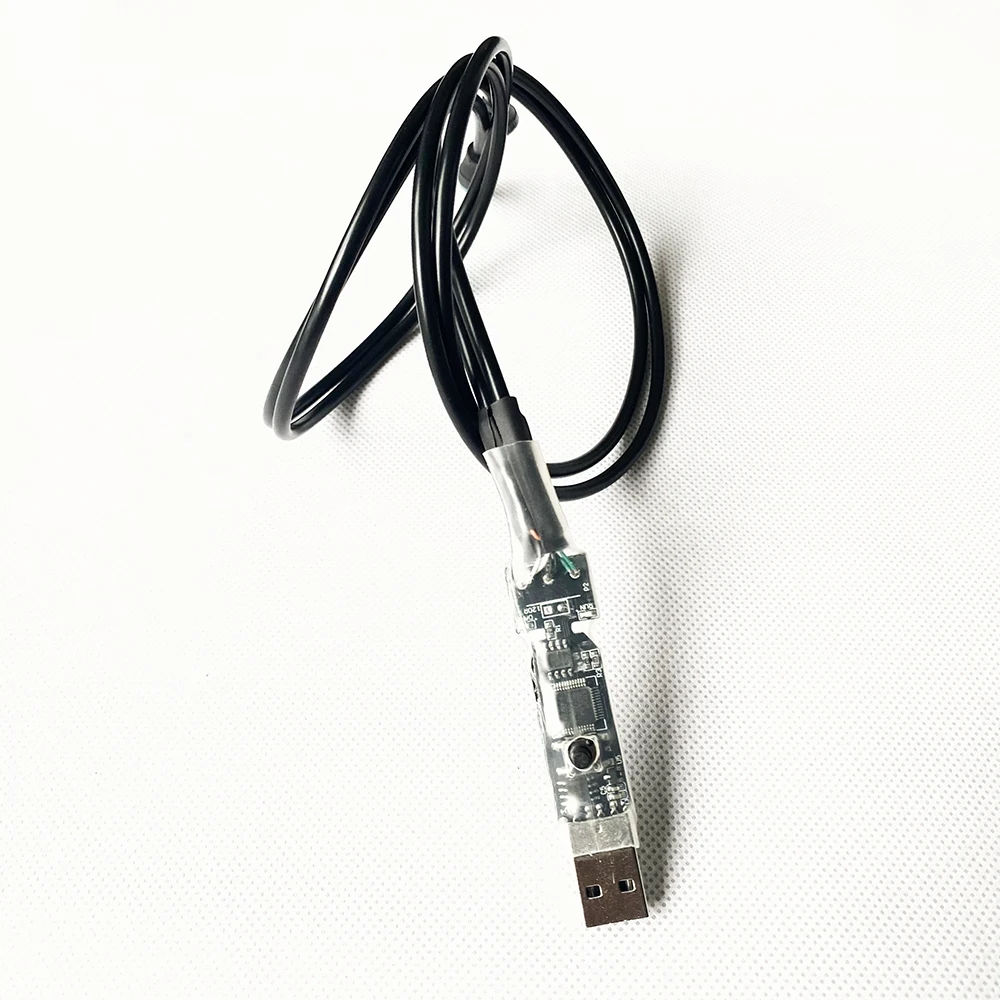

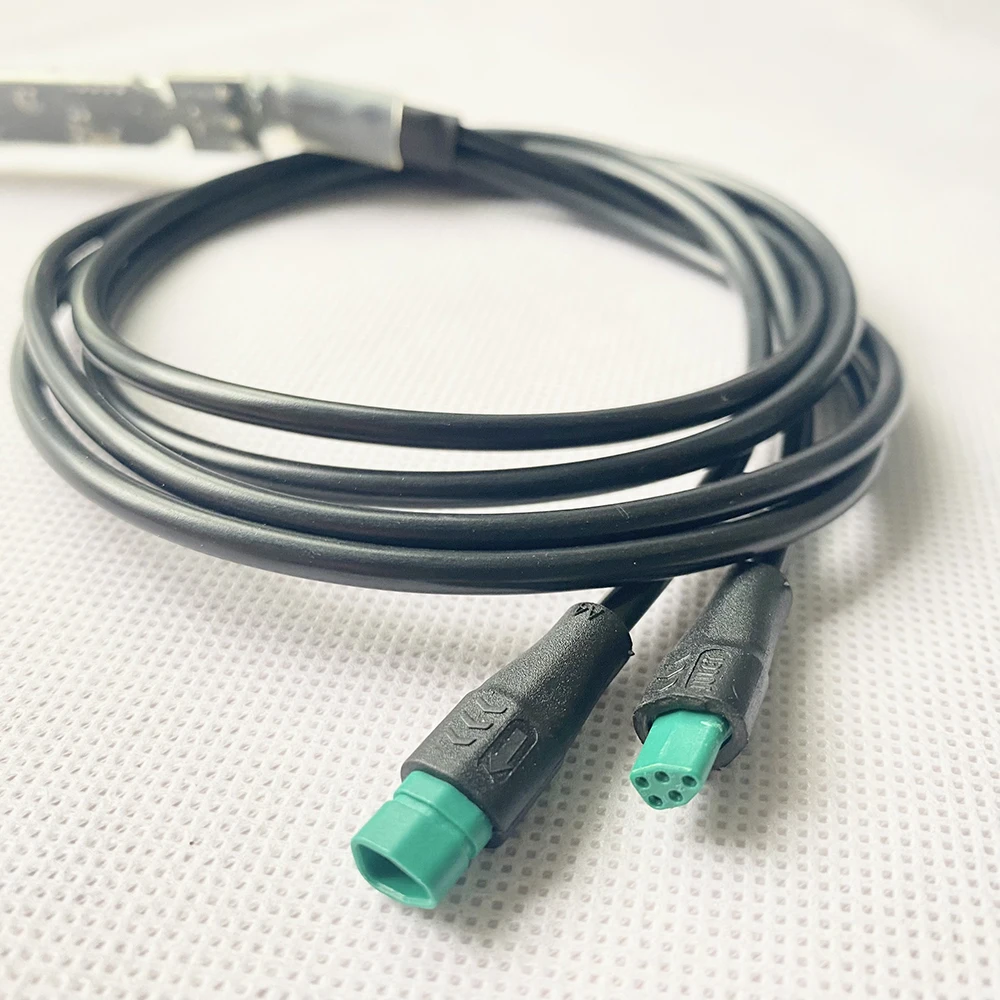

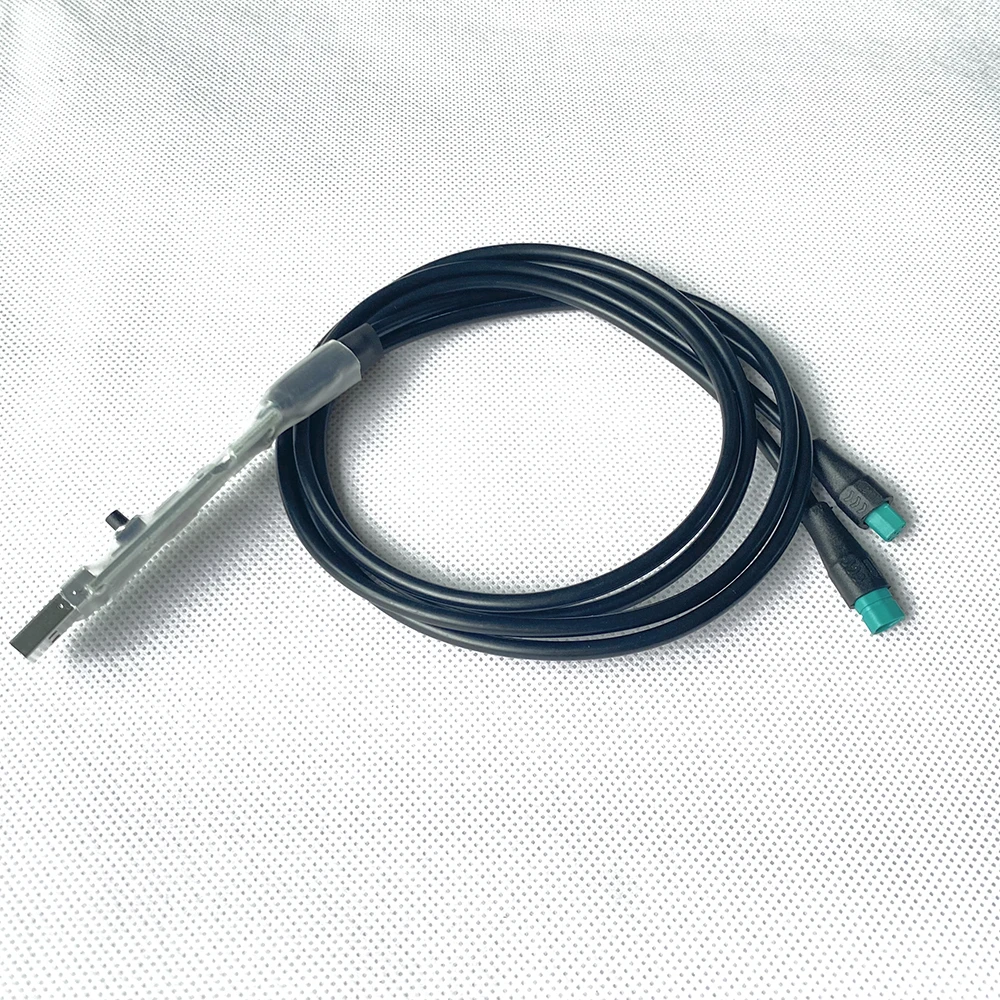

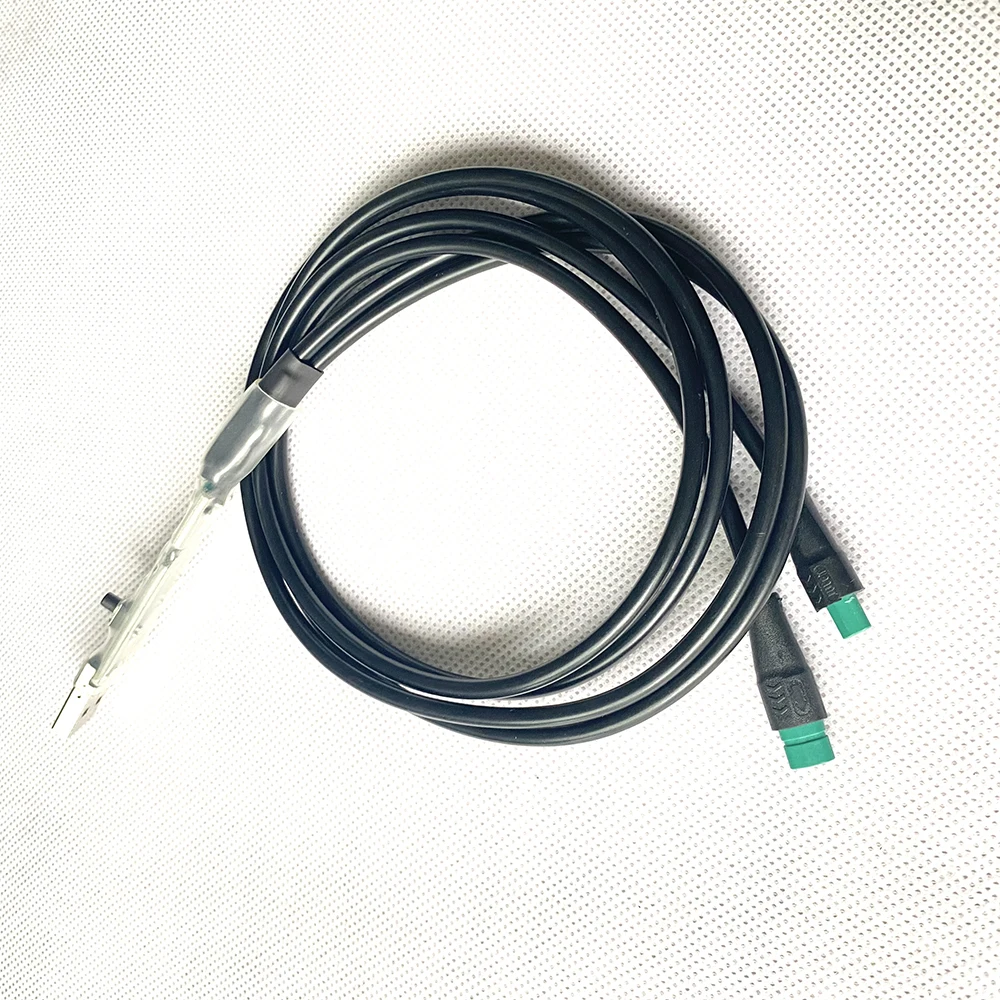

Unique Designed USB Programming Cable for Bafang M600 M620 CAN bus Mid-drive Motor Kits





This programming cable is only for Bafang G330 M400 M500 M510 G520 G521 G530 M600 M620 M800 CAN bus mid-drive Motor

We know if we buy Bafang M600 or M620 Mid-drive Kits with CAN bus, wheel size and speed limit is normally already set by factory which we can't change, this cable will help to change setting with lower cost solution.



This is the USB programming cable specially for BAFANG CAN bus protocol motor. It can solve the problem of setting the wheel diameter and releasing the speed limit. When your M500/M600/M620 motor is limited by the factory to 32KM/H, do you feel that the speed is too slow to ride, when you change to a new frame, because the size of the wheel diameter and the size setting in original motor are different, the speed on the display is wrong, it always feels very disappointing, this programming cable can solve your troubles and make all correct. This programming cable is very easy to operate. When you have any questions, please feel free to contact us, we will give you professional and best solutions.





Operation introduction:

1. Connect Bafang motor with battery and power on battery

2. Connect Bafang motor and Eb-bus cable

3. Connect the programming cable with Bafang motor Eb-bus Cable and also with display

4. Power on display

5. Connect USB plug of the programming cable with display USB port

6. When you see the programming module indicator light is on, means connection is successful.

Introduction and operation of programming Module button:

Press down Once on button: wheel diameter 29 inches 60KM/H  -2330mm

Press down Twice on button: wheel diameter 27.5 inches 60KM/H  -2240mm

Press down 3 Times on button: wheel diameter 26 inches 60KM/H  -2100mm

Press down 4 Times on button: wheel diameter 20 inches 60KM/H  -1550mm

Press down 5 Times on button: wheel diameter 700C inches 60KM/H  -2180mm
