Product Overview
Description
Products Description

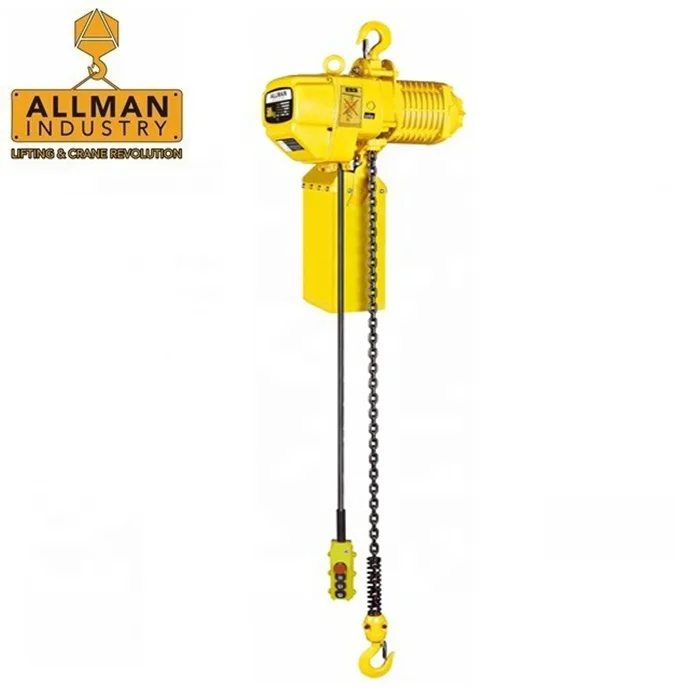

ALLMAN Construction used hook type 2 ton electric chain hoist for sale
Product Name | ALLMAN Construction used hook type 2 ton electric chain hoist for sale |
Power Supply | 3phase 220V ~690V |

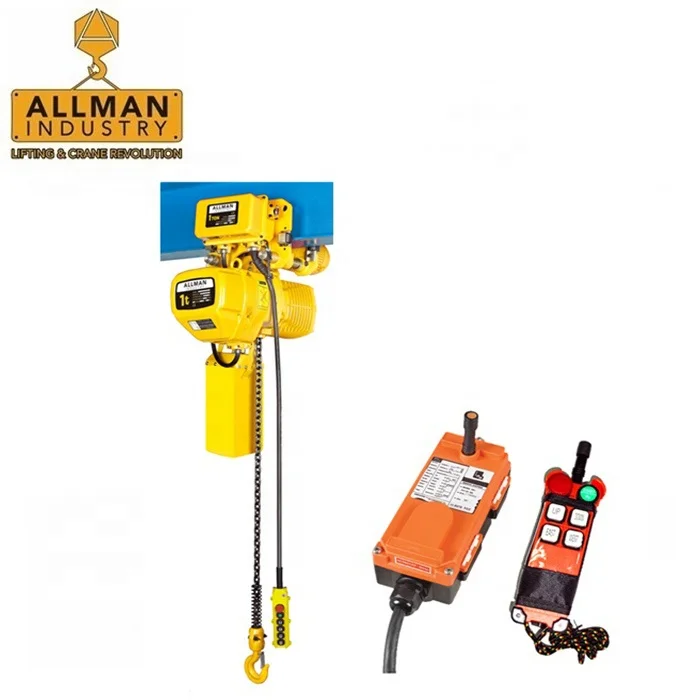

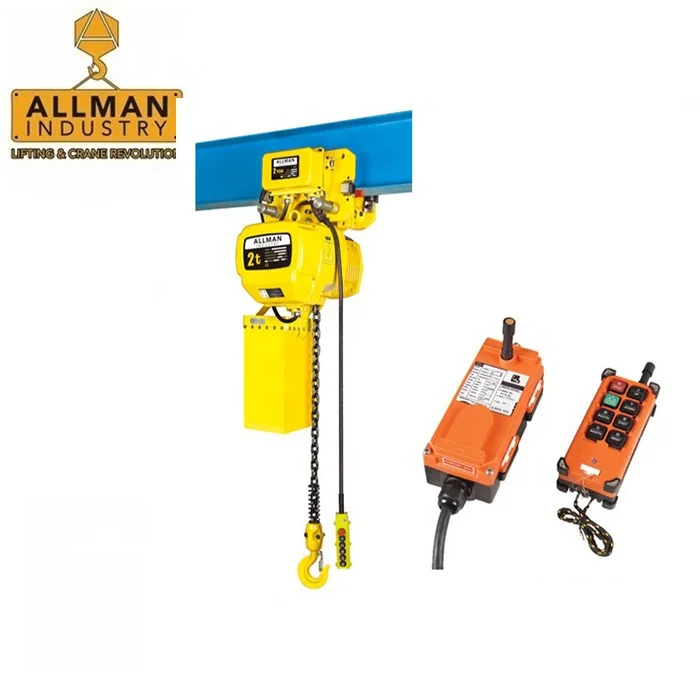

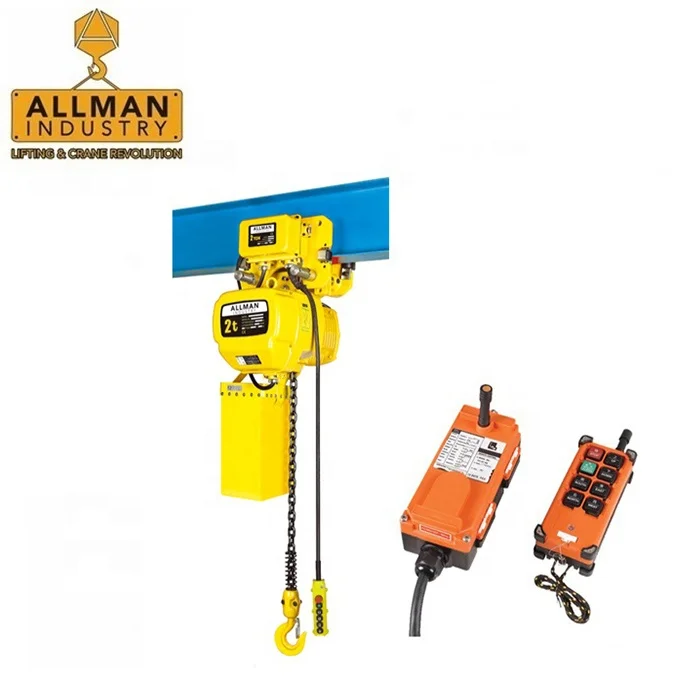

Control Method | wireless remote control / pendant control |
Hoist body material | high strength aluminum alloy |
Braking system | Mechanical side magnetic brake |
Hooks | forged hook with safety latches |
Load chain | Chinese G80 alloy steel chain/ Japan chain |
Working grade | M4 |
Control voltage | 24V/36V/48V optional |
Solution grade | F |
Technical Parameters:
Model | AMEH | ||||||||||||||||
0.25-01S | 0.5-01S | 01-01S | 1.5-01S | 02-01S | 02-02S | 2.5-01S | 03-01S | 03-02S | |||||||||
Capacity(t) | 0.25 | 0.5 | 1 | 1.5 | 2 | 2.5 | 3 | ||||||||||
Lifting Speed(m/min) | 7.2 | 7.2 | 6.6 | 8.8 | 6.6 | 3.3 | 5.4 | 4.4 | 2.2 | ||||||||
Motor Power(kw) | 0.8 | 0.8 | 1.5 | 3.0 | 3.0 | 1.5 | 3.0 | 3.0 | 3.0 | ||||||||
Rotation Speed(r/min) | 1440 | ||||||||||||||||
Insulation Grade | F | ||||||||||||||||
Power Supply | 3P 220V-690V | ||||||||||||||||
Control Voltage | 24V/36V/48V | ||||||||||||||||
No.of Chain | 1 | 1 | 1 | 1 | 1 | 2 | 1 | 1 | 2 | ||||||||
Model | AMEH | ||||||||||||
03-03S | 05-02S | 7.5-03S | 10-04S | 15-06S | 20-08S | 25-10S | |||||||
Capacity(t) | 3 | 5 | 7.5 | 10 | 15 | 20 | 25 | ||||||
Lifting Speed(m/min) | 2.2 | 2.7 | 1.8 | 2.7 | 1.8 | 1.4 | 1.1 | ||||||
Motor Power(Kw) | 1.5 | 3.0 | 3.0 | 3.0×2 | 3.0×2 | 3.0×2 | 3.0×2 | ||||||
Rotation Speed(r/min) | 1440 | ||||||||||||
Insulation Grade | F | ||||||||||||
Power Supply | 3P 220V-690V | ||||||||||||
Control Voltage | 24V/36V/48V | ||||||||||||
No. of Chain | 3 | 2 | 3 | 4 | 6 | 8 | 10 | ||||||
Details:
Motor | Adopt advanced magnetic cone brake to provide reliable stopping | ||||||
Chain Wheel | Increase the number of load sheave pockets helps reliable vibrations produced by revolving polygonal sheave on the hoist's body and load chain. | ||||||
Safe Brake | Electric brake is designed for easy access and simple adjustment. It allows instant brake as soon as the electric power is cut off. Thus the braking safety while loading is guaranteed. | ||||||
Electric Control Box | Upper and lower Limit Switch | The limit switch will cur off the motor circuit and prevent the damage to hoist structure and load chain when over-lifting or over-lowering happens. | |||||
Inverse phase sequence protecting device | It's the special electrical installation of controlling the circuit not work in case wiring error in the power supply. | ||||||
Contactor | Schneider/Eaton Brand | ||||||
Transformer | Available for voltage 220V, 380V, 440V etc. | ||||||
Hook & Hook Latch | High strength forged alloy steel hook with safety latch, allows 360° rotation in smooth and easy. | ||||||
Control Switch | Protection class：IP55 | ||||||
Emergency stop button | |||||||
Longer working life | |||||||
Chain | high strength FEC G80 chain, good abrasion resistance. | ||||||
Chain Bag | Light , attractive and durable. | ||||||
Package
Company Profile
ALLMAN has evolved itself into a specialist in the field of hoisting and lifting equipment. With over 10 years rich experience, we are capable of delivering an extensive range of material handling equipment and lifting products. Whether it comes to construction, manufacturing, mining, transportation, railway, electric power, wind power, theater, offshore, or ship building, you name it, we provide it.
Safety, quality and professionalism are the three key words to ALLMAN hoisting and lifting equipment. Safety is one of the main concerns in the world where accidents could be easily encountered. Housing and lifting jobs is no stranger to risks. Safety can only be guaranteed by quality as well as professionalism. Our expertise in hoisting and lifting equipment and our long-acquired experience have helped us to become one of the most professional parties in the field of work.
With ALLMAN you can rest assured of obtaining the best value for your money. With our efficient and well-controlled process, we safeguard continuity in our product quality. European norms and standards are complied with. We maintain a substantially great stock level that is constantly monitored. This guarantees one of the fastest delivery times among our peers.
ALLMAN hoisting and lifting equipment is one of the most important and stable players in the market. We are well known to offer products of trustworthy and solid quality at a competitive price. In addition, we have build up an extensive distributor network worldwide over the years. With this network, we ensure fast delivery and best available after sales support to our customers.
Exhibition
FAQ
1, Q: Are you manufacturer or trade company?
A : We are a professional manufacturer of electric hoist and electric winches . At the same time , we are also a trustworthy supplier of other manual operated lifting equipment and material handing equipment ,including hand chain hoist , lever hoist , hand pushed beam trolley , geared trolley , wire rope pulling hoist , hand winch , lifting magnets, crane scales , cranes and crane components and so on .
2, Q: Trade assurance order is OK?
A: Sure ,we are happy to conclude trade assurance order, which warranty you quality, on time delivery and payment protection.
3, Q: What is the MOQ ?
A: 1 set .
4, Q: What’s your quality guarantee?
A: “Quality is life “ . Almost of our products have CE certificate , all the products are designed and manufactured according to the international standard . Different products meet different quality standard . All the products will be strictly tested and inspected before shipping . And we will be responsible for any quality problem .
5, Q: How long is the lead time ?
A : Samples orders with small quantity within 7 days . Bulk order around 15 days .
6, Q: Which is the nearest sea port for you ?
A : Shanghai Port is the nearest port for us . But we can delivery the goods to any port as your request .
7, Q: What advantages we have?
A: Rich experience: We have over 10 years experience in exporting hoisting and lifting equipment , all of our sales have been in lifting industry over 8 years , some over 10 years .
We have our own experienced engineers in R&D , we keep improving the products quality level , design new and economic products to meet our customers’ different requirement .
We have our own factory , so that , no matter the electric hoist and electric winches which manufactured by ourselves , but also other related lifting and handling equipment we get from our partners . All will be re-tested again in our factory .
8, Q:How about the after sale service?
A: We promise 1 year guaranty, life-time technical support! We have a strong team special for after sale service. All your
questions you are asking will be solved by our sales and engineers .
A : We are a professional manufacturer of electric hoist and electric winches . At the same time , we are also a trustworthy supplier of other manual operated lifting equipment and material handing equipment ,including hand chain hoist , lever hoist , hand pushed beam trolley , geared trolley , wire rope pulling hoist , hand winch , lifting magnets, crane scales , cranes and crane components and so on .
2, Q: Trade assurance order is OK?
A: Sure ,we are happy to conclude trade assurance order, which warranty you quality, on time delivery and payment protection.
3, Q: What is the MOQ ?
A: 1 set .
4, Q: What’s your quality guarantee?
A: “Quality is life “ . Almost of our products have CE certificate , all the products are designed and manufactured according to the international standard . Different products meet different quality standard . All the products will be strictly tested and inspected before shipping . And we will be responsible for any quality problem .
5, Q: How long is the lead time ?
A : Samples orders with small quantity within 7 days . Bulk order around 15 days .
6, Q: Which is the nearest sea port for you ?
A : Shanghai Port is the nearest port for us . But we can delivery the goods to any port as your request .
7, Q: What advantages we have?
A: Rich experience: We have over 10 years experience in exporting hoisting and lifting equipment , all of our sales have been in lifting industry over 8 years , some over 10 years .
We have our own experienced engineers in R&D , we keep improving the products quality level , design new and economic products to meet our customers’ different requirement .
We have our own factory , so that , no matter the electric hoist and electric winches which manufactured by ourselves , but also other related lifting and handling equipment we get from our partners . All will be re-tested again in our factory .
8, Q:How about the after sale service?
A: We promise 1 year guaranty, life-time technical support! We have a strong team special for after sale service. All your
questions you are asking will be solved by our sales and engineers .
