Product Overview

Description



Product Description




Jindun's evaporative cooling pad is used in systems where high efficiency cooling is required . It can be used for many different cooling purposes but is particularly suitable for cooling of livestock buildings and greenhouses when higher air velocity is required .

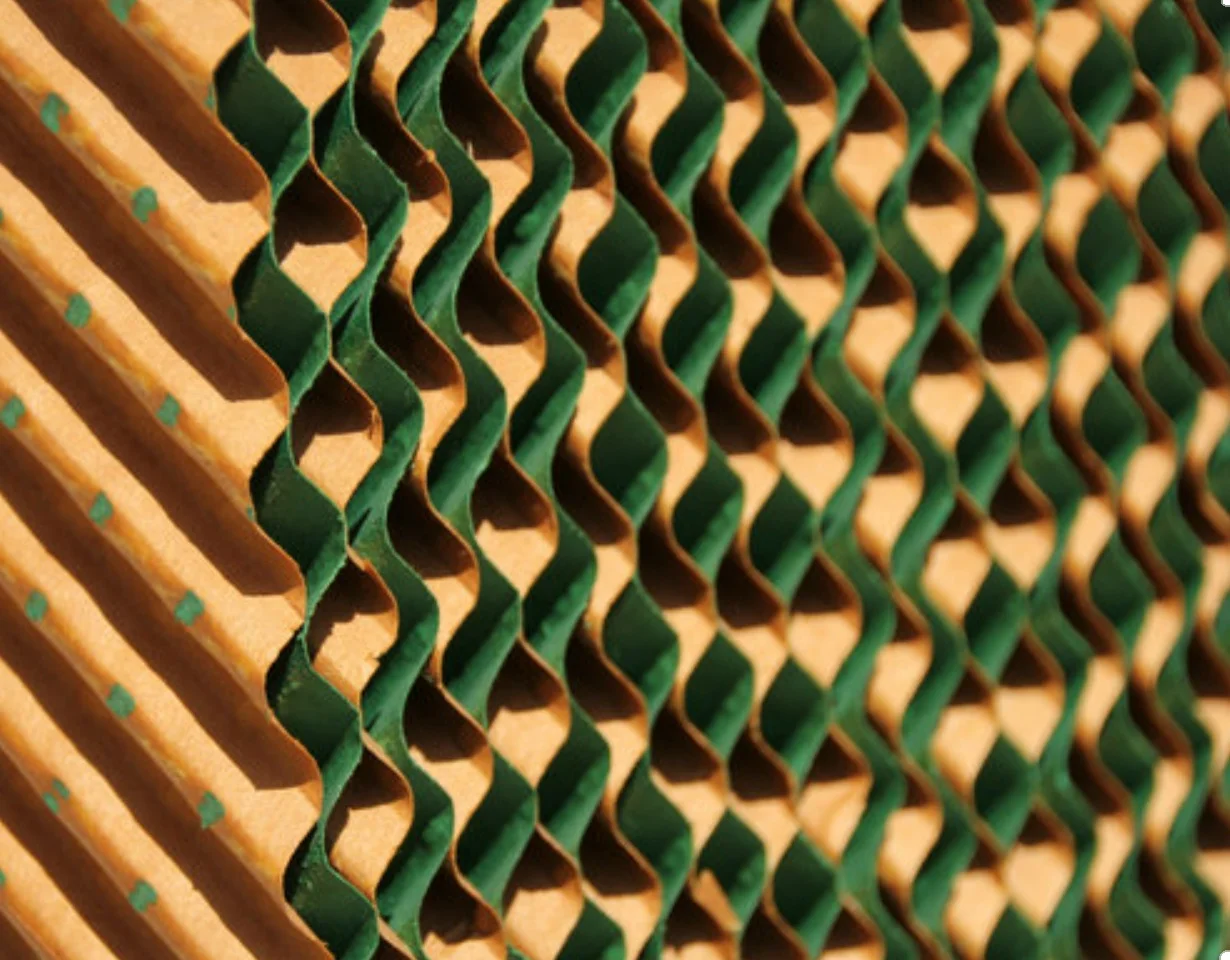

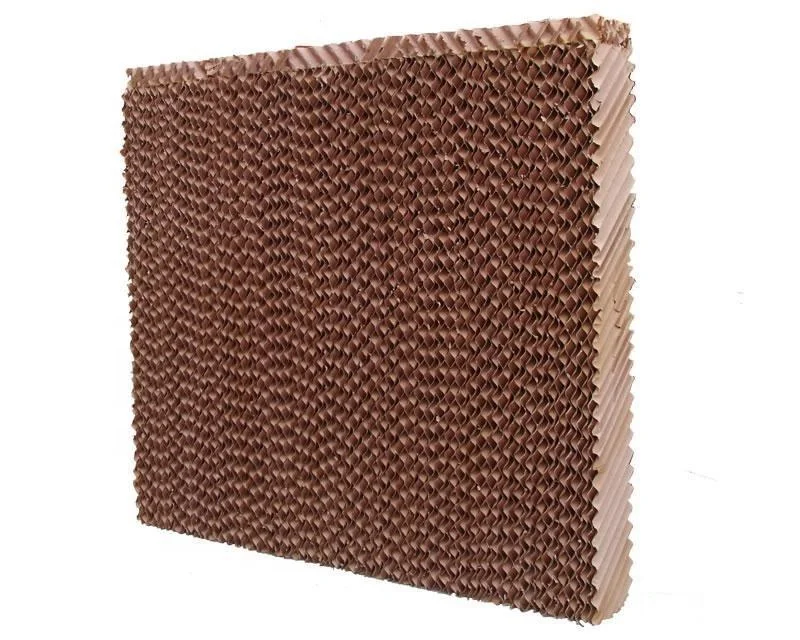

The evaporative cooling pad consists of specially impregnated and corrugated cellulose paper sheets with different flute angles , that have been bonded together . This unique design yields a cooling pad with high evaporation efficiency while still operating at a very low pressure drop .
The water flows down the corrugated surface of the evaporative cooling pad . Part of the water is evaporated by the warm and dry air that passes through the pad . The rest of the water assists in washing the pad , and is drained back to the pump station through a gutter system .
The heat that is needed for the evaporation is taken from the air itself . The air that leaves the pad is therefore cooled and humidified simultaneously without any external energy supply for the evaporation process . This is nature's own cooling process .

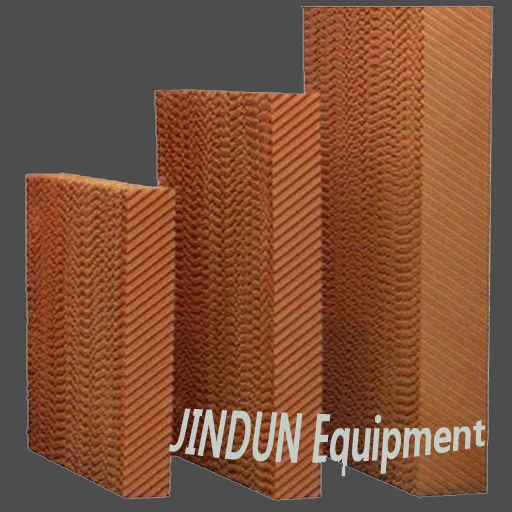

Specification




Model
Height(mm)
Length(mm)
Thickness(mm)
Angle
Flute
7090
1500/1800/2000/customized
600/300/customized
100/150/200/customized
45°/45°
7mm
7060
1500/1800/2000/customized
600/300/customized
100/150/200/customized
45°/45°
7mm
5090
1500/1800/2000/customized
600/300/customized
100/150/200/customized
45°/45°
5mm


Details Images




1.JINDUN cooling pad use new material and space crossing linking technology, high water absorbability , high water-resistance,anti-mildew and long service life.
2.Strict production as per standard, width of 600mm cooling pad involves 85
sheets.




1.Products don't contain Phenol or any other chemical substances which easily makes skin allergy. Non-toxic and harmless to human
body, safety, energy saving, environment protection and economic applicable.

2.The Product contains surface active agent for natural water absorbability ,fast pervasion speed, lasting effectiveness.

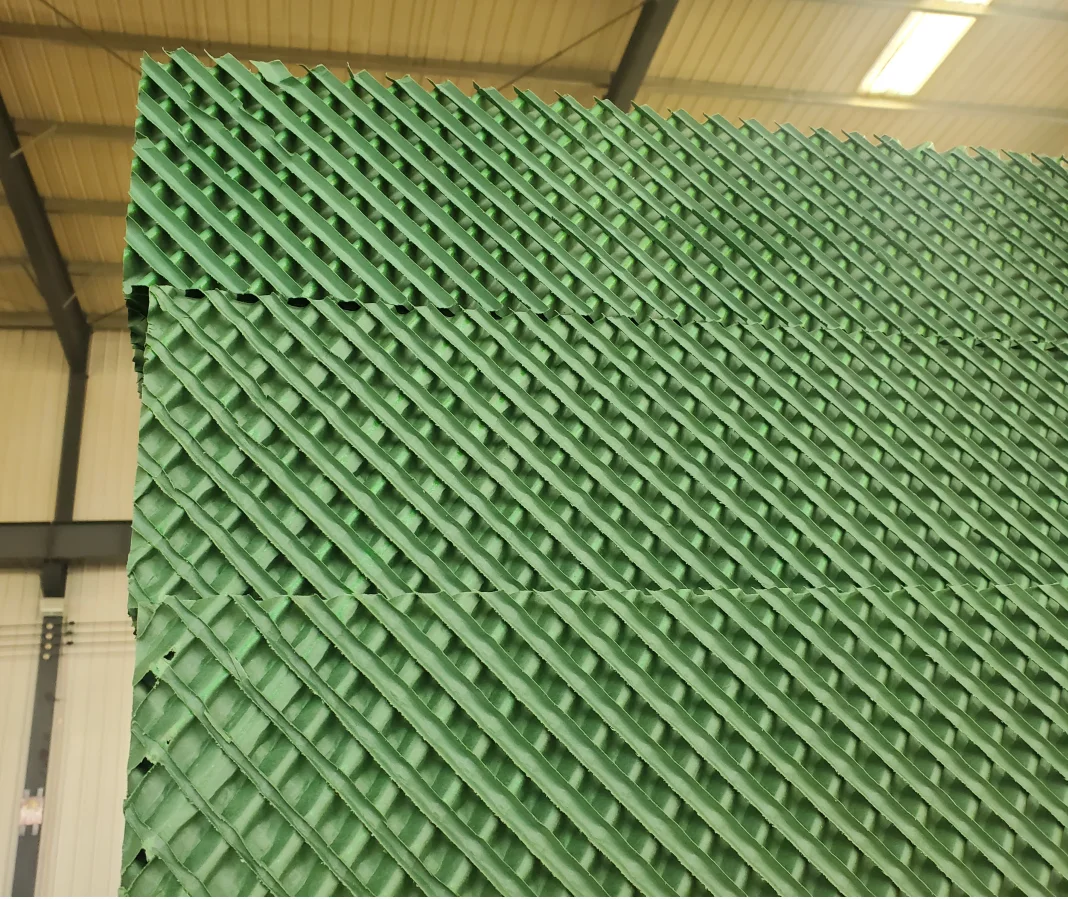

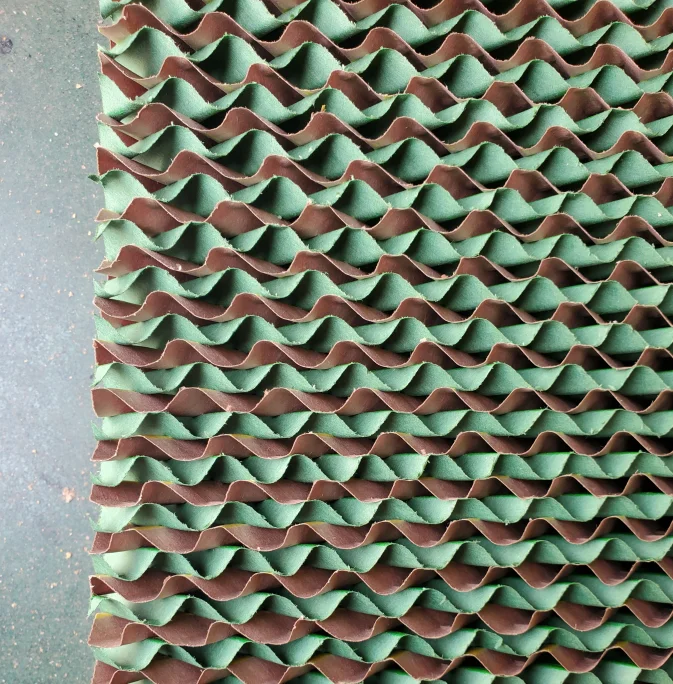

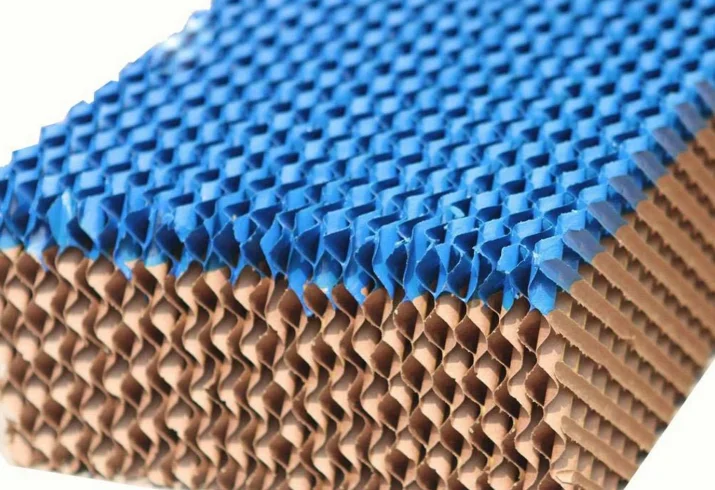

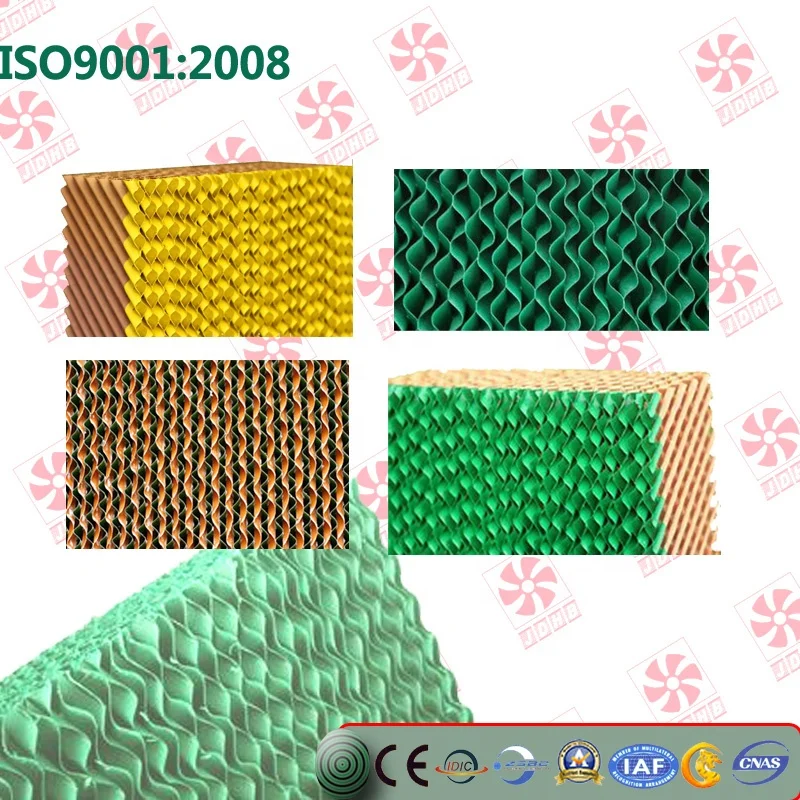

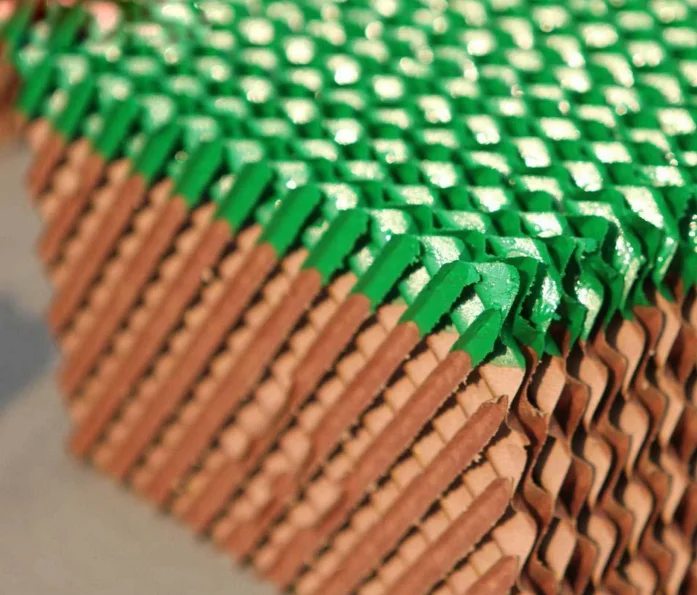

1. According to customers' requirement ,we can do one side color coated cooling pad for easy cleaning and beautiful appearance.
2.Color is for option: black coated/ green coated/ yellow coated/ red coated/blue coated/ orange coated and so on.

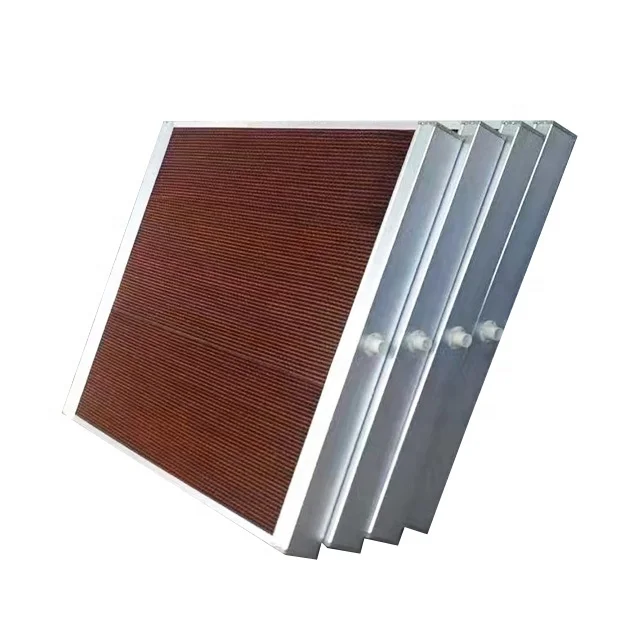

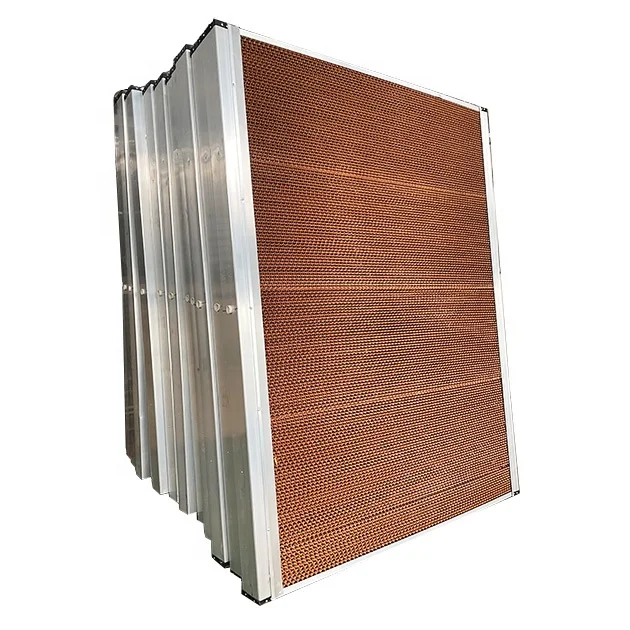

Cooling pads with aluminum frame




Certifications



JINDUN Company have gotten many titles such as "China Ten Top Brands Fan" "AAA level of National Quality Company" "Honesty and Qualitative Enterprise", "Alibaba Assessed Supplier". International authority certified, Trustworthy.
JINDUN Products have passed "CE Certificate ", "CCC Certificate" and "Quality Management System Certificate".

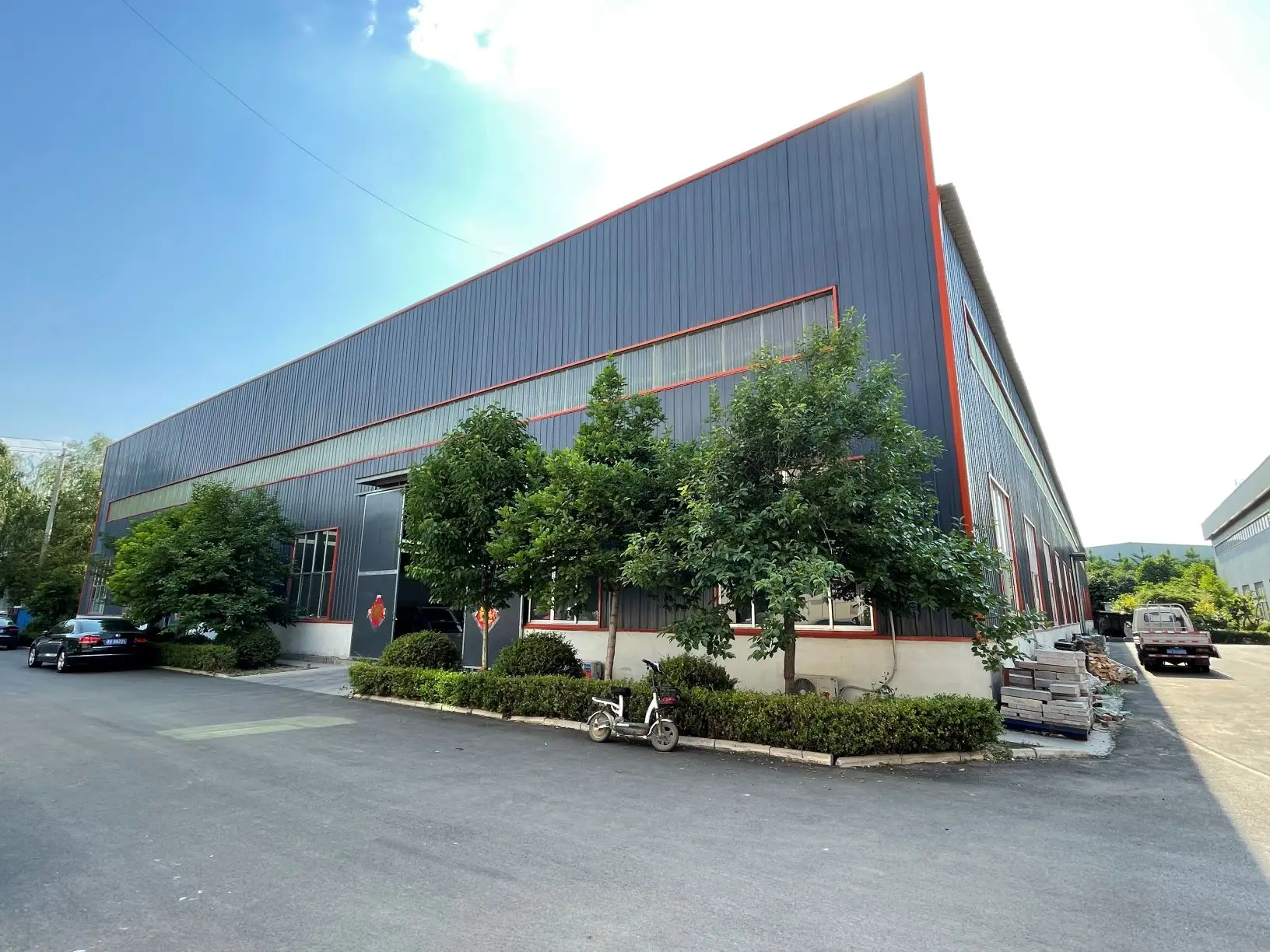

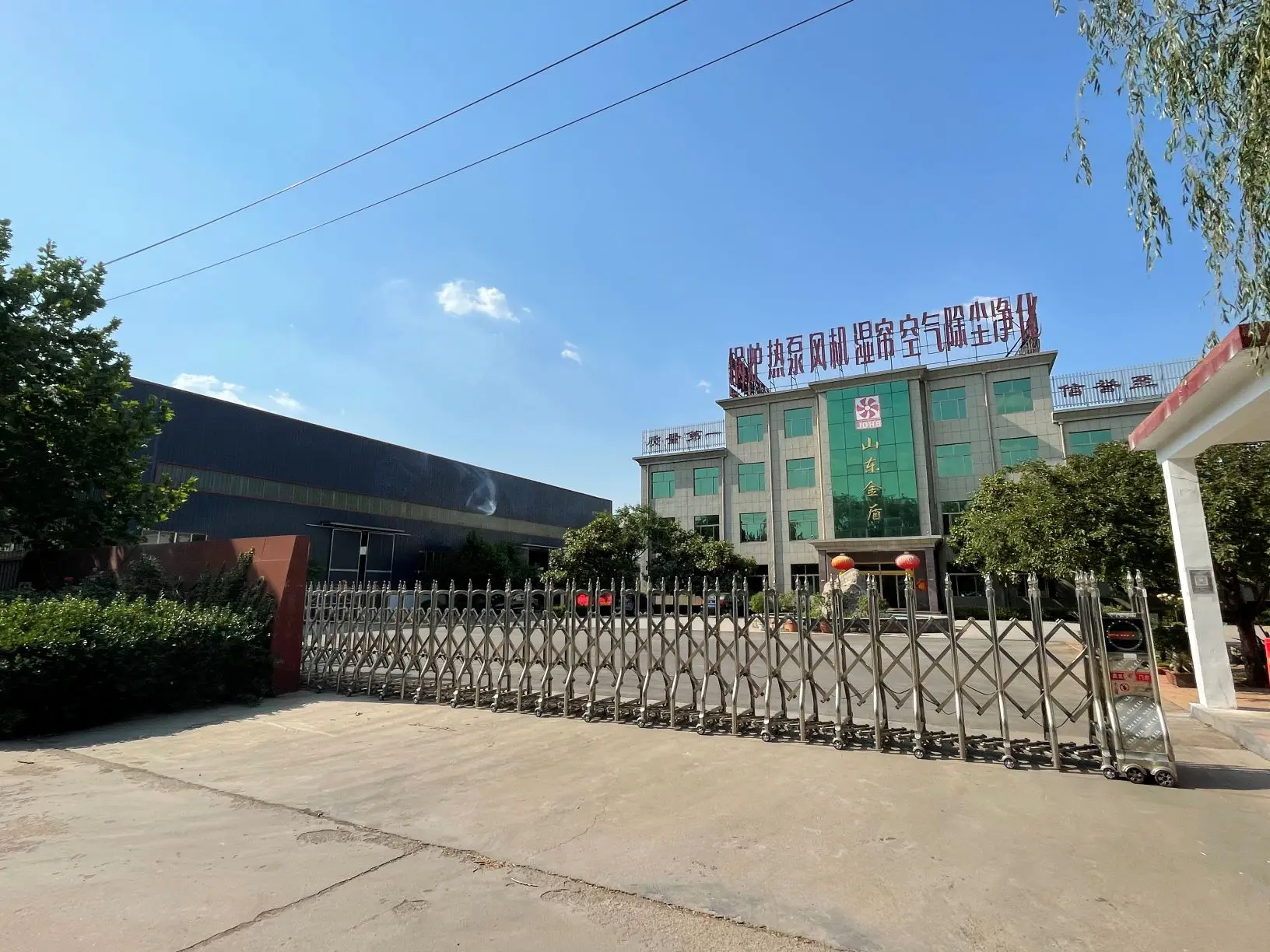

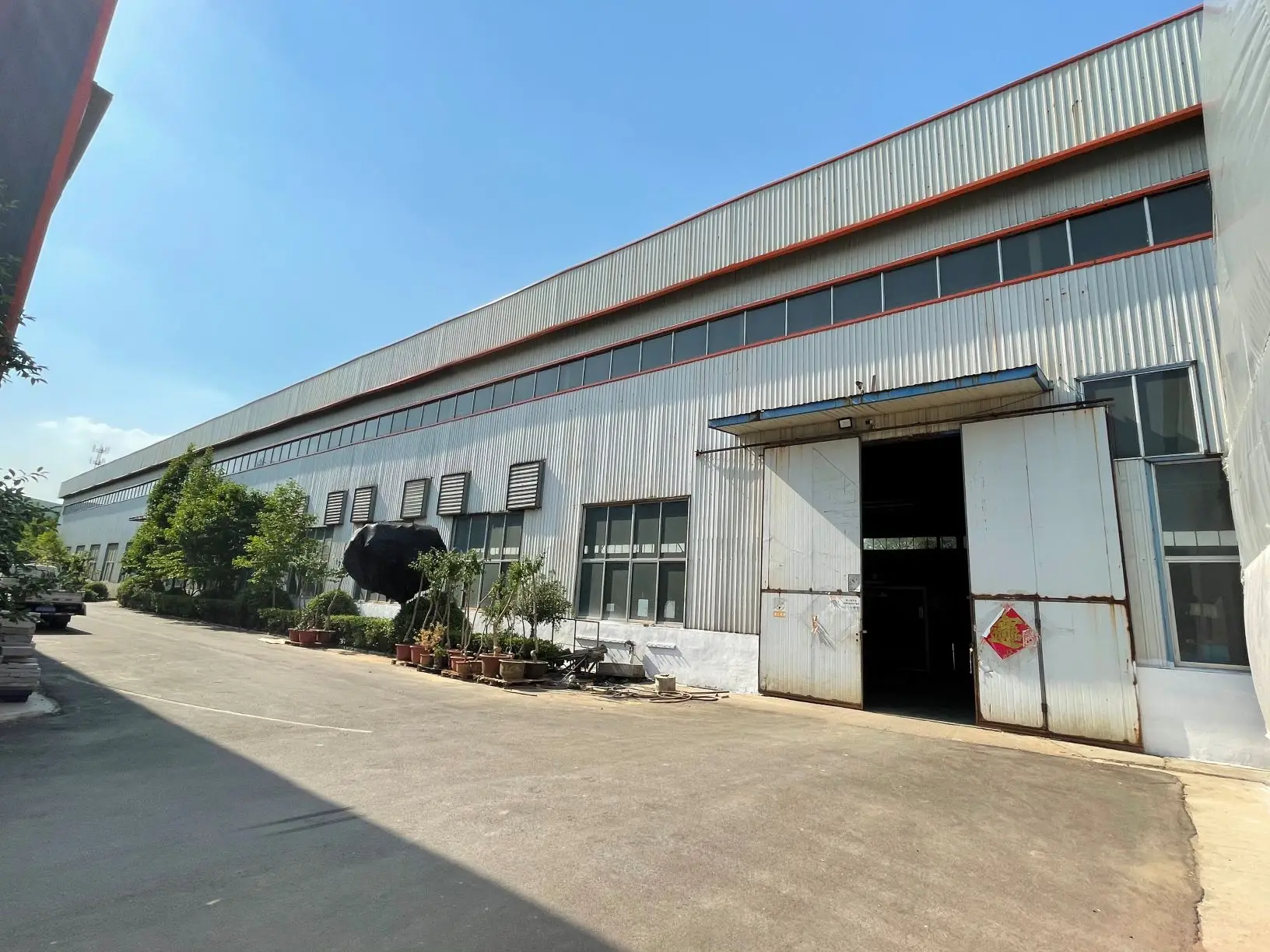

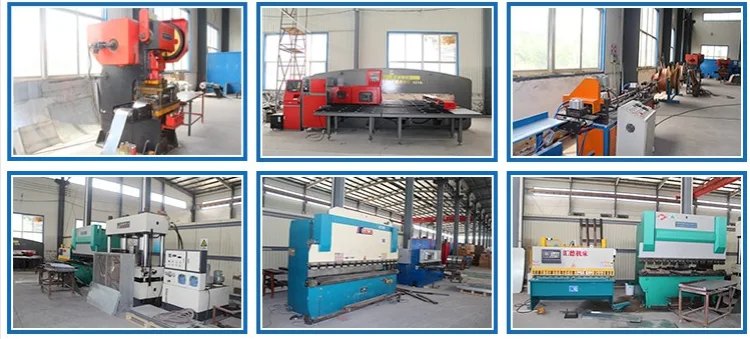

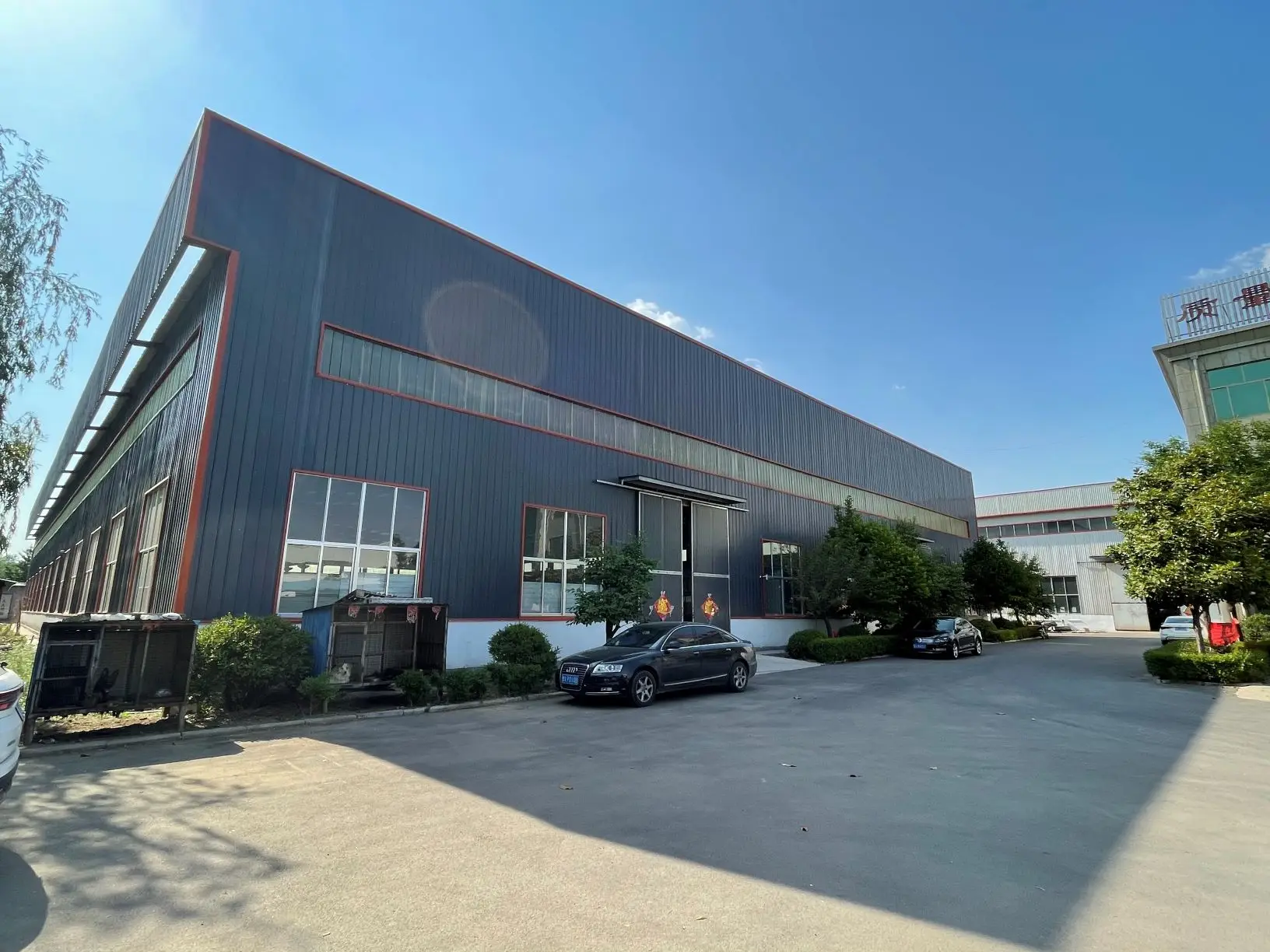

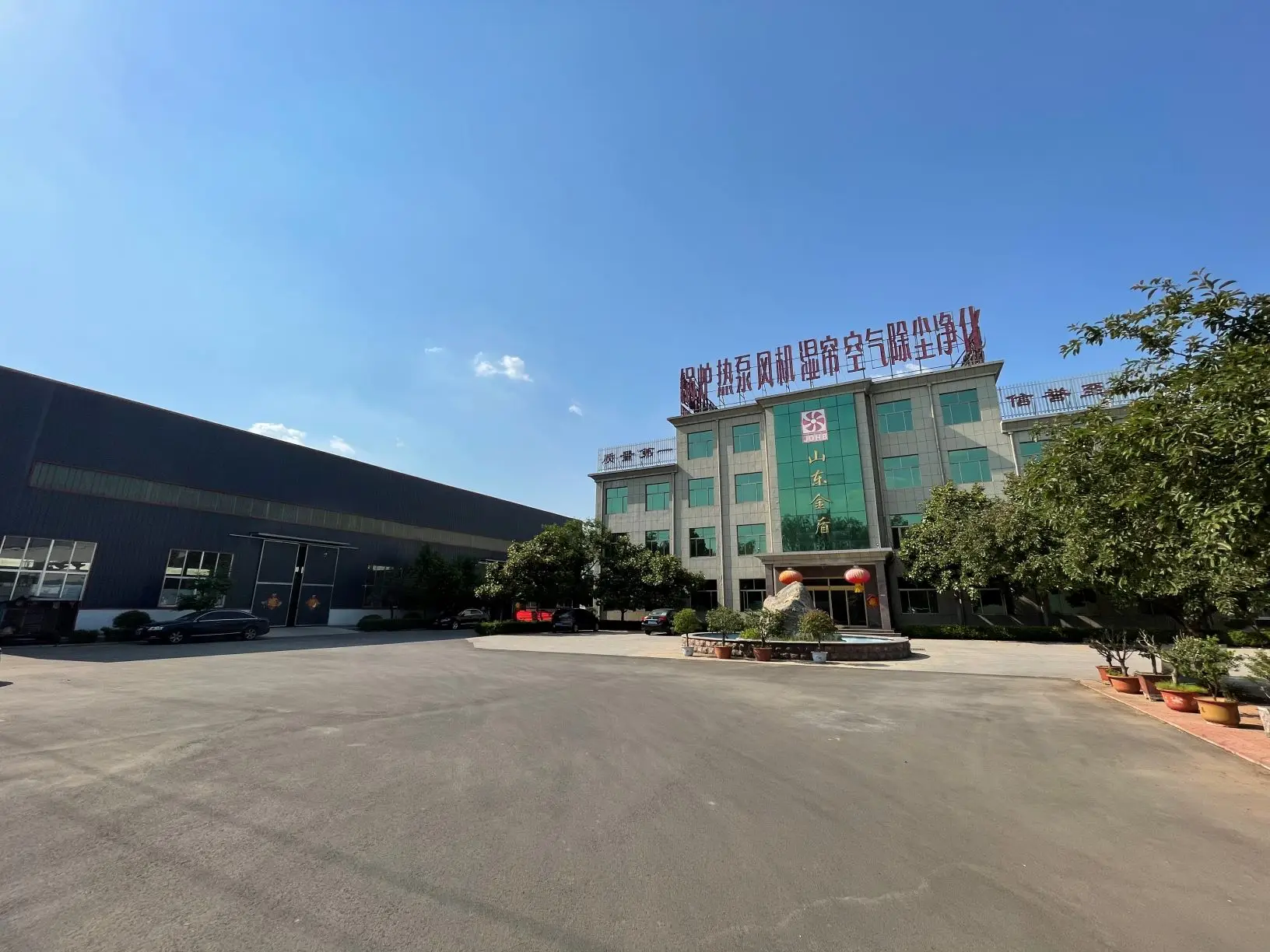

Factory&Workshop




Company Profile






Shandong JINDUN Energy Conservation & Environmental Protection Equipment Co., Ltd., located in Qingzhou City , a famous city in Shandong Province , with an area of 20000㎡ , is a professional manufacturer of temperature controlling equipments for large-scale greenhouse , animal husbandry and public rooms .
Since 2005 , under the lead of president Mr.Cao , Jindun company have devoted to the research and development of new generation of energy-conservation equipments and beconme the pioneer of air-conditioning generators . Now , series of air condition controlling equipments are included in Jindun's product catalogue , such as Ventilation Cooling Fans , Evaporative Cooling Pads , Air condition generators , Hot air Stovens , Hot water Oil-burning boilers , Hot water Gas-burning boilers and Hot water Electrical boilers .
JINDUN will be your best business partner .
