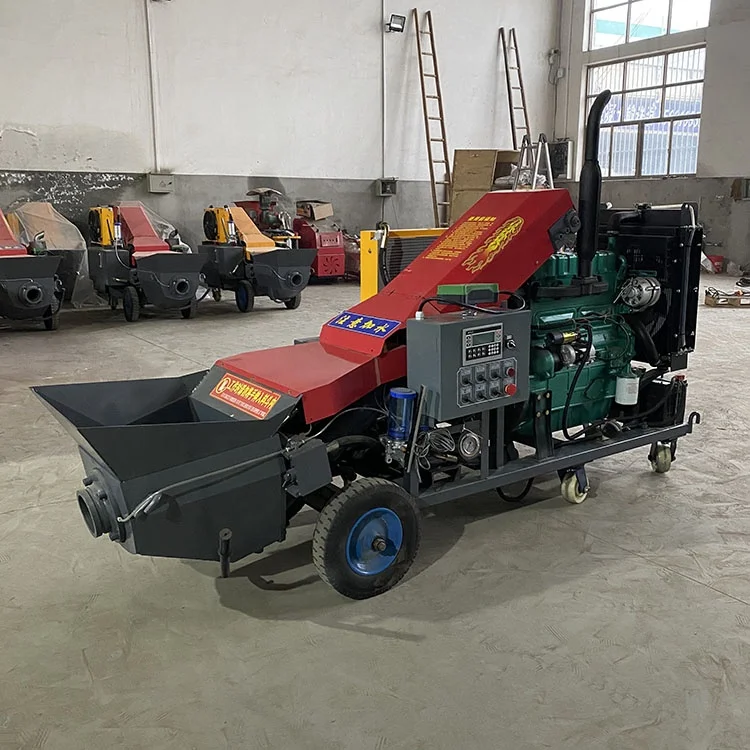

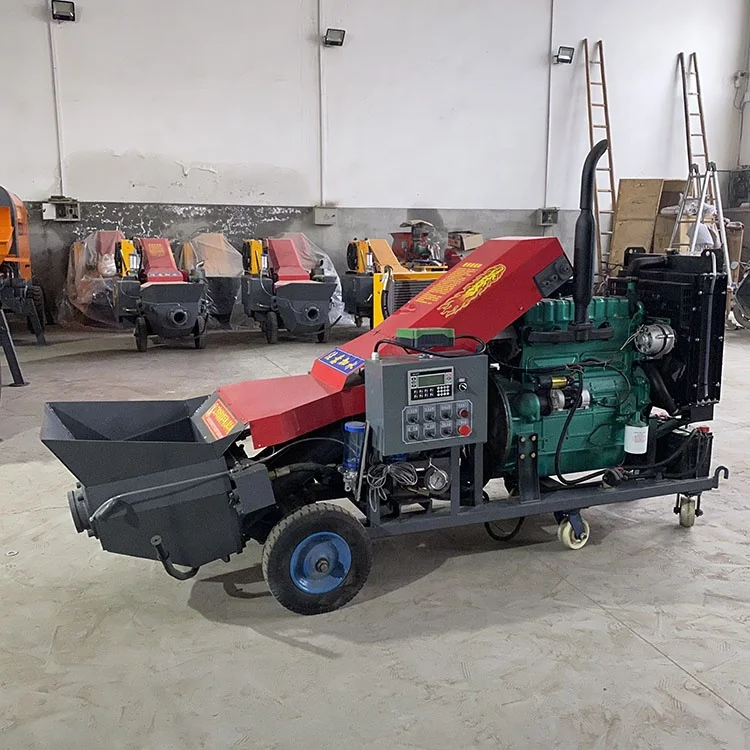

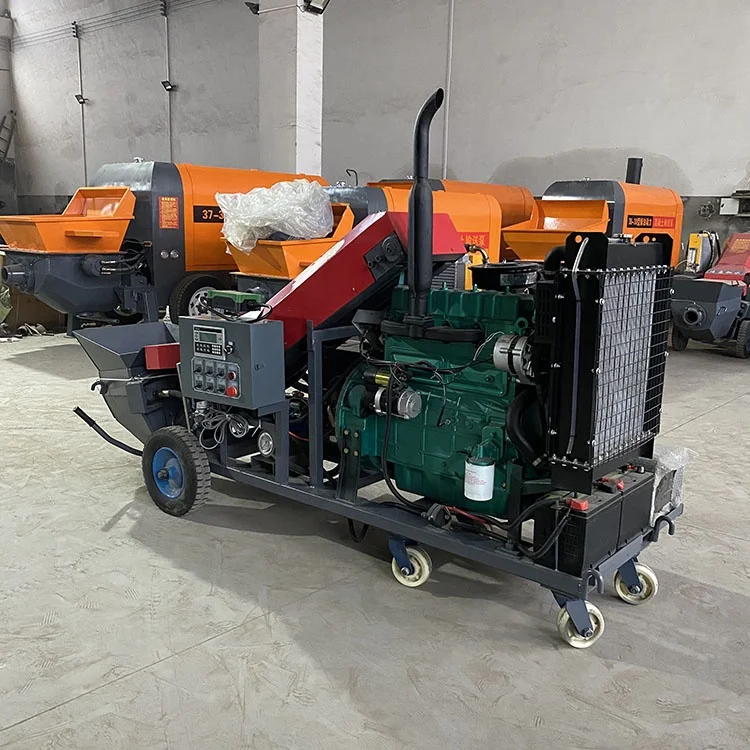

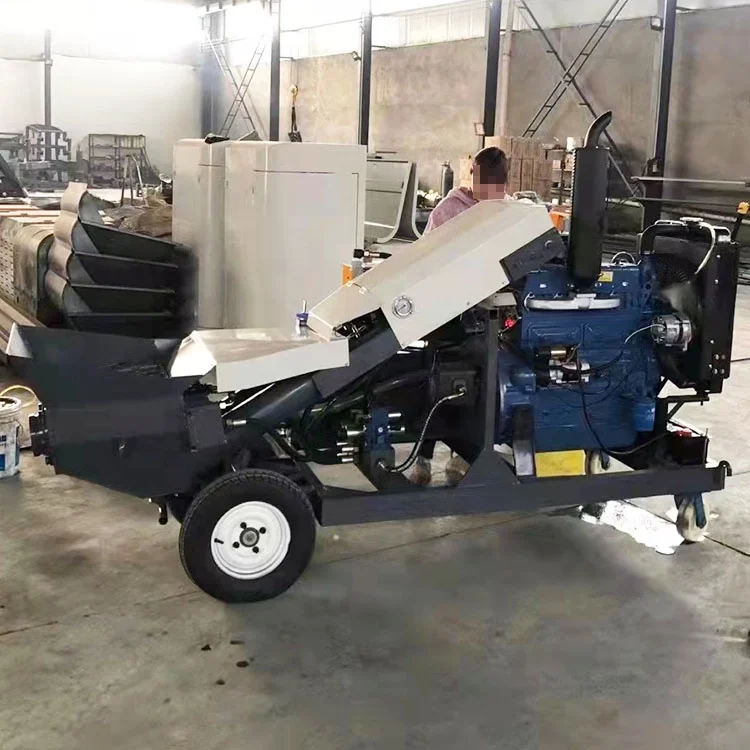

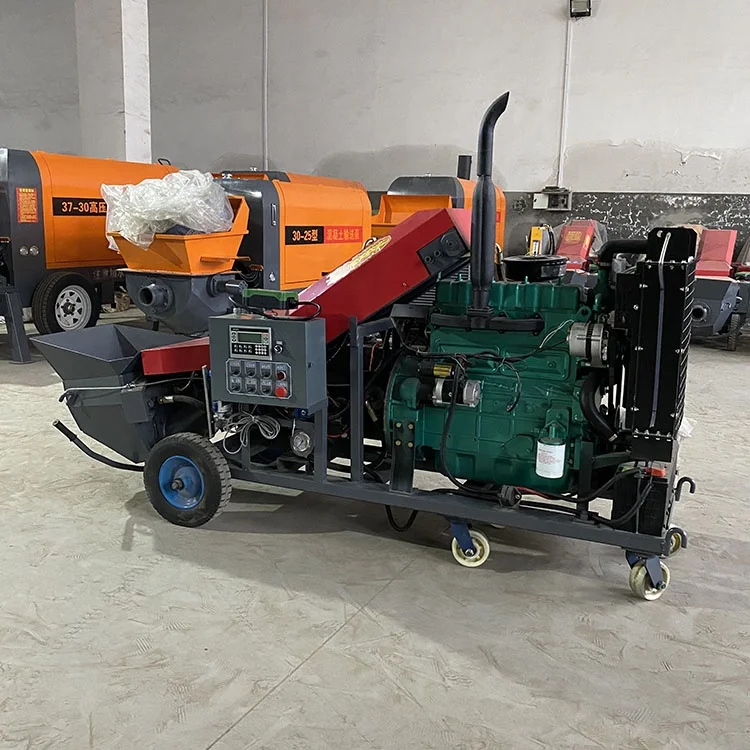

Construction diesel concrete pumps cheap price movable concrete pump for sell
- Category: >>>
- Supplier: Shandong Aolai Machinery Co. Ltd.Shandong Ltd.
Share on (1600529291301):
Product Overview
Description

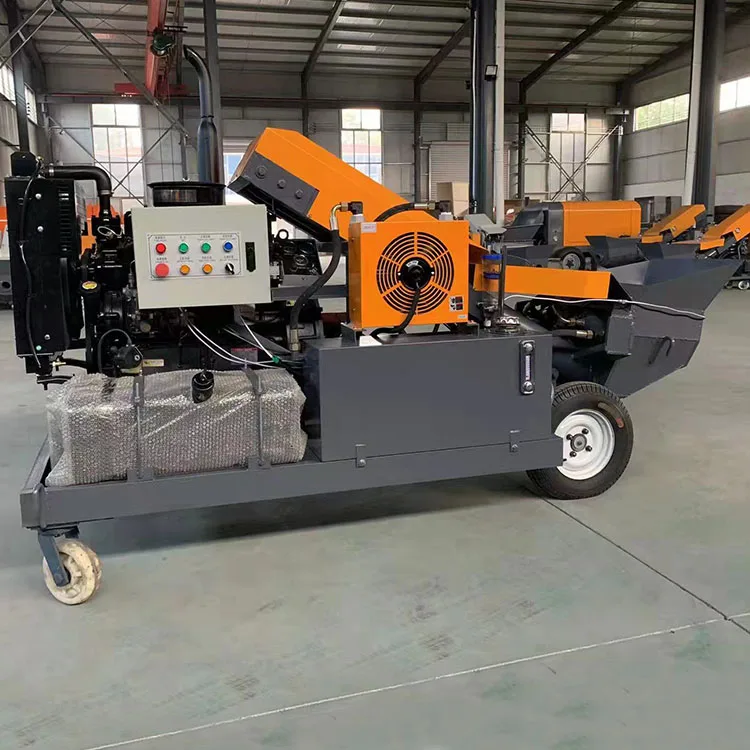

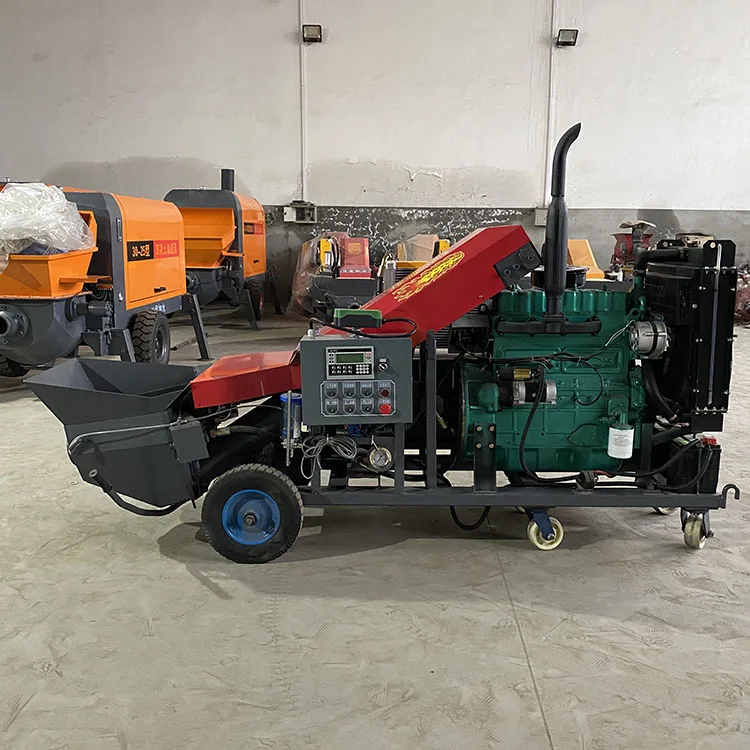

The secondary structural column pouring pump is a new type of multi-functional building construction machine developed on the basis of absorbing advanced technology at home and abroad. It is easy to operate, safe and reliable, easy to maintain, compact in structure and flexible in movement.
Products Description
Features of secondary structure column pump:
1. The power system, hydraulic system and pumping system are reasonably matched to effectively exert the power of the motor.
2 High material absorption, the actual pumping efficiency reaches the theoretical value of more than 80%
3. The configuration is more optimized, and the imported hydraulic parts and electrical components are used to greatly improve the reliability of the equipment.
4 The unique distribution oil circuit buffer technology ensures that the S tube swings in place and prolongs the service life of the S tube

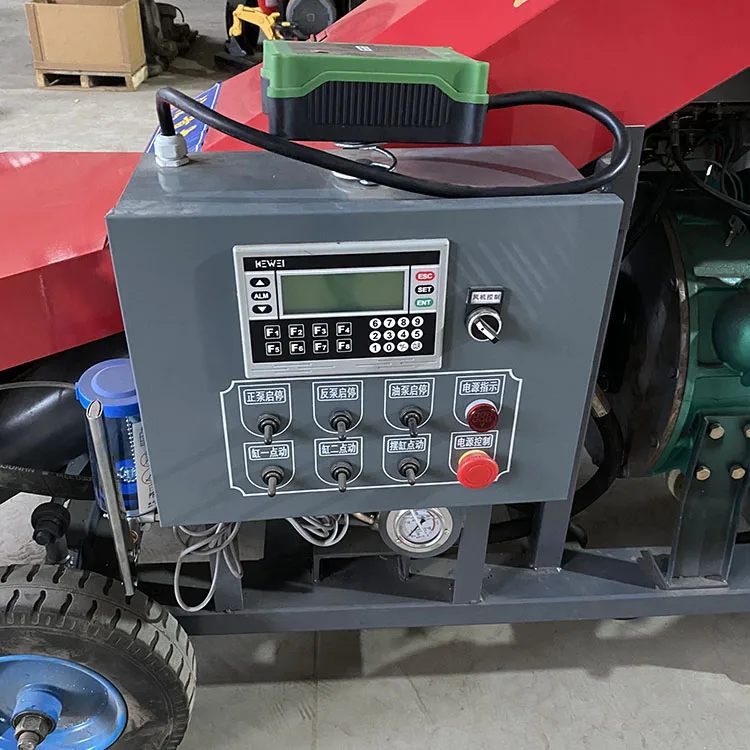

5 The application of high and low voltage switching simplifies the operation mode
6. The lubricating system adopts forced filtration and pre-pressing dual-pump energy-saving automatic centralized oil supply system, which provides sufficient oil supply, better lubrication effect, and saves consumption, which reduces consumption by more than 50% compared with ordinary continuous oil injection
7 The application of new wear-resistant materials and welding processes doubles the service life of commonly used wearing parts
8 The power system adopts international brand hydraulic main pump, and the motor adopts domestic famous brand to provide strong power
9. The unique open hydraulic system and proprietary hydraulic buffer technology of the hydraulic system make the system less impact on reversing and less heat generation
Product Specification
Delivery volume: | 5-7 cubic meters per hour |
Maximum vertical conveying distance: | 15m |
mum horizontal conveying distance: | Maximum horizontal conveying distance: 40m |
Fuel tank capacity: | 50 liters |
Working form: | s tube valve type |
Through aggregate: | ≤3cm |
Maximum pressure: | 13MPa |
Bore*Stroke: | 120*550 |
Main oil pump: | 50 oil pump |
Weight: | 450Kg |
Machine size | 1900*670*1200mm |
Motor: | 15KW |
This product adopts cam type rotation, easy to move, can enter the house for construction, parallel bar type automatic pressure control system, large flow, long service life, and can transport mortar with a ratio of 1:2.5, this product has reached the international advanced level in the same industry
Our Company
Packaging And Shipping
Our Service
Before sale
1. Quick response
2. Professional technical consulting services
3. Provide a variety of related information about the product
2. Professional technical consulting services
3. Provide a variety of related information about the product
On sale
1. Delivery on schedule
2. Strict factory acceptance
3. Use negotiated or suitable packaging for transportation
2. Strict factory acceptance
3. Use negotiated or suitable packaging for transportation
After sale
1.24 hours technical support
2. Long warranty
3. Sufficient spare parts guarantee
2. Long warranty
3. Sufficient spare parts guarantee
FAQ
1: What kind terms of payment can be accepted?
A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted
2: What certificates are available in Machinery?
A: For the certificate, we have CE, ISO,EPA(USA),CCC
3: What about the delivery time?
A: 7-20 days after receiving the deposit.
4: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occuts first.
5. What about the Minimum Order Quantity?
A: The MOQ is 1 pcs
6.What about the service?
1). Quick response to every inquiry.
2). Professtional and detailed answer to any of customer's questions.
3). Strict QC and in time delivery.
4). Offer all relative material for customer to know and better use the machine.
5). Periodically after service follow up, offer any necessary support if needed.
6).For the new machine, within determined limits, the manufacture guarantees warranty for a period of 12 months after bought or 20
00 working hours(whichever comes first).
7).The warranty includes repairation or replace the parts for free which were proved to be defective in origin by the technical
department of the manufacture.
8).The repairation or replacement for the parts should not exceed the warranty period.
9).The warranty is valid on the condition of all the terms listed in the contract was observed.
A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted
2: What certificates are available in Machinery?
A: For the certificate, we have CE, ISO,EPA(USA),CCC
3: What about the delivery time?
A: 7-20 days after receiving the deposit.
4: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occuts first.
5. What about the Minimum Order Quantity?
A: The MOQ is 1 pcs
6.What about the service?
1). Quick response to every inquiry.
2). Professtional and detailed answer to any of customer's questions.
3). Strict QC and in time delivery.
4). Offer all relative material for customer to know and better use the machine.
5). Periodically after service follow up, offer any necessary support if needed.
6).For the new machine, within determined limits, the manufacture guarantees warranty for a period of 12 months after bought or 20
00 working hours(whichever comes first).
7).The warranty includes repairation or replace the parts for free which were proved to be defective in origin by the technical
department of the manufacture.
8).The repairation or replacement for the parts should not exceed the warranty period.
9).The warranty is valid on the condition of all the terms listed in the contract was observed.
