Product Overview
Description

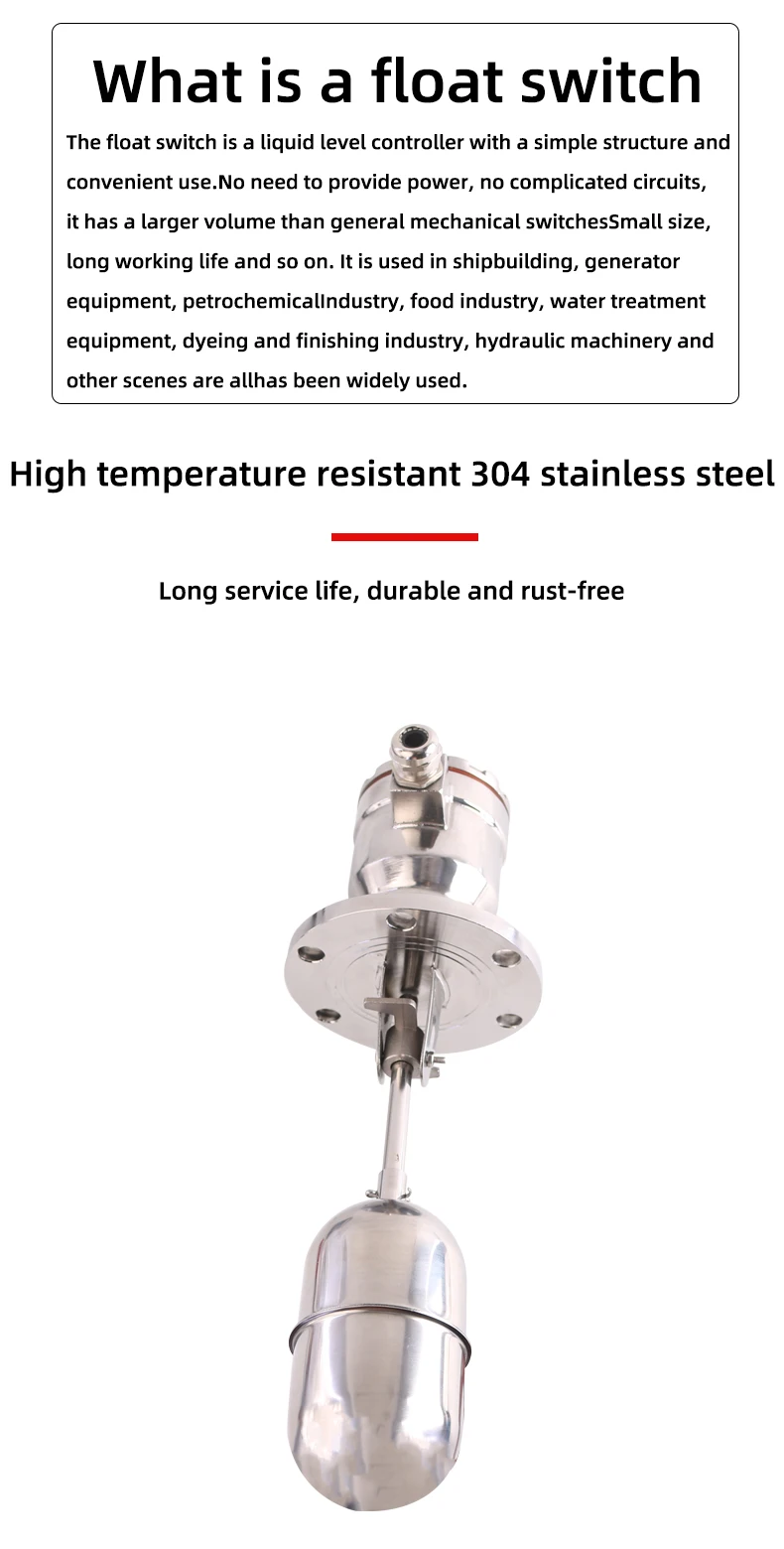

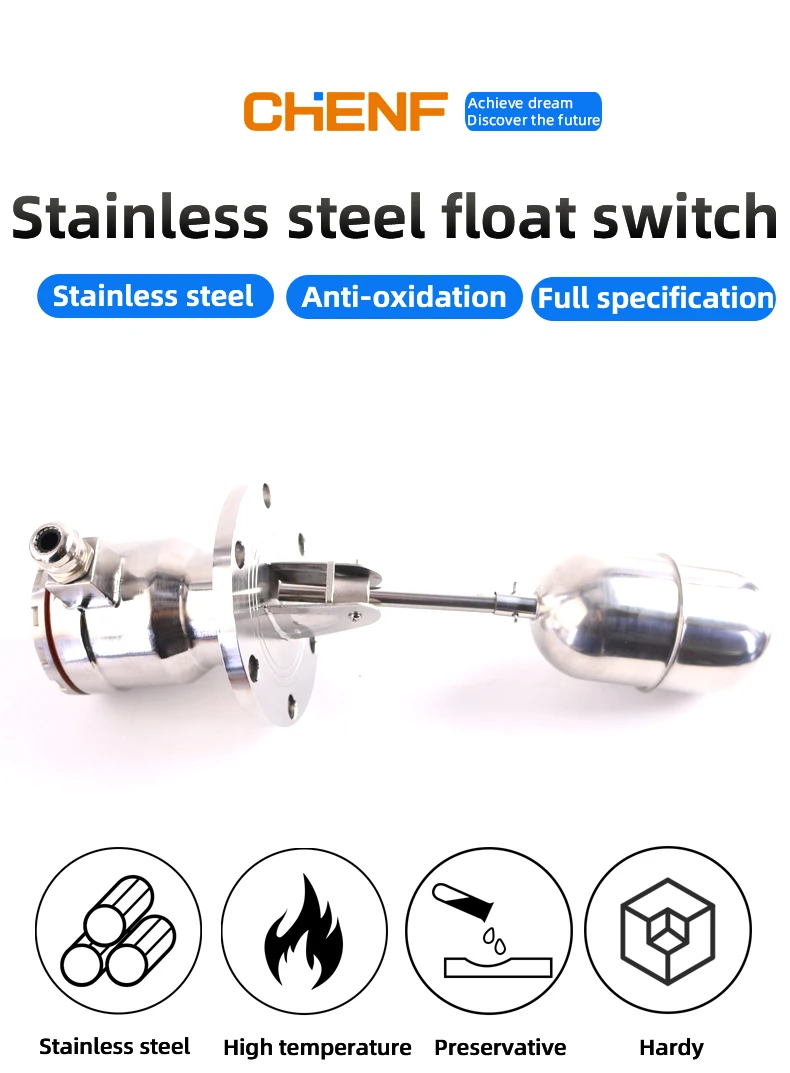

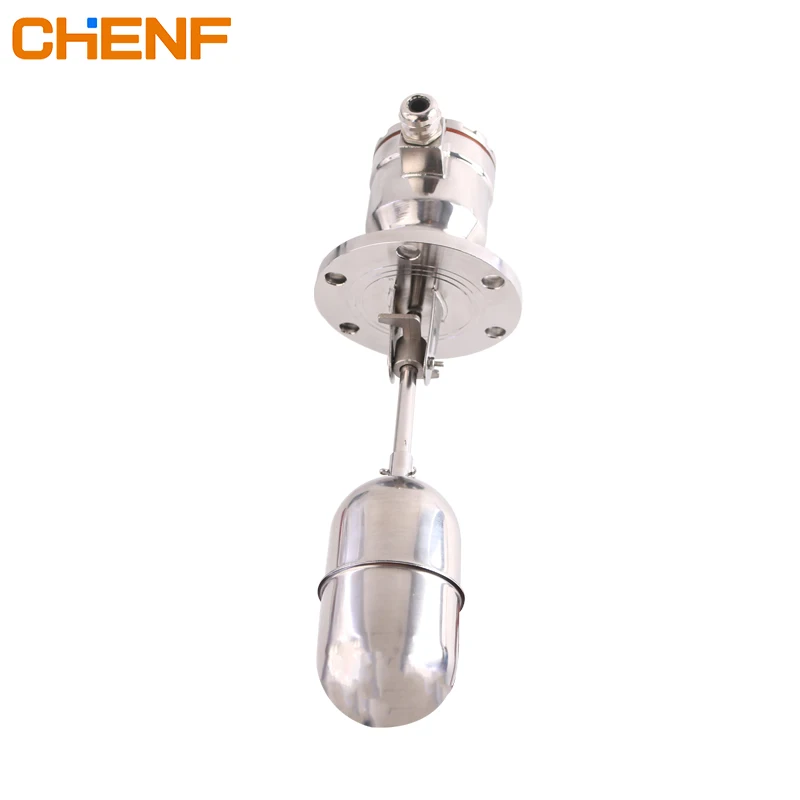

CHENF Stainless Steel Ball Float Level Controller Switches With Low Price UQK 01 02 03
Product Description

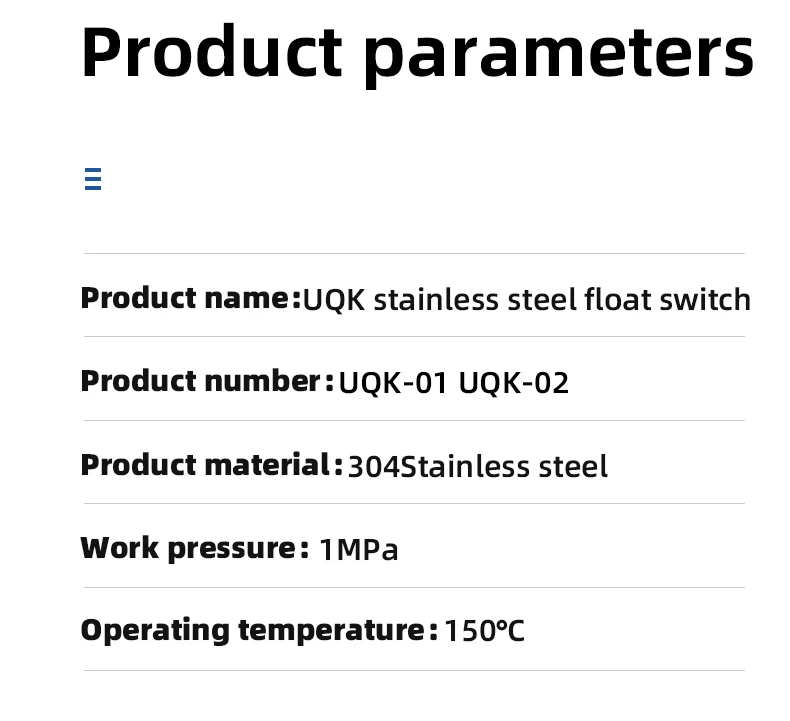

| Parameters---Float Ball Level Switch | |||
| Type | UQK-01 | UQK-02 | UQK-03 |
| Control region | 8mm | 25-550mm | 8-1000mm |
| agent gravity | ≥0.8g/cm | ≥0.8g/cm | ≥0.8g/cm |
| Adjustment | non adjustment | adjustment | non adjustment |
| temprature | -40~+80°C | -40~+80°C | -40~+80°C |
| environment temperature | -20~+80°C | -20~+80°C | -20~+80°C |
| working pressure | ≤1.0MPa | ≤1.0MPa | ≤1.0MPa |
| precision | ±20mm | ±20mm | ±20mm |
| contactor capacity | 220/380V AC 1A | 220/380V AC 1A | 220/380V AC 1A |
| agent viscoity | ≤0.02Pa.s | ≤0.02Pa.s | ≤0.02Pa.s |
| top and bottom blind zone | 100mm | 100mm | 100mm |
| Material | stainless steel mateiral | stainless steel mateiral | stainless steel mateiral |
| connection | flange connection | flange connection | flange connection |
| Installation | side mounted | side mounted | top mounted |
