M 50 KPX 1 объемный расходомер с счетчик бензина/дизельного топлива/топлива
- Category: >>>
- Supplier: Shanghai Cowell Machinery Co. Ltd.
Share on (1600532140474):
Product Overview
Description
Product Details
M-50-KPX-1

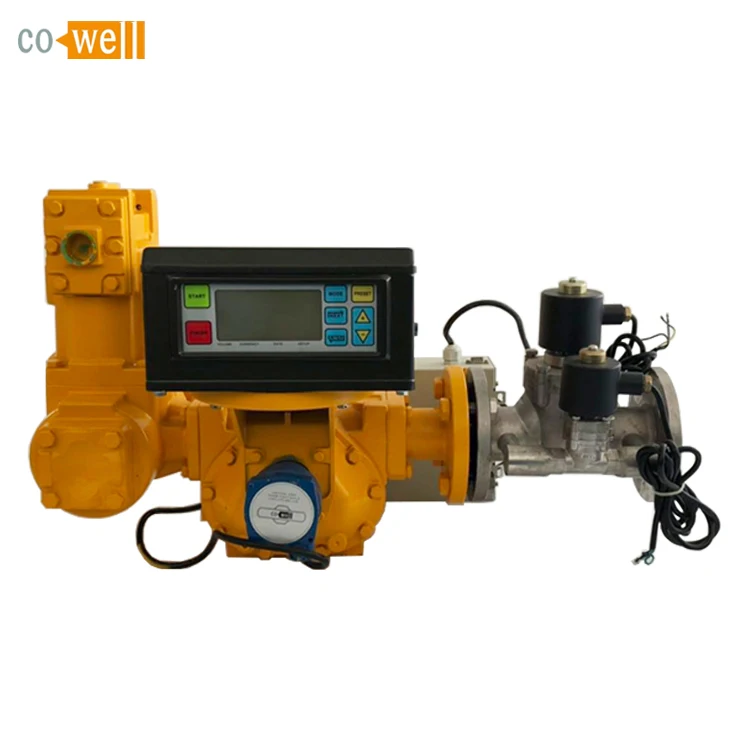

Positive Displacement Flow Meter with Electronic Register, Strainer,Air Eliminator , Stainless Steel Solenoid Valve, Pulser & Communication Box 220VAC or 24VDC
Excellent stepless adjusting mechanism allows a micro adjustment of the meter
High accuracy and repeatability over the widest range of flow; Superior accuracy at constant flow
Low maintenance, no metal-to-metal contact in measuring chamber, long life service
Low pressure loss, a true gravity flow meter
Accuracy regardless of pressure fluctuations, temperature variation, viscosity
Choice of aluminum, cast iron and stainless steel materials of construction
Technical Specification | |||||||||
Model | M-40-1 | M-50-1 | M-50H-1 | M-80-1 | M-80H-1 | M-100-1 | M-100H-1 | M-150-1 | M-150H-1 |
Size | 40mm /1.5" | 50mm / 2 " | 80mm / 3 " | 100mm / 4 " | 150mm / 6 " | ||||
Flow Range | 25-250 | 38-380 | 55-550 | 75-750 | 115-1150 | 130-1300 | 170-1700 | 225-2250 | 300-3000 |
Volume/Rev. | 0.309L | 0.681L | 1.839L | 5.102L | 9.507L | ||||
Max.Pressure | 10Bar/150PSI | 25Bar/350PSI | |||||||
Accuracy | ±0.2% | ||||||||
Repeatability | ≤0.05% | ||||||||
Standard Measurement | Liter / US Gallon/IMP Gallon | ||||||||
Viscosity | 30SSU~1,500,000SSU | ||||||||
Note:4"&6" flange available for M-150/6" Meter.
Packaging Data | |||||
Model | M-40-1 | M-50-1 | M-80-1 | M-100-1 | M-150-1 |
Packaging | 1 pc/Wooden Case | ||||
Net Weight | 23Kgs | 26Kgs | 40Kgs | 70Kgs | 130Kgs |
Gross Weight | 35Kgs | 38Kgs | 55Kgs | 90Kgs | 155Kgs |
Size | 53×48×53cm | 53×48×53cm | 58×50×61cm | 76×64×72cm | 80×65×79cm |
Related Product
Certifications
Company Profile
Solution & Applicati
Our Exhibition
Packing & Shipping
FAQ
If you cant make sure what king of products is suitable for you . Feel free give us bellow details, more details is welcome !
1 About flow meter -------what medium you are going to test ? What is the flow rate ?
2 About pump ----what kind of pump you need ? Rotary ? LPG ? Or others ?
3 About nozzle ---automatic or manual ? Flow rate ?
