MBR water filter Water Purification Filtration System high flux and compact in remove turbidity and TSS
- Category: Environmental Machinery >>>
- Supplier: SiHYFLUX Co. Ltd.
Share on (1600533820990):
Product Overview
Description
Products Details

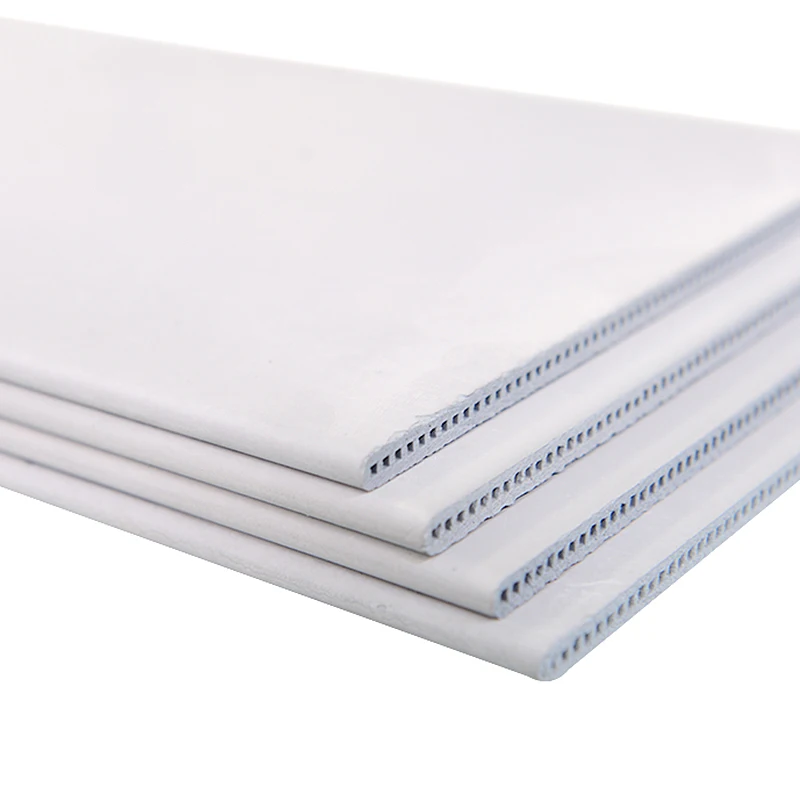

SiHYFLUX B series silicon carbide flat sheet structure with external coating, and its Filter Precision is 0.1~0.4μm, with the
characteristics of high strength, high hydrophilicity, good thermal shock stability, high flux, low operating cost and long
service life.

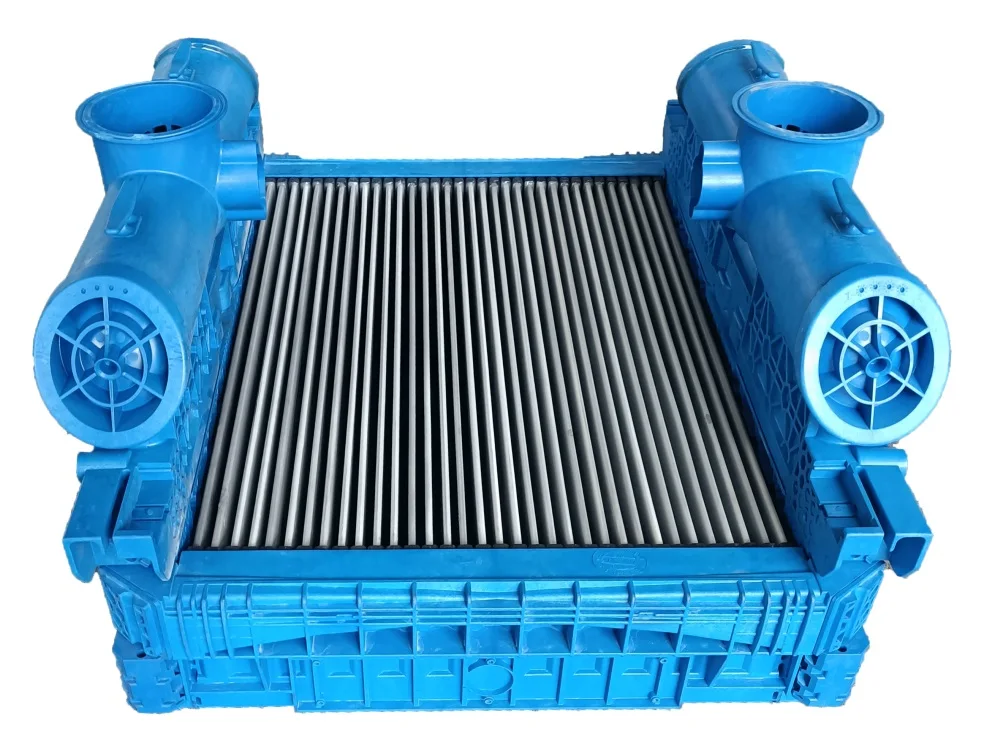

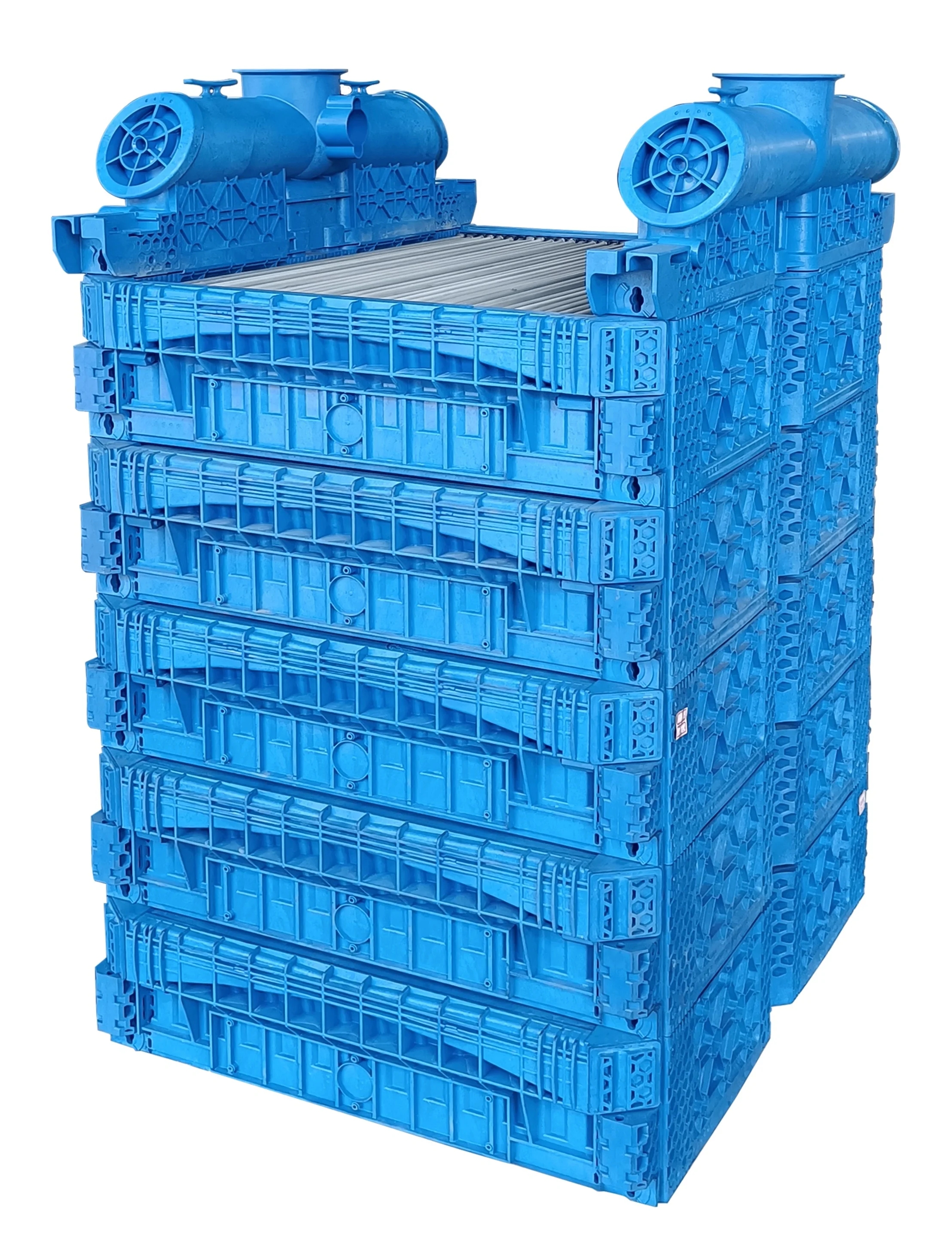

Single ceramic membrane plate with double side filtered water outlet. Equipped with up to 50 exchangeable ceramic plates. Internal filtered water piping. Up to 8-15 modules can be stacked up to a tower. Base set for easy installation on tank bottom. Header set for connection to common piping. Several single towers are simply connected together through a common header pipe at the top. Fully modular configuration, no limitation in tower design as there is no surrounding steel frame.

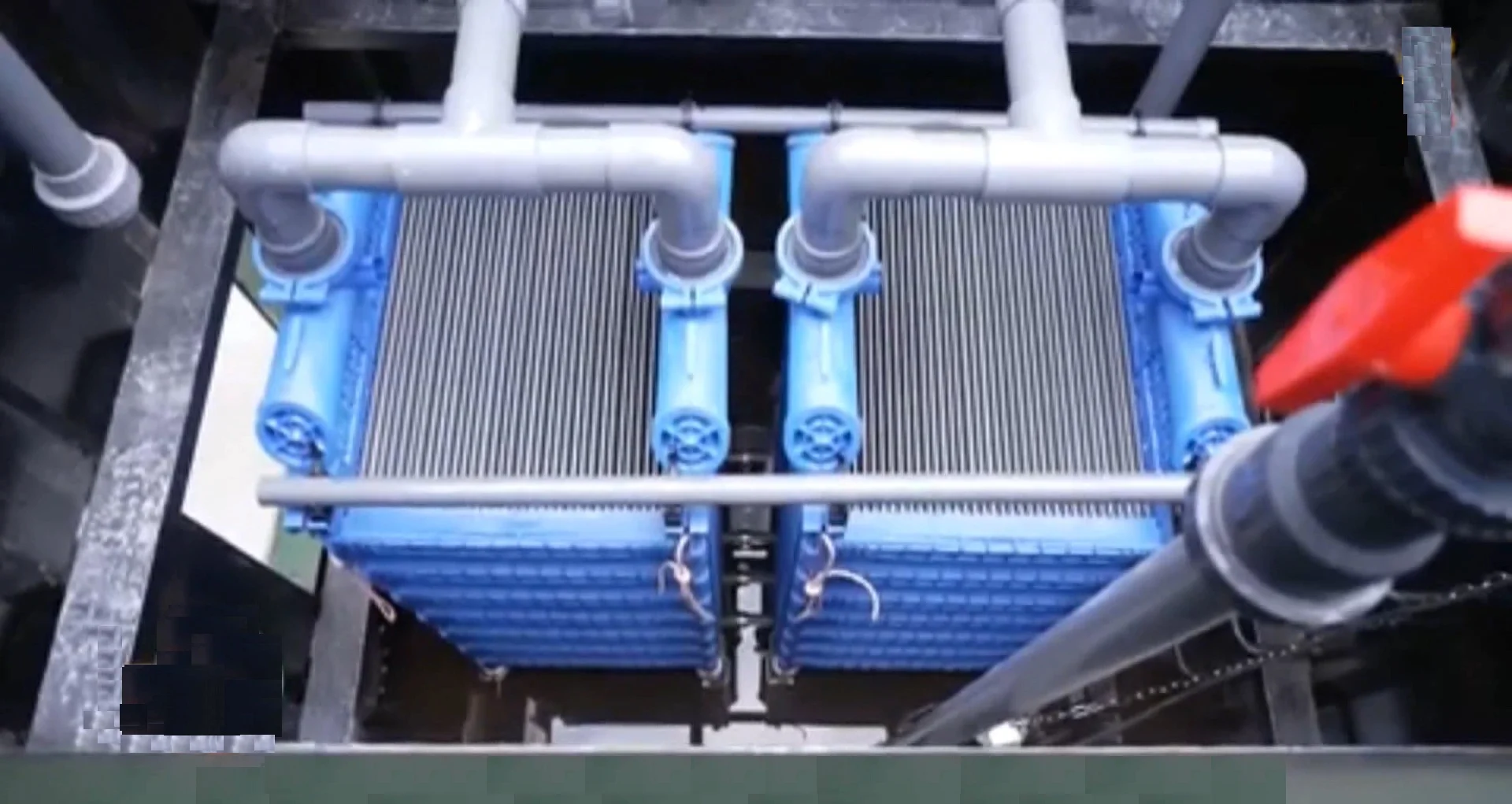

The modules are easy to mount and install – each module or the entire tower can be lifted and inserted in the membrane tank. Several single towers are simply connected together through a common header pipe at the top. Fully modular configuration, no limitation in tower design as there is no surrounding steel frame. Base set for easy installation on tank bottom. Header set for connection to common piping.
characteristics of high strength, high hydrophilicity, good thermal shock stability, high flux, low operating cost and long
service life.
Single ceramic membrane plate with double side filtered water outlet. Equipped with up to 50 exchangeable ceramic plates. Internal filtered water piping. Up to 8-15 modules can be stacked up to a tower. Base set for easy installation on tank bottom. Header set for connection to common piping. Several single towers are simply connected together through a common header pipe at the top. Fully modular configuration, no limitation in tower design as there is no surrounding steel frame.
The modules are easy to mount and install – each module or the entire tower can be lifted and inserted in the membrane tank. Several single towers are simply connected together through a common header pipe at the top. Fully modular configuration, no limitation in tower design as there is no surrounding steel frame. Base set for easy installation on tank bottom. Header set for connection to common piping.
Module housing material | PPO |
Membrane material | Silicon carbide |
Filter Precision | 0.1-0.4μm |
Avg. Distance between ceramic plate | 6.7mm |
QTY Of single ceramic plates | 34pcs |
Active membrane surface | 6㎡ |
Max.permeate flow | 1200L/㎡*h |
Size | 705*576*160mm |
Product Features
Good hydro philic, high porosity, and high flux;
Good chemical resistance, tolerating basic, acid, organic solvents and oxidants;
High heat resistance, able to be used up to 800℃；
High strength, good wear resistance, and long service life;
High efficiency of membrane regeneration, good flux stability;
Good chemical resistance, tolerating basic, acid, organic solvents and oxidants;
High heat resistance, able to be used up to 800℃；
High strength, good wear resistance, and long service life;
High efficiency of membrane regeneration, good flux stability;
Low operating pressure, low energy consumption;
Low footprint, membrane replaceable, easy installation and maintenance.
Low footprint, membrane replaceable, easy installation and maintenance.
Advantage in Liquid Waste
1. The use of pure physical technology, do not add chemical agents, do not destroy the liquid components, liquid recycling;
2. 04 micron high-precision microporous filtration can ensure that 99.99% of the bacteria in the cleaning solution are retained, control the growth of microorganisms from the source and prevent the liquid from smelling;
3. Effectively solve the problems of odor, oil and particulate matter that affect the life cycle of the liquid, restore the performance of the liquid, and realize the recycling of the liquid;
4. The equipment can run continuously and automatically for 7*24 hours, with low power consumption, simple use and maintenance, stable and reliable.
Advantage in MBR
1. The membrane pool occupies a small area and has a high space utilization rate, which is especially suitable for buried sewage treatment plants;
2. No need for offline cleaning, easy operation and maintenance;
3. The life cycle of membrane exceeds 5years;
4. High working efficiency per unit membrane area, the designed flux range is 45LMH~80LMH;
5. Low maintenance cost, low backwash frequency and unique spray cleaning process to ensure low chemical consumption and restore performance of membrane ;
6. The unique structural design makes the membrane box as easy to assemble and disassemble as building blocks.
2. No need for offline cleaning, easy operation and maintenance;
3. The life cycle of membrane exceeds 5years;
4. High working efficiency per unit membrane area, the designed flux range is 45LMH~80LMH;
5. Low maintenance cost, low backwash frequency and unique spray cleaning process to ensure low chemical consumption and restore performance of membrane ;
6. The unique structural design makes the membrane box as easy to assemble and disassemble as building blocks.
Why Choose Us
FAQ
Q: How can I know whether this membrane can be used in our project?
A: Contact here or leave messages.We will provide you with the projects we did and answer any questions.
Q: Are you trading company or manufacturer?
A: We are the professional manufacturer of Silicon Carbide Membrane.Welcome to visit our factory anytime you want.
Q: Do you have enough stock for sale?
A: Yes, we have enough stock of the normal size for sale and also we can offer you customized equipments.
Q: Can I get your price list?
A: Yes, of course.
Q: Can we be your agency?
A: Yes, we are looking for agency around the world. We can reach an win-win cooperation.
A: Contact here or leave messages.We will provide you with the projects we did and answer any questions.
Q: Are you trading company or manufacturer?
A: We are the professional manufacturer of Silicon Carbide Membrane.Welcome to visit our factory anytime you want.
Q: Do you have enough stock for sale?
A: Yes, we have enough stock of the normal size for sale and also we can offer you customized equipments.
Q: Can I get your price list?
A: Yes, of course.
Q: Can we be your agency?
A: Yes, we are looking for agency around the world. We can reach an win-win cooperation.
