3 Years Warranty CE Approved Fully Automatic Pallet Stretch Wrapping Machine
3 Years Warranty CE Approved Fully Automatic Pallet Stretch Wrapping Machine
3 Years Warranty CE Approved Fully Automatic Pallet Stretch Wrapping Machine
3 Years Warranty CE Approved Fully Automatic Pallet Stretch Wrapping Machine
3 Years Warranty CE Approved Fully Automatic Pallet Stretch Wrapping Machine
3 Years Warranty CE Approved Fully Automatic Pallet Stretch Wrapping Machine
3 Years Warranty CE Approved Fully Automatic Pallet Stretch Wrapping Machine

3 Years Warranty CE Approved Fully Automatic Pallet Stretch Wrapping Machine

Share on (1600534248991):


Price:

Quantity:


Product Overview

Description



Product Description




Model
Smart Wasp X0-MS
Spare Parts
 Brand
 Maximum wrapping speed
20-30 loads/hour
(1x1.2x1.8 m 2 layer NOT include loading and Unload time)
Turntable Sensor
SICK
Maximum pallet size
1.2*1.2 m
Position sensor
SICK(Germany)
Maximum Wrapping Height
2000mm/2400mm/2800mm optional
PLC
PCB Integrated Circuit Plate
Turntable Speed
0-12RPM(Adjustable)
Inverter
PCB Integrated Circuit Plate
Turntable Size
1650mm(1500mm/1800mm/2000mm optional)
Travel Switch
OMRON
Machine Power
1.2KW
Relay
OMRON(Japan)
Film Cut
Manual
Touch screen
 X-LINE
Max Load Weight
1500KG/2000KG Adjustable
Switch
Schneider
Standard Film Width
500mm

Constant Film Delivery Force
Standard

Standard Pre-Stretch
250-300%

Film Capacity
250mm Diameter

Up&down Drive speed
0-5.5m/min

Fix Film on Pallet
Manual
OPTIONAL FUNCTION

Roping system
Optional
Ramp
Optional
Muti-layer function
Have
weighing scale
Optional
Machine Size
2.4*1.65*2.4m
Top pressure function
Optional
Machine weight
530KG

Voltage
110-240V/50HZ/60 HZ 1/3P

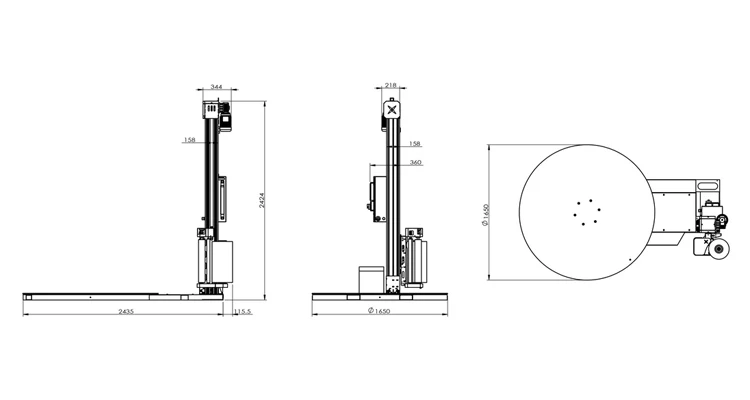

ENGINEER DRAWING




Detailed Images

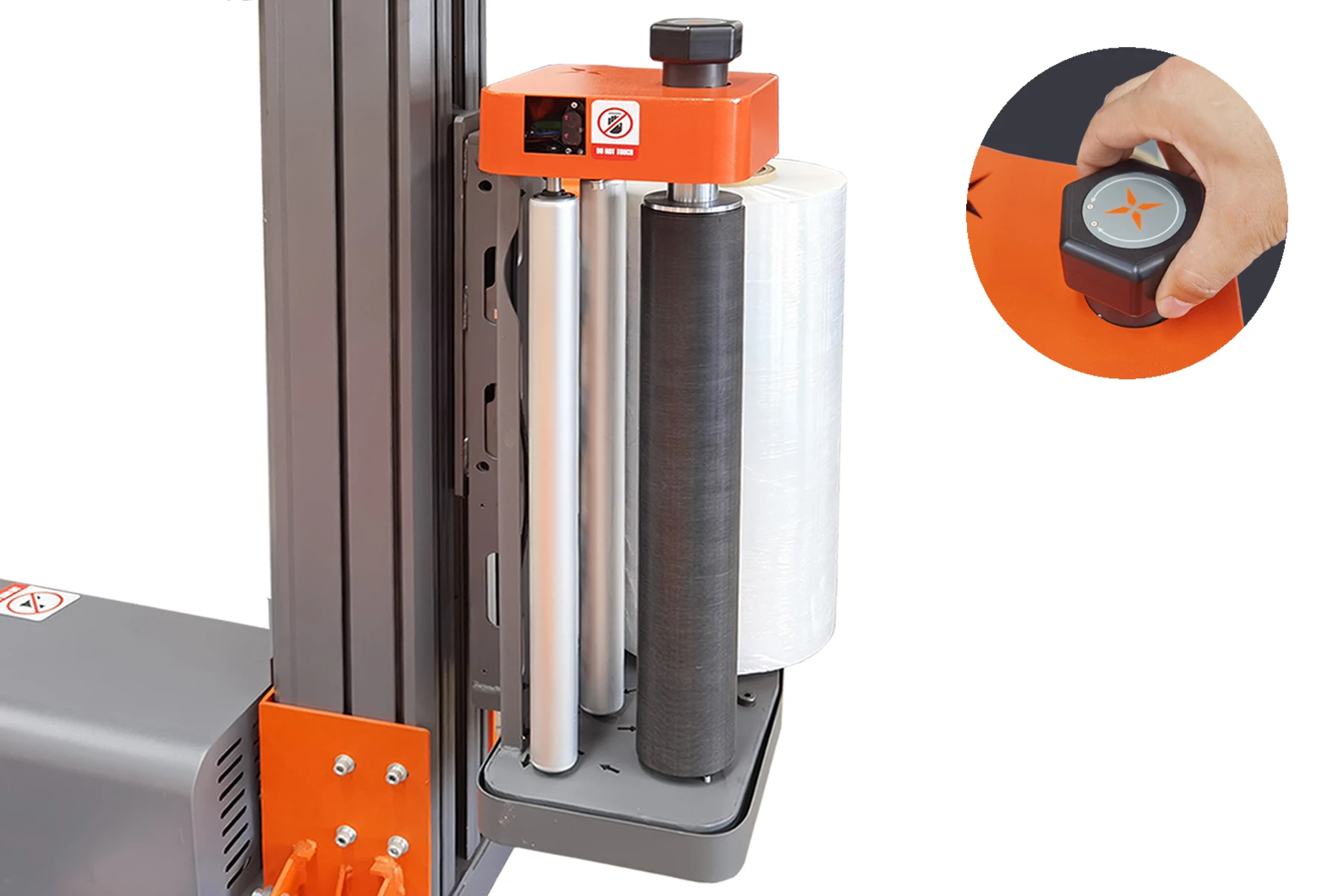

New generation of mechanical resistance film carriage
1. Knob with physical feedback wrapping tension, it is more convenient to adjust.
2. Grading adjustment to release film more evenly.

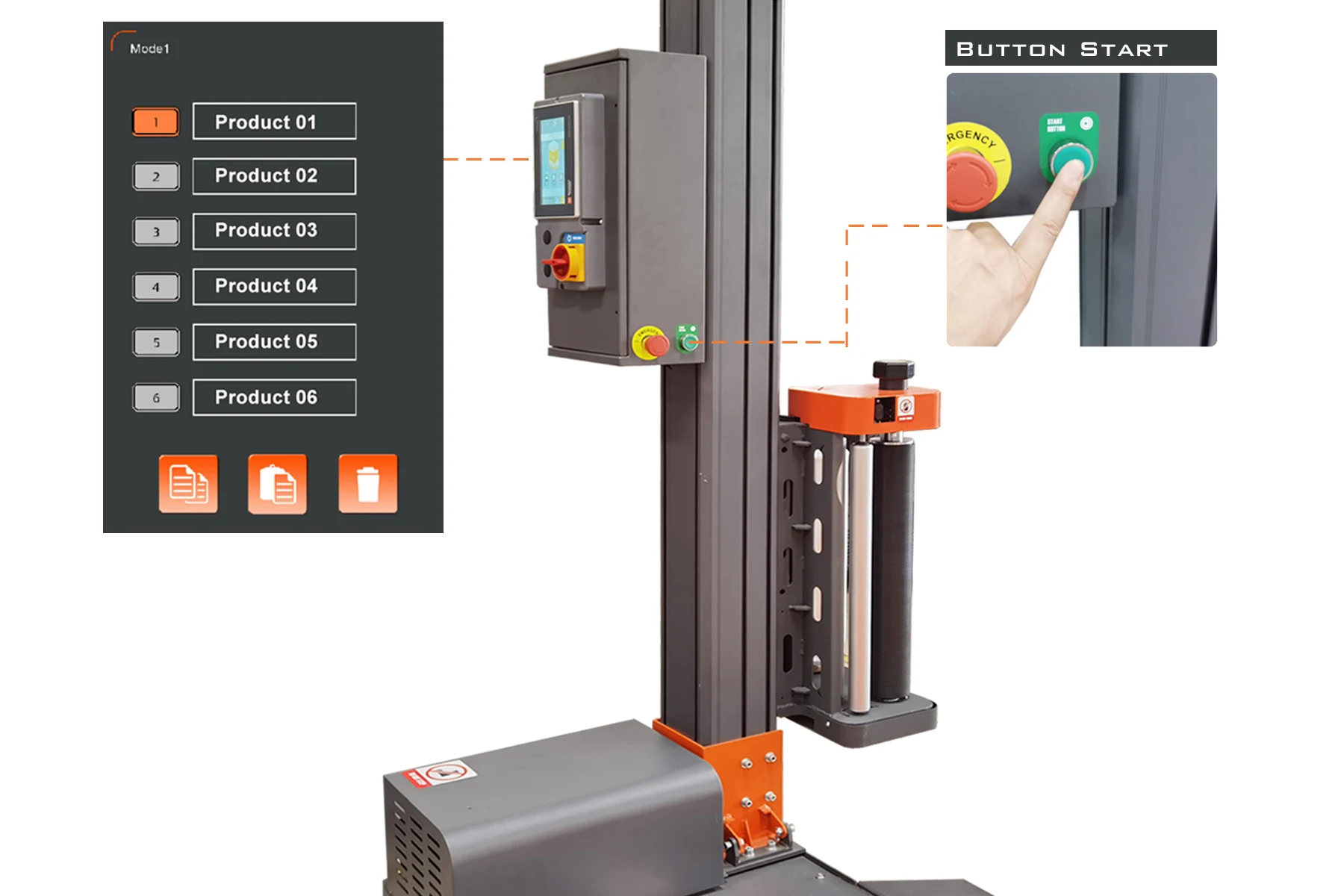

6 kinds of Memory Functions + One Button Start


1.Six kinds of wrapping memory function, make parameter setting easier.
2.One button start, let the machine operation more convenient.

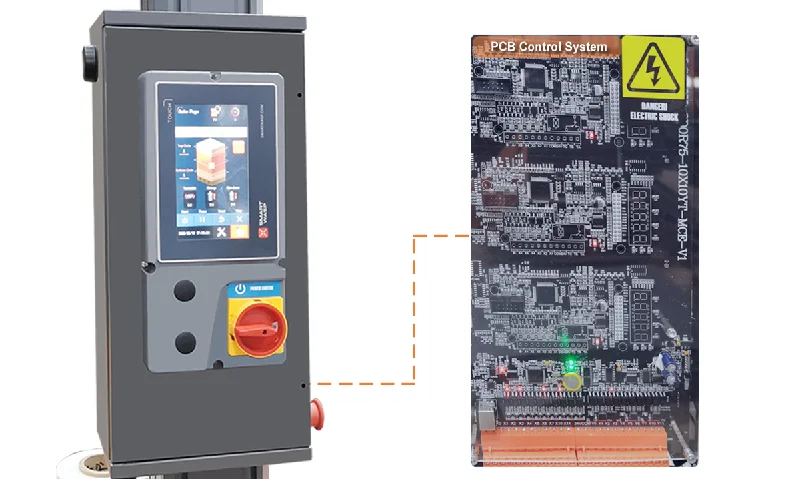

PCB control system


1. Three independent chips control, stronger operation and longer life.
2. Integrated circuit system, maintenance is more convenient.

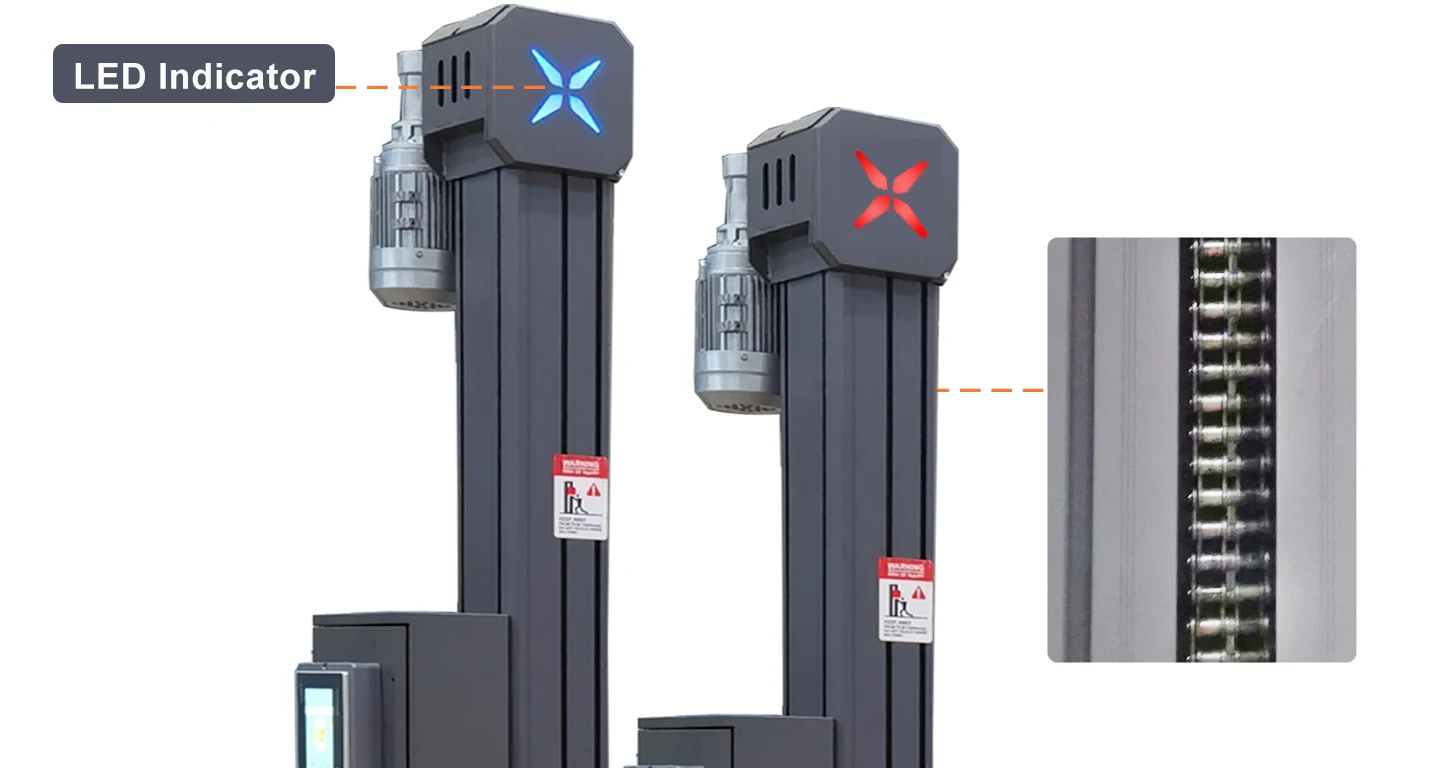

All-in-one alloy Aluminum Column + Lifetime Warranty


1.4000 tons extruded column, integrally formed, solid and durable
2.Modular assembly, easy to install
3.Double chain lifting system, more safety
4.LED tri-color light




CUSTOMER CASES
SMART WASP standard machine series include the x0ms X0ps X1 X100 X3 X300 X5 X500
All series machine will provide you with all the wrapping solution




SMART WASP have provide automatic wrapping solution for LG ,Sharp.Heineken ,china tobacco ,we sue our professional design and rich experience let our customer use reliable automatic wrapping machine



WE PACK MACHINE MORE SAFETY
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.




Shipping Type
1set machine/crate
(size/weight)
2sets machines /crate
(size/weight)
Mix packing
(just for FLC shipping type)
LCL Shipping

Srandard machine
2.68x1.7x0.8m
600KG
2.7*1.7*0.95m
1000KG
Turntable /crate
Carriage/crate
Tower/crate
Quantity crates in 20 FT

4sets
8sets
12sets
Quantity crates in 40 HQ
8sets
16sets
24sets


Exhibition


WELCOME TO VISIT US
SMART WASP Attend Exhibition in JAPAN UKRAINE THAILAND MALAYSIA GERMANY POLAND MEXICO.Over 10 countries And Every Year attend China Professional Exhibition





2022 SMARTWASP EXHIBITION LIST

The 18th China (Qingdao) International Packaging Industry Exhibition CIPI
Time： 7/18/2022 - 7/22/2022
Address: China Hongdao International Convention and Exhibition Center, Qingdao, China


The 23rd Asia International Logistics Technology and Transportation CeMAT
Time： 11/1/2022 - 11/4/2022
Address: Shanghai New International Expo Centre (SNIEC), Shanghai, China
The 28th International Processing,Packaging & Printing Exhibition ProPak China
Time：11/8/2022 - 11/10/2022
Address：Shanghai New International Expo Center, Shanghai, China


OUR TEAM
SMART WASP Team have 210 members, we have over 30 mechanical engineers and electric engineers. SMART WASP international team in Ukraine Thailand Mexico Malaysia USA Ireland Poland Panama ..for promoting and doing service for Smart wasp machines. We hope more and more partners to join us .







Smart Wasp Intelligent Technology (Suzhou) Co., Ltd., specializing in designing, researching and manufacturing intelligent pallet
wrapping equipment and providing packaging automation solutions.Smart Wasp has a professional design and development team. The new factory covers an area of 50 acres.Smart Wasp standard pallet wrapping machine series, fully automatic pallet wrapping machine, high speed ring pallet wrapping machine series popular in the United States, Germany, Canada, Mexico, Australia, South Korea, more than 60 countries and regions, and ZF, Kraft Foods, LG, Panasonic, etc. Well-known companies establish long-term cooperative relationships. Smart Wasp is committed to building products with Chinese brands and world-class quality and strives to become a respected company.
