Factory Outlet PTFE Sealed O Ring VMQ O Ring Inner Coated O Ring
- Category: >>>
- Supplier: Hengshui Huake Rubber & Plastic Co. Ltd.
Share on (1600534359434):
Product Overview
Description
Covered O-ring introduction

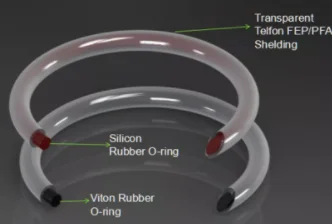

The UPC wrap seal organically combines the elasticity and sealing performance of rubber with the chemical resistance of PTFE. It is composed of a silicone or fluorine rubber inner core and a relatively thin FEP or PFA outer covering. Universal Seal has excellent sealing performance. Rubber O-rings are easy to wear, have poor chemical resistance and gas permeability resistance, and pure PTFE O-rings have high hardness and can resist compression but have poor elasticity. Covered FEP/PFA O-rings have good swelling resistance and chemical stability (unless attacked by alkali metals, fluorine and some halides at high temperatures) and have good elasticity near the rubber O-rings, FEP The friction coefficient of /PFA is very small (only 0.1~0.2), and it has excellent resistance to gas permeation. These properties make U-PFA seals truly applicable in harsh environments.
The UPC wrap seal organically combines the elasticity and sealing performance of rubber with the chemical resistance of PTFE. It is composed of a silicone or fluorine rubber inner core and a relatively thin FEP or PFA outer covering. Universal Seal has excellent sealing performance. Rubber O-rings are easy to wear, have poor chemical resistance and gas permeability resistance, and pure PTFE O-rings have high hardness and can resist compression but have poor elasticity. Covered FEP/PFA O-rings have good swelling resistance and chemical stability (unless attacked by alkali metals, fluorine and some halides at high temperatures) and have good elasticity near the rubber O-rings, FEP The friction coefficient of /PFA is very small (only 0.1~0.2), and it has excellent resistance to gas permeation. These properties make U-PFA seals truly applicable in harsh environments.
Details Images
Applicable equipment and application industry of coated silicone ring
Covered silicone ring features: | - Outstanding chemical resistance, suitable for almost all chemical media (strong oxidizing, reducing solvents). |
- Outstanding chemical resistance, suitable for almost all chemical media (strong oxidizing, reducing solvents). | |
—Wide temperature range -200℃~260℃ | |
—Good compression resistance ≥30% | |
- Anti-friction (friction coefficient is very small, only 0.1~0.2). | |
- Good swelling resistance (≤0.1%). | |
- High pressure resistance (up to 60Mpa). | |
—Excellent seal durability, increasing the service life by 500%. | |
Applicable equipment: | Pumps and Valves/reaction vessel/Machinery Seal/filter/ pressure vessel/Heat Exchanger /Boiler - Pipe flanges/Gas compressor /Dyestuff manufacturing /paint spraying |
Application industry: | Chemical process /aircraft manufacturing /Pharmaceutical industry /Transportation of petroleum and chemicals /Refining /Film industry /Refrigeration engineering / food processing industry /Paper industry |
Silicone O-ring seal (VMQ)
The size of o-ring is determined by the inner diameter ID and the wire diameter CS. O-ring size calculation: outer diameter =
inner diameter + 2 x wire diameter (OD = ID + 2x CS).
inner diameter + 2 x wire diameter (OD = ID + 2x CS).
FKM (Fluorocarbon) O-ring
For general type FKM the service temperature is better limited to approximately from -26℃to 232℃ in static applications, though
the service temperature can arrive to 275 C at short time In dynamic applications, it is suitable between -15℃ and 200℃.
Because FKM has excellent resistance of high temperature, oil, solvent, flame, chemicals and weathering, it is usually applied in
automotive, chemical processing, aerospace and many other industries..
For general type FKM the service temperature is better limited to approximately from -26℃to 232℃ in static applications, though
the service temperature can arrive to 275 C at short time In dynamic applications, it is suitable between -15℃ and 200℃.
Because FKM has excellent resistance of high temperature, oil, solvent, flame, chemicals and weathering, it is usually applied in
automotive, chemical processing, aerospace and many other industries..
NBR(nitrile rubber) O-ring
For NBR the service temperature can be designed from -55 C to 100 C or up to 130 C depending on differenacrylonitrile content and
formula. NBR compounds have excellent resistance to abrasion, non-polar oils and solvent, water and permeation (higher
acrylonitrile content will be better). NBR also can be used in conditions of dilute acids, alkalis and salt solution at low
temperatures.
For NBR the service temperature can be designed from -55 C to 100 C or up to 130 C depending on differenacrylonitrile content and
formula. NBR compounds have excellent resistance to abrasion, non-polar oils and solvent, water and permeation (higher
acrylonitrile content will be better). NBR also can be used in conditions of dilute acids, alkalis and salt solution at low
temperatures.
Hengshui Huake Rubber & Plastic Co., Ltd. is a powerful manufacturer in China. The company was established in 2008 and is committed to the R&D and production of high-performance products of new rubber and plastic materials for equipment in new energy, semiconductor, medical, automotive, and environmental protection industries. The company has passed ISO9001 product quality Certification, in line with the concept of improving product quality and building a first-class brand, to provide our customers with high-quality products and the most humanized services.
Hengshui huake rubber & plastic co.,LTD.Is a comprehensive enterprise that introducesforeign advanced technology, integrates development,design, manufacturing and processing.
The company is committed to the r&d and production of high performance products of newrubber and plastic materials supporting equipment in the new energy photovoltaic andenvironmental protection water treatment industry. The company has passed iso9001-2008product quality certification and registered brand "NER" in the spirit of improving productquality and building a first-class brand，providing high-quality products and the mosthumanized services for customers.
Focus on the research and development of application technology in synthetic rubber industry. The factory has established a set of rubber vulcanization curve control system and introduced the production and testing equipment of rubber products. Under the complex and rigorous control mechanism and the application of advanced production, management and testing technology, it has achieved the consistency of all product processes, that is, product design, formula development, raw material mixing, mold processing, inspection, performance test, manufacturing, etc. The organic combination of rubber product manufacturing and rubber raw material formula development has laid a solid foundation for the company in innovative design and market development. It has obtained a number of patent certificates in terms of new structure sealing ring and product production process. The company takes innovative technology and meeting user needs as its business philosophy, makes every effort to build ner brand, and provides reasonable and advanced solutions for many supporting manufacturers of industrial enterprises. This relationship ensures the high-quality products of the original design manufacturer (ODM) and contributes to the company's technical background for future development planning. This cooperation enables the original manufacturer (ODM) and the company to obtain continuous competitive advantages. Today, NER has become a rubber component supplier with certain competitive advantages in the global rubber market. Its products are mainly used in fluid sealing equipment in sewage treatment, automobile, aviation, machinery, petrochemical, medical treatment, food, electronics, national defense, military and other industries.
The company is committed to the r&d and production of high performance products of newrubber and plastic materials supporting equipment in the new energy photovoltaic andenvironmental protection water treatment industry. The company has passed iso9001-2008product quality certification and registered brand "NER" in the spirit of improving productquality and building a first-class brand，providing high-quality products and the mosthumanized services for customers.
Focus on the research and development of application technology in synthetic rubber industry. The factory has established a set of rubber vulcanization curve control system and introduced the production and testing equipment of rubber products. Under the complex and rigorous control mechanism and the application of advanced production, management and testing technology, it has achieved the consistency of all product processes, that is, product design, formula development, raw material mixing, mold processing, inspection, performance test, manufacturing, etc. The organic combination of rubber product manufacturing and rubber raw material formula development has laid a solid foundation for the company in innovative design and market development. It has obtained a number of patent certificates in terms of new structure sealing ring and product production process. The company takes innovative technology and meeting user needs as its business philosophy, makes every effort to build ner brand, and provides reasonable and advanced solutions for many supporting manufacturers of industrial enterprises. This relationship ensures the high-quality products of the original design manufacturer (ODM) and contributes to the company's technical background for future development planning. This cooperation enables the original manufacturer (ODM) and the company to obtain continuous competitive advantages. Today, NER has become a rubber component supplier with certain competitive advantages in the global rubber market. Its products are mainly used in fluid sealing equipment in sewage treatment, automobile, aviation, machinery, petrochemical, medical treatment, food, electronics, national defense, military and other industries.
Q1: Are you a factory or a trader?
A: We are a manufacturer in the rubber and plastic industry for 15 years.
Q2: Can your company customize all kinds of rubber parts?
A: Yes, our company can process (OEM) flat pads without opening molds.
Q3: Does your company produce both nylon and plastic parts?
A: Yes, we have CNC machining workshop and produce nylon and plastic.
Q4: How long is your usual delivery date?
A: Spot goods can be delivered on the same day, and customized products can take 7-10 working days.
