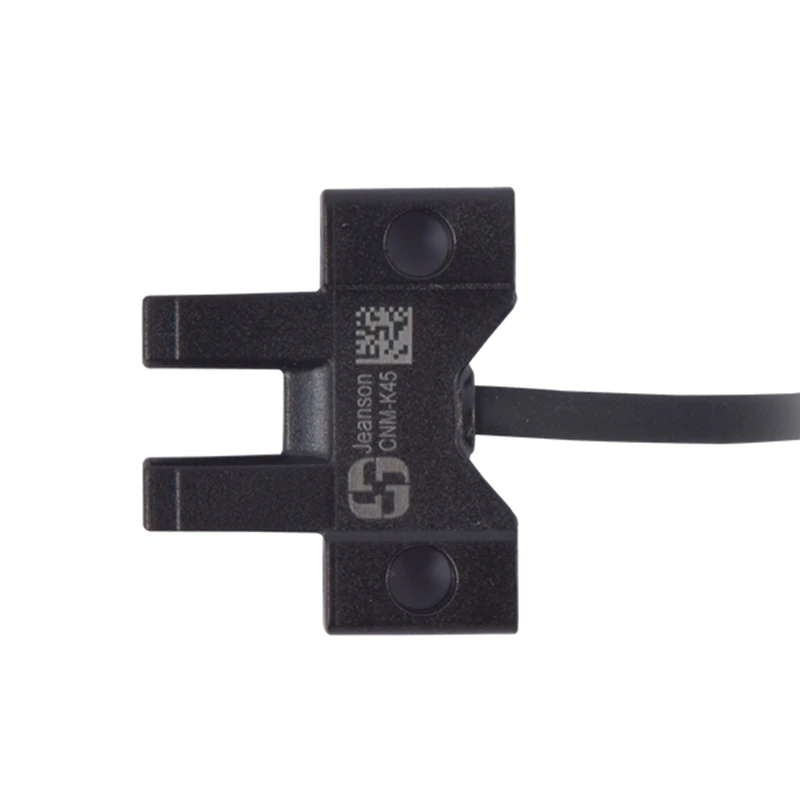

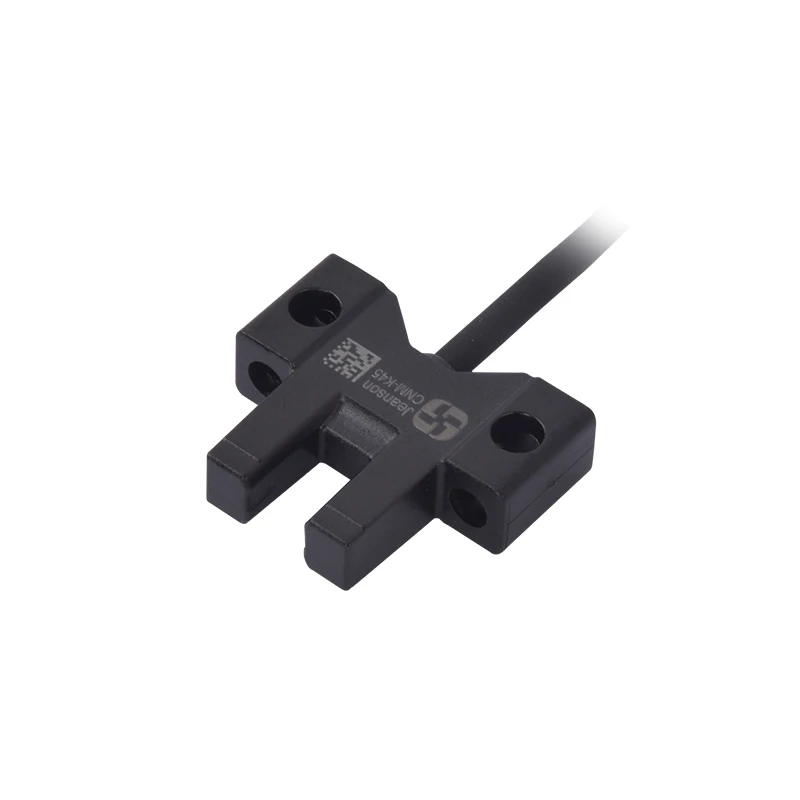

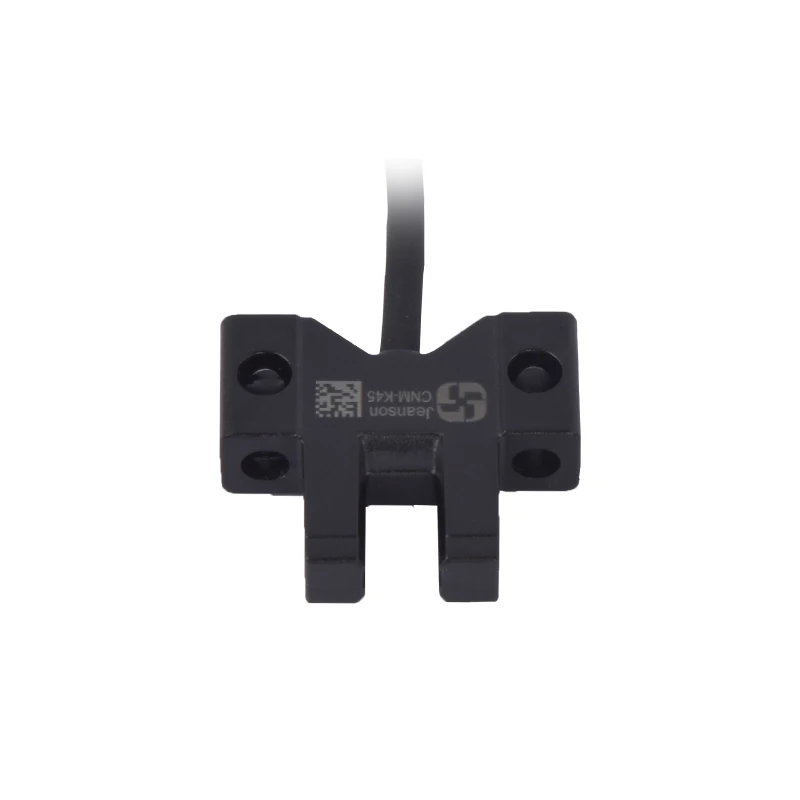

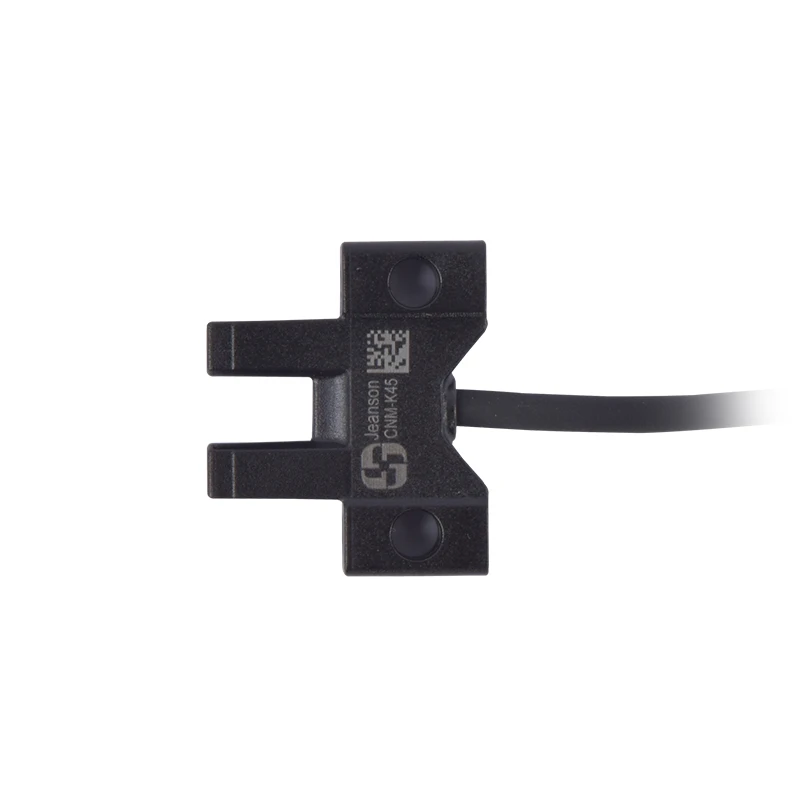

Jeason Connector Built in IP65 Newest K Shape Micro Photoelectric Sensor Accepts Customization
- Category: Sensors >>>
- Supplier: Shenzhen Jeanson Technology Co. Ltd.
Share on (1600534806952):
Product Overview
Description
Specification

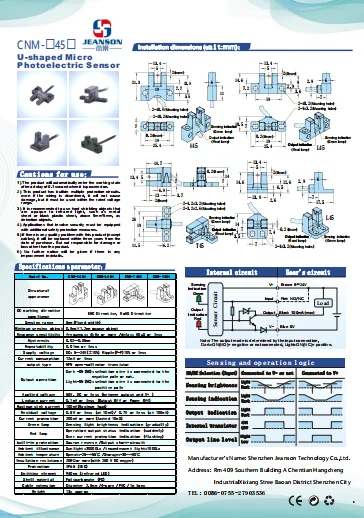

Type | Compact / Connector built-in type | ||||
Mounting-compatible with conventional model (Note 2) | |||||
Model No. | NPN outputNPN | CNM-□45 | CNM-□45L | ||
CE marking directive compliance | EMC Directive, RoHS Directive | ||||
Sensing range | 5 mm 0.236 in (fixed) 5mm | ||||
Minimum sensing object | 0.8 × 1.2 mm 0.031 × 0.047 in opaque object | ||||
Hysteresis | 0.02~0.05 mm | ||||
Repeatability | 0.01 mm 0.0004 in or less | ||||
Supply voltage | 5 to 24 V DC ±10 % Ripple P-P 10 % or less | ||||
Current consumption | 12 mA or less | ||||
Output | NPN open-collector transistor ・Maximum sink current: 100 mA ・Shut-off voltage: 50 V DC or less (between output and negative electrode) ・Residual voltage: 0.5 V or less (at 10 mA sink current), 0.7 V or less (at 100 mA sink current) ・Overcurrent protection：Start protection greater than 200mA (within 10 milliseconds) | ||||
Output operation | Incorporated with 2 outputs: Light-ON / Dark-ON | ||||
Short-circuit protection | Incorporated | ||||
Response time | 80 μs or less (Maximum response frequency: 4 kHz or more) | ||||
Operation indicator工 | Green LED (lights up under light received condition) | ||||
Pollution degree | 3 | ||||
Protection | IP65(IEC) | ||||
Ambient temperature | Operat:–25 to +55 ℃ –13 to +131 ℉ (No dew condensation or icing allowed), Storage: –30 to +80 ℃ –22 to +176 ℉ | ||||
Ambient humidity | 5 to 85 % RH, Storage: 5 to 95 % RH | ||||
Ambient illuminance | Sunlight/Fluorescent light: 30,000 ℓx at the light-receiving face;Incandescent lamp:1,000 ℓx at the light-receiving face | ||||
Insulation resistance | 20 MΩ, or more, with 250 V DC megger between all supply terminals connected together and enclosure | ||||
Emitting element | Infrared LED (Peak emission wavelength: 940 nm, non-modulated) | ||||
Shell Material | Polycarbonate (PC) | ||||

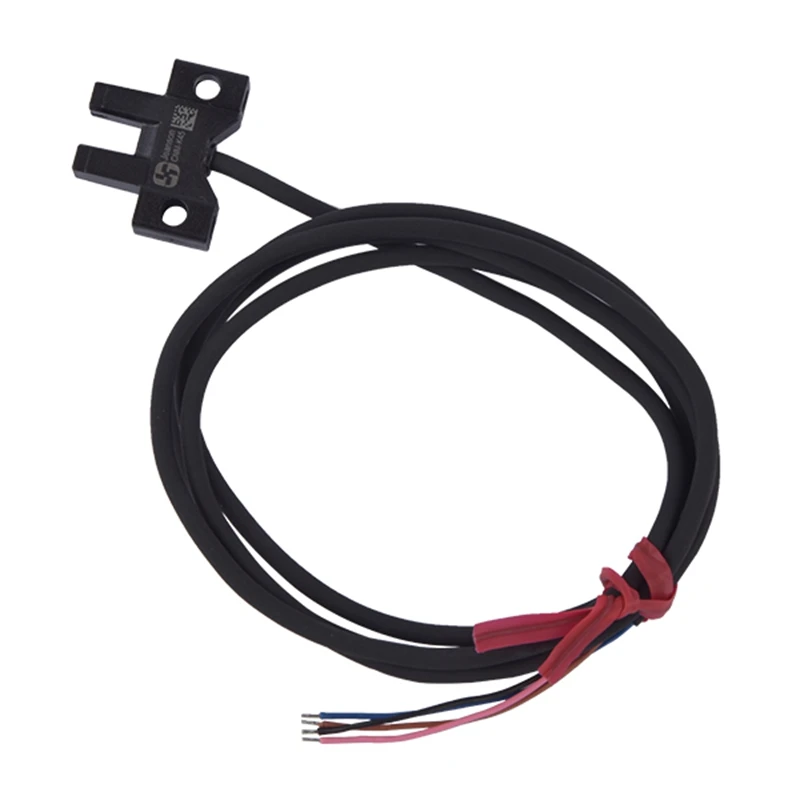

Cable length | 2.8mm diameter*4-core*PVC 1m Length. | ||||
Weight | Net weight: 13 g approx., Gross weight: 13 g approx. | ||||
Product Description
1)\tThis product will automatically enter the working state after a delay of 0.1 seconds when it is powered on.
2)\tThis product has built-in multiple protection circuits, even if the wiring is wrong, it will not cause damage, but it must be used within the rated voltage range.
3)\tIt is recommended to use a metal sheet above 5mm*5mm or a black plastic sheet that does not transmit infrared light as the detection object.
4)\tThe use involving safety must be additionally equipped with safety protection measures..
2)\tThis product has built-in multiple protection circuits, even if the wiring is wrong, it will not cause damage, but it must be used within the rated voltage range.
3)\tIt is recommended to use a metal sheet above 5mm*5mm or a black plastic sheet that does not transmit infrared light as the detection object.
4)\tThe use involving safety must be additionally equipped with safety protection measures..
Manufacturing Technique
Company Profile
Shenzhen Jeanson Technology Co., Ltd.
We are a school-enterprise joint high-tech enterprise engaged in the development and production of software and hardware systems for microcontrollers, ARM, DSP and other embedded system products. We provide complete product technical solutions and have complete OEM and ODM service capabilities.
Why Choose Us
All products are self-developed products.
1. One year warranty.
2. If you receive a defective product, you should replace it with a new product within 7 days from the date of receipt. (The buyer should return all original and undamaged items if they can be resold).
3. Provide free maintenance service within one year after purchase. When the goods change within a month, we will pay the one-way freight (from us to your place). To replace the product after one month of purchase, the buyer has to pay two shipping charges.
We will return the goods as soon as we receive your return package.
4. Our warranty does not include any physical damage or partial misuse or improper installation of products with improper operating conditions
1. One year warranty.
2. If you receive a defective product, you should replace it with a new product within 7 days from the date of receipt. (The buyer should return all original and undamaged items if they can be resold).
3. Provide free maintenance service within one year after purchase. When the goods change within a month, we will pay the one-way freight (from us to your place). To replace the product after one month of purchase, the buyer has to pay two shipping charges.
We will return the goods as soon as we receive your return package.
4. Our warranty does not include any physical damage or partial misuse or improper installation of products with improper operating conditions
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
FAQ
Q1: What's your payment term?
A:You can pay us by T/T, Poyoneer, Westunion.
Q2. How about your delivery time?
A: In general, 3-7 days for stock goods, 20-25 days for mass production. The specific delivery time depends.
Q3. Do you test all your goods before delivery?
A: Yes.we have 100% test before delivery.
Q4. Can you produce according to the samples?
A: Yes, accept OEM and co-development projects, please contact us for details.
Q5. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q6: How do you make our business long-term and good relationship?
A: We keep good quality and competitive price to ensure our customers benefit and we cherish long-term relationship, as proven by our 10+ years in business.
A:You can pay us by T/T, Poyoneer, Westunion.
Q2. How about your delivery time?
A: In general, 3-7 days for stock goods, 20-25 days for mass production. The specific delivery time depends.
Q3. Do you test all your goods before delivery?
A: Yes.we have 100% test before delivery.
Q4. Can you produce according to the samples?
A: Yes, accept OEM and co-development projects, please contact us for details.
Q5. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q6: How do you make our business long-term and good relationship?
A: We keep good quality and competitive price to ensure our customers benefit and we cherish long-term relationship, as proven by our 10+ years in business.
