Embedded Computer Type Core I3 4005U Fan Mini Industrial PC with LPT
US $75.00-$99.00
ORIN/Xavier 8F4E1 Plink AGX XAVIER 32G Industrial computer embedded smart medical
- Category: Industrial Computer & Accessories >>>
- Supplier: Beijing,Plink,AI,Technology,Co.,Ltd
Share on:
Product Overview
Description

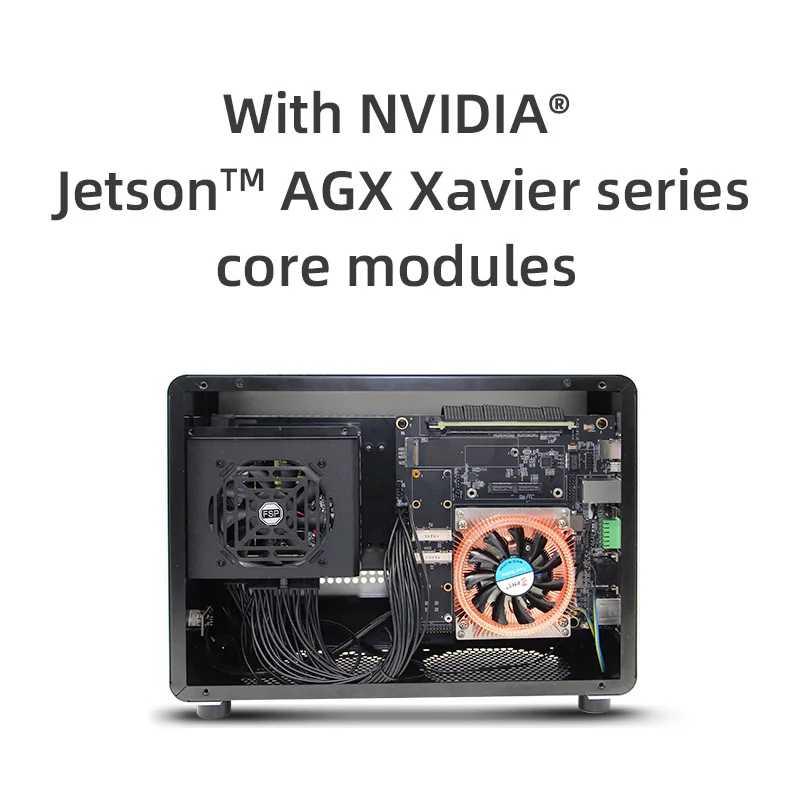

The 8F4E1 hardware platform is a combination of energy efficient NVIDIA® Jetson™ AGX Xavier / AGX Orin Core module, ITX-type computing platform with NVIDIA RTX 6000/A6000 GPU supporting AI. can be used directly NVIDIA Clara AGX Development Kit. NVIDIA Clara AGX development kit comes with end-to-end reference application for sensor processing management, image reconstruction, AI, and visualization, which can help developers get started quickly and reduce overall development time between. All necessary libraries and components are pre-selected to enable an out-of-the-box software development environment. Every A reference application utilizes the necessary IO components and drivers to move data and feed it to RTX In the processing pipeline on the 6000/A6000 GPU, a functional test data path setup is provided.
Processor : AGX XAVIER / AGX Orin module
GPU: NVIDIA RTX 6000/A6000
Power Supply : AC 220 V
Temperature: -20~+65°C
Size: 335mm*257mm*146mm
Weight: 5500g
GPU: NVIDIA RTX 6000/A6000
Power Supply : AC 220 V
Temperature: -20~+65°C
Size: 335mm*257mm*146mm
Weight: 5500g
COMPONENTS | FUNCTION |
NVIDIA RTX 6000 / RTX A6000 | Discrete GPU CPU |
NVIDIA Jetson AGX Xavier/AGX Orin | GPU and IO processing |
512 NVME SSD | Removable storage |
Y-C8 | Develop system board |
————————————————————————————
Jetson Module Technical Specifications
Display | NVIDIA Jetson Module | Discrete GPU | |||||
Module | AGX Xavier 32G | AGX ORIN 32G | AGX ORIN 64G | RTX 6000 | |||
CPU | 8-core NVIDIA Carmel Arm® v8.2 64-bit CPU 8MB L2 + 4MB L3 | 8-core Arm® Cortex®-A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3 | 12-core Arm® Cortex®-A78AE v8.2 64-bit CPU 3MB L2 + 6MB L3 | ||||
CPU Memory | 32GB 256-bit LPDDR4 x 136.5GB/s | 32GB 256-bit LPDDR5 204.8 GB/s | 64GB 256-bit LPDDR5 204.8 GB/s | ||||
GPU | 512-core NVIDIA Volta GPU with 64 Tensor Cores | 1792-core NVIDIA Ampere GPU with 56 Tensor Cores | 2048-core NVIDIA Ampere GPU with 64 Tensor Cores | 4608-core NVIDIA Turing GPU with 576 Tensor Cores | |||
USB Micro-B | 1 x Type B (OTG) | ||||||
USB Type-A | 1 x USB 3.1 1 x USB 2.0 | 2 x USB 3.1 | - | ||||
Other I/O | 4 x GPIO(3.3V) | 1 x SPI(3.3V) | 2 x I2C(3.3V) | 2 x RS-232 1 x Debug(UART) 2 x CAN (with on-board transceiver) | ||||||
Networking | 2 x 10/100/1000 Ethernet/RJ45 | 1x GbE 1x 10GbE | |||||
Power Supply | AC 220 V | 15W - 40W | 15W - 60W | ||||
Dimensions | 100mm x 87mm，699-pin connector，Integrated Thermal Transfer Plate | 100mm x 87mm 699-pin Molex Mirror Mezz Connector Integrated Thermal Transfer Plate | |||||
* Virtual channel-related camera information for Jetson AGX Orin is not final and subject to change. Refer to the Software Features section of the latest NVIDIA Jetson Linux Developer Guide for a list of supported features. | |||||||
Application Scenarios
UAV data processing center
Medical Care
Smart city
Aerospace science and technology
Smart Cities
Traffic management, parking management, transportation hub operation, public safety, and more
Healthcare
Patient monitoring, social distancing, mask detection, contact tracing, and more
Agriculture
Autonomous planting and harvesting, precision farming, yield management, and more
Construction
Mapping/planning, autonomous operation, preventive maintenance, work safety, and more
Industrial
Optical Inspection for quality control, predictive maintenance, robotic arms, and more
Retail
Asset protection, automated checkout, intelligent store analytics, digital signage, and more
Energy & Mining
Optical inspection, autonomous operation, preventive maintenance, safety, and more
Robotics & Logistics
Robots for warehouse & factory, first/last mile delivery, collaboration, service, and more
Founded in 2009, Plink-AI technology focuses on GPU solutions. It is the general agent in North China of Leadtek technology, a world-famous brand. It has been invited to become a NVIDIA partner with a full stack of NVIDIA products solutions.
Plink-AI technology takes the game graphics card, professional graphics card, GPU server, embedded AI integrated machine scheme as the main product line, serves the data center, cloud service, independent machine, medical instrument, intelligent agriculture, intelligent logistics, intelligent city, security, vehicle road coordination, industrial automation, education and scientific research and other industries, and has accumulated a large number of implementable programs, while in-depth learning DLI training On the basis of that, we will export AI professionals for the society.
Plink-AI technology adheres to the tenet of serving customers, strives for survival with quality, and provides GPU one-stop solution for customers.
Plink-AI technology takes the game graphics card, professional graphics card, GPU server, embedded AI integrated machine scheme as the main product line, serves the data center, cloud service, independent machine, medical instrument, intelligent agriculture, intelligent logistics, intelligent city, security, vehicle road coordination, industrial automation, education and scientific research and other industries, and has accumulated a large number of implementable programs, while in-depth learning DLI training On the basis of that, we will export AI professionals for the society.
Plink-AI technology adheres to the tenet of serving customers, strives for survival with quality, and provides GPU one-stop solution for customers.
How can I get the price?
We usually quote within 24 hours after receiving your inquiry (except weekends and holidays). If you are very anxious to get the price, please email us ([email protected], [email protected], [email protected]) or contact us by other means so that we can help you provide pricing.
Can I place an order for samples?
Yes. Please feel free to contact us.
What is your delivery time?
It depends on the number of orders and the season in which you placed your order. Usually we can ship within 7-15 days, small quantity shipment, about 30 days.
What is your payment term?
T/T, Western Union, MoneyGram and PayPal. This is negotiable.
What is the mode of transportation?
It can be transported by sea, air or express (EMS, UPS, DHL, TNT, FEDEX, etc.). Please confirm with us before placing an order.
Can the product be customized?
Our company has a professional R&D team and factory, which can meet the needs of customers to customize products, please email us for specific matters.
