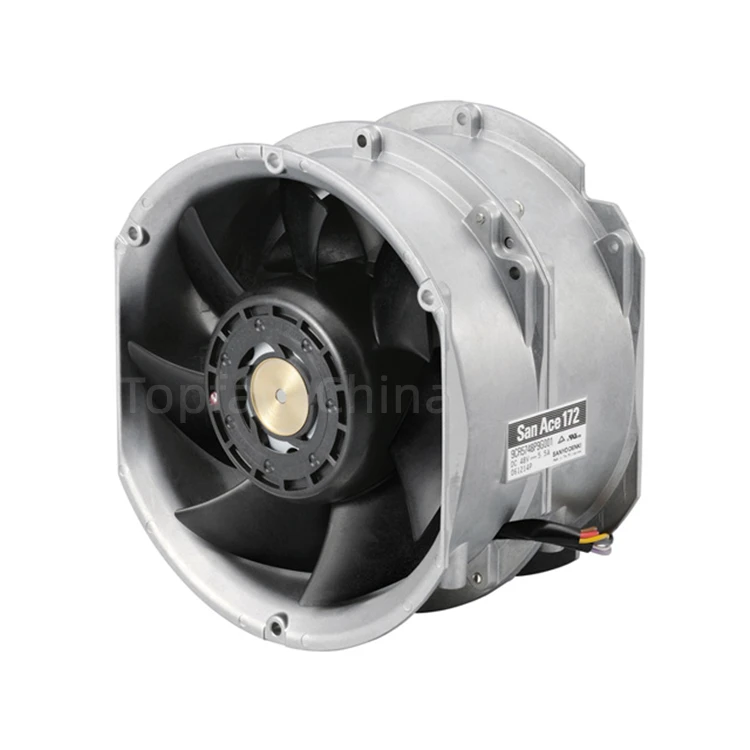

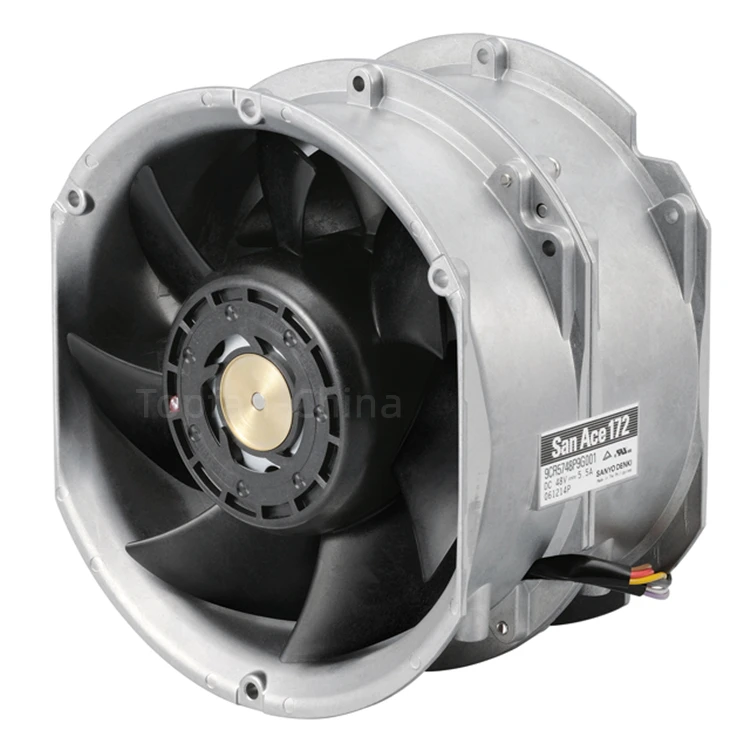

Silent ventilation fan manufactures ip68 industrial exhaust counter rotating dc brushless motor cooling Axial Flow Fans
- Category: >>>
- Supplier: Shenzhen Topfan Technology Development Co. Ltd.
Share on (1600535207519):
Product Overview
Description
Product Details
We can provide free samples before you order in bulk.
Model | Rated Volt | Operating Volt | PWM duty cycle* | Rated Current | Speed Inlet | Speed Outlet | Max. Airflow | Max. Static Pressure | Noise Level | ||||||||
Part No. | VDC | VDC | [%] | AMP | RPM | RPM | CFM | Pa | dB-A | ||||||||
MX172102ABH4 | 48 | 36-72 | 100 | 5.5 | 7300 | 6400 | 636 | 1400 | 83 | ||||||||
0 | 0.5 | 2400 | 1900 | 194.3 | 152 | 54 | |||||||||||
More Models | Other RPM/CFM/Voltage/Current...please contact us see the specification for more details. | ||||||||||||||||
Product Breakdown
Product Name | DC Axial Fan |
Brand | MX topfan/OEM/ODM |
Frame and Impeller | Frame：Metal，Impeller：Plastic(94V-0)，PBT |
Bearing Type | Sleeve bearing&Ball Bearing |
Function Range | PWM FG RD IP58 IP68 |
Leadwire | Red Wire Positive(+)，Black Wire Negative(-) |
Rated Voltage | 5V 12V 24V 48V ... |
Operating Tempetature | -30℃ to +80℃ |
Product Applications | Household Appliances/Machine/Aeronautical/Power equipment, etc |
