Нагревательный элемент для водонагревателя TZCX brand 12 В/24 В/36 В/48 В/220 В 300 Вт 500 Вт 800 Вт 1000 Вт ac dc
- Category: Refrigeration & Heat Exchange Equipment >>>
- Supplier: Taizhou Chuangxian Electrical Appliance Co. Ltd.
Share on (1600535240006):
Product Overview
Description
Product Description
1. The heating elements can be used for both dc(solar PV , battery 12V/24V/36V/48V or custom)and AC electricity(110v/220v/380v or custom), according to customers' requirements.
2. There are many types of terminals for wiring.
3.We fill the tube with high purity magnesium oxide powder for longer service life.
4.Custom the Flange size, sheath material, watt,voltage, immersion length, according to applications.
5.Explosion-proof & temperature control features also can be provided, if required.
6. The heating elements are CE,ATEX, CQC,ISO9001,ROHS,UL,CSA certified.
5.Explosion-proof & temperature control features also can be provided, if required.
6. The heating elements are CE,ATEX, CQC,ISO9001,ROHS,UL,CSA certified.
Any request, please do not hesitate to let me know.

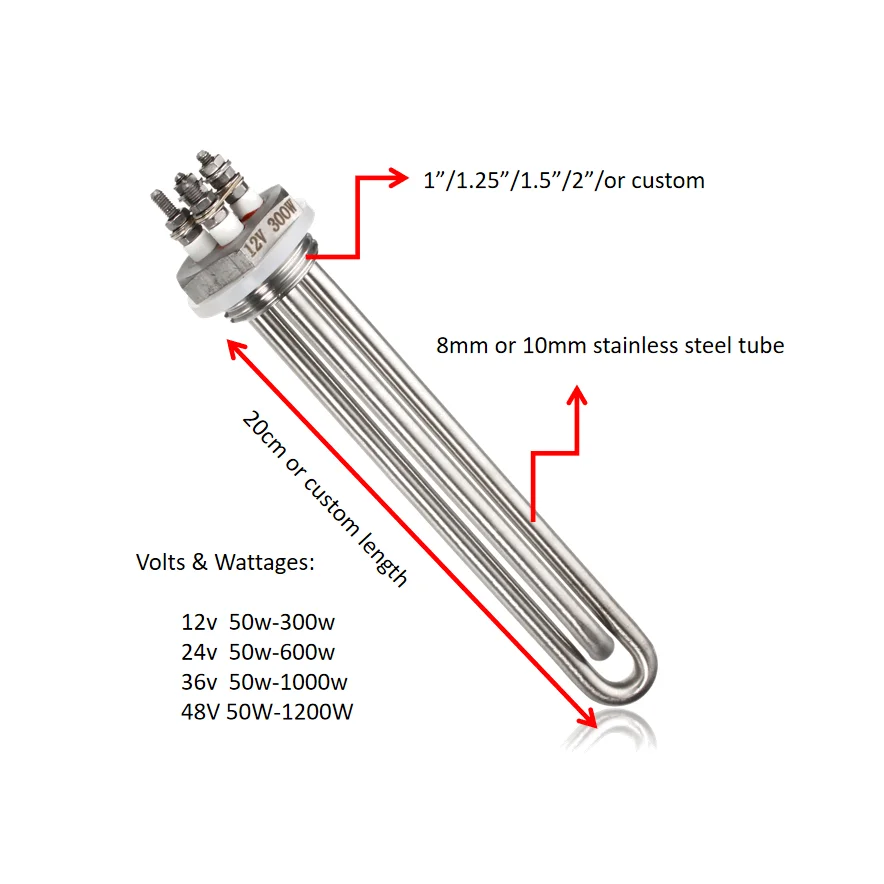

Specification | ||
Material： | SUS 304/316L/310S or Customized | |
Thread/tri-clamp/Flange： | 1''/1.25''/2"/2.5"/3" or customized | |
Tube diameter： | 8/10/12mm or customized(6.8-50mm) | |
Tube length： | customized | |
Volt： | 12V/24V/36V/48V/110v/220V/380V or Customized | |
Watt： | 300W/500W/1kw /3kw/5kw or customized | |
Temp control | if required thermostat/thermocouple PID temp controller | |
Detailed Images
Heating element watt (W) | Water Volume (L) | Initial Temperature (°C) | Final temperature (°C) | Heating time (h) | Number of solar panels(PV) |
300 | 35 | 25 | 65 | 5.5 | 1* 300W |
600 | 50 | 25 | 65 | 4 | 2* 300W |
800 | 75 | 25 | 65 | 4.5 | 2* 500W |
1000 | 100 | 25 | 65 | 4.8 | 2* 500W |
1200 | 125 | 25 | 65 | 4.8 | 2* 700W |
1200 | 150 | 25 | 65 | 5.8 | 2* 700W |
Customization

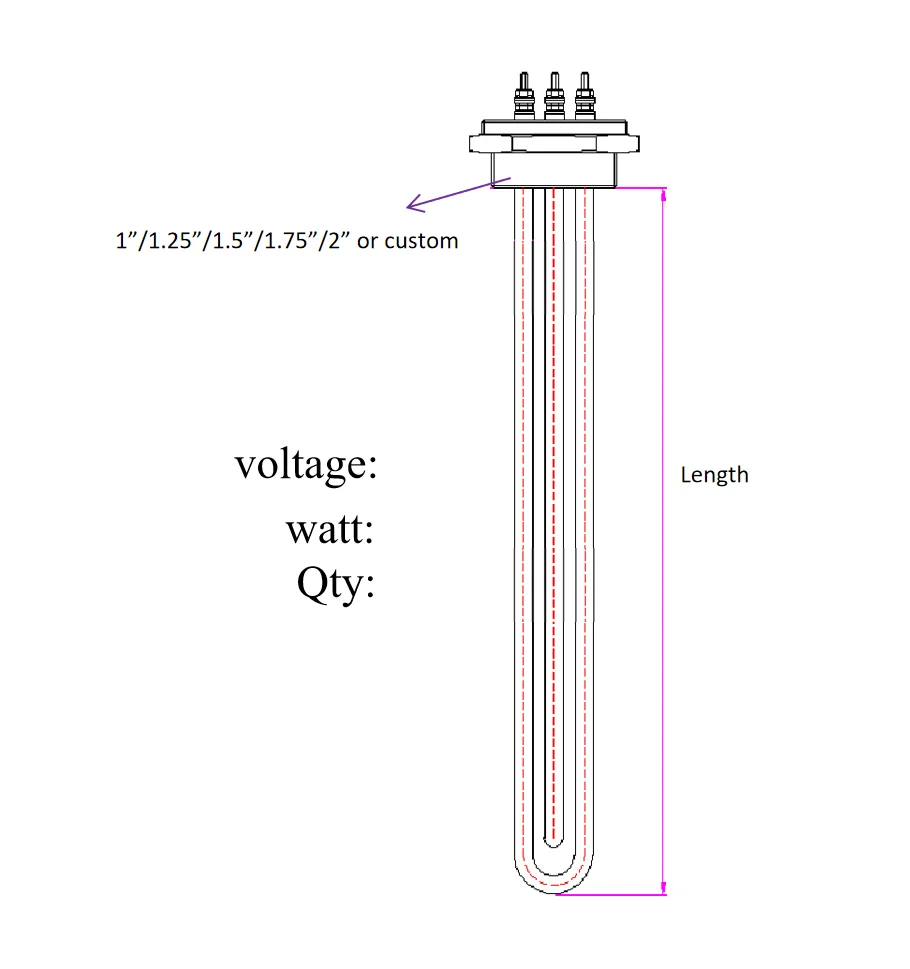

Please show us following important points when you need custom service:
· Used voltage(V), power(W) .
· Quantity , shape and size(tube diameter, length,thread,etc)
· Heating tube material( Stainless steel 304/316/310s/321/incoloy 800/840).
· temperature control features also can be provided.
· If you have drawing or product picture,or sample in hands,will be much better and helpful for exact price calculation.
· Used voltage(V), power(W) .
· Quantity , shape and size(tube diameter, length,thread,etc)
· Heating tube material( Stainless steel 304/316/310s/321/incoloy 800/840).
· temperature control features also can be provided.
· If you have drawing or product picture,or sample in hands,will be much better and helpful for exact price calculation.
Related Products
Packing&Shipping
Our Service
Company Introduction
FAQ
- Q: Are you a factory or trading company?
A: We are a professional direct manufacturer on the field of electric tubular heating element for 28 years from China.
- Q: Where is your factory located? How can I visit you there.
A: Our factory is located in ZhangGuo town, Xinghua City, Jiangsu Province, China. You can take airplane to Shanghai. Then we can pick you up from airplane port.
- Q: How many days do you need for samples and bulk production?
A: It will be 5 days and 15 days after we confirm all details.
- Q: What is your MOQ?
A: One piece for each item. And we provide customized service, no matter the voltage, power, dimension, material or thermostat, etc.
- Q: How can I know my order production condition?
A: Usually we will update the production condition regularly by email. If necessary, we also can take a video chat by social app, like wechat, facebook, skype or whatsapp.
- Q: Why choose us?
A: We are direct manufacturer, so we can completely control the quality and delivery time. And our price must be more cheaper on the same quality. 100% test before packaging according to the CE regulation. Our own brand TZCX is usually nominated from the final user. We are not only a professional manufacturer of heating elements, but also an excellent provider of heating solutions.
- Q: How can I get urgent feedback?
A; If you need contact with us urgently, please call: +86-13791585173. Any problems, welcome to contact us. We'll reply soon within 12 hours.
