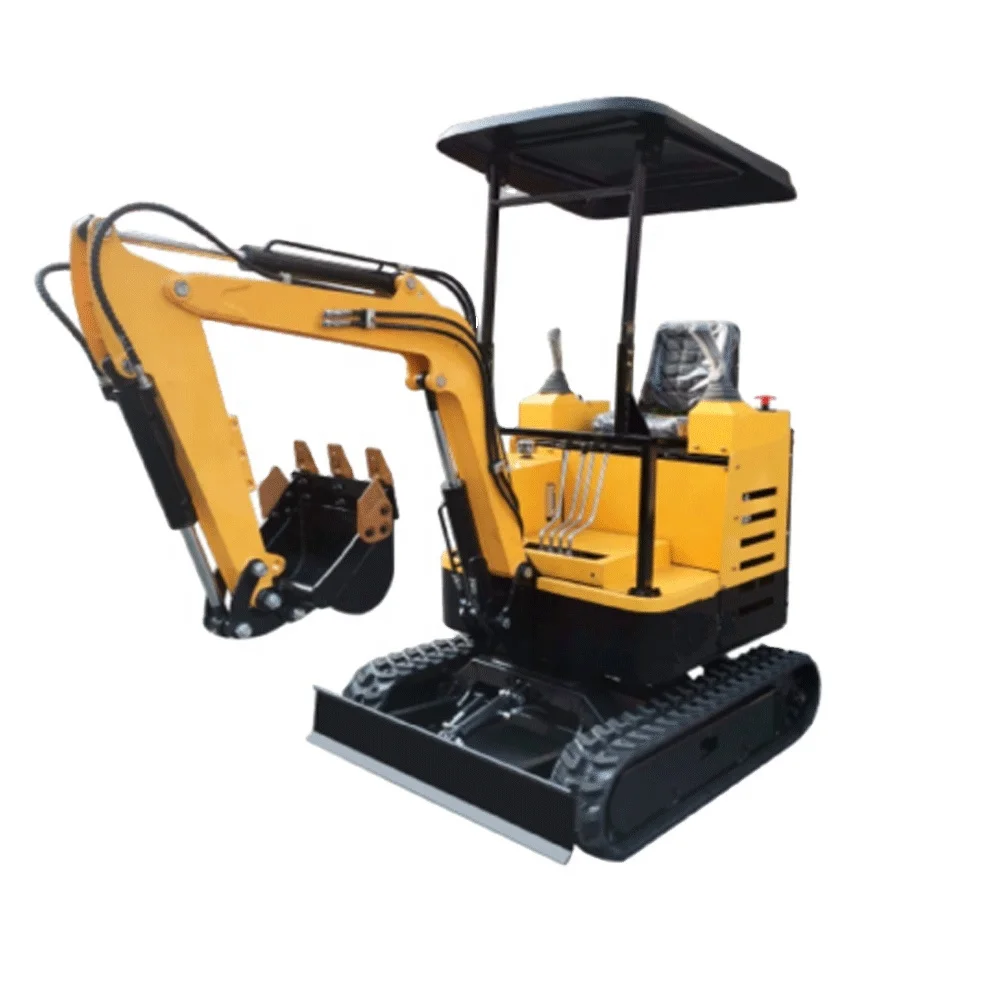

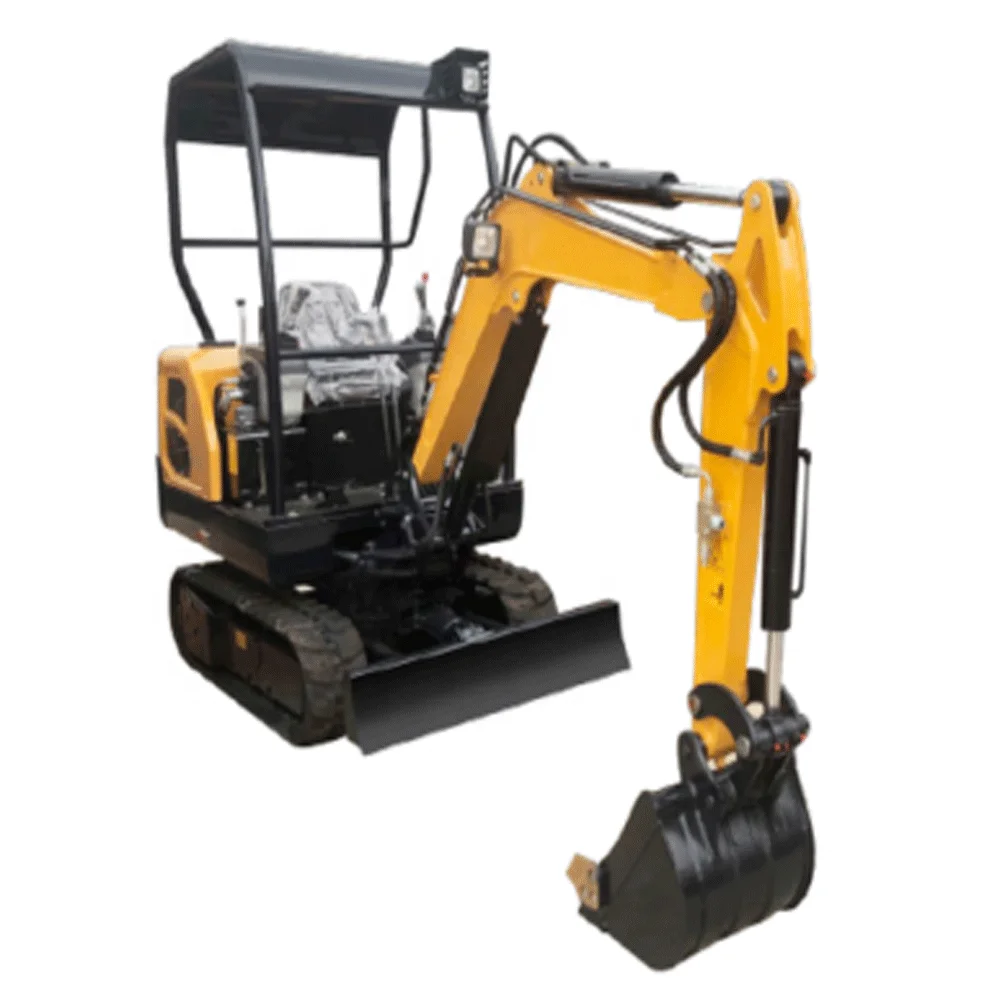

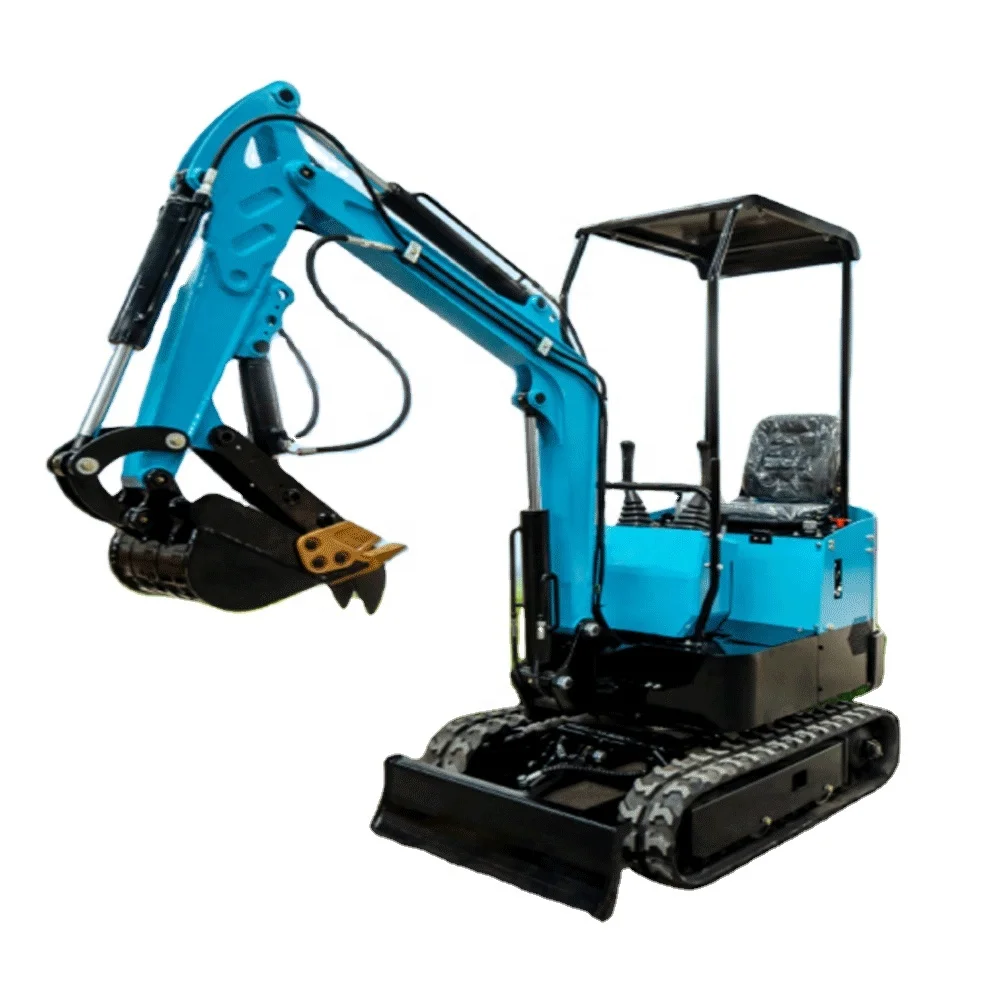

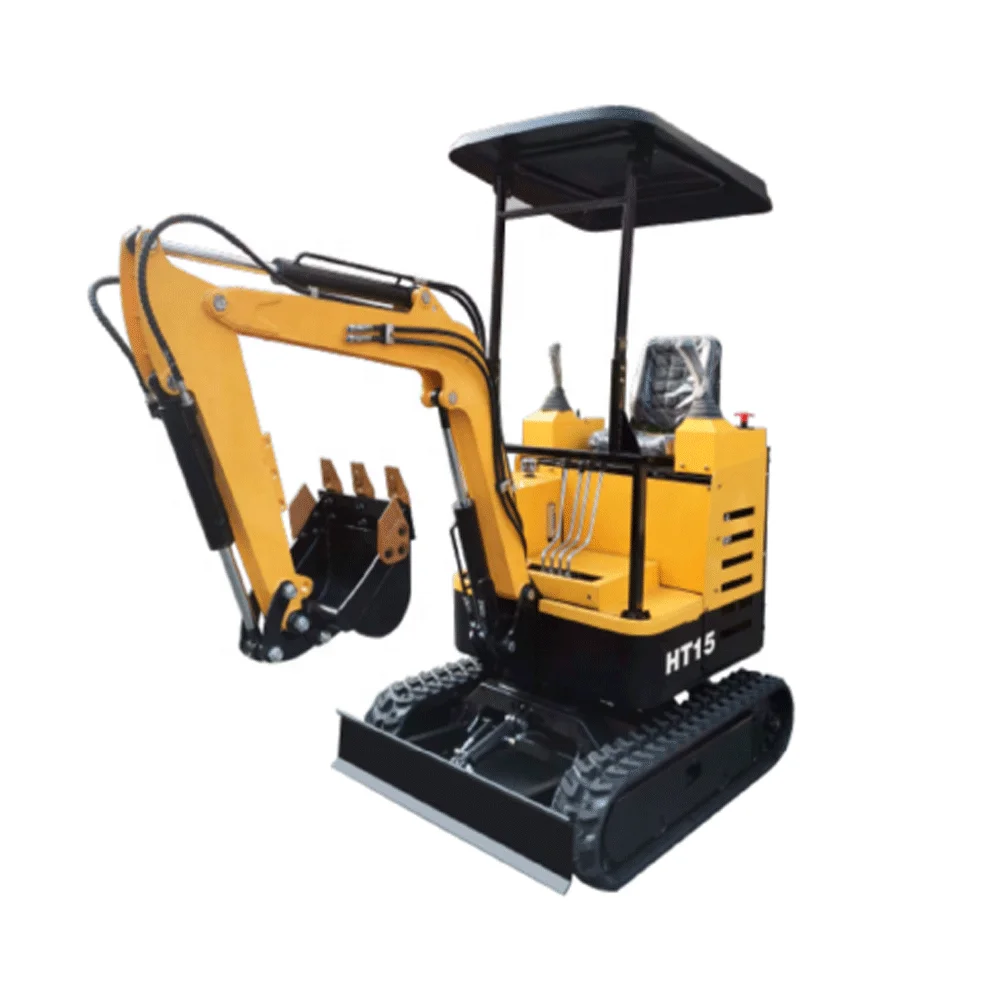

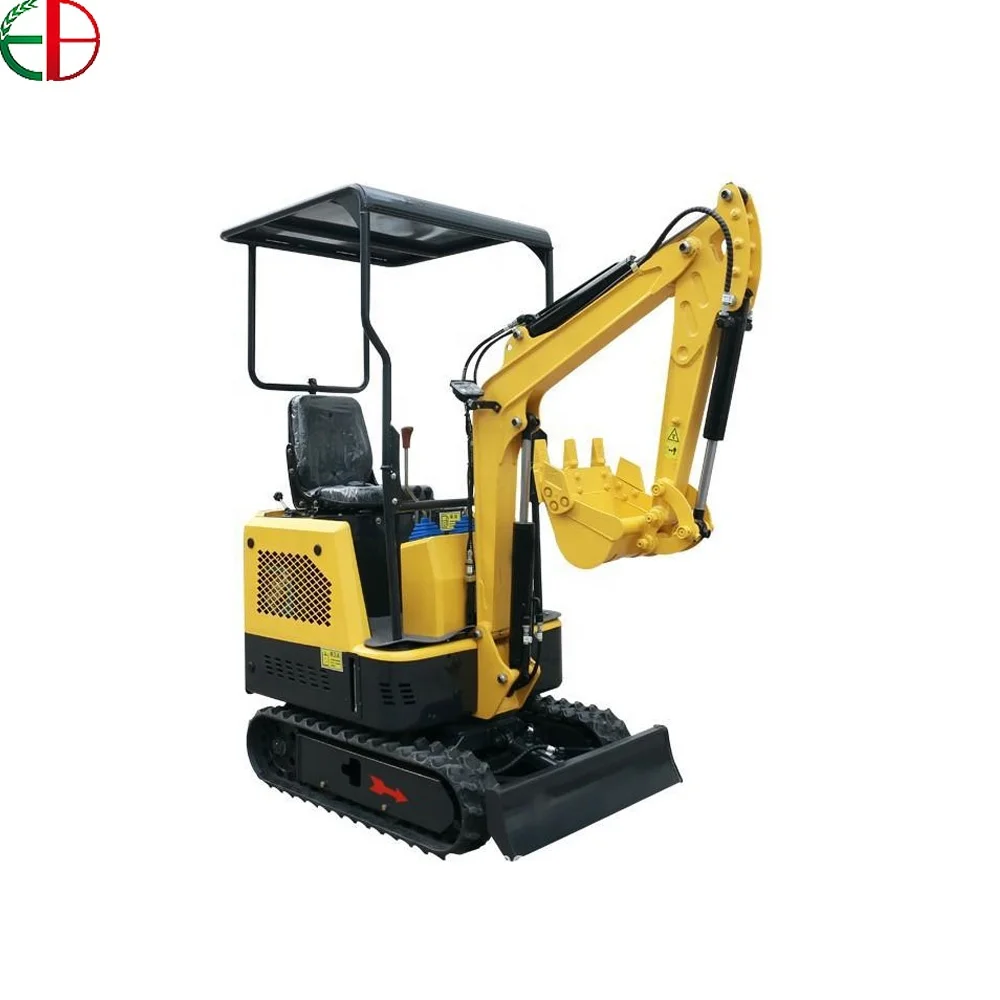

Экскаватор Гусеничный EB China, 1 тонна, в наличии, с маркировкой Ce, экскаватор с закрытой кабиной на 1 тонну
- Category: Excavators >>>
- Supplier: Wuxi Eternal Bliss Alloy Casting & Forging Co. Ltd.
Share on (1600535372086):
Product Overview
Description
Products Description
Features
The Mini Excavator delivers power and performance in a compact size to help you work in a wide range of applications.
1. Engine: Briggs & Stratton engine, Horizontal bar air cooling，7KW.
2. Hydraulic pump (gear pump) is easy to maintain, long life.
3. Strong lift and dig performance helps you get the job done faster. The retractable undercarriage lets you access and
1. Engine: Briggs & Stratton engine, Horizontal bar air cooling，7KW.
2. Hydraulic pump (gear pump) is easy to maintain, long life.
3. Strong lift and dig performance helps you get the job done faster. The retractable undercarriage lets you access and
work in the tightest areas. Dig-to-blade and dozer float features allow for easy clean up.
4. Multiple valves under the operating handle,The benefit of less effort and improved control is in your hands.
5. Rubber track no damage to cement, tile floor.
6. Diesel level gauge: Check engine oil when it is not easy to start.
4. Multiple valves under the operating handle,The benefit of less effort and improved control is in your hands.
5. Rubber track no damage to cement, tile floor.
6. Diesel level gauge: Check engine oil when it is not easy to start.
Model: | EB-010 | |
Weight: | 1000kg | |
Digging bucket capacity: | 0.025 m³ | |
Bucket width: | 380mm | |
Engine： | CHANGCHAI (192FAM) | |
Optional Engine: | BRIGGS & STRATTONYANMAR | |
Pump form: | Single cylinder, fan cool | |
Rated power: | 8.2 kw | |
Main pump: | G5-6 | |
Gradeability: | 30 Mining | |
Displacement: | 6.8mk/r | |
Swing motor: | SANYANG(BMRS-250) | |
Traveling motor: | SANYANG(BMRS-245) | |
Travel speed: | 1.5 km/h | |
Main Demensions | ||
Overall dimension( LxWxH) | 2775x 930x 2219 mm | |
Wheelbase： | 910 mm | |
Total length of track: | 1140 mm | |
Platform ground clearance: | 380 mm | |
Platform back turning radius: | 784 mm | |
Chassis width: | 896 mm | |
Track width: | 180 mm | |
Chassis ground clearance: | 132 mm | |
Track height: | 320 mm | |
Operating Range | ||
Max. Digging depth: | 1650 mm | |
Max. Vertical digging depth: | 1375 mm | |
Max. Digging height: | 2610 mm | |
Max. Dumping height: | 1850 mm | |
Max. Digging radius on ground : | 2850 mm | |
Min. Rotation radius | 1330 mm | |
Max. Upgrade height of bulldozer blade: | 345 mm | |
Max. Digging depth of buldozer blade: | 255 mm | |

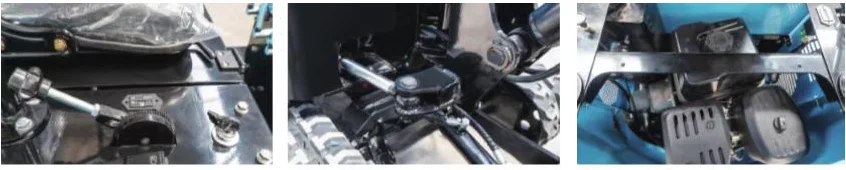

Details Images

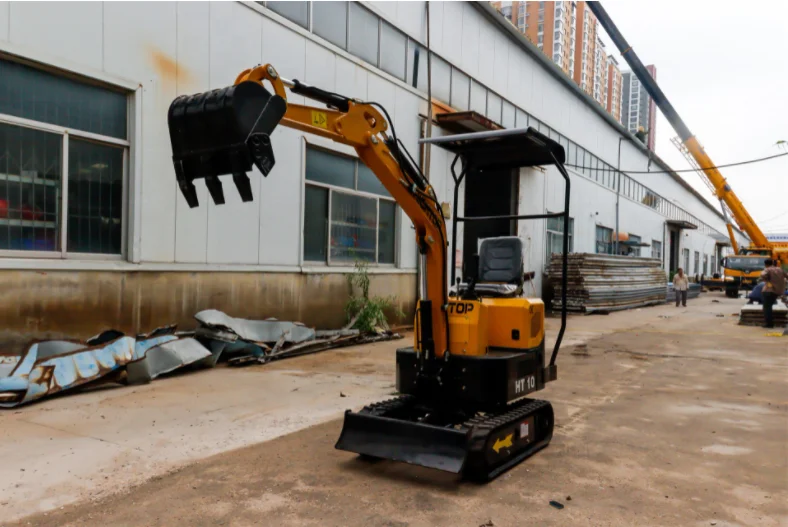

Compact Dimensions：
With an overall width of only 950mm(3 ft 12in) the NM-E10 can easily drive through narrow passages and doors. Both indoor and outdoor jobs are now accessible with the under 1000 kg (2,205 lb) weight making easy trailer transportation between sites possible.
With an overall width of only 950mm(3 ft 12in) the NM-E10 can easily drive through narrow passages and doors. Both indoor and outdoor jobs are now accessible with the under 1000 kg (2,205 lb) weight making easy trailer transportation between sites possible.
Extending Undercarriage and Blade：
An extending undercarriage and fold out dozer blade allow the machine to be configured for excellent working stability and optimum performance. Easy retraction, controlled from the operator’s seat, enables the machine to pass through narrow openings.
Counterweight, safe operation：
The counterweight is to balance the torque, so that the center of gravity of the excavator is always kept near the center of rotation, and the overall balance is maintained, which is more stable and safe during using hamer.
Powerful Engine and Hydraulics：
The 7 kW (12hp) engine and perfectly matched hydraulics(Eaton) provide efficient, economical and reliable performance for the toughest of jobs. The matched cooling system is designed to accommodate working within confined areas and also the powerful hammer,auger and log grab. Low noise and vibration levels deliver comfortable operation
Eaton hydraulic system：
One multi-way valve, eight-way valve to ensure the machine's hydraulic work is stable and efficient，like the tilting bucket/auger/breaker/thumb bucket and totator bucket.
Beautiful appearances and hydraulic meter：
The latest mold shape creates a perfect appearance, pay attention to the working state of the machine in time through thehydraulic oil meter.Using our unique patented hinged engine back cover design and rear-turning seat, the structure inside is clear after opening, and inspection and maintenance are very convenient.

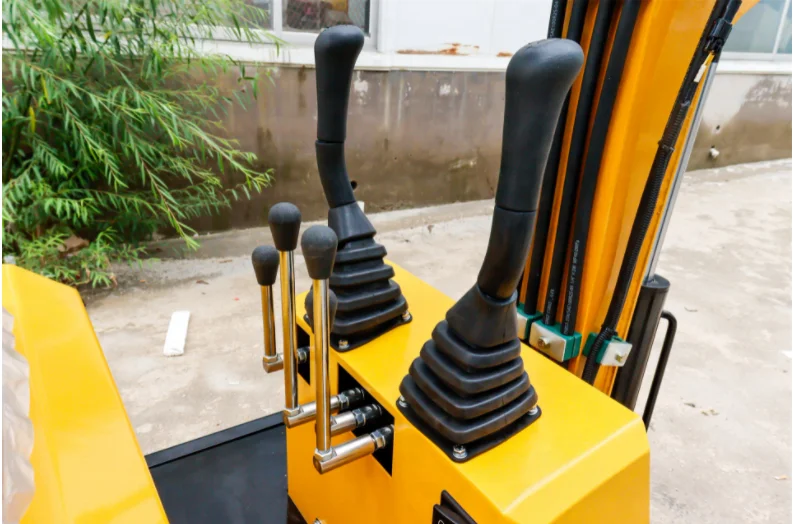

Easy to operate：
Controls are easy to use and operate,with the .The operating instructions in front of the console are simple and easy to use.
