Rail Gauge Offset Ruler/ Railway Switch Measurement/ Railway Switch Rail Offset Scale Gauge Ruler
- Category: Railway Parts & Accessories >>>
- Supplier: Xiangyang Lianjie Mechanical&Electrical Co. Ltd.
Share on (1600536212382):
Product Overview
Description
Product Description
Products Description

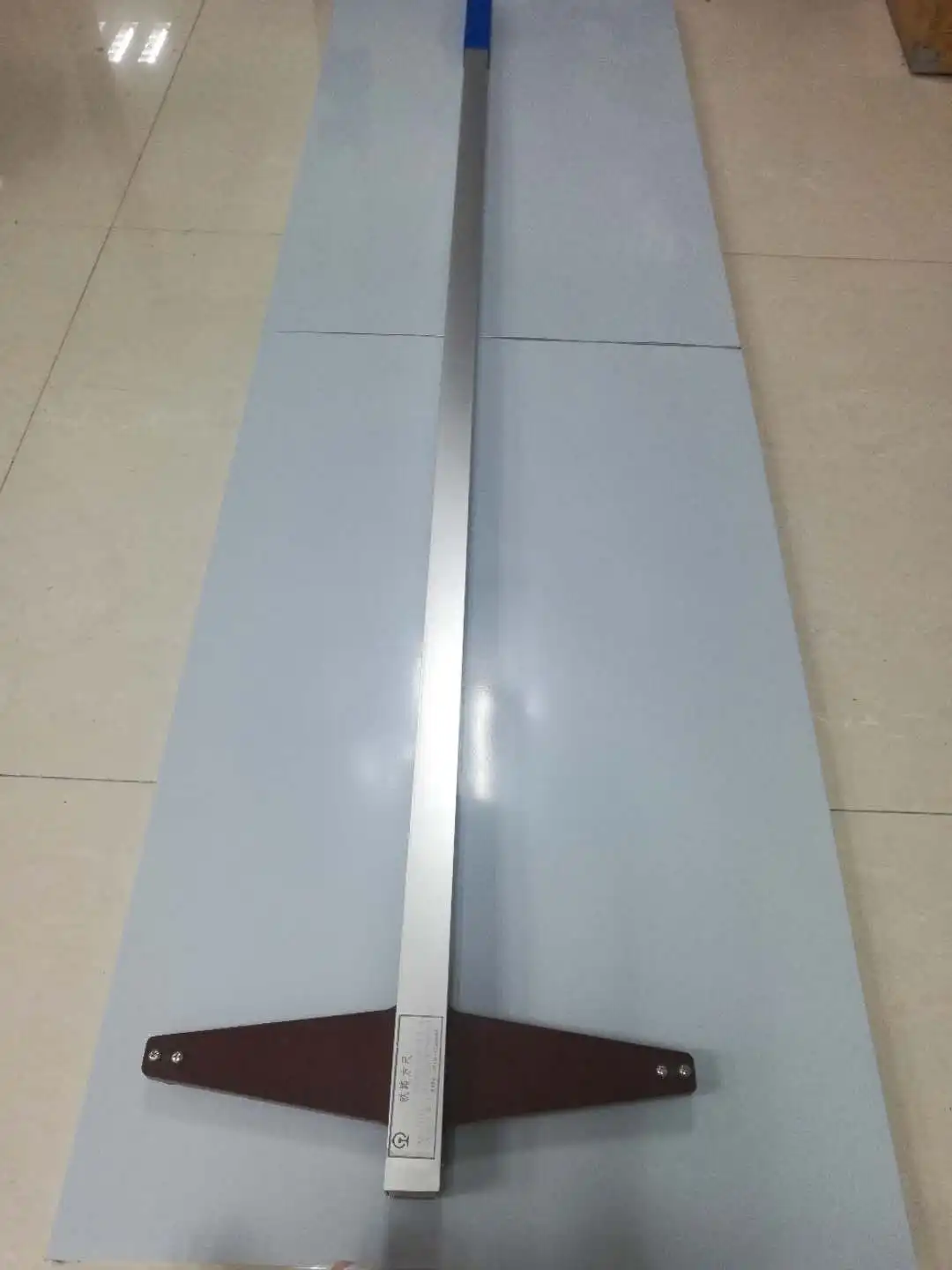

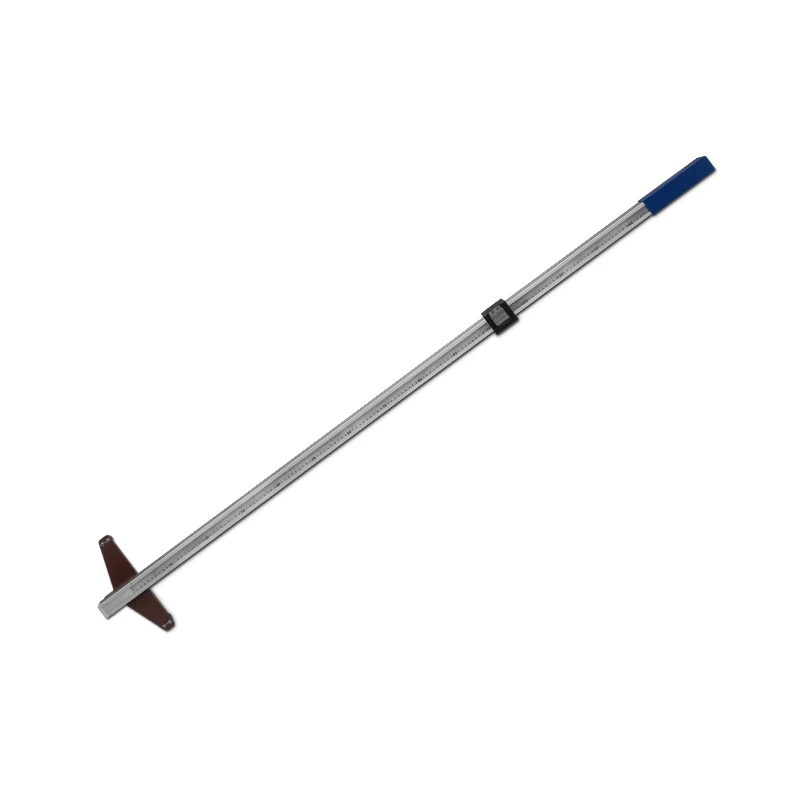

Rail Offset Ruler

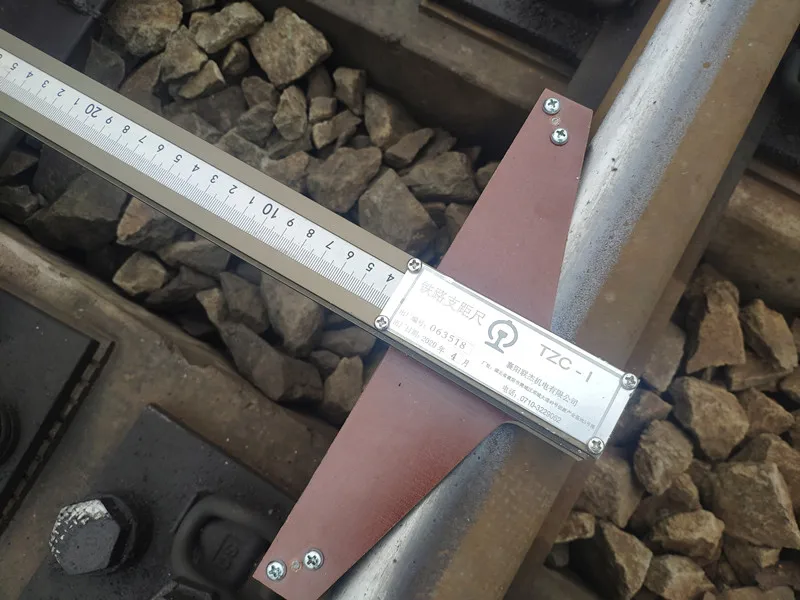

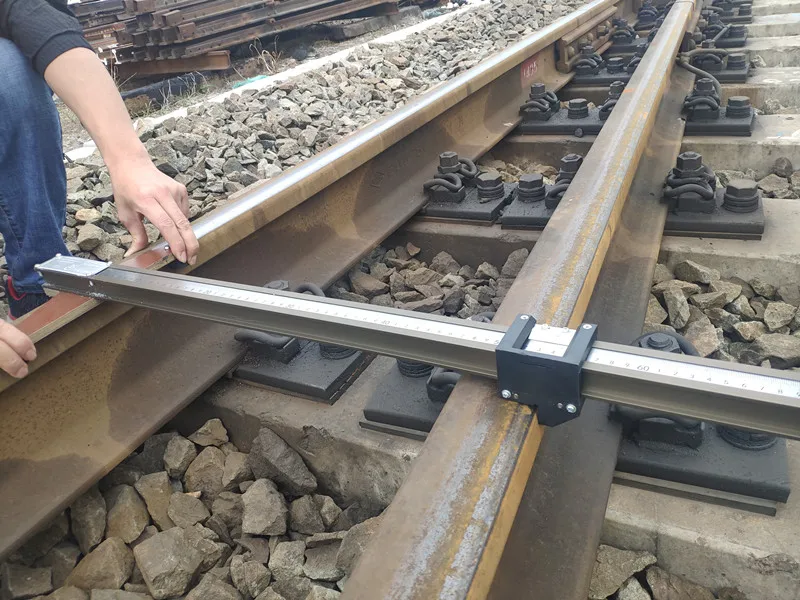

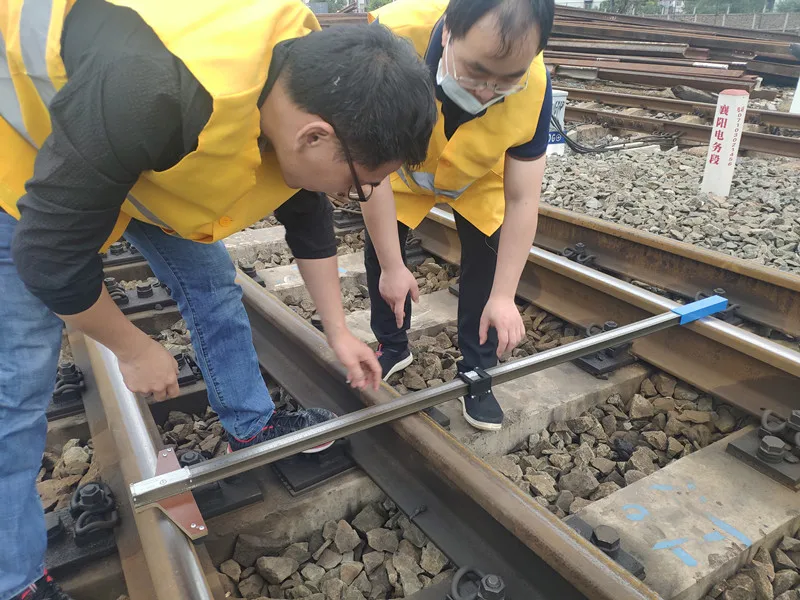

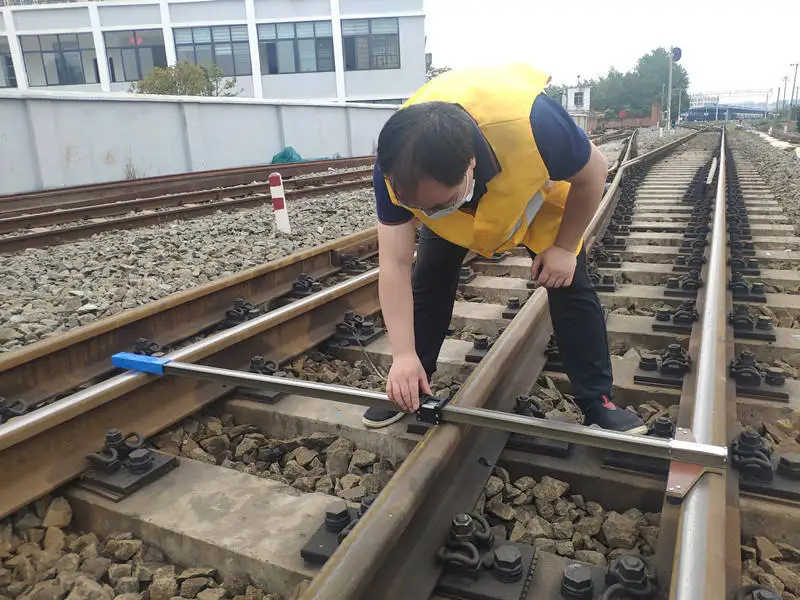

The railway offset scale gauge ruler is special measuring equipment which is used for railway p-way guide curre offset scale gauge
measurement. usage the insultating plate of the offset gauge is laid on the straight rail of the turnout to make the two circular
sides contact the working edge of the straight rail,move the frame,so that the pressure gauge plate contacts the guide curve and
read out the value through the vernier.
Rail Offset Ruler
The railway offset scale gauge ruler is special measuring equipment which is used for railway p-way guide curre offset scale gauge
measurement. usage the insultating plate of the offset gauge is laid on the straight rail of the turnout to make the two circular
sides contact the working edge of the straight rail,move the frame,so that the pressure gauge plate contacts the guide curve and
read out the value through the vernier.

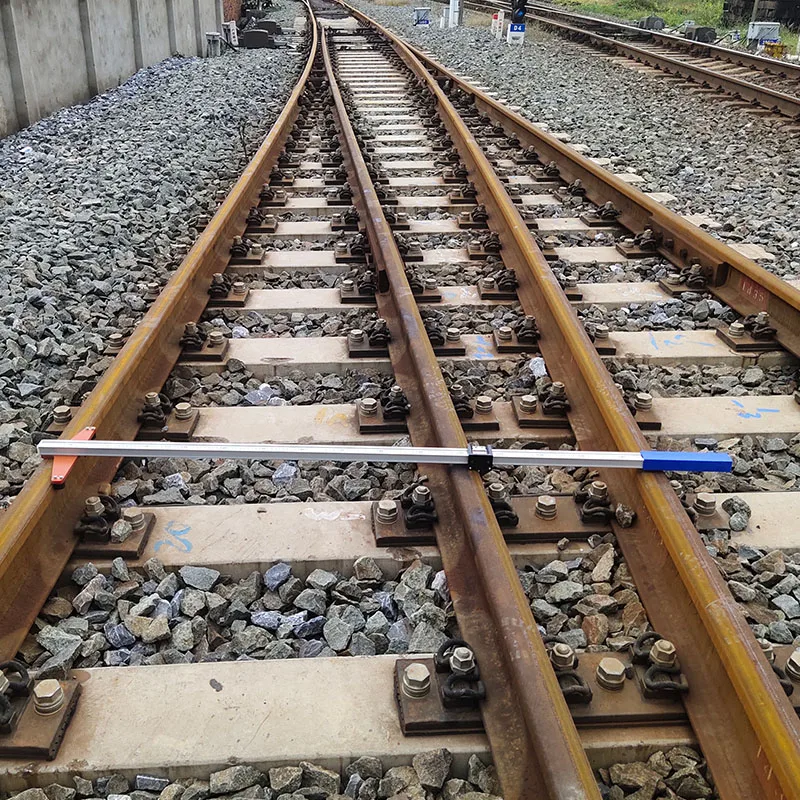

The railway offset ruler is special measuring equipment which is used for railway turnout offset distance.
Detailed Parameter
model | measuring range | Indication error | ||||||||||||
TZC-I | 100-1300mm | ≤±0.4mm | ||||||||||||
TZC-IA | 100-1400mm | ≤±0.4mm | ||||||||||||
TZC-II | 100-2000mm | ≤±0.4mm | ||||||||||||
TZC-IF | 100-2500mm | ≤±0.4mm | ||||||||||||
it also can be customized | ||||||||||||||
Details Images
Related Products
Company Introduction
Xiangyang Lianjie Mechanical & Electrical Co., LTD., established in 2013, specialized in designing and manufacturing of the geometry measurement systems for the railway. Including digital track gauges , mechanical track gauges, and turnout gauges .Our products meet the standard TB/t1924-2008 <Track Gauges Standard > issued Ministry of Railways of the people 's Republic of China .
