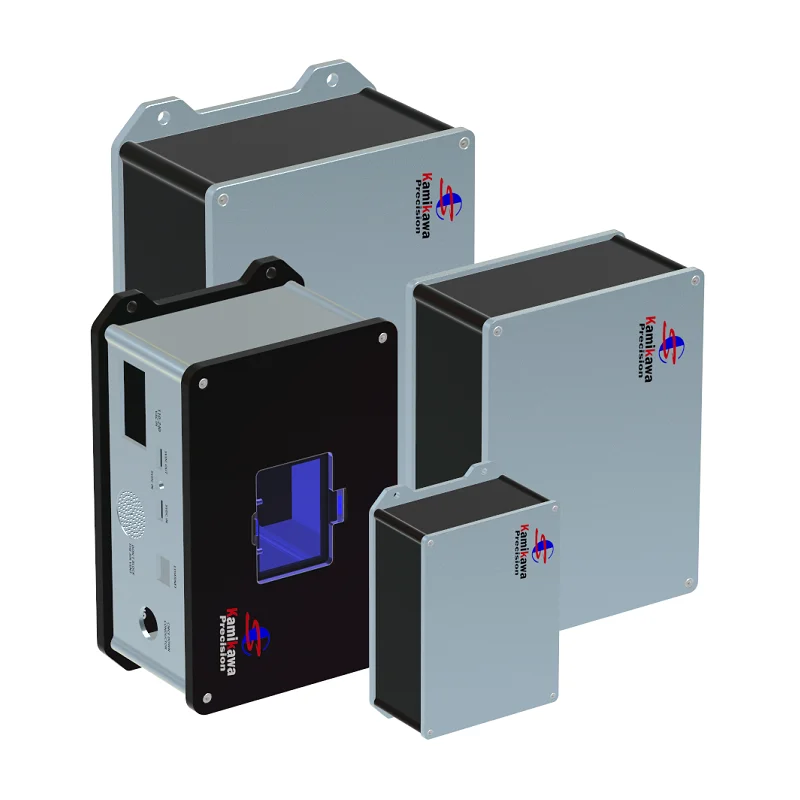

Водонепроницаемый корпус Kamikawa IP68, электрическая распределительная коробка, алюминиевый корпус от производителя, алюминиевые профили
- Category: Electronics & Instrument Enclosures >>>
- Supplier: Huizhou Kamikawa Precision Technology Co. Ltd.
Share on (1600536393277):
Product Overview
Description
Welcome to our store!
If you want to get the Free Sample and know more detail information,
product description
The basic structure of the waterproof box
A general waterproof box consists of an upper cover, a lower cover and a box body. Of course, it can also be designed as a
structure in which the bottom cover and the box body are integrated. Different structures have different considerations. For
example: considerations in internal assembly; considerations in manufacturing costs, etc. Kamikawa Precision adopts an open
structure design waterproof box, which not only facilitates product assembly, but also reduces manufacturing costs, and also
achieves the highest waterproof level. That's why Kamikawa Precision Waterproof Cases are popular.
structure in which the bottom cover and the box body are integrated. Different structures have different considerations. For
example: considerations in internal assembly; considerations in manufacturing costs, etc. Kamikawa Precision adopts an open
structure design waterproof box, which not only facilitates product assembly, but also reduces manufacturing costs, and also
achieves the highest waterproof level. That's why Kamikawa Precision Waterproof Cases are popular.
Box parameters
Box parameters
Free Design Drawings

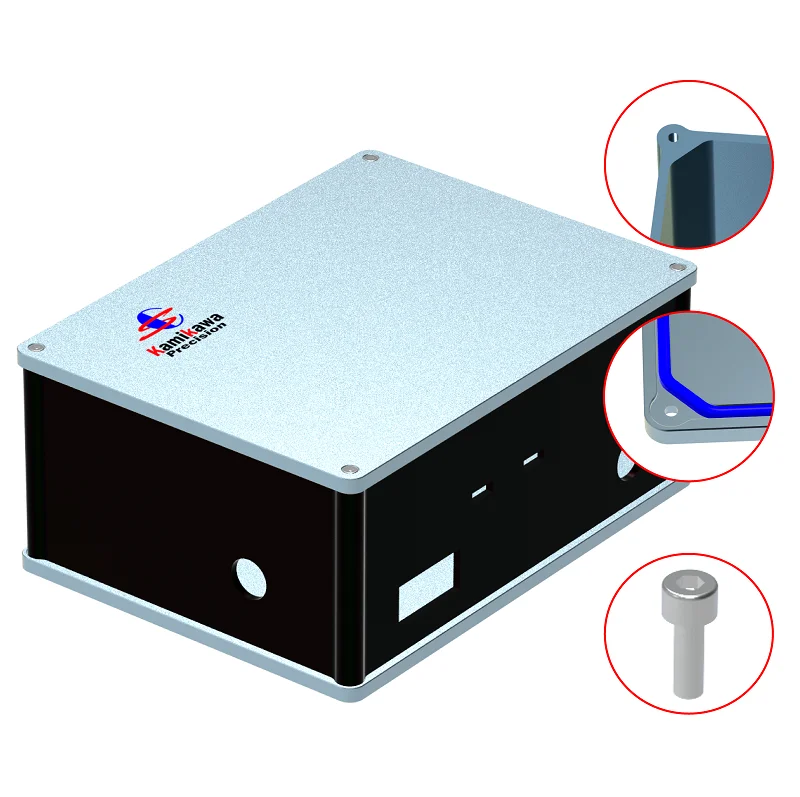

Product advantages
2、The upper and lower cover plates are embedded with sealing rings, which are waterproof and dustproof.
3、M3*8 stainless steel screws, anti-rust, anti-slip teeth.
Surrounding sealing strip design
Value-added services
window service
LoGo customization
A01-A Type Specification Sheet All sizes can be customized | ||||||||||||||||
Product model | Regular color | External Dimensions (mm) | Internal Dimensions (mm) | Remark | ||||||||||||
A01-A-1 | black, grey | 128 | 79 | 38.8 | 91.6 | 66.6 | 30 | |||||||||
A01-A-2 | black, grey | 128 | 79 | 38.8 | 91.6 | 66.6 | 35 | |||||||||
A01-A-3 | black, grey | 128 | 79 | 38.8 | 91.6 | 66.6 | 40 | |||||||||
A01-A-4 | black, grey | 128 | 79 | 38.8 | 91.6 | 66.6 | 45 | |||||||||
A01-A-5 | black, grey | 128 | 79 | 38.8 | 91.6 | 66.6 | 50 | customizable | ||||||||
A01-A-6 | black, grey | 128 | 79 | 38.8 | 91.6 | 66.6 | 55 | customizable | ||||||||
A01-A-7 | black, grey | 128 | 79 | 38.8 | 91.6 | 66.6 | 60 | customizable | ||||||||
A01-A-8 | black, grey | 128 | 79 | 38.8 | 91.6 | 66.6 | 65 | customizable | ||||||||
A02-A Type Specification Sheet All sizes can be customized | ||||||||||||||||
Product model | Regular color | External Dimensions (mm) | Internal Dimensions (mm) | Remark | ||||||||||||
A02-A-1 | black, grey | 138 | 69 | 38.8 | 101.6 | 56.6 | 30 | |||||||||
A02-A-2 | black, grey | 138 | 69 | 38.8 | 101.6 | 56.6 | 35 | |||||||||
A02-A-3 | black, grey | 138 | 69 | 38.8 | 101.6 | 56.6 | 40 | |||||||||
A02-A-4 | black, grey | 138 | 69 | 38.8 | 101.6 | 56.6 | 45 | |||||||||
A02-A-5 | black, grey | 138 | 69 | 38.8 | 101.6 | 56.6 | 50 | customizable | ||||||||
A02-A-6 | black, grey | 138 | 69 | 38.8 | 101.6 | 56.6 | 55 | customizable | ||||||||
A02-A-7 | black, grey | 138 | 69 | 38.8 | 101.6 | 56.6 | 60 | customizable | ||||||||
A02-A-8 | black, grey | 138 | 69 | 38.8 | 101.6 | 56.6 | 65 | customizable | ||||||||
A03-A Type Specification Sheet All sizes can be customized | ||||||||||||||||
Product model | Regular color | External Dimensions (mm) | Internal Dimensions (mm) | Remark | ||||||||||||
A03-A-1 | black, grey | 148 | 79 | 38.8 | 111.6 | 66.6 | 30 | |||||||||
A03-A-2 | black, grey | 148 | 79 | 38.8 | 111.6 | 66.6 | 35 | |||||||||
A03-A-3 | black, grey | 148 | 79 | 38.8 | 111.6 | 66.6 | 40 | |||||||||
A03-A-4 | black, grey | 148 | 79 | 38.8 | 111.6 | 66.6 | 45 | |||||||||
A03-A-5 | black, grey | 148 | 79 | 38.8 | 111.6 | 66.6 | 50 | |||||||||
A03-A-6 | black, grey | 148 | 79 | 38.8 | 111.6 | 66.6 | 55 | customizable | ||||||||
A03-A-7 | black, grey | 148 | 79 | 38.8 | 111.6 | 66.6 | 60 | customizable | ||||||||
A03-A-8 | black, grey | 148 | 79 | 38.8 | 111.6 | 66.6 | 65 | customizable | ||||||||
A04-A Type Specification Sheet All sizes can be customized | ||||||||||||||||
Product model | Regular color | External Dimensions (mm) | Internal Dimensions (mm) | Remark | ||||||||||||
A04-A-1 | black, grey | 158 | 104 | 38.8 | 121.6 | 91.6 | 30 | |||||||||
A04-A-2 | black, grey | 158 | 104 | 38.8 | 121.6 | 91.6 | 35 | |||||||||
A04-A-3 | black, grey | 158 | 104 | 38.8 | 121.6 | 91.6 | 40 | |||||||||
A04-A-4 | black, grey | 158 | 104 | 38.8 | 121.6 | 91.6 | 45 | |||||||||
A04-A-5 | black, grey | 158 | 104 | 38.8 | 121.6 | 91.6 | 50 | |||||||||
A04-A-6 | black, grey | 158 | 104 | 38.8 | 121.6 | 91.6 | 55 | customizable | ||||||||
A04-A-7 | black, grey | 158 | 104 | 38.8 | 121.6 | 91.6 | 60 | customizable | ||||||||
A04-A-8 | black, grey | 158 | 104 | 38.8 | 121.6 | 91.6 | 65 | customizable | ||||||||
A05-A Type Specification Sheet All sizes can be customized | ||||||||||||||||
Product model | Regular color | External Dimensions (mm) | Internal Dimensions (mm) | Remark | ||||||||||||
A05-A-1 | black, grey | 168 | 89 | 38.8 | 131.6 | 76.6 | 30 | |||||||||
A05-A-2 | black, grey | 168 | 89 | 38.8 | 131.6 | 76.6 | 35 | |||||||||
A05-A-3 | black, grey | 168 | 89 | 38.8 | 131.6 | 76.6 | 40 | |||||||||
A05-A-4 | black, grey | 168 | 89 | 38.8 | 131.6 | 76.6 | 45 | |||||||||
A05-A-5 | black, grey | 168 | 89 | 38.8 | 131.6 | 76.6 | 50 | |||||||||
A05-A-6 | black, grey | 168 | 89 | 38.8 | 131.6 | 76.6 | 55 | |||||||||
A05-A-7 | black, grey | 168 | 89 | 38.8 | 131.6 | 76.6 | 60 | customizable | ||||||||
A05-A-8 | black, grey | 168 | 89 | 38.8 | 131.6 | 76.6 | 65 | customizable | ||||||||
A06-A Type Specification Sheet All sizes can be customized | ||||||||||||||||
Product model | Regular color | External Dimensions (mm) | Internal Dimensions (mm) | Remark | ||||||||||||
A06-A-1 | black, grey | 178 | 119 | 38.8 | 141.6 | 106.6 | 30 | |||||||||
A06-A-2 | black, grey | 178 | 119 | 38.8 | 141.6 | 106.6 | 35 | |||||||||
A06-A-3 | black, grey | 178 | 119 | 38.8 | 141.6 | 106.6 | 40 | |||||||||
A06-A-4 | black, grey | 178 | 119 | 38.8 | 141.6 | 106.6 | 45 | |||||||||
A06-A-5 | black, grey | 178 | 119 | 38.8 | 141.6 | 106.6 | 50 | |||||||||
A06-A-6 | black, grey | 178 | 119 | 38.8 | 141.6 | 106.6 | 55 | |||||||||
A06-A-7 | black, grey | 178 | 119 | 38.8 | 141.6 | 106.6 | 60 | customizable | ||||||||
A06-A-8 | black, grey | 178 | 119 | 38.8 | 141.6 | 106.6 | 65 | customizable | ||||||||
A07-A Type Specification Sheet All sizes can be customized | ||||||||||||||||
Product model | Regular color | External Dimensions (mm) | Internal Dimensions (mm) | Remark | ||||||||||||
A07-A-1 | black, grey | 194 | 124 | 38.8 | 151.6 | 116.6 | 30 | |||||||||
A07-A-2 | black, grey | 194 | 124 | 38.8 | 151.6 | 116.6 | 40 | |||||||||
A07-A-3 | black, grey | 194 | 124 | 38.8 | 151.6 | 116.6 | 50 | |||||||||
A07-A-4 | black, grey | 194 | 124 | 38.8 | 151.6 | 116.6 | 60 | |||||||||
A07-A-5 | black, grey | 194 | 124 | 38.8 | 151.6 | 116.6 | 70 | |||||||||
A07-A-6 | black, grey | 194 | 124 | 38.8 | 151.6 | 116.6 | 80 | customizable | ||||||||
A07-A-7 | black, grey | 194 | 124 | 38.8 | 151.6 | 116.6 | 90 | customizable | ||||||||
A07-A-8 | black, grey | 194 | 124 | 38.8 | 151.6 | 116.6 | 100 | customizable | ||||||||
A08-A Type Specification Sheet All sizes can be customized | ||||||||||||||||
Product model | Regular color | External Dimensions (mm) | Internal Dimensions (mm) | Remark | ||||||||||||
A08-A-1 | black, grey | 204 | 129 | 38.8 | 161.6 | 116.6 | 30 | |||||||||
A08-A-2 | black, grey | 204 | 129 | 38.8 | 161.6 | 116.6 | 40 | |||||||||
A08-A-3 | black, grey | 204 | 129 | 38.8 | 161.6 | 116.6 | 50 | |||||||||
A08-A-4 | black, grey | 204 | 129 | 38.8 | 161.6 | 116.6 | 60 | |||||||||
A08-A-5 | black, grey | 204 | 129 | 38.8 | 161.6 | 116.6 | 70 | |||||||||
A08-A-6 | black, grey | 204 | 129 | 38.8 | 161.6 | 116.6 | 80 | customizable | ||||||||
A08-A-7 | black, grey | 204 | 129 | 38.8 | 161.6 | 116.6 | 90 | customizable | ||||||||
A08-A-8 | black, grey | 204 | 129 | 38.8 | 161.6 | 116.6 | 100 | customizable | ||||||||
Product application field
Product application field
2、Mechanical instrument，
3、Vehicle terminal，
4、Electronic appliances；
5、medical equipment；
6、Rail transit；
7、Digital communications；
8、Auto industry；
9、Industrial interconnection；
10、Various other fields ......
Production Process
Product customization process
Cooperation Process
1、Sign the purchase contract
make prepayments for products or moulds;
make prepayments for products or moulds;
2、 Drawing design
Customers provide drawings or PCB boards, and general product design can be completed within two days;
Customers provide drawings or PCB boards, and general product design can be completed within two days;
3、 Drawing confirmation
Provide 2D drawings for customer confirmation. If the drawings do not meet the requirements, you can continue to revise;
Provide 2D drawings for customer confirmation. If the drawings do not meet the requirements, you can continue to revise;
4、 Sample production
After the drawing is confirmed, the general sample will be completed within 7~10 days;
5、Sample delivery
If there is any problem with the sample, the company will redo it for free. If the customer needs to modify, the sample fee needs
to be charged;
If there is any problem with the sample, the company will redo it for free. If the customer needs to modify, the sample fee needs
to be charged;
6、Batch manufacturing
After the sample is confirmed, mass production will start;
After the sample is confirmed, mass production will start;
7、Delivery
Pay the balance before delivery;
Pay the balance before delivery;
What is IP68?
IP is an acronym for Ingress Protection, and the IP protection rating system provides a way to classify products by the degree of
dust, water, and collision resistance of electrical equipment and packaging. This system was drafted by the International
Electrotechnical Association IEC (International Electro Technical Commission) and announced in IED529 (BS EN 60529:1992) Outer
Packaging Protection Class (IP code), which was also adopted as an American National Standard in 2004.
The IP protection level is composed of two numbers. The first number indicates the level of the electrical appliance being
dust-proof and preventing the intrusion of foreign objects. To avoid electric shock), the second number indicates the degree of
airtightness of the electrical appliance against moisture and water intrusion. The larger the number, the higher the protection
level.
dust, water, and collision resistance of electrical equipment and packaging. This system was drafted by the International
Electrotechnical Association IEC (International Electro Technical Commission) and announced in IED529 (BS EN 60529:1992) Outer
Packaging Protection Class (IP code), which was also adopted as an American National Standard in 2004.
The IP protection level is composed of two numbers. The first number indicates the level of the electrical appliance being
dust-proof and preventing the intrusion of foreign objects. To avoid electric shock), the second number indicates the degree of
airtightness of the electrical appliance against moisture and water intrusion. The larger the number, the higher the protection
level.
What do the numbers for IP68 mean?
The first digit after IP is dustproof
The first digit indicates how far the device is resistant to fine dust, or how well people are protected from hazards in a sealed
environment. Represents the level of preventing the entry of solid foreign objects, the highest level is 6:
Level 1, can block objects larger than 50mm, semi-naked state.
Level 2, preventing the intrusion of solid objects larger than 12mm and preventing human fingers from touching the internal parts.
Level 3, preventing the intrusion of solid objects larger than 2.5mm, preventing the intrusion of tools, wires or similar small
foreign objects with a diameter or thickness larger than 2.5mm and contacting internal parts.
Level 4: Prevent the intrusion of solid objects larger than 1.0mm, and prevent the intrusion of tools, wires or similar small
foreign objects with a diameter or thickness larger than 1.0mm and contact with internal parts.
Level 5, with good dustproof effect, dust will not cause equipment damage or a lot of accumulation.
Grade 6, completely dust-free, the connection port and other parts are completely sealed.
The second digit after IP: waterproof rating
The second digit indicates how waterproof the device is. Represents the level of water protection, the highest level is 8:
Level 0, no special protection.
Class 1, protection against water droplets. Water droplets falling vertically (such as condensation) will not cause damage.
Class 2, when tilted 15 degrees, it still prevents water droplets from immersing. When tilted from vertical to 15 degrees,
dripping water will not cause damage.
Class 3, prevents immersion of sprayed water. Rainproof or prevent damage caused by the intrusion of water sprayed in a direction
with an included angle of less than 60 degrees from the vertical.
Class 4, protection against splash water immersion. Prevent damage caused by water splashing from all directions.
Class 5, protected against immersion by water jets. Prevent damage caused by water intrusion from the nozzles from all directions.
Level 6, protection against large waves. It can prevent damage caused by the intrusion of large waves.
Grade 7, prevents water immersion when immersed in water. Immersion in water for a certain period of time or water pressure below
a certain standard can ensure that no damage is caused by immersion.
Class 8, preventing water immersion when sinking. Submersion under specified water pressure for extended periods of time ensures
no damage due to submersion.
The first digit indicates how far the device is resistant to fine dust, or how well people are protected from hazards in a sealed
environment. Represents the level of preventing the entry of solid foreign objects, the highest level is 6:
Level 1, can block objects larger than 50mm, semi-naked state.
Level 2, preventing the intrusion of solid objects larger than 12mm and preventing human fingers from touching the internal parts.
Level 3, preventing the intrusion of solid objects larger than 2.5mm, preventing the intrusion of tools, wires or similar small
foreign objects with a diameter or thickness larger than 2.5mm and contacting internal parts.
Level 4: Prevent the intrusion of solid objects larger than 1.0mm, and prevent the intrusion of tools, wires or similar small
foreign objects with a diameter or thickness larger than 1.0mm and contact with internal parts.
Level 5, with good dustproof effect, dust will not cause equipment damage or a lot of accumulation.
Grade 6, completely dust-free, the connection port and other parts are completely sealed.
The second digit after IP: waterproof rating
The second digit indicates how waterproof the device is. Represents the level of water protection, the highest level is 8:
Level 0, no special protection.
Class 1, protection against water droplets. Water droplets falling vertically (such as condensation) will not cause damage.
Class 2, when tilted 15 degrees, it still prevents water droplets from immersing. When tilted from vertical to 15 degrees,
dripping water will not cause damage.
Class 3, prevents immersion of sprayed water. Rainproof or prevent damage caused by the intrusion of water sprayed in a direction
with an included angle of less than 60 degrees from the vertical.
Class 4, protection against splash water immersion. Prevent damage caused by water splashing from all directions.
Class 5, protected against immersion by water jets. Prevent damage caused by water intrusion from the nozzles from all directions.
Level 6, protection against large waves. It can prevent damage caused by the intrusion of large waves.
Grade 7, prevents water immersion when immersed in water. Immersion in water for a certain period of time or water pressure below
a certain standard can ensure that no damage is caused by immersion.
Class 8, preventing water immersion when sinking. Submersion under specified water pressure for extended periods of time ensures
no damage due to submersion.
Certification
FAQ
Q1:How long can i get the sample?
3-5 days,10-15 days for bulk orders.Depends on your specific items,We can expedite for you.
Q2:How to control product quality?
First full size inspection—Mass production—Check process (3 hours sampling)
—100% Shipping random checks.
We have professional QC team,control the qulity during the mass production and inspect the completely goods before shipping.
Q3:What's kinds of information you need for quote?
Kindly please provide the product drawing in PDF,and will be better you can provde in STEP、DWG or IGS
Q4:OEM/ODM,or customer’s logo printed is available?
YES,OEM/ODM,customer’s logo is welcomed.
Q5:If we don’t have shipping forwarder in China,would you do this for us?
We can offer you best shipping line to ensure you can get the goods timely at best price.
3-5 days,10-15 days for bulk orders.Depends on your specific items,We can expedite for you.
Q2:How to control product quality?
First full size inspection—Mass production—Check process (3 hours sampling)
—100% Shipping random checks.
We have professional QC team,control the qulity during the mass production and inspect the completely goods before shipping.
Q3:What's kinds of information you need for quote?
Kindly please provide the product drawing in PDF,and will be better you can provde in STEP、DWG or IGS
Q4:OEM/ODM,or customer’s logo printed is available?
YES,OEM/ODM,customer’s logo is welcomed.
Q5:If we don’t have shipping forwarder in China,would you do this for us?
We can offer you best shipping line to ensure you can get the goods timely at best price.
Don't hesitate to contact us at anytime, no matter inquiry, TM message, via email or skype. If we are online,we will reply you at
once. Even if sometime we are not online because of time difference, we promise you will be replied within 8 hours.
We Recommend
New Arrivals
New products from manufacturers at wholesale prices
