ALIBABA.COM AKP-201 Cross Working Table FROM CHINA
US $5.00-$20.00
Precision Pneumatic Brake 4th Axis Cnc Rotary Table Cnc Machining Center Use Hydraulic Tool Clamping Fixture
- Category: Table >>>
- Supplier: Anhe Intelligent Equipment (dongguan) Co. Ltd.
Share on (1600536813615):
Product Overview
Description
Product Overview

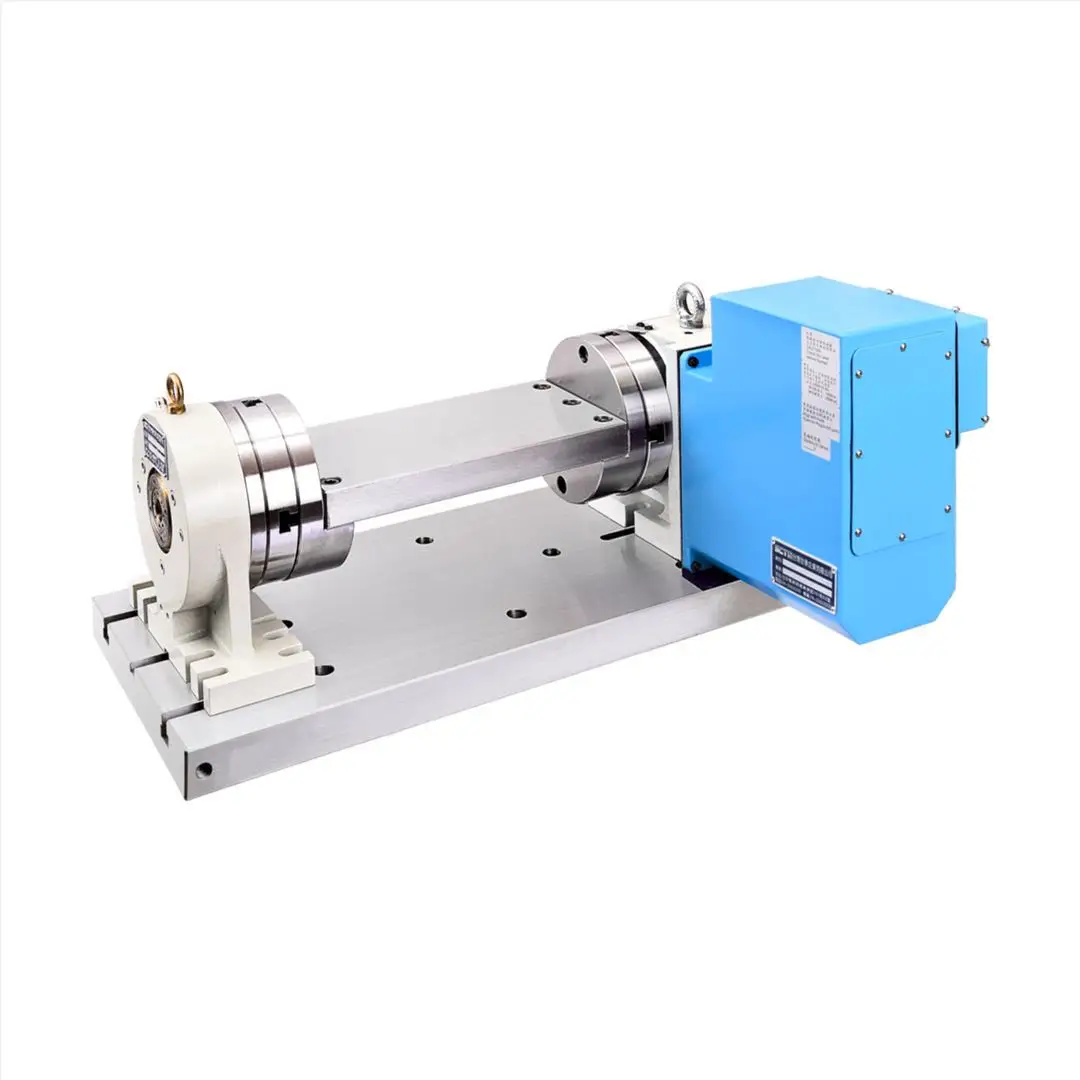

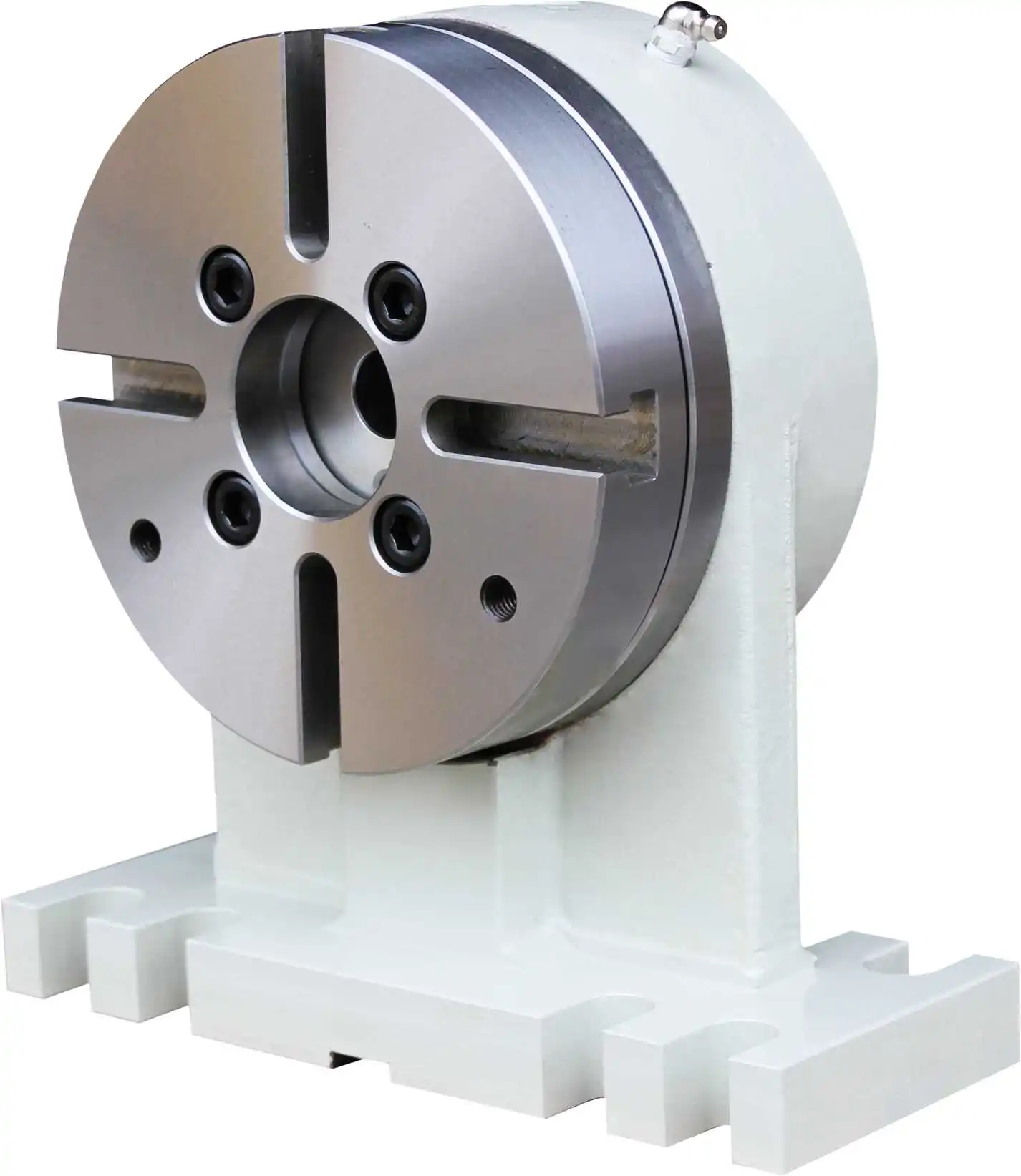

Precision Pneumatic Brake 4th Axis Cnc Rotary Table Cnc Machining Center Use Hydraulic Tool Clamping Fixture
This Rotary table major used in cnc drill&tap machine center ,cnc machine center etc
FEATURES AT A GLANCE
Compact dimension
Safety frame
Cnc control
Long service life
Versatility
Front elevation
3D back elevation
3D Front elevation
PRODUCT SPECIFICATIONS
Model | MD-170A |
Disc diameter | 170mm |
Spindle bore diameter | ∅50h7 |
Sindle cener through hole | ∅45h7 |
Horizontal center height | 221mm |
Center height | 135mm |
Width of T slot | 12h7 |
Width of mount key | 14h7 |
Locking force | 5 pneumatic/25 hydraulic |
Ambient temperature | 18 ~40° |
Mini division angle | 0.001° |
Gear ratio | 1/72 |
PRODUCT CONFIGURATION
Fanuc serve motor
Fanuc drive
Fanuc system connect cable
SALES AND SERVICE NETWORK
Successful Project
Solution for brother drill&tap machine
Solution for Ugint drill&tap machine
Solution for Fanuc drill& tap machine
SIMILAR PRODUCTS
FAQ
Q1:What's the lead time for the cnc rotary table ?
A1：We have 4th axis cnc rotary table in stock ,the 5th axis rotary table need more than 7 days.
Q2:Which system suit for the cnc rotary table ?
A2: Fanuc ,Mitsubishi,siemens,Haas, GSK,Syntec etc .
