Suin TFG3600 серия высокочастотный 1,5 ГГц AM/FM/FSK/PSK генератор радиочастотных сигналов с PLL и опцией измерителя частоты
- Category: Signal Generators >>>
- Supplier: Shijiazhuang,Suin,Instruments,Co.,Ltd.
Share on:
Product Overview
Description
Product Description
Features
Perfect combination of DDS and PLL techniques
Frequency upper limits to 1.5GHz
Higher level of frequency accuracy,up to 1ppm
Complete AM/FM/FSK/PSK modulation function

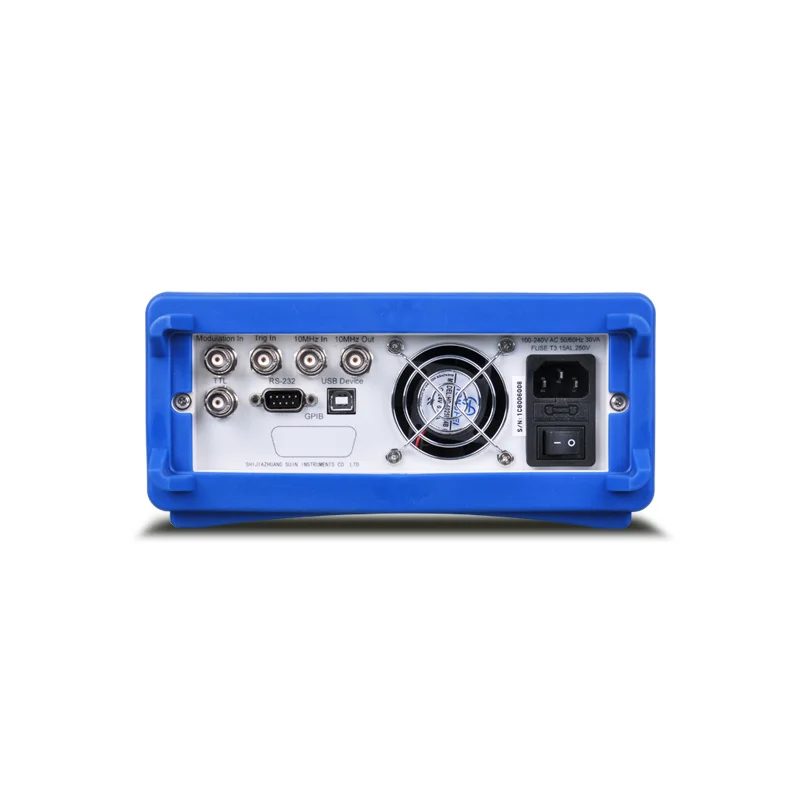

Standard communication interface:USB Device and RS-232
Frequency upper limits to 1.5GHz
Higher level of frequency accuracy,up to 1ppm
Complete AM/FM/FSK/PSK modulation function
Standard communication interface:USB Device and RS-232
Specification
CHA | ||||||||
TFG3605 | TFG3610 | TFG3615 | ||||||
Frequency | ||||||||
Range | Sine | 1μHz ~ 500MHz | 1μHz ~ 1000MHz | 1μHz ~ 1500MHz | ||||
Square | 1μHz ~ 80MHz | |||||||
Resolution | 1μHz (carrier frequency≤80MHz) | |||||||
1Hz (carrier frequency>80MHz) | ||||||||
Accuracy | ±1ppm, Frequency≥1.0kHz,18ºC to 28ºC | |||||||
±50ppm, Frequency<1.0kHz,Min,output 1μHz | ||||||||
Sine Output Level | ||||||||
Range | Freq≤500MHz | -127dBm ~ +13dBm(-127dBm ~ -117dBm typical) | ||||||
Freq≤1000MHz | -110dBm ~ +13dBm(-100dBm ~ -110dBm typical) | |||||||
Freq≤1500MHz | -105Bm ~ +10dBm(-100dBm ~ -105dBm typical) | |||||||
Resolution | 0.1dB | |||||||
Accuracy | Freq≤300MHz | setting ±1dBm (output level +13dBm~-100dBm) | ||||||
Freq≤1500MHz | setting ±2.2dBm (output level +13dBm~-80dBm, setting value ±1.5dBm typ.) | |||||||
setting ±2.7dBm (output level -80dBm~-100dBm,setting value ±2.0dBm typ.) | ||||||||
Stationary Wave Ratio (SWR) | < 1.8(output level≤0dBm) | |||||||
Spectral Purity | ||||||||
Harmonic | < -33dBc (output level≤4dBm,typ.) | |||||||
Non-Harmonic | < -40dBc (output level≤4dBm, deviation CF≥5kHz) | |||||||
Sub-Harmonic | < -40dBc (output level≤4dBm) | |||||||
Residual FM | < 100Hz(BW: 0.3 ~ 3kHz, RMS < 120MHz) | |||||||
Square | ||||||||
Rise/Fall Edge Time | ≤15ns | |||||||
Overshoot | ≤5% | |||||||
Modulation | ||||||||
Type | AM,FM, FSK, PSK | |||||||
External Modulation Input | Voltage Range: 5Vfull scale,input impedance:10kΩ,Frequency: DC to 10kHz | |||||||
Frequency Sweep | ||||||||
Sweep Rate | 1ms ~ 800s Linear (carrier ≤80MHz) | |||||||
100ms ~ 800s Logrithm(carrier ≤80MHz) | ||||||||
Step Time | 50ms ~ 10s Linear (carrierundefined80MHz) | |||||||
Burst(Carrier Frequency≤80MHz) | ||||||||
Burst Count | 1~10000 cycles | |||||||
Interval | 0.1ms to 800s | |||||||
CHB | ||||||||
Frequency | ||||||||
Range | 1μHz ~ 10MHz | |||||||
Resolution | 1μHz | |||||||
Accuracy | ±1ppm, Frequency≥1.0kHz,18ºC to 28ºC | |||||||
±50ppm, Frequency<1.0kHz,Min. output 1μHz | ||||||||
Waveform | ||||||||
Type | Sine, Square, Ramp, Pulse, Sinc, Exp, Noise, DC | |||||||
Square | Rise/Fall Time | ≤50ns | ||||||
Duty Cycle | 0.01% ~ 99.99% | |||||||
Pulse | Rise/Fall Time | ≤50ns | ||||||
Pulse Width | 20ns ~ 20s | |||||||
Ramp | Symmetry | 0.0% ~ 100.0% | ||||||
Output | ||||||||
Amplitude | 1mVpp to 10Vpp(50Ω), 2mVpp to 20Vpp(High Z) | |||||||
Offset | ±5Vpk ac+dc(50Ω), ±10Vpk ac+dc(High Z) | |||||||
Resolution | 5mVpp | |||||||
Accuracy | ±(1% of setting + 10mVpp)(1kHz Sine) | |||||||
Flatness | ± 0.5dB(1MHz sine,1Vpp) | |||||||
General Characteristics | ||||||||
Power | AC100V~240V, 50/60Hz,50VA Max | |||||||
Dimension & Weight | 256×106×386 mm, 4.2 kg | |||||||
