Factory price Medical Digital Stationary Radiography High Frequency DR x ray
- Category: >>>
- Supplier: Nanjing Healicom Medical Equipment Co. Ltd.
Share on (1600537356624):
Product Overview
Description
Products Description

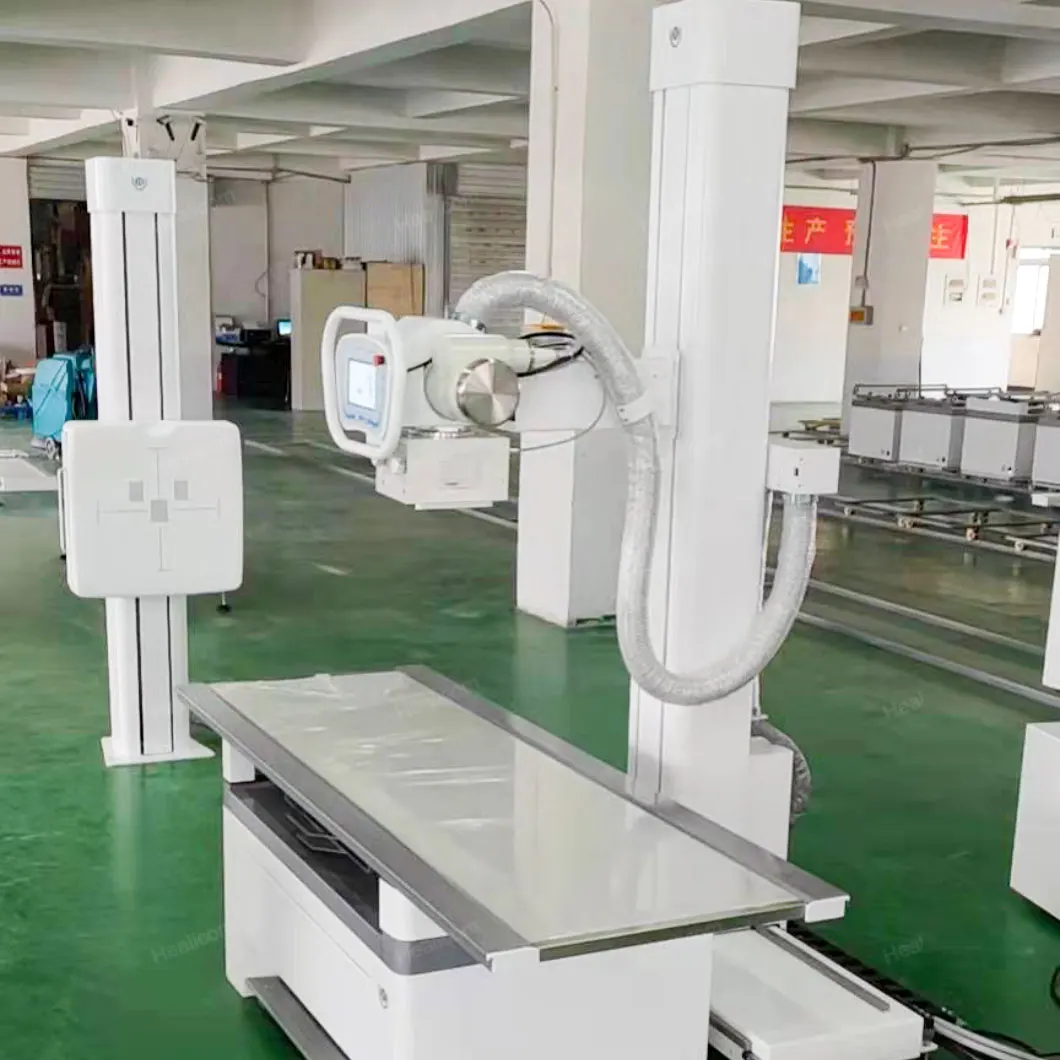

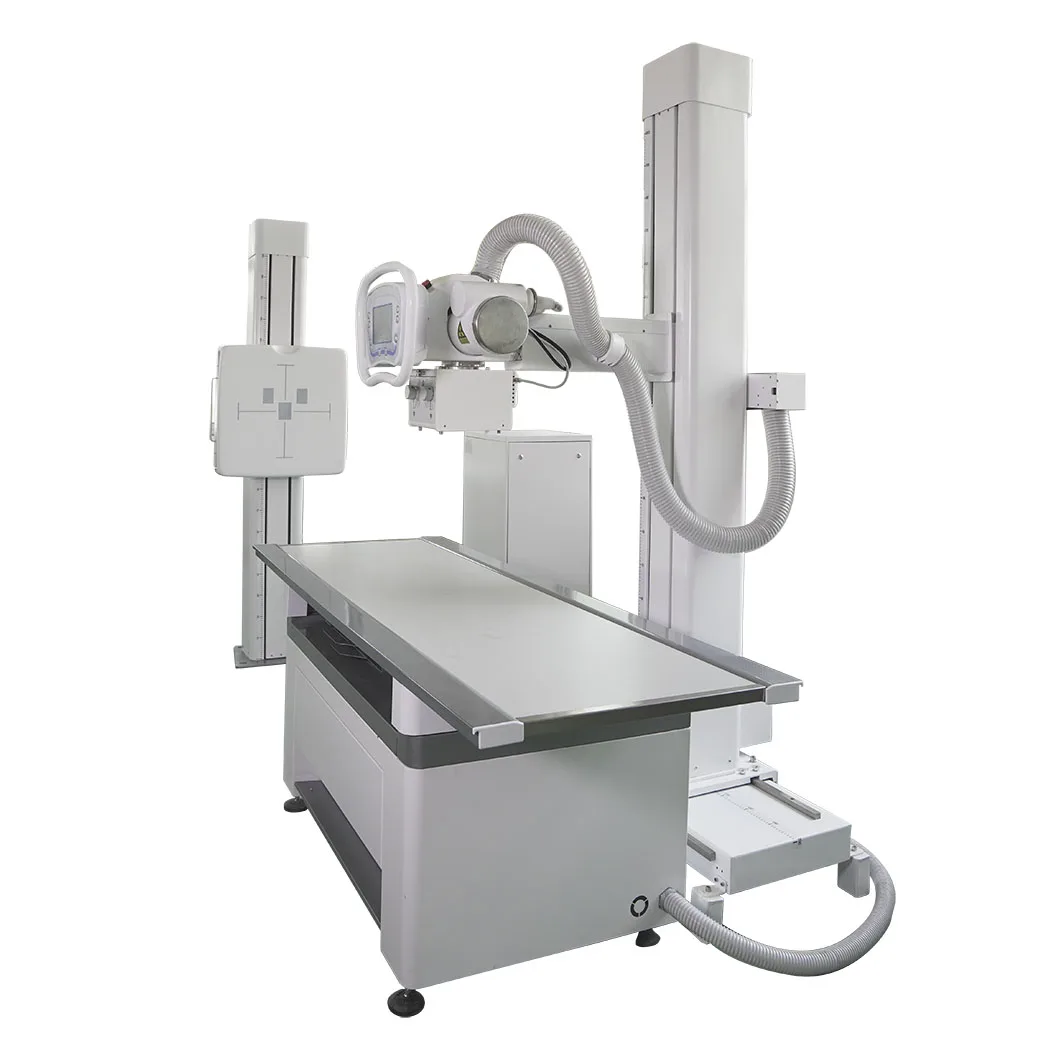

HX50R-E High Frequency 50KW Stationary Digital Radiography X Ray Machine
Technical Specifications | ||

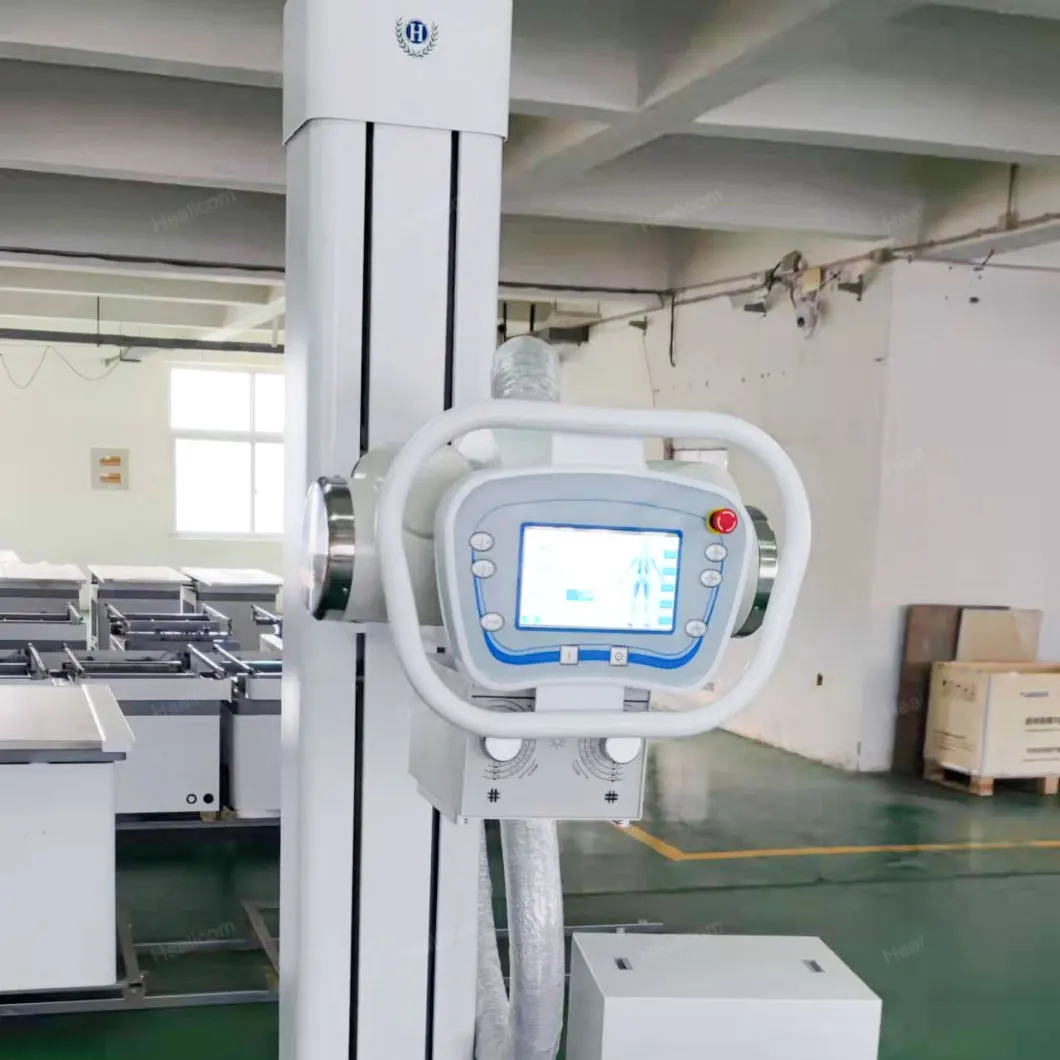

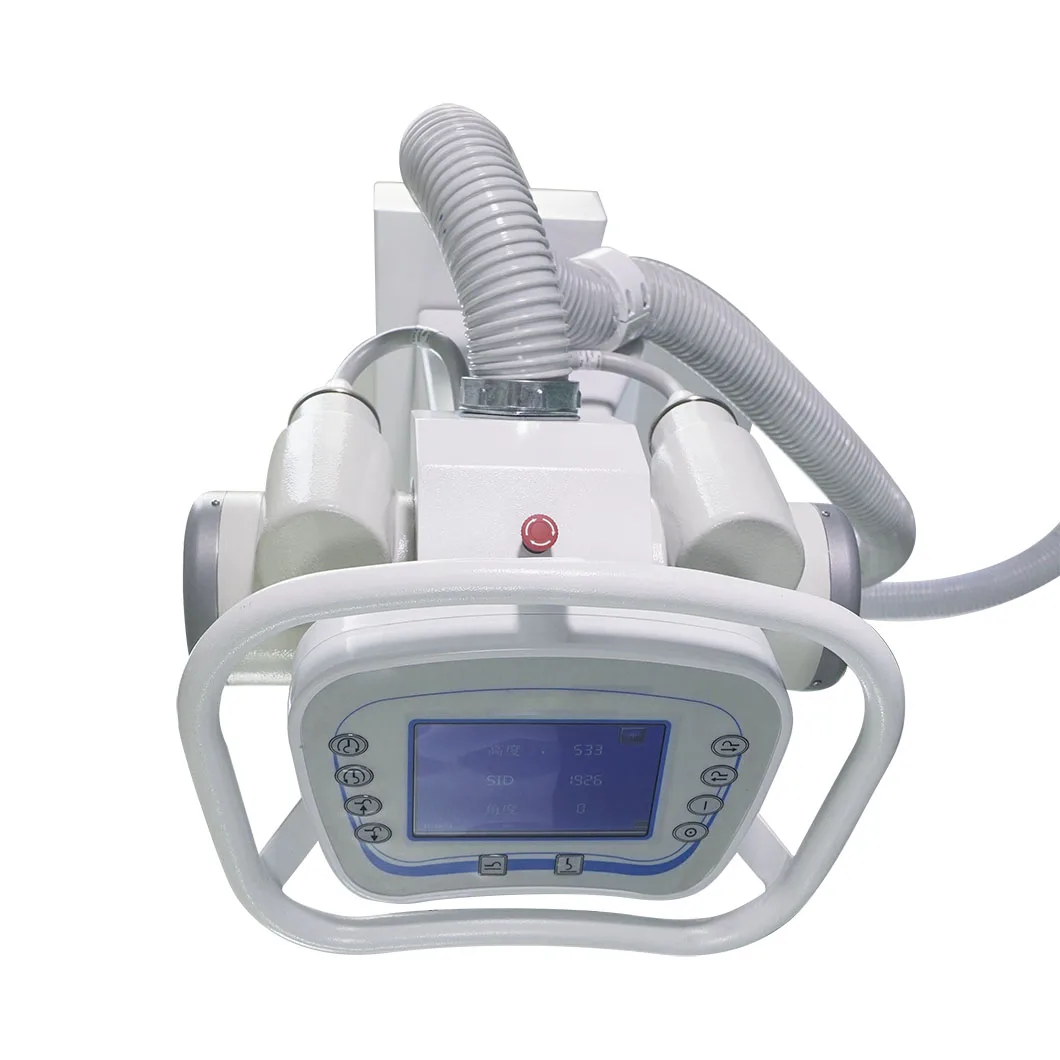

X-ray tube assembly | ||
Focus design | 0.6mm／1.2mm | |
Focus power | 30/50kW | |
Anode heat capacity | 190kHU | |
Beam limiter | ||
Dimensions | 250mm×224mm×250mm | |
Radiation field | maximum when SID=56cm: 43cm×43cm minimum: 0cm×0cm | |
Manipulation mode | manual | |
Frame | ||
Column height | 2230mm | |
Column left and right movement stroke | 1500mm | |
Move up and down | 1400mm | |
Ball tube rotation range | ﹣90°～0°～+90° | |

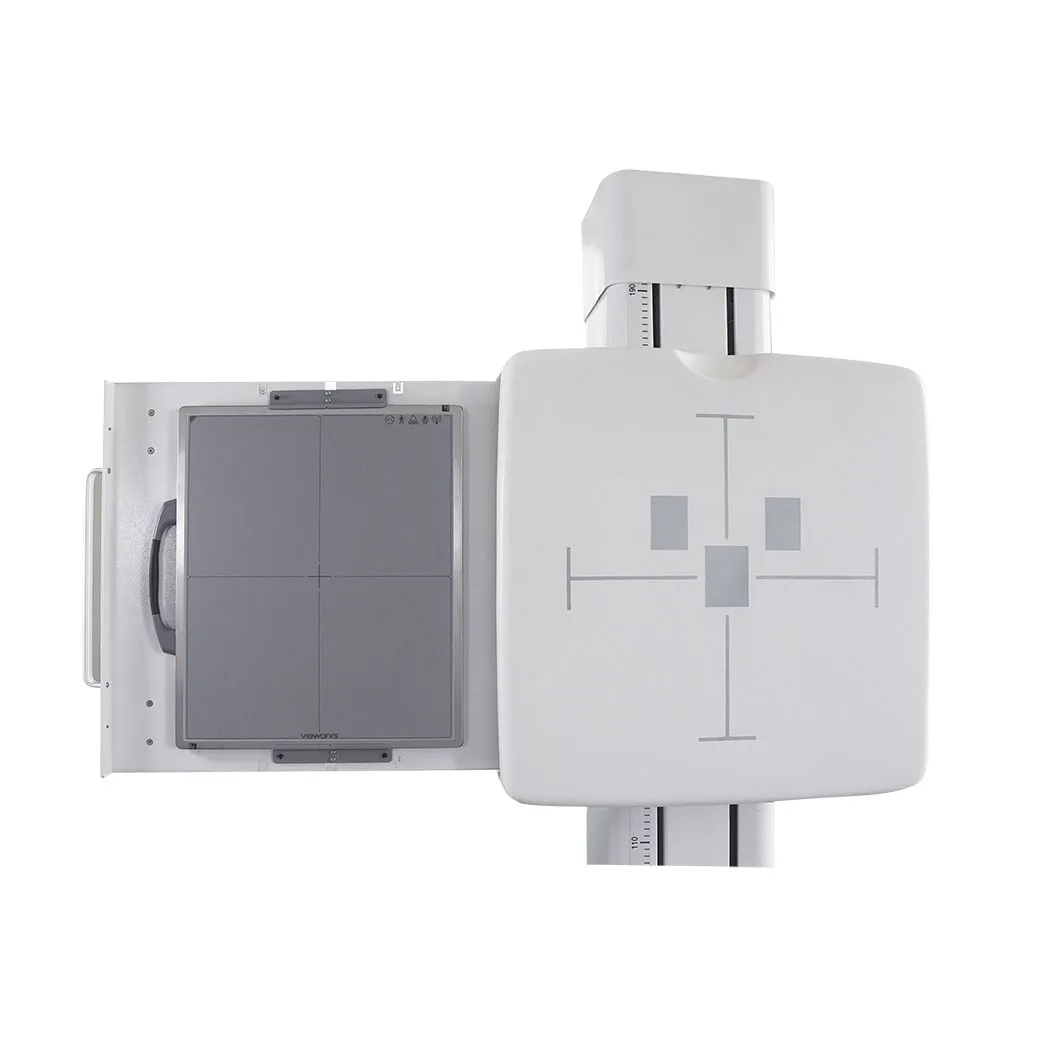

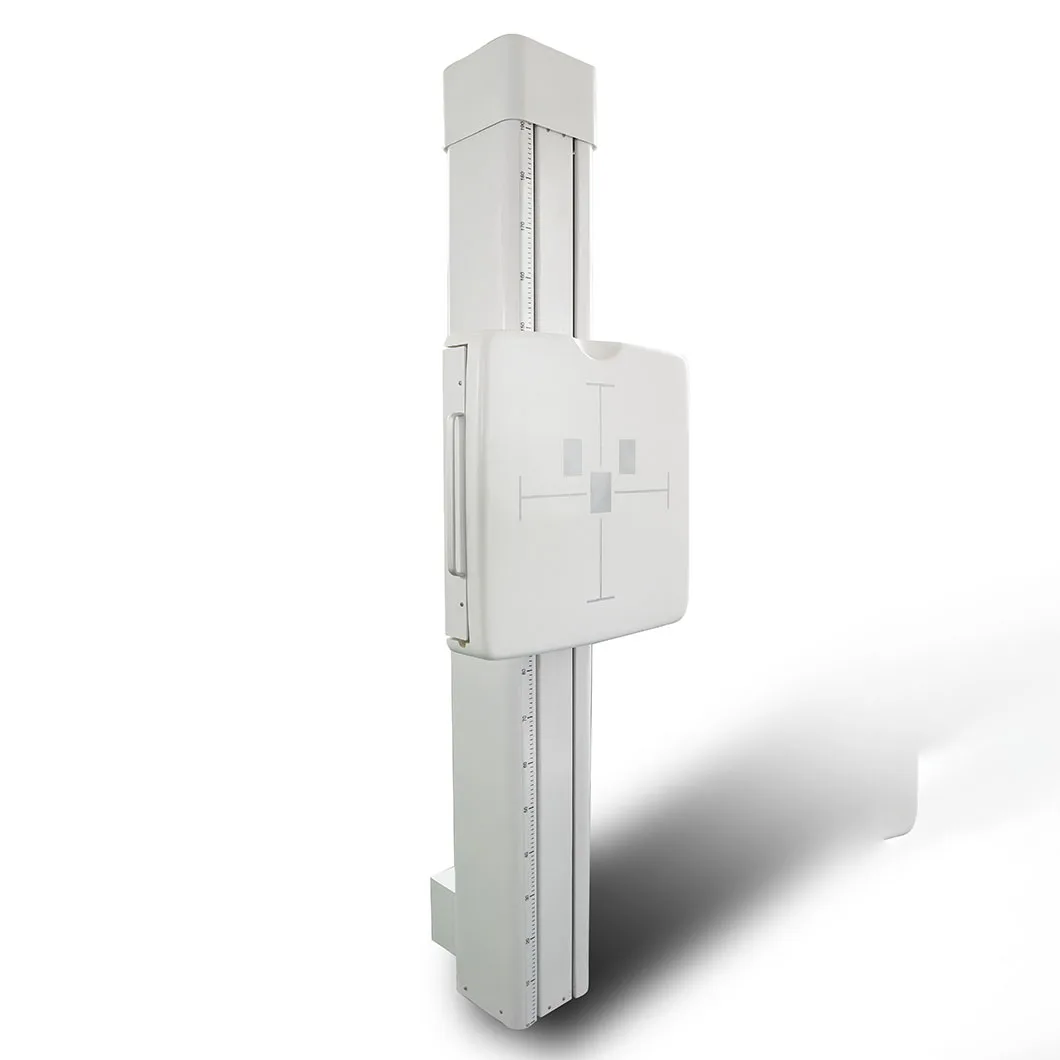

Chest frame height | 2100mm | |
Lifting stroke | 1400mm | |
High frequency and high voltage generating device | ||
Power | 50kW | |
High voltage inverter frequency | 50kHz | |
Photography | kV: 40~150kV mA range: 10~500mA | |
Exposure time | 1ms~10s mAs: 0.1mAs~630mAs | |
Power condition | three-phase 380VAC | |

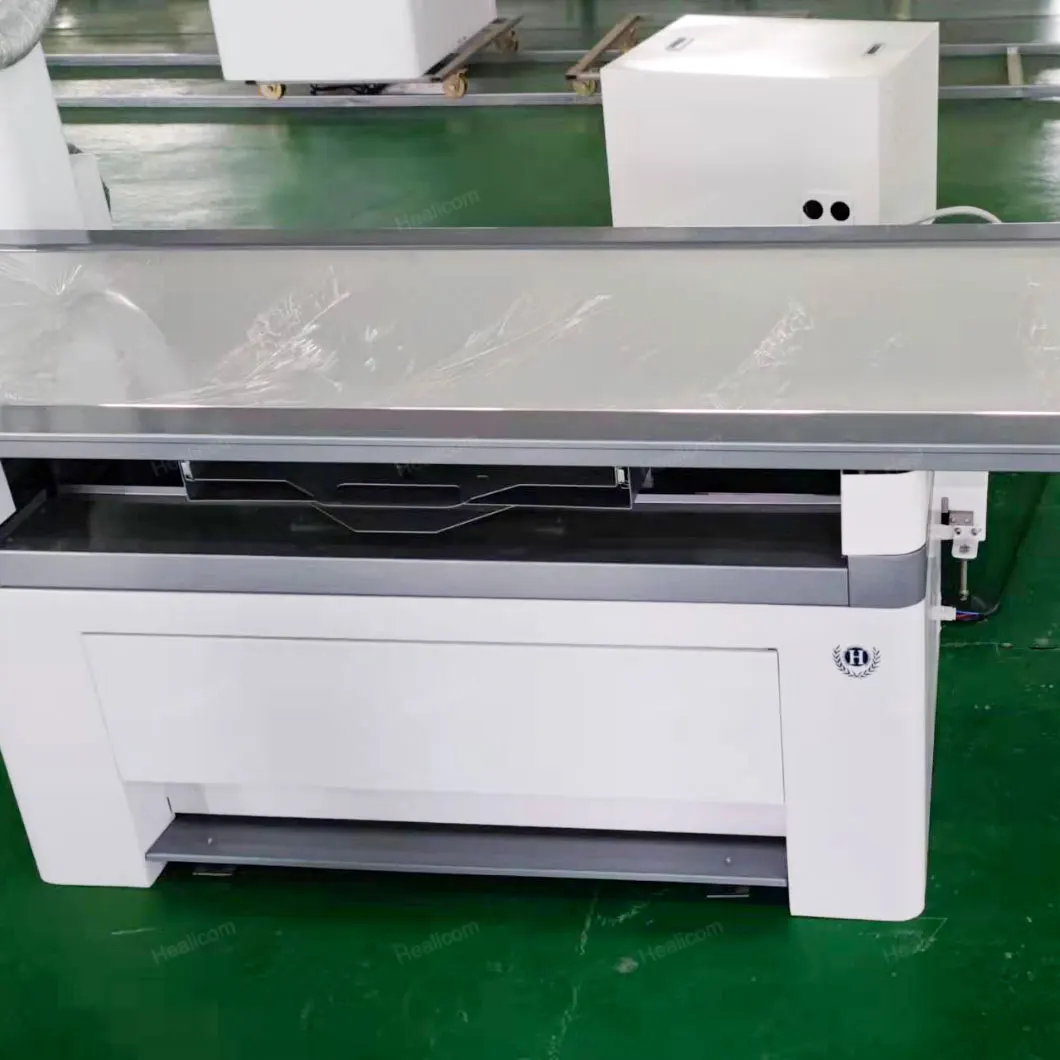

Mobile photography bed | ||
Bed size: length 2000mm, width 730mm, height 680mm The bed board moves forward and backward 200mm, about 720mm | ||

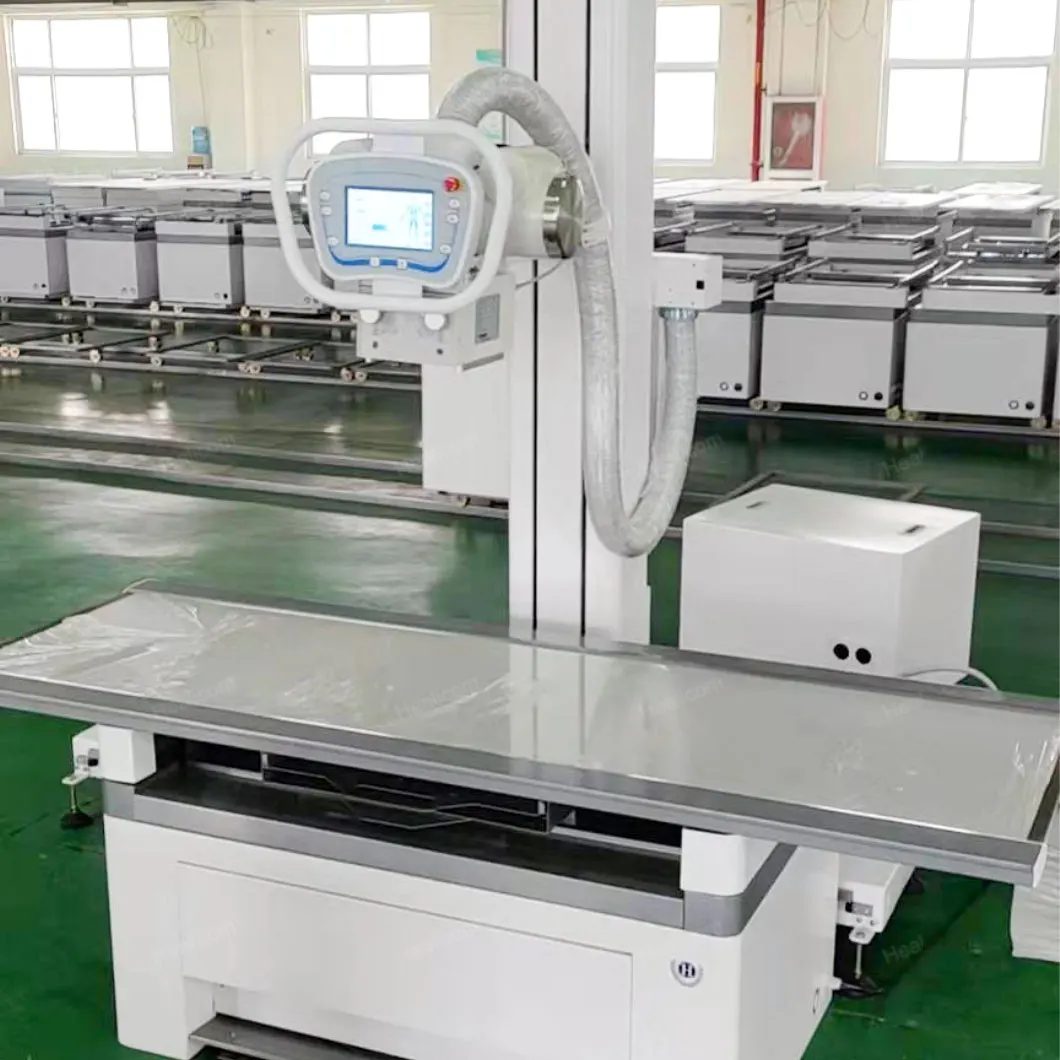

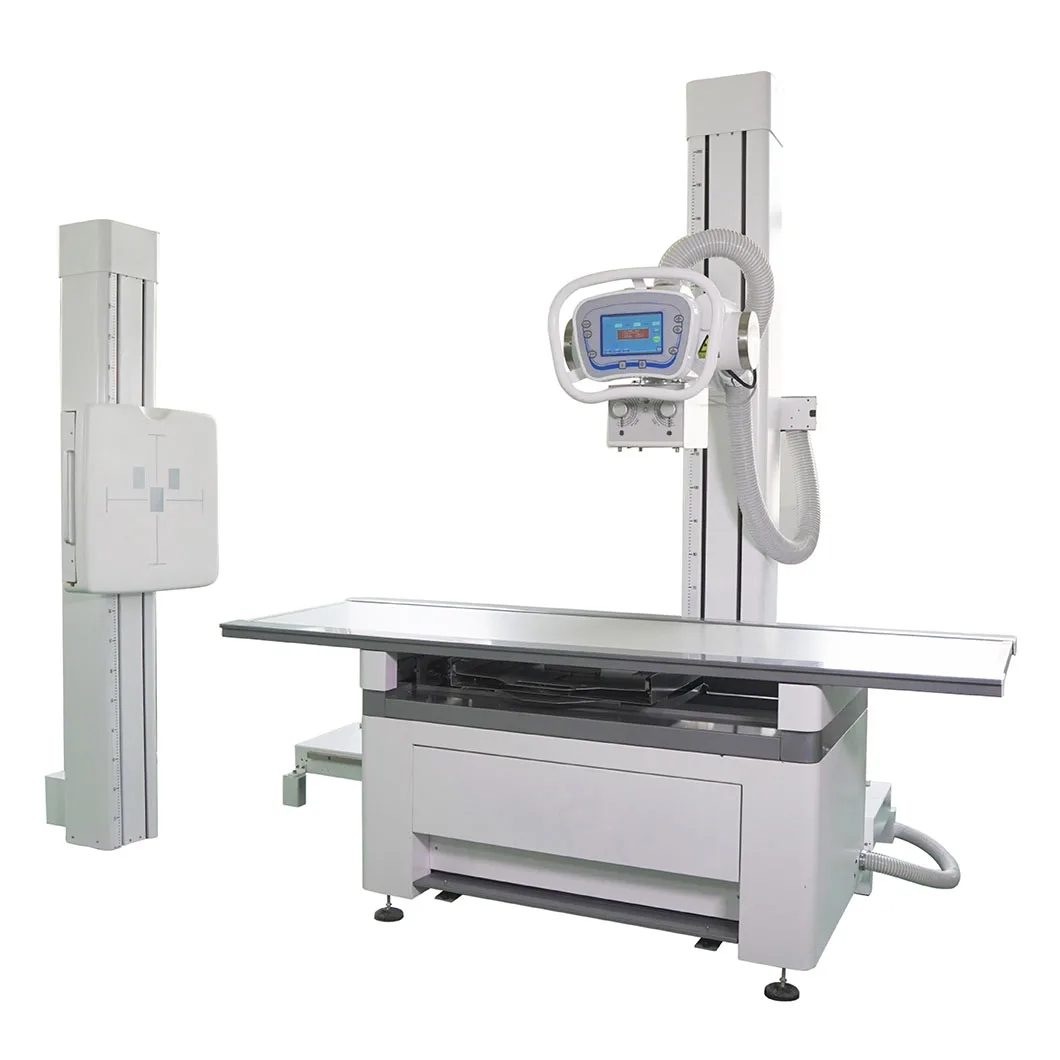

Product Image
Workshop
Related Products
Customer Feedbacks
Company Profile
FAQ
1. What about the price level?
We are confident that our prices are competitive compared with those at the same quality level, since we have stayed in this filed more than 20 years. And we always adhere to the principle of provide top quality products with competitive prices. We have already established our good fame in many countries, especially in Africa, Middle East, European, Asia and South American through year after year efforts.
2. Why we find some prices are very high compared with some other supplier, and from the picture or it's model number, all looks the same?
As China is still a developing country, there are only a few products with patent rights, and copy products I spread very fast in the market. Of course, the prices of those copy products with cheap material and less quality control are relatively cheaper.
3. What is time of delivery?
Since our products are produced according to each specific order, the delivery period will be 15 days after confirmation of order. If it is small or sample order, please do check with us about whether we have ready goods in stock to make delivery as soon as possible.
4. What about quality assurance?
We offer one year warranty period beginning from the time of shipment for medical equipment, Per minor problems, we can provide free spare parts for replacements, Per serious problems, we can make replacement of free charge.
5. What is payment terms?
T/T, Credit Card, L/C, Western Union, PayPal, MoneyGram.
We are confident that our prices are competitive compared with those at the same quality level, since we have stayed in this filed more than 20 years. And we always adhere to the principle of provide top quality products with competitive prices. We have already established our good fame in many countries, especially in Africa, Middle East, European, Asia and South American through year after year efforts.
2. Why we find some prices are very high compared with some other supplier, and from the picture or it's model number, all looks the same?
As China is still a developing country, there are only a few products with patent rights, and copy products I spread very fast in the market. Of course, the prices of those copy products with cheap material and less quality control are relatively cheaper.
3. What is time of delivery?
Since our products are produced according to each specific order, the delivery period will be 15 days after confirmation of order. If it is small or sample order, please do check with us about whether we have ready goods in stock to make delivery as soon as possible.
4. What about quality assurance?
We offer one year warranty period beginning from the time of shipment for medical equipment, Per minor problems, we can provide free spare parts for replacements, Per serious problems, we can make replacement of free charge.
5. What is payment terms?
T/T, Credit Card, L/C, Western Union, PayPal, MoneyGram.
