Product Overview

Description



\t\t\t\t\t\t\t\t\tProduct Description \t\t\t\t\t\t\t

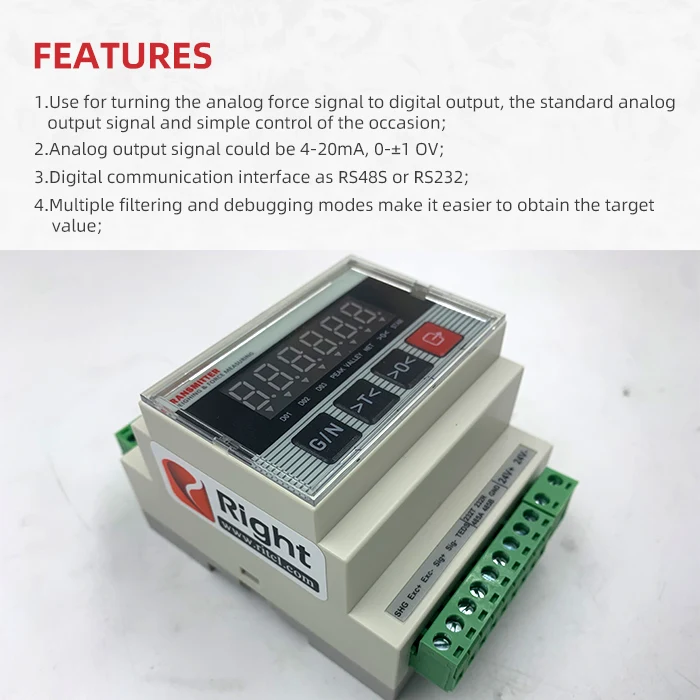

Introduction

• \tUse for turning the analog force signal to digital output, the standard analog output signal and simple control of the occasion
• \tAnalog output signal could be 4-20mA, 0-±1 OV
• \tDigital communication interface as RS48S or RS232
• \tMultiple filtering and debugging modes make it easier to obtain the target value
• \tPower supply and signal are isolated, strong anti-interference, more stable data acquisition and output
• \tLED display, showing real-time weight value, peak value, etc.
• \tComparable output, peak capture, peak comparison output
• \tNon-weight calibration, TEDS automatic calibration

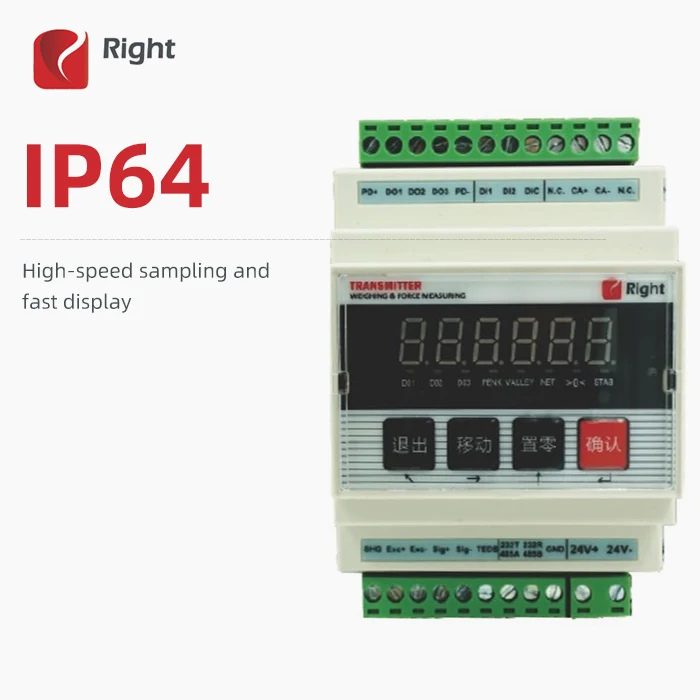

• \tHigh-speed sampling and fast display
• \tDC24V power supply, voltage± 10%, more secure and stable
• \t35mm standard industrial DIN rail




Specification




- Parameter -



Specifications
Display
LED screen
Output specification
±10V/0—10V/4—20mA
Output linear
<0.01%
Comprehensive accuracy
better than 0.1%
Accept sensor
±30mV
Input load
1-8 pieces load cells
Temp.effect on Zero
≤10μV/℃
Nominal range of excitation voltage
5VDC
Power Supply
24±10%VDC
Power waste
≤8W
Operation temp range
-40~85℃
Material
Plastic shell

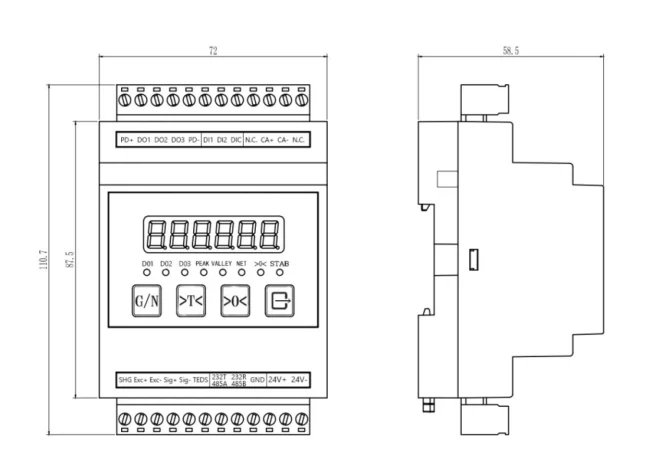

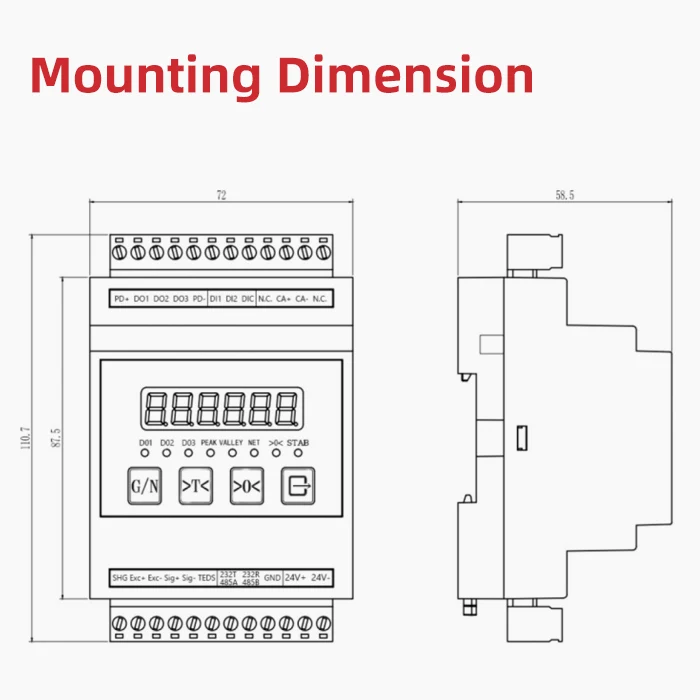

- Mounting Dimension -
