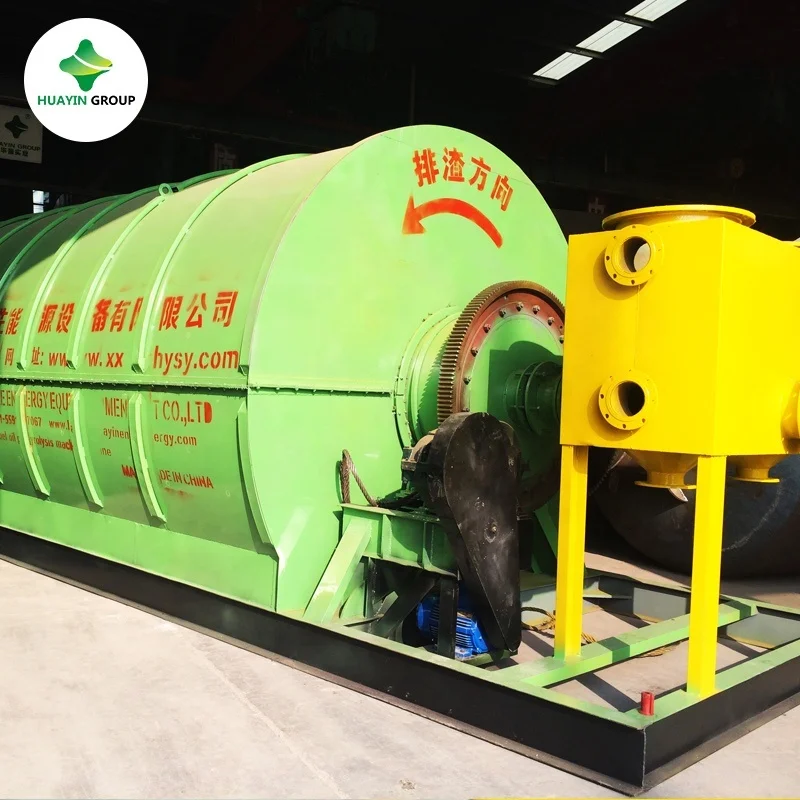

50 ton waste plastic to oil pyrolysis plant for producing diesel fast pyrolysis equipment
- Category: Environmental Machinery >>>
- Supplier: Xinxiang Huayin Renewable Energy Equipment Co. Ltd.
Share on (1600538508484):
Product Overview
Description
50 ton waste plastic to oil pyrolysis plant for producing diesel fast pyrolysis equipment
With the increasing awareness of environmental protection in the world, the harmless and resourceful disposal of waste tires/plastic has become an important trend. The waste plastic /tyre recycle to fuel oil machinery is designed to process the waste into valuable products -industrial fuel oil, carbon black, and steel wire through catalytic cracking technology. This green technology has created good economic and social benefits.

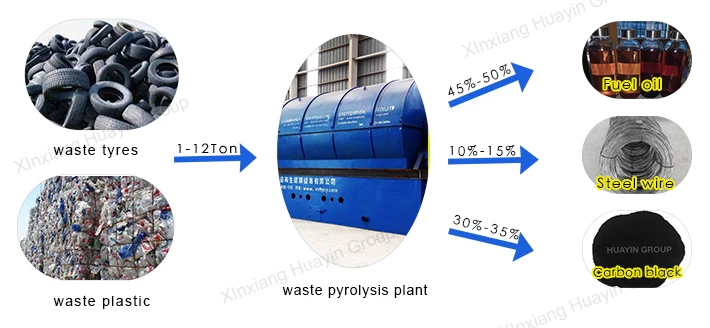

Input &output
Output products and usage
1. Pyrolysis oil
- Being directly used in industrial or boiler heating (such as cement factories, steel factories, glass factories, etc.) as an alternative to fuel oil.
-Being refined into non-standard diesel for use in trucks, tractors, etc.
Note: The oil directly coming out waste tyre pyrolysis plants is heavy fuel oil, which can be used directly as industrial fuel. If you need to get diesel, you need a set of waste oil distillation equipment.
2. Carbon black
- It can be pressed into pellets for use in industrial heating.
- It can be ground and refined into different standards.
3. Steel wire
- Being sold to to the waste collection centers.
- Being sold directly to steel smelters for re-smelting.

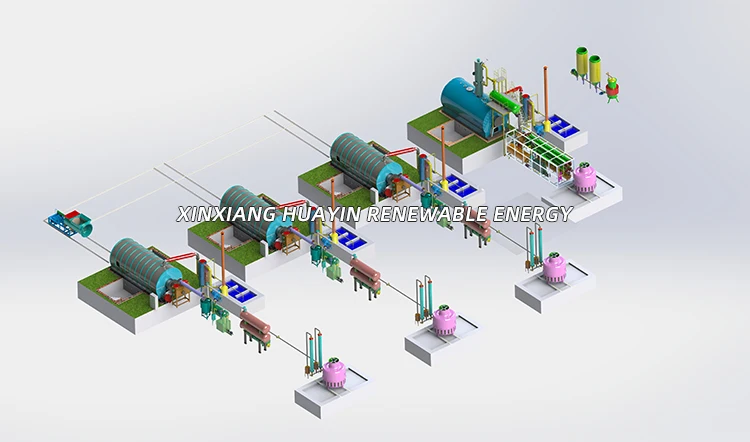

Working process
1. Put raw materials into reactor by auto-feeder, then heat the reactor. Do not stop heating the reactor when the temperature reaches nearly 250 degree Celsius, waste tyre will be transferred to oil gas.
2. The oil gas will be cooled by condenser to liquid oil then collected by oil tank.
3. The exhaust gas which can not be cooled to liquid oil will be recycled to heat the reactor. Smoke produced during processing can achieve national emission standard through dual desulfurization and dusting removal device.
4. After oil producing finished , give 3 hours for cooling the reactor,after that carbon black will be discharged automatically.
Main Components:
A. Safety. We treat safety as the first important thing in production.
1. Two devices to avoid backfire in production: oil-water separator and anti-back fire device.
2. Vacuum device makes the reactor work under ordinary pressure or negative pressure.
3. Temperature monitoring and Pressure gauge to monitor the pressure. If the pressure goes above a certain level, the bell will alarm and the safety valve will release the pressure automatically.
B. Environmental protection
1. The flue gas (caused by burning fuel to heat the reactor) will be purified and cooled by a powerful ceramic packing dust removal device, then can be released into the air through the chimney.
2. Carbon black will be discharged out in sealed condition to avoid pollution.
C. Energy saving
1. The flame path is designed as a spiral so that the quantity of heat can be fully used.
2. The syngas is recycled to heating furnace for burning, thus saving your heating fuel.
3. The insulation cover is formed by 3 layers: steel plate, rock wool, and refractory cement. Excellent thermal insulation effect helps save fuel.
Technical parameter of waste plastic pyrolysis machine
Model | HY-05 | HY-08 | HY-10 | HY-15 |
Raw material | Waste rubbers/tyres/plastic | Waste rubbers/tyres/plastic | Waste rubbers/tyres/plastic | Waste rubbers/tyres/plastic |
Daily Handling capacity | 5 tons | 8 tons | 10 tons | 12 tons |
Working pressure | Normal pressure | Normal pressure | Normal pressure | Normal pressure |
Main engine rotating speed | 0.4R /min | 0.4R /min | 0.4R /min | 0.4R /min |
Power | 15KWH | 15KWH | 15KWH | 15KWH |
Cooling Mode | Water | Water | Water | Water |
Floor Area | 200m2 | 250m2 | 300m2 | 300m2 |
Heating Mode | Direct | Direct | Direct | Direct |
Oil Yield | 45%-50% | 45%-50% | 45%-50% | 45%-50% |
Noise dB (A) | <=85 | <=85 | <=85 | <=85 |
Machine dimension(mm) | D2200*L5000 | D2200*L6600 | D2800*L6600 | D2800*L8000 |
Working Mode | Intermittence | Intermittence | Intermittence | Intermittence |

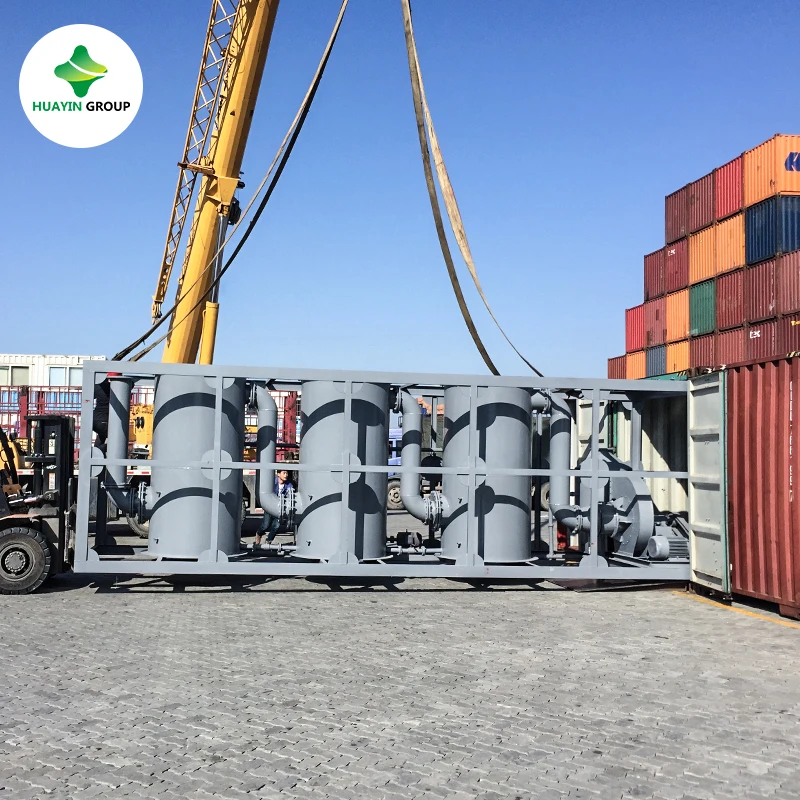

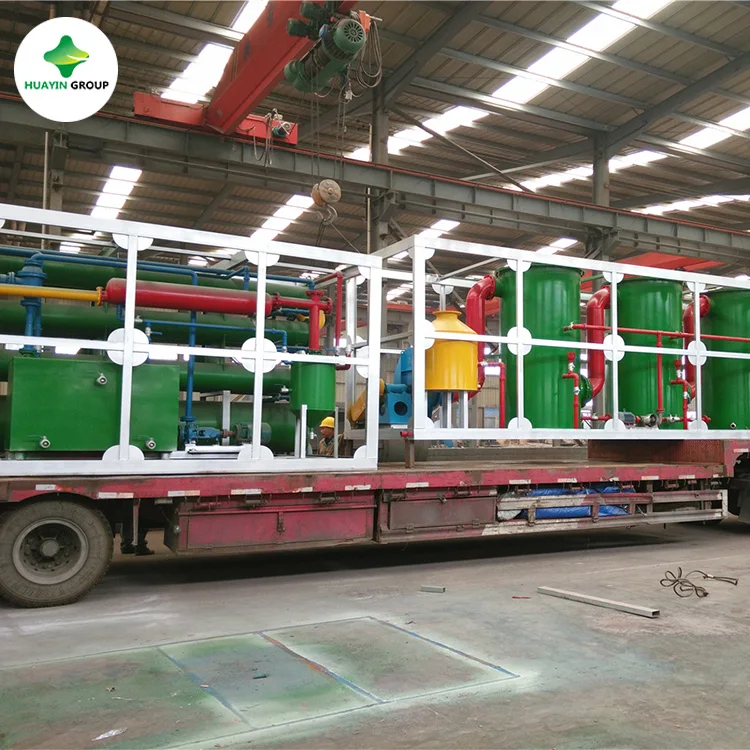

Packaging & Shipping
1. Delivery time- It will be 10-15 days after we receive the deposit.
2. Warranty-The warranty period for reactor and other parts except spare parts is 1 year.
3. Installation and Training-Our company will send one technician for each set of machine for guiding your installation, testing the machine and training your worker.

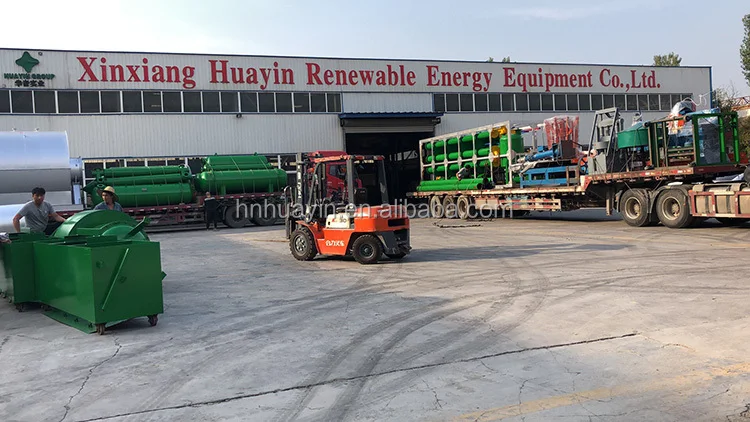

Company Introduction
We are specialized in manufacturing waste tire/plastic/rubber recycling machine, pyrolysis machine and oil distillation machine,oil refining machines, tire oil/plastic oil/engine oil/ship oil refining plants. We have three workshops producing every parts, professional
laboratory improving technology and demo plant which could show customers running machine. And experienced engineers guarantee
installation of our equipments and good after -sale service as our company starts from 1993.
FAQ
1. What is the price of one complete set of waste pyrolysis plants?
The price of the pyrolysis plant depends on the configuration, and capacity, please contact us to get the latest quotation.
2. What payment methods do you accept?
A: We can accept T/T, L/C, Western Union.
3. Does waste pyrolysis plants pollute the environment?
With a powerful de-dusting system, the smoke will be desulfurization and purified before being discharged out. SGS emission reported provided.
Need more information, please contact me freely.
