Customized 256 channels 5V 10A 20A Lithium 32140 33140 Battery Charging Discharging Cell Capacity Grading Machine


SPECIFICATION

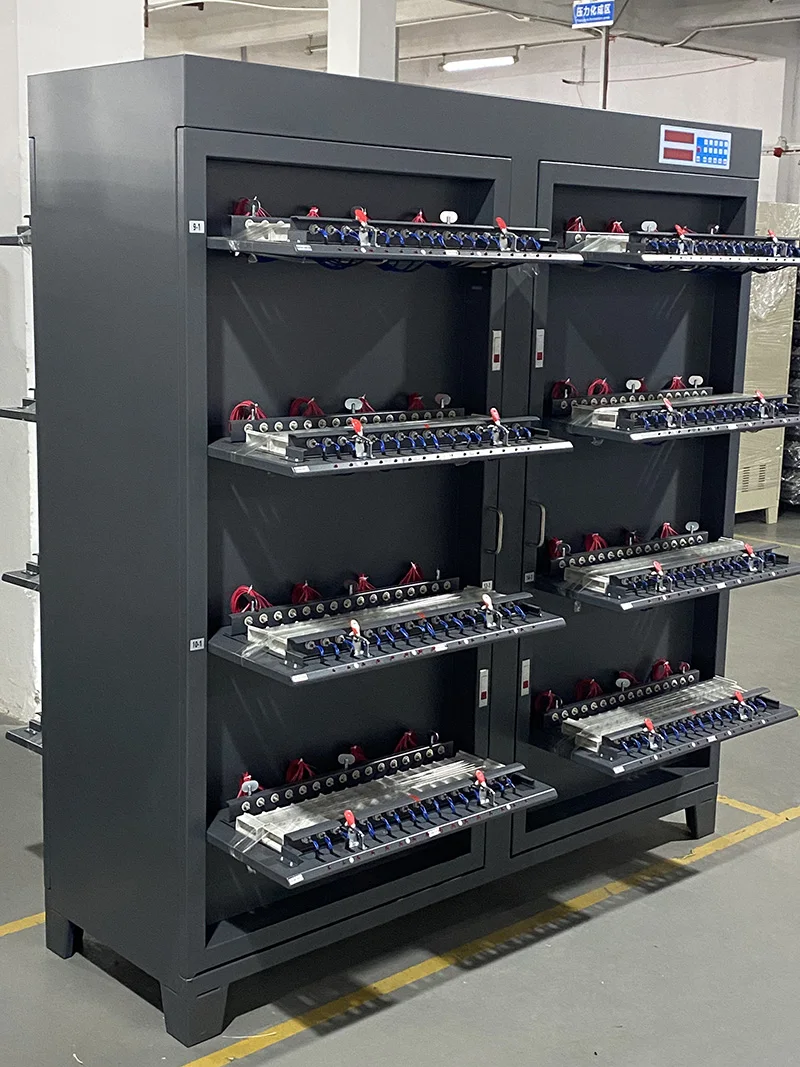

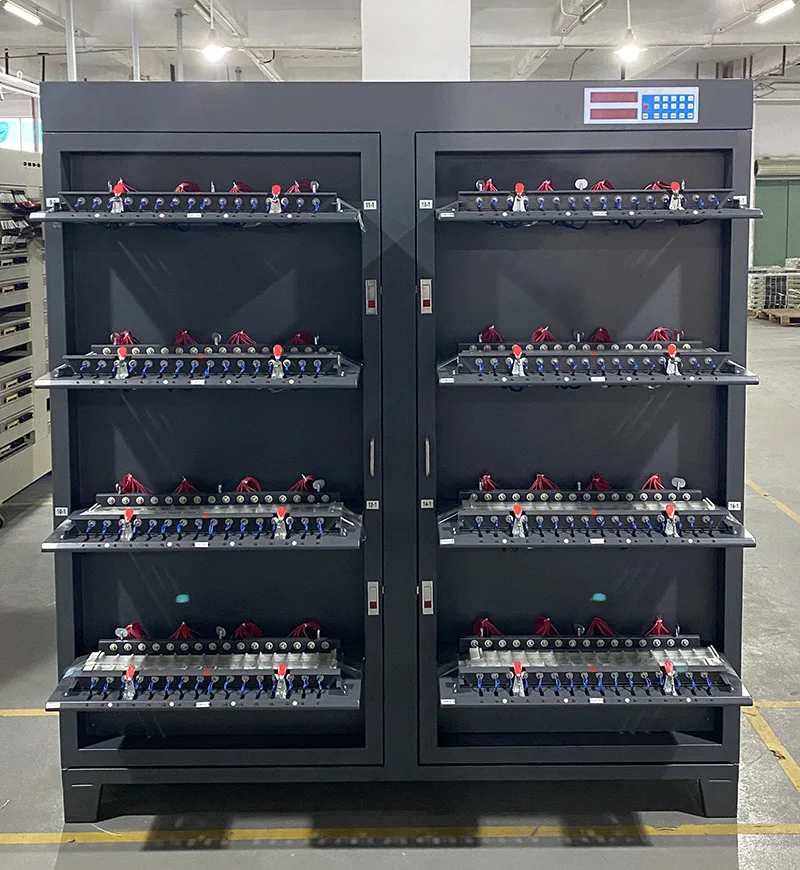

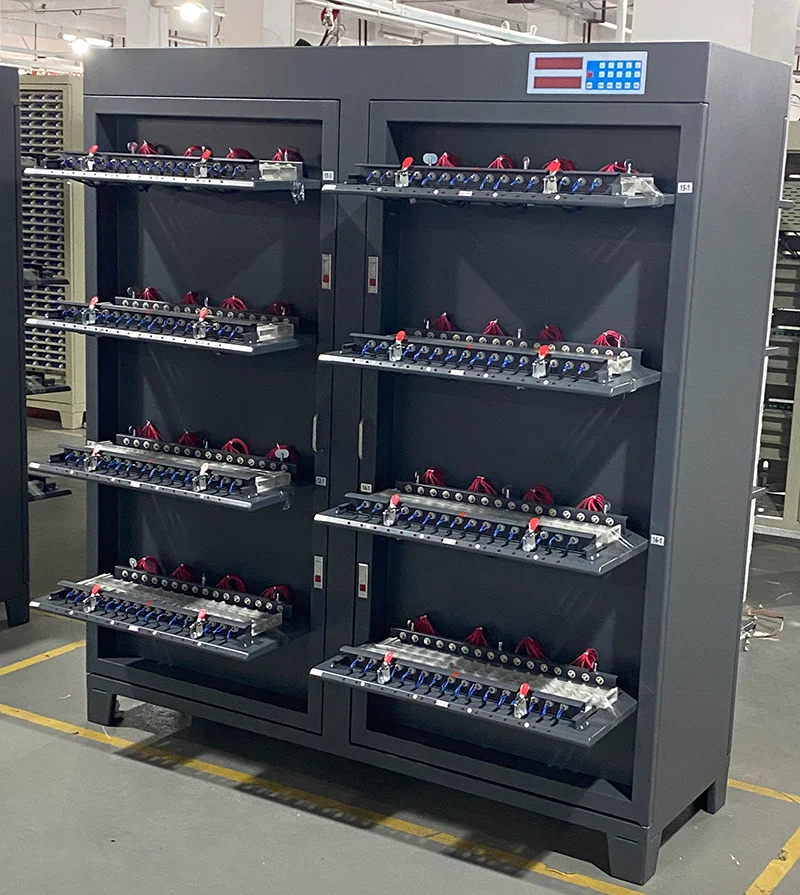

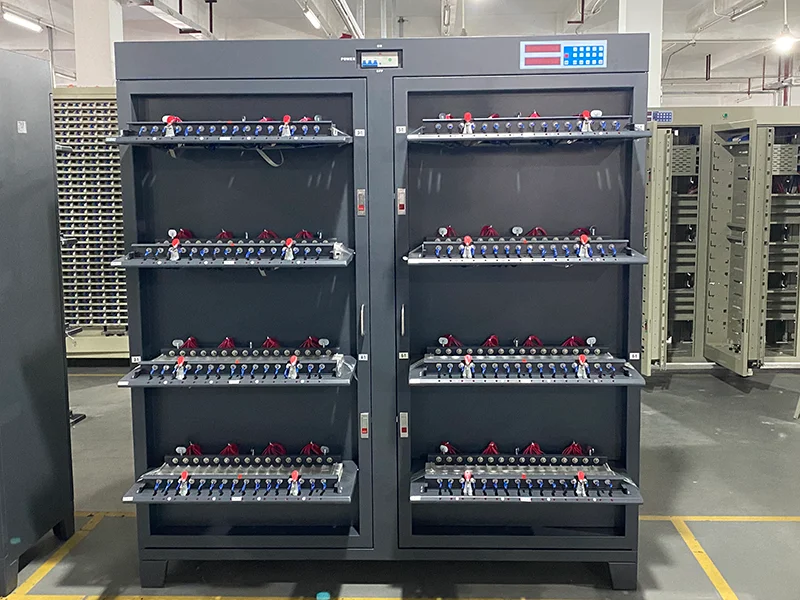

Battery cell tester machine is used when the lithium battery is finished in the production workshop, the battery capacity will be different. Qualified batteries will be screened out through the capacity testing.
Features:

1.Scope of application: Capacity and detection of chemical components of lithium polymer, lithium ion, ni-MH and ni-Cd batteries.

2.Vertical tester are more economical, horizontal tester are more efficient.

3.Current Range: 2A/3A/5A/6A/10A/20A for options

4.Channels:128/256/512 channels for options
































































































Product Name


Battery cell tester


Number of device channels



128/256 channels



Size (width * depth * height) cm


143*50*184/160*55*184cm


Frame color


Customized


Clamp form


Cylindrical four-wire fixture


Fixture center distance


35MM


working power


Three-phase five-wire system AC380V±10%, 50HZ


 Working power dissipation


9KW


 Work environment


Temperature 0-40 degrees, relative humidity 80%



software function



Control mode


Computer connection equipment work, FCL control


Communication mode


RS485 baud rate 57,600


Process set


A maximum of 32 work steps and 256 cycles


Charging mode


Constant current, constant pressure


Discharge cut-off condition


Voltage, time, capacity


Charging cutoff condition


Voltage, current, time, capacity


Discharge


Constant current


Defensive function


Over voltage, under voltage, over current, undercurrent, overcapacity, etc


Time range


Set it anywhere from 0 to 30,000 minutes


Battery sorting


By capacity, time, discharge platform, etc


Data processing


Data, graphs, and loop diagrams
