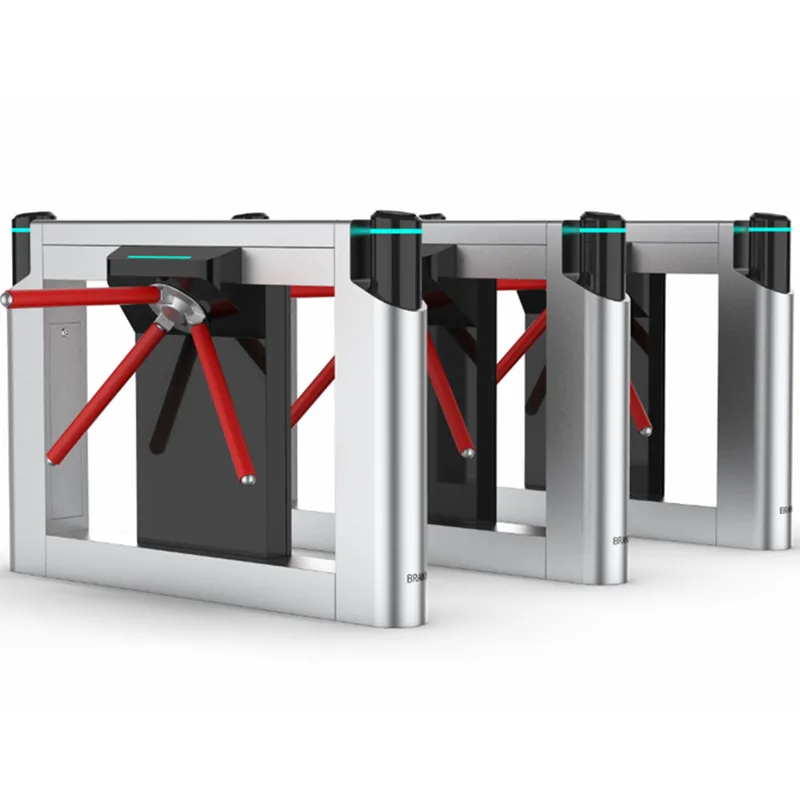

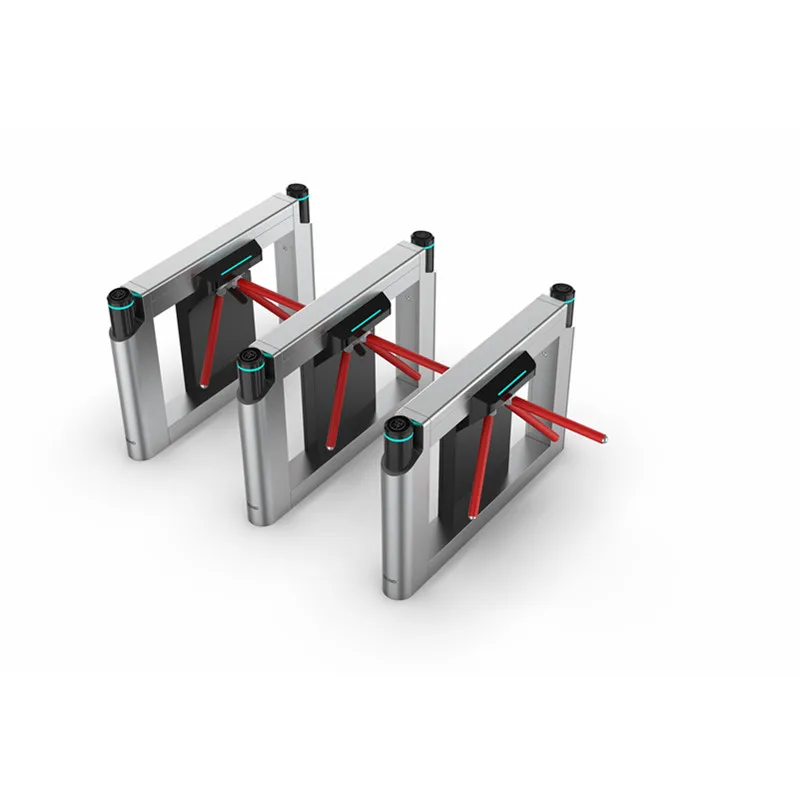

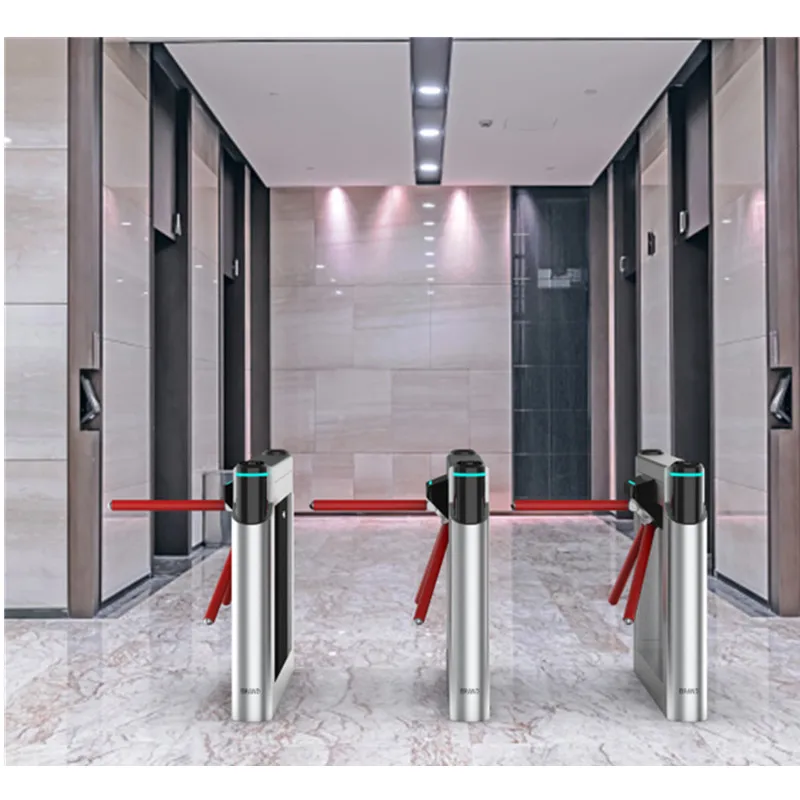

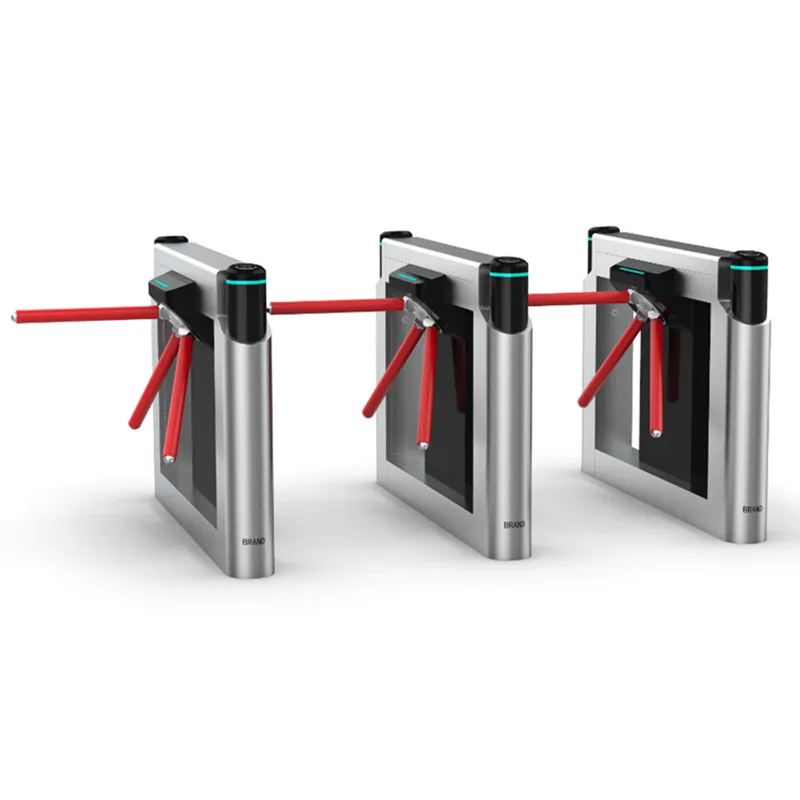

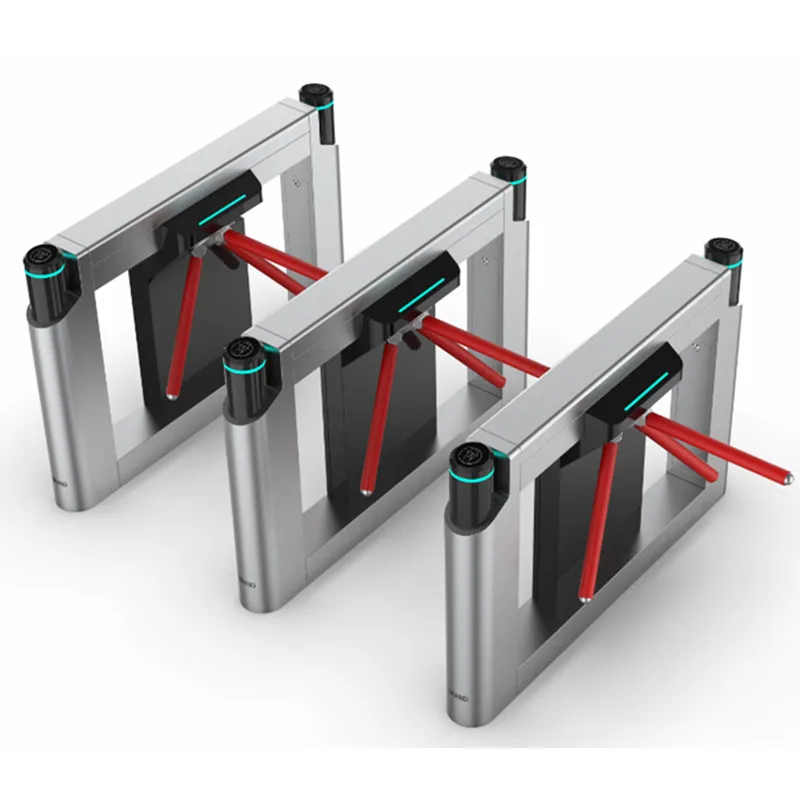

Security Access Control Fingerprint RS485 Communication Interface Stainless Steel Barrier Gate Automatic Tripod Turnstile
- Category: >>>
- Supplier: Shenzhen Tigerwong Technology Co. Ltd.
Share on (1600540561016):
Product Overview
Description
RS485 Communication Interface Stainless Steel Barrier Gate Automatic Tripod Turnstile
Product Description
Model No. | TGW-TT001 |
Cabinet Material | 304 Stainless Steel |

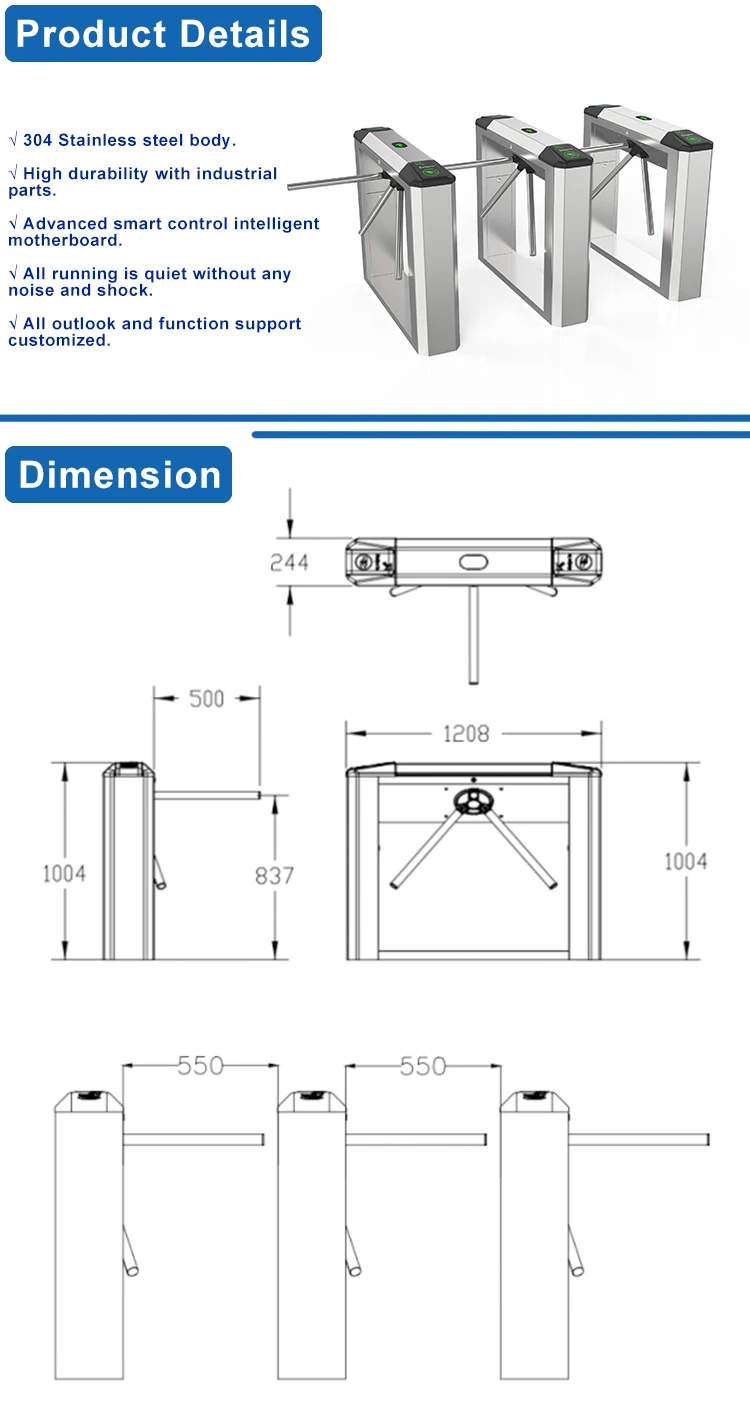

Dimensions | 280*980*1400mm |
Weight | 80KG |
Arm Length | 500mm |
Passage Width | 600mm |
Dry Contact | 12V |
Material Thickness | 1.5mm |
Card-reading Window | Two |
Direction | Bidirectional |
Service Life | 5 million times |
| Operating Temperature | -25℃ ~ +60℃ |
| Related Humidity | ≥90%RH |
| Communication Interface | TCP/IP |
| Power Supply | AC 220V/110V ±10% 50/60MHZ (optional) |

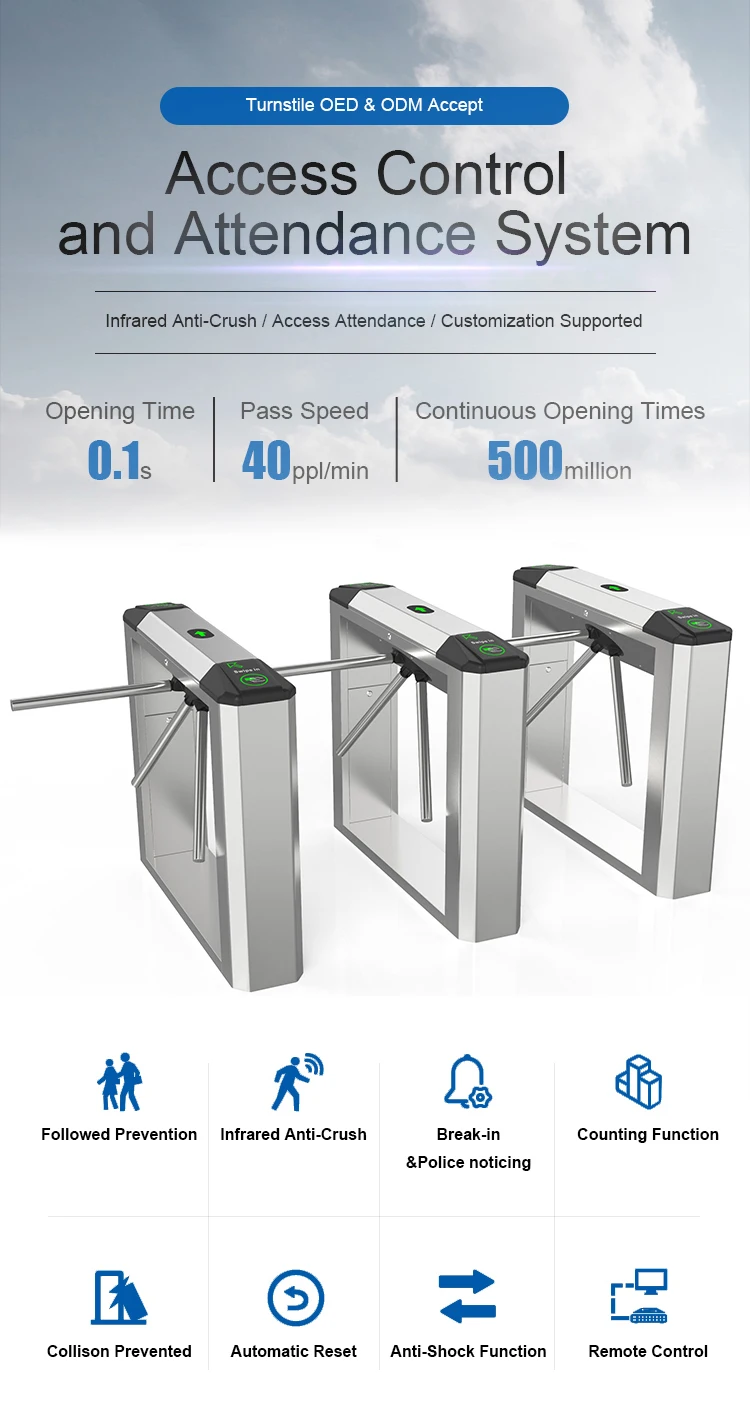

| Opening Speed | 30-45persons per minute |
| Closing Speed | 25-35 persons per minute |
FAQ
Q: Did your system have software interface?
A: Yes. We have our own management software.
Q: How does this system link to other system?
A: Equipment could link to others by TCP/IP.
Q:Does this combo can add extra access control method?
A: Yes,we can extend card reader,fingerprint reader and other method to connect wire with face recognition terminal.
Q: What will happened if power was cut off?

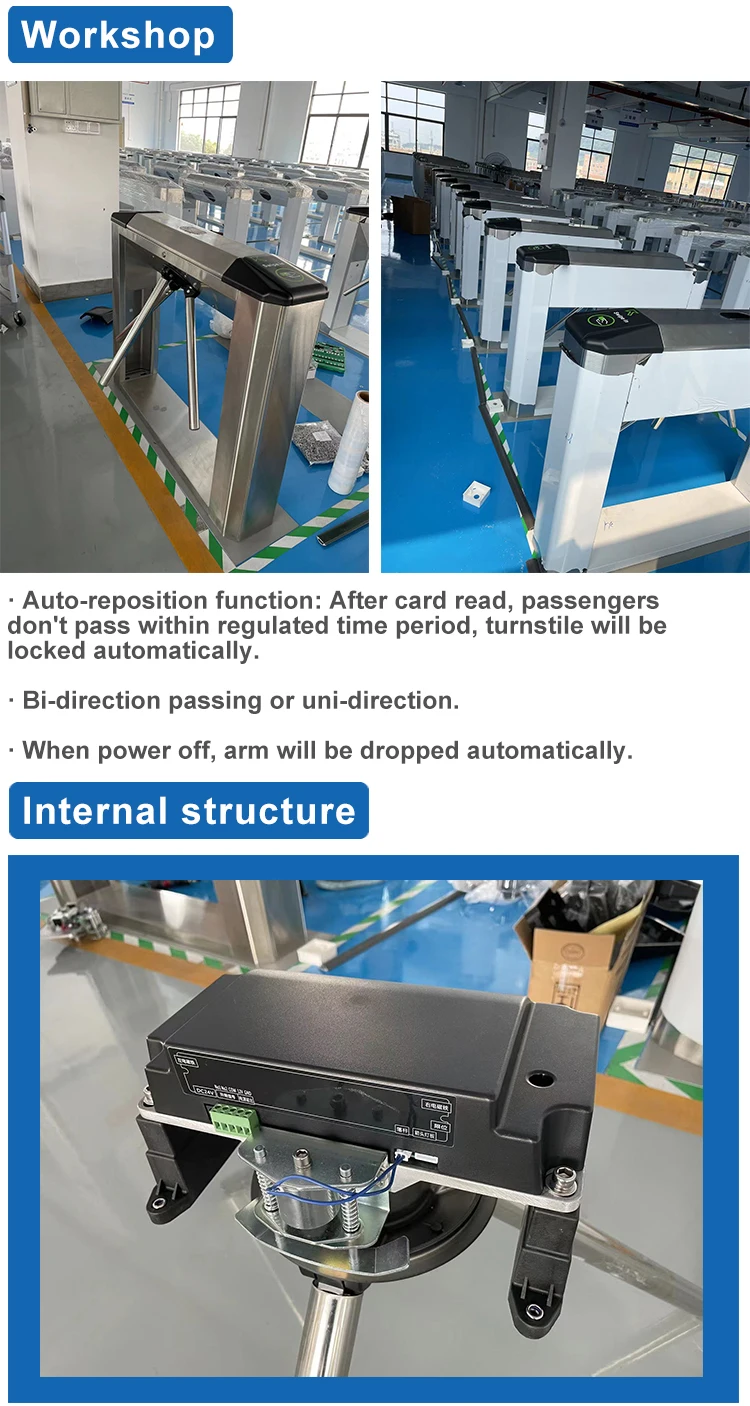

A: Once cut off,the turnstile gates arm would be drop off,it can go through without control.

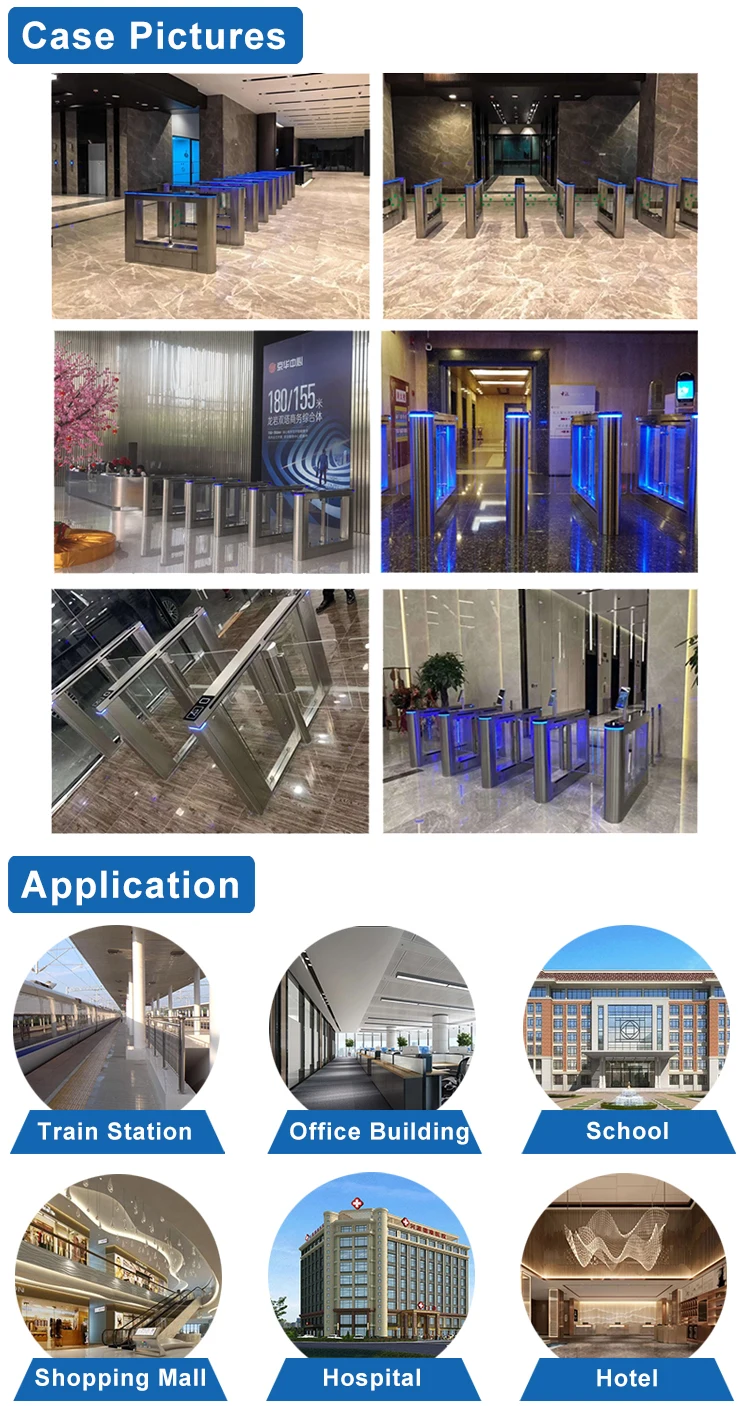

Engineering Case
