Product Overview

Description




UNI-T UT71 Series Digital Multimeters

UT71C

The UT71C digital multimeter is a 40000 counts True RMS hand-held multifunctional tester which features on the characteristics of high reliability, high safety and auto ranging with the simultaneous display function of large screen digital and high-resolution analog pointers, full-range overload protection and unique appearance design, it becomes a new generation of practical electrician measuring instruments with superior performance. Also it’s an advanced multi tester designed to be used safely and accurately by electricians at work places or the people who need more capabilities than the standard measuring tool.It bring you not only practical, but also simple, convenient and fast with these powerful functions which measure AC voltage or DC voltage,DC current or AC current,resistance,capacitance,frequency and temperature.

In addition,the UT71C meter has data hold, relative measurement,data storage,data transmission,low battery reminder, backlight LCD displaying and auto power off functions,which is a heavy duty and practical electronic tools suitable for laboratories,factories,schools and families.




Measurment,Test and Detection
Measure DC Voltage
√
Measure AC Volatge
√
Measure DC Current
√
Measure AC Current
√
Measure Resistance
√
Measure Capacitance
√
Measure Frequency
√
Measure Temperature
√
Measure Diodes
√
Test Continuity
√
NCV Detect
×
Detect Live Line
×





Features

·Auto and manual ranging. Datalogging digital multimeter UT71C. Measure AC voltage and current, DC voltage and current, resistance, capacitance, temperature, frequency, diodes, continuity, 4~20mA loop, max/min, relative mode. Continuity buzzer. Analog bar graph.

·Large 40,000 counts and 4 3/4 digits. True RMS meter provides accurate readings when measuring linear or nonlinear loads where the current or voltage has a sinusoidal or non-sinusoidal waveform.

·Data store, data recall, AC True RMS, AC+DC, low battery display, double display backlight, data hold, automatic power off and full overload protection. Data-logging features designed for unattended monitoring.

·Rugged, safe & reliable. Specifications include CE making, certified for Category III installations up to 1000V and Category IV installations up to 600V. Backlit LCD displays multiple measurements simultaneously and plots measurements on a single line to detect signal anomalies over time.



Functions
Digits
39999
True RMS
√
Auto-ranging
√
Frequency Response
100KHz
Duty Cycle
10% ～ 90%
Relative Measurement
√
Data Hold
√
Max/Min Value
√
Backlit LCD Display
√
Data Storage
√
Data Transmission
√
Low Battery Reminder
√
Auto Power Off
√
Misplug Alarm
√






Technical Parameters
Item
Range
Accuracy
DC Voltage
400mV/4V/40V/400V/1000V
±(0.025%+5)
AC Voltage
4V/40V/400V/1000V
±(0.4%+30)
DC Current
400μA/4000μA/40mA/400mA/10A
±(0.1%+15)
AC Current
400μA/4000μA/40mA/400mA/10A
±(0.7%+15)
Resistance
400Ω/4KΩ/40KΩ/400KΩ/4MΩ/40MΩ
±(0.3%+8)
Capacitance
40nF/400nF/4μF/40μF/400μF/4mF/40mF
±(1%+20)
Frequency
40Hz-400MHz
±(0.01%+8)
Temperature
-40 °C ～ 1000°C/-40°F～1832°F
±(1%+30)/±(1.5%+50)








General Specifications

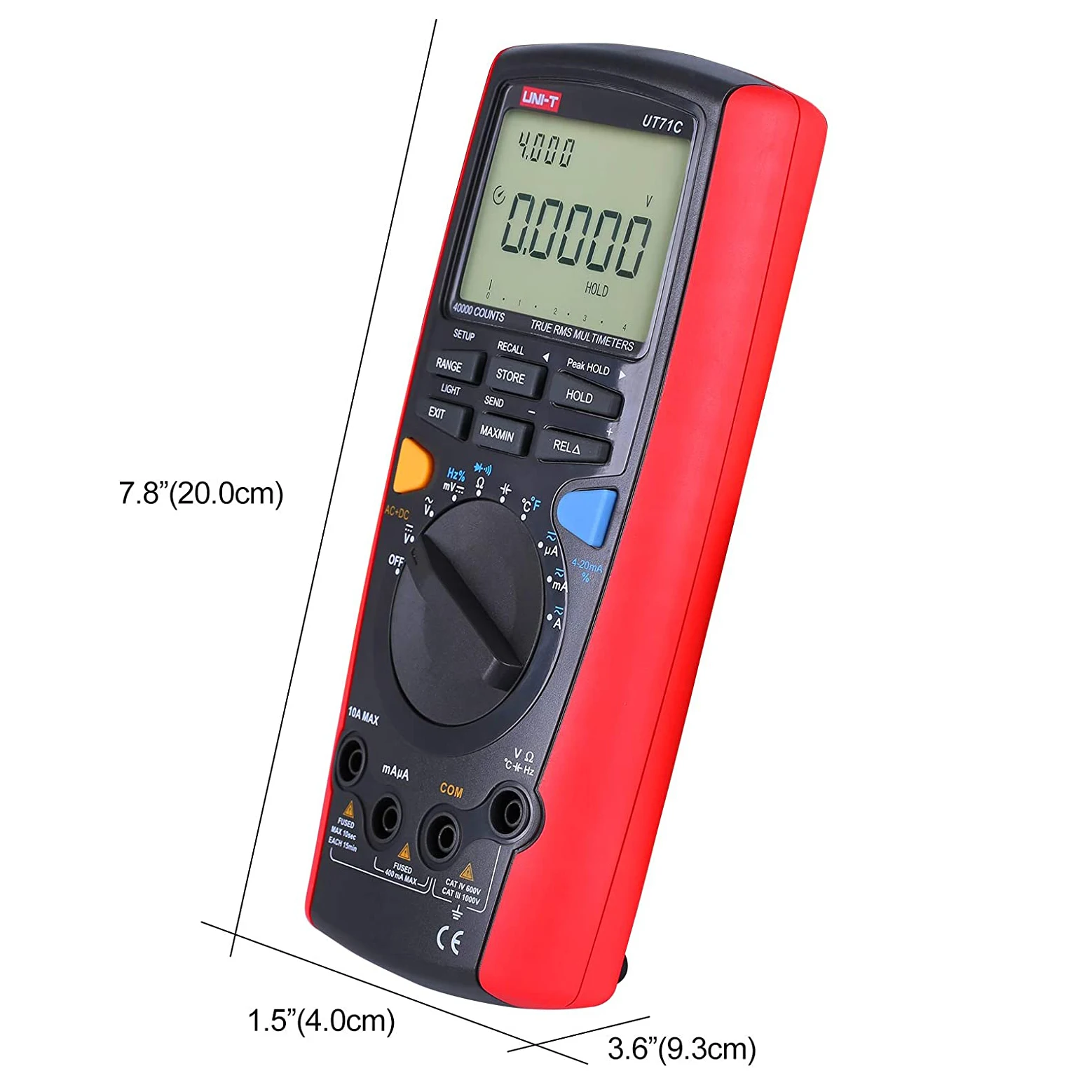

Dimensions of Body
200mm × 93mm × 40mm
Color of Body
Red+Black
Weight of Body
384g
Size of LCD Screen
73mm × 50 mm
Power Supply
1 piece 9V 6F22 Battery

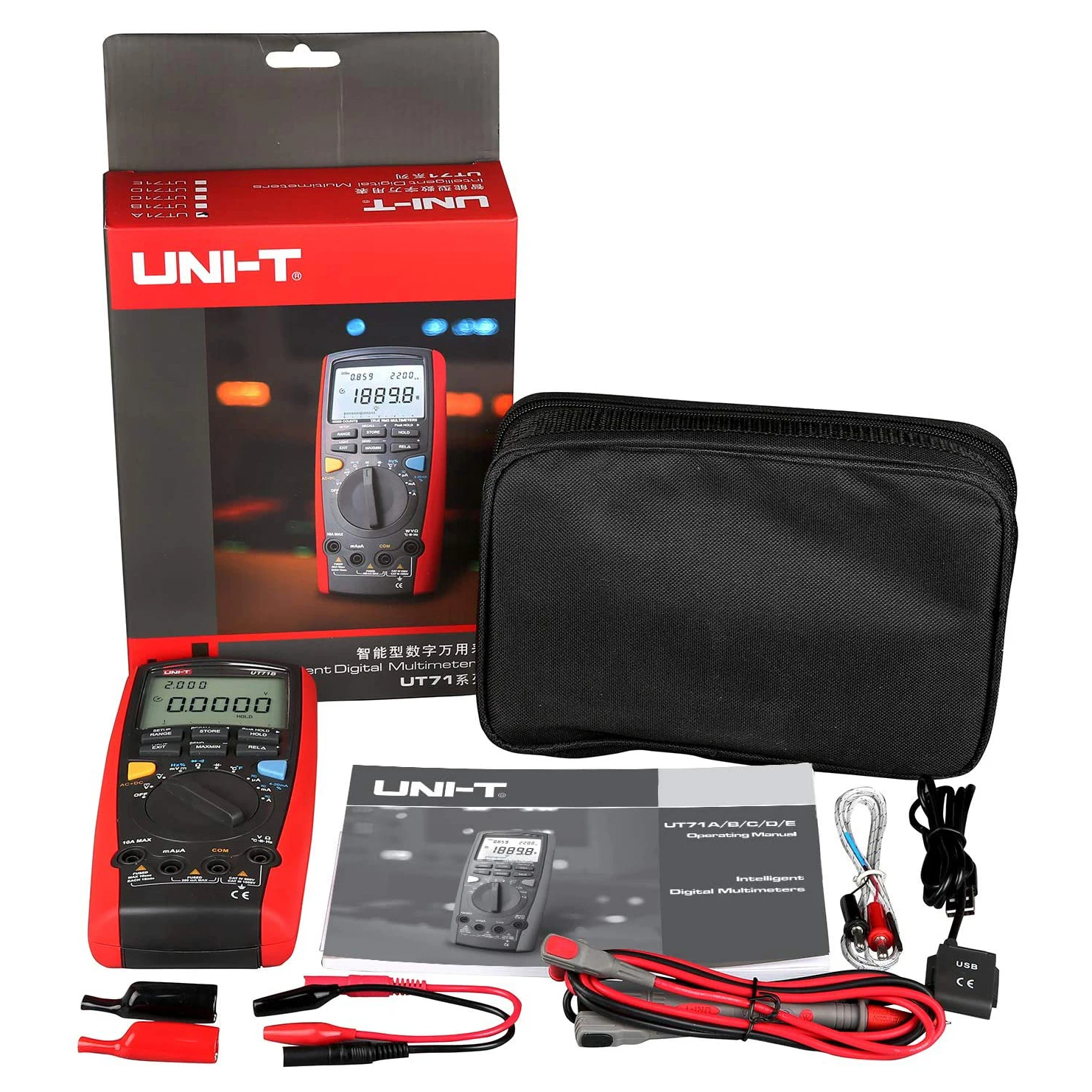

Accessories
1 × UT71C Digital Multimeter
2 × Test Leads
2 × Test Clamps
2 × Test Clamp Leads
1 × Data Transmission Cable
1 × User Manual
1 × Carrying Bag
1 × Colorful Package Box
