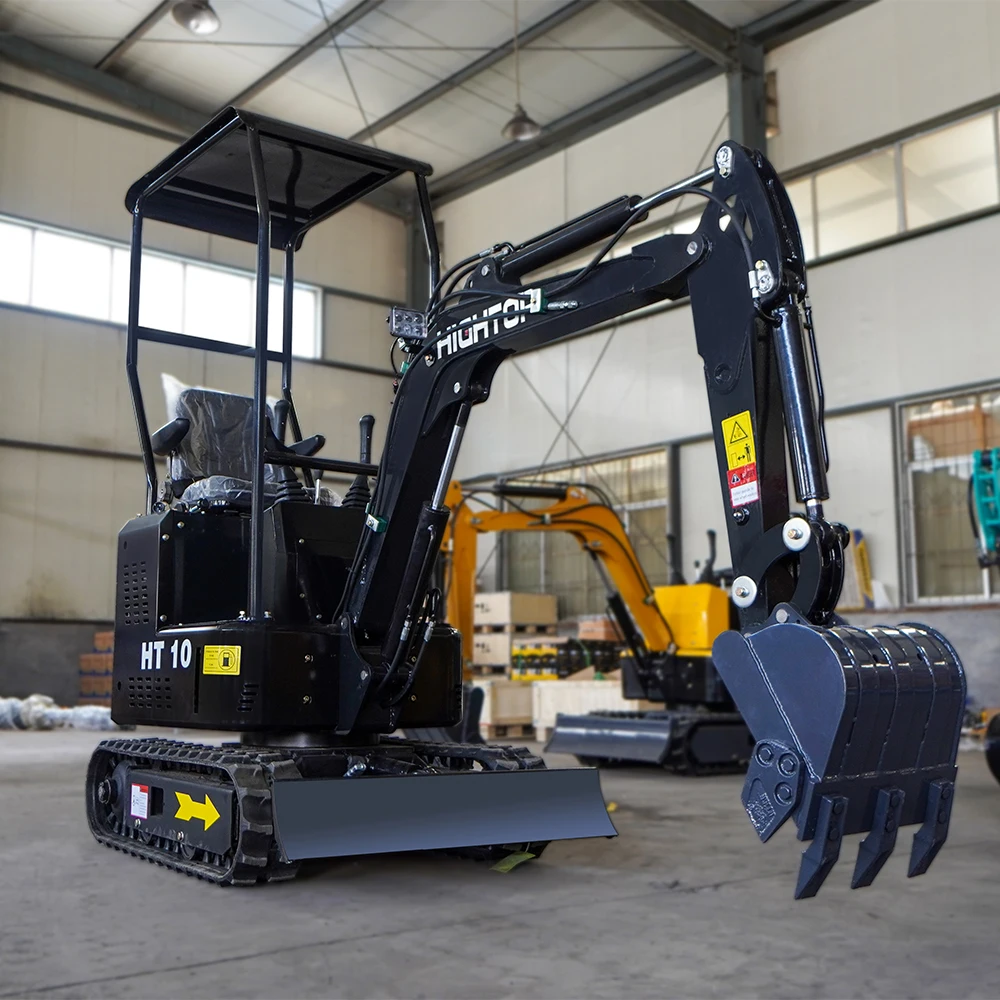

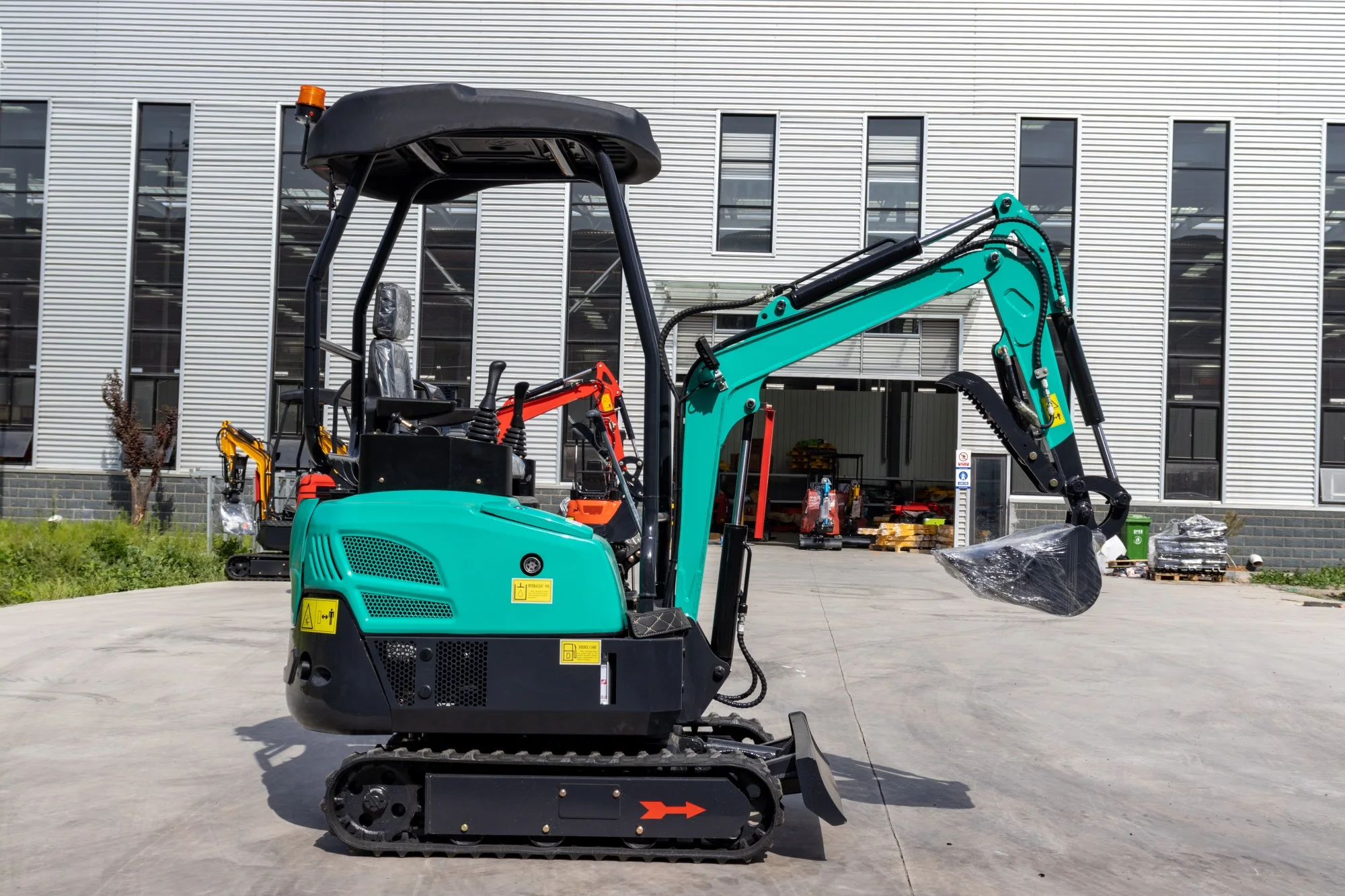

HT18 ht10 ht15 ht20 ht08 HighTop1.8Ton MiniExcavators 1 Ton,Minibagger 800 Kg With Ce Iso
- Category: >>>
- Supplier: Shandong Cnmc Machinery Co. Ltd.
Share on (1600542103237):
Product Overview
Description
Product Description
Specification
ENGINE | ||
Emission Standard | Tier 3/ Stage III | |
Make | LAIDONG | |
Model | 3TE25 | |
Power /Rotation speed | 18.4kw(25HP)@2350rpm | |
Number of cylinder | 3 | |
TRACK SYSTEM | ||
Maximum Travel speed | 3.5km/h | |
Width of track shoe(Rubber & steel track) | 230mm | |
Number of track shoe per side(Steel track only) | 38 pcs | |
Number of upper roller/ bottom roller（per side） | 0/4 | |
PERFORMANCE PARAMETER | ||
Standard bucket capacity | 0.06m³ | |
Swing speed | 10~12 rpm | |
Max. Grade ability | 35° | |
Max. Bucket digging force | 14KN | |
Max. Arm digging force | 10KN | |
Hydraulic system pressure | 18Mpa | |
Machine weight | 1800kg | |
MACHINE SIZE | ||
Overall dimension (L*W*H) | 3865mm*1050mm*2270mm | |
Axle base(Track length on ground) | 1230mm | |
Track gauge | 820mm | |
Min.Ground clearance | 210mm | |
Swing radius at tail | 1125mm | |
WORKING RANGE | ||
Max. Digging height | 3365mm | |
Max. Dumping height | 2385mm | |
Max. Digging depth | 2050mm | |
Max. Vertical digging depth | 1725mm | |
Max. Digging radius | 3860mm | |
Min .swing radius | 1720mm | |
Max. Lifting height of blade | 230mm | |
Max. Cutting depth of blade | 275mm | |
Boom swing angle(Left) | 75° | |
Boom swing angle(Right) | 45° | |

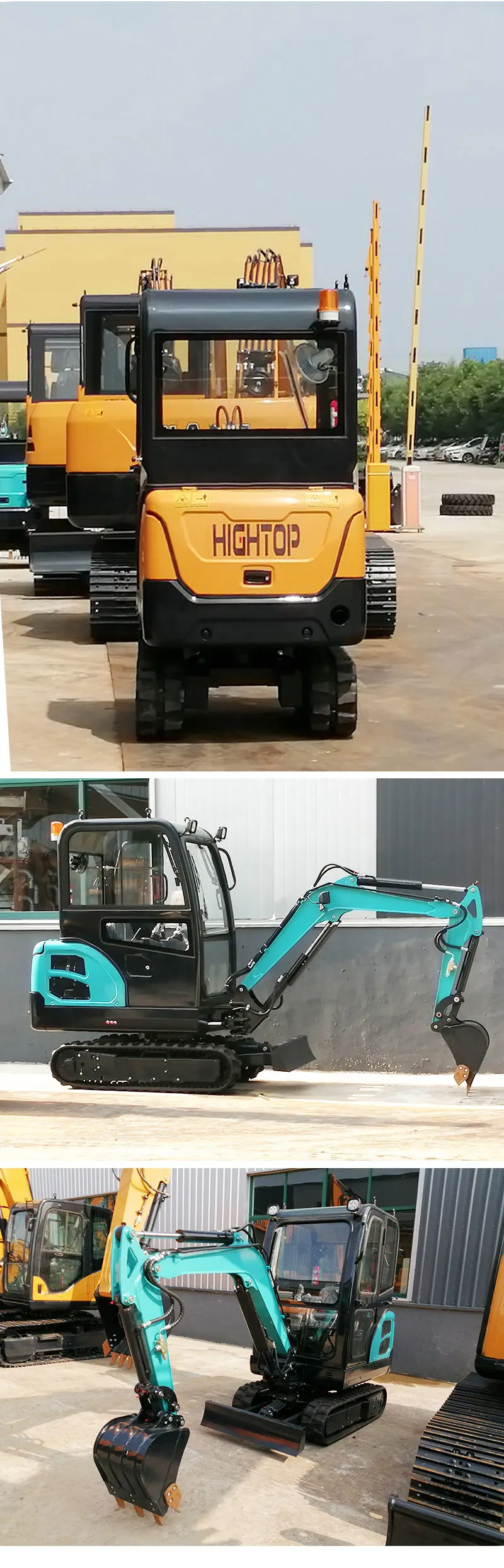

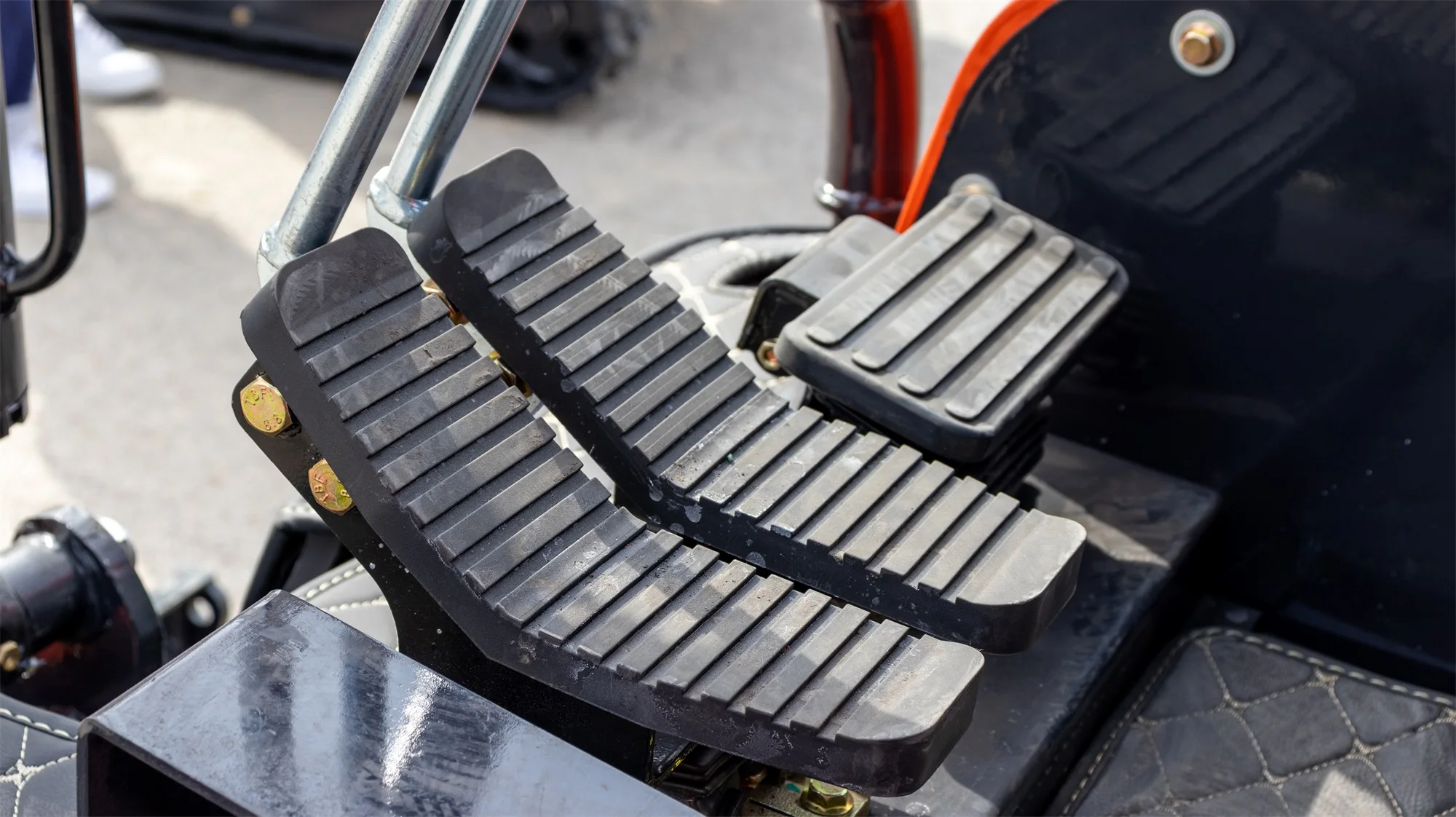

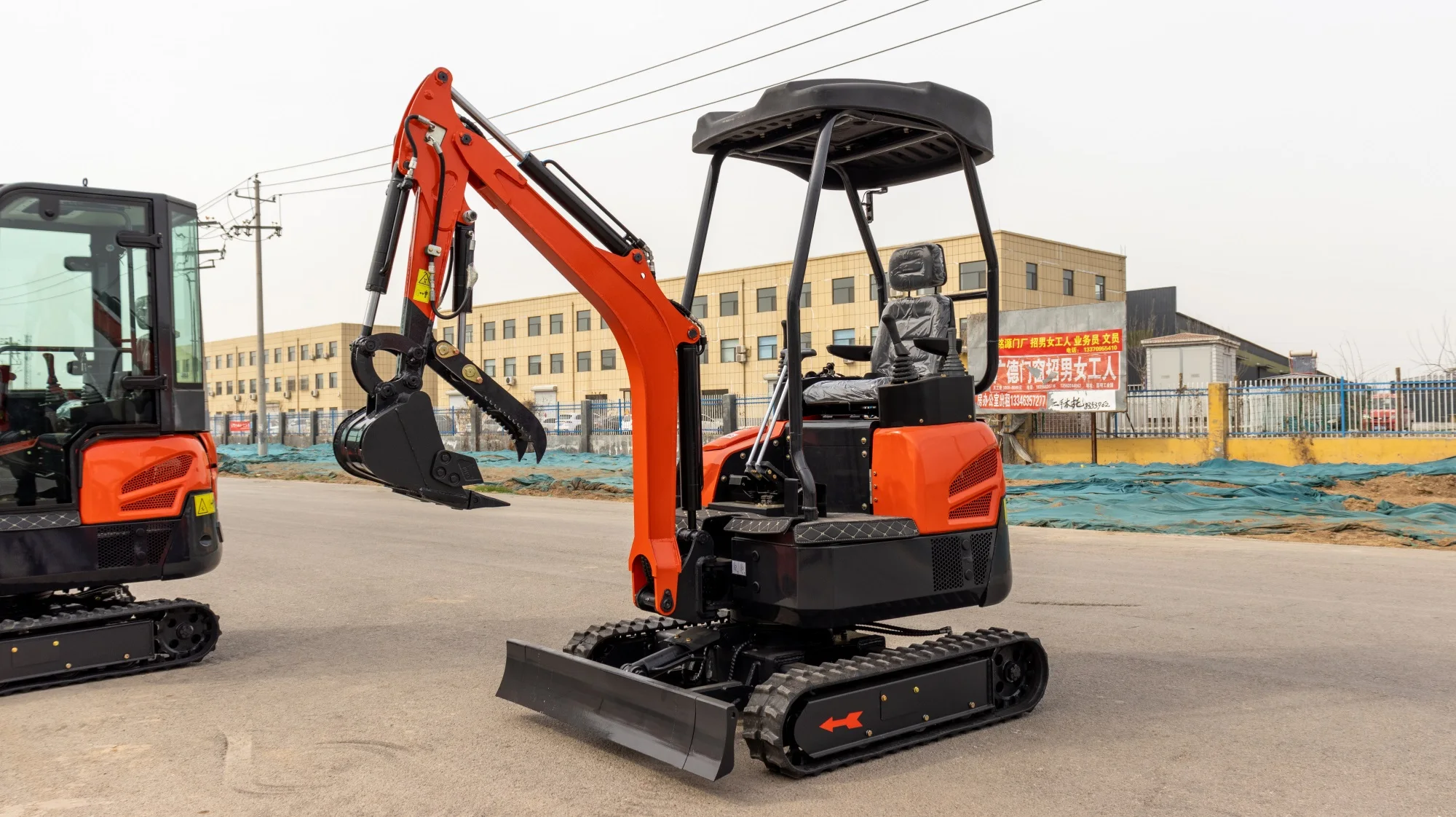

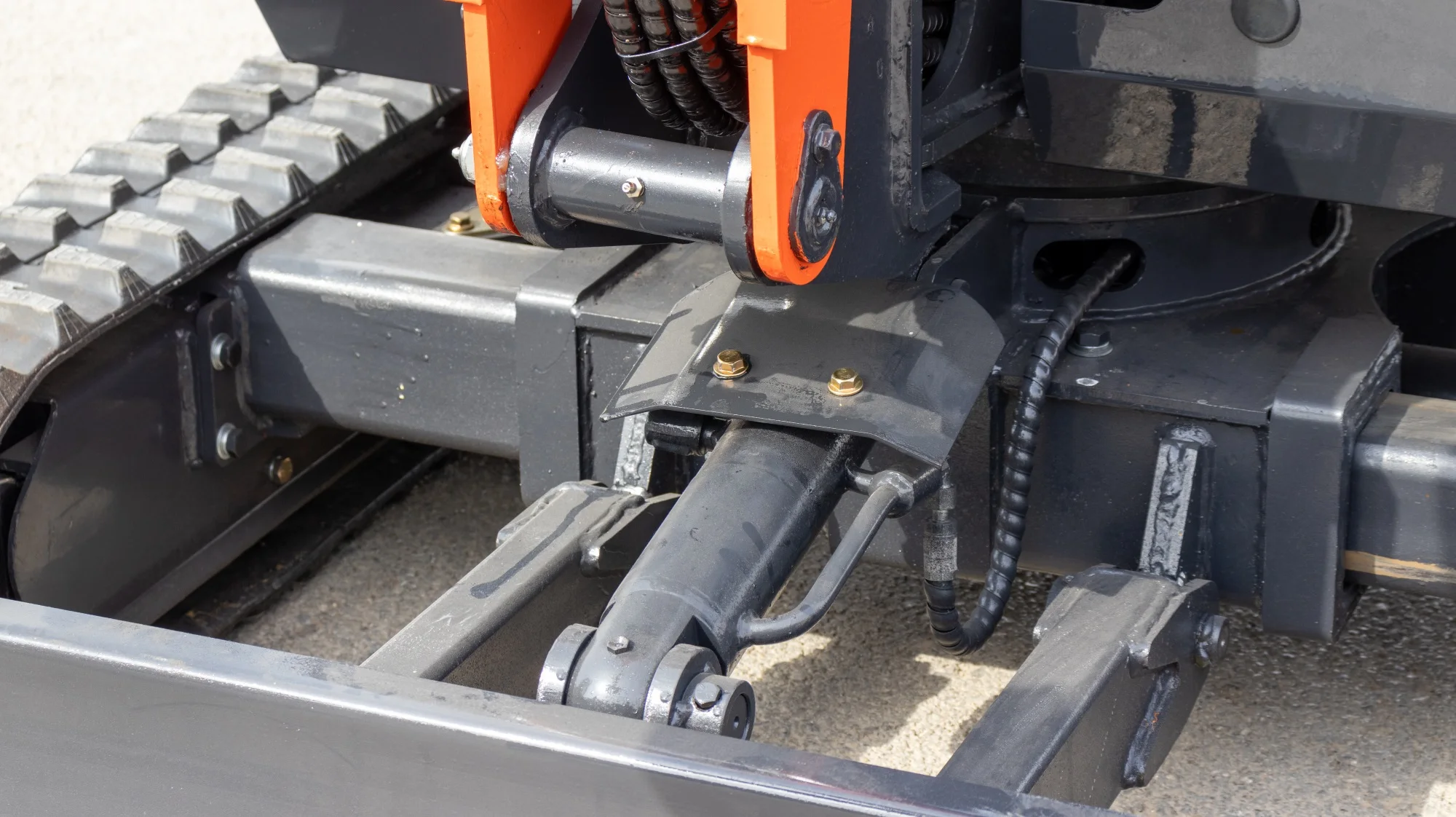

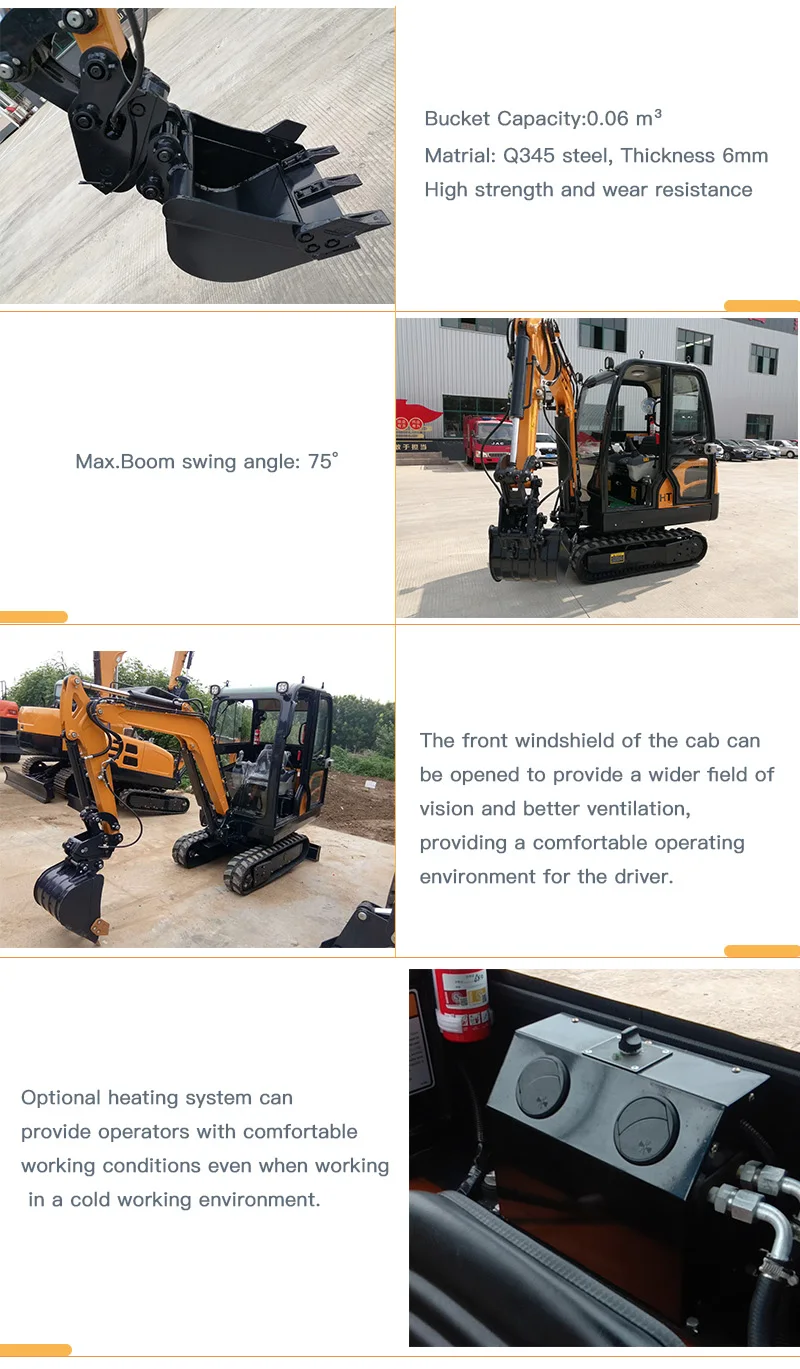

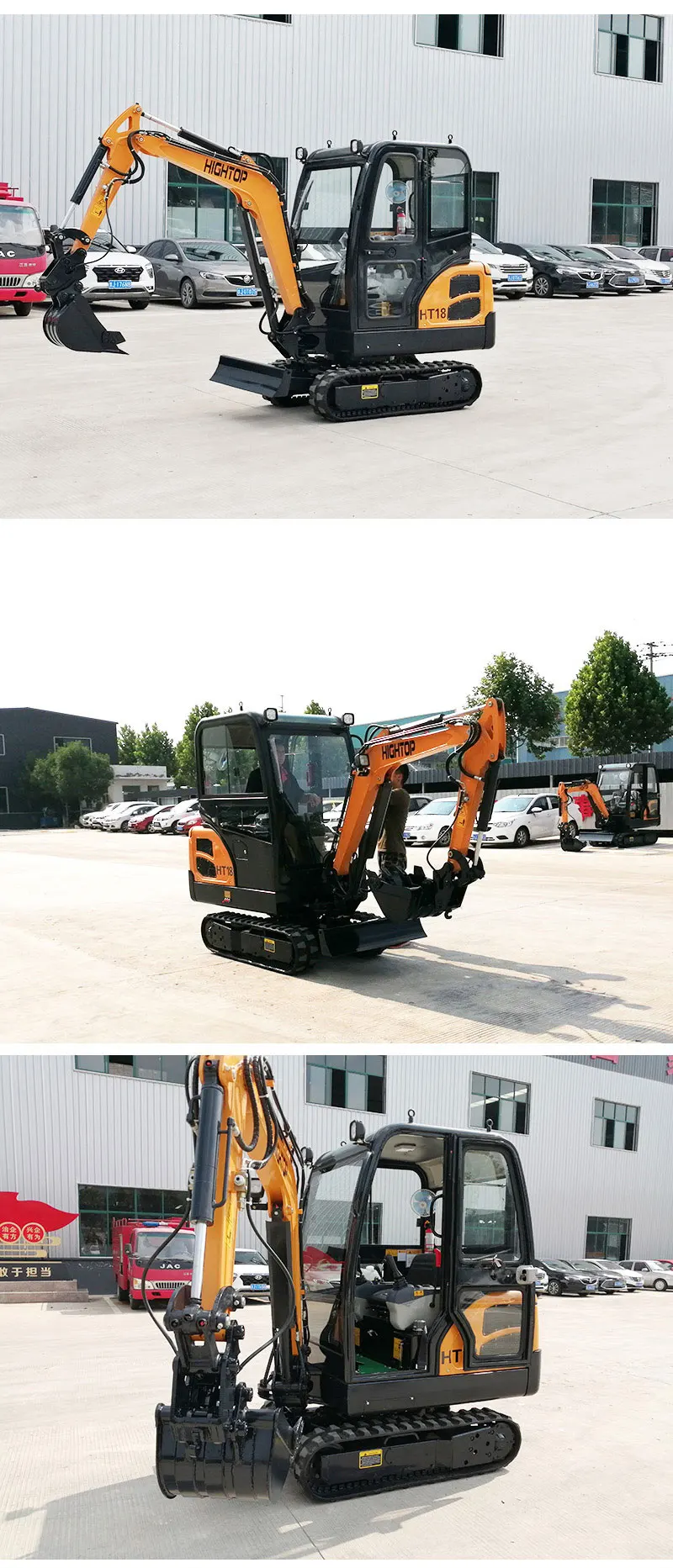

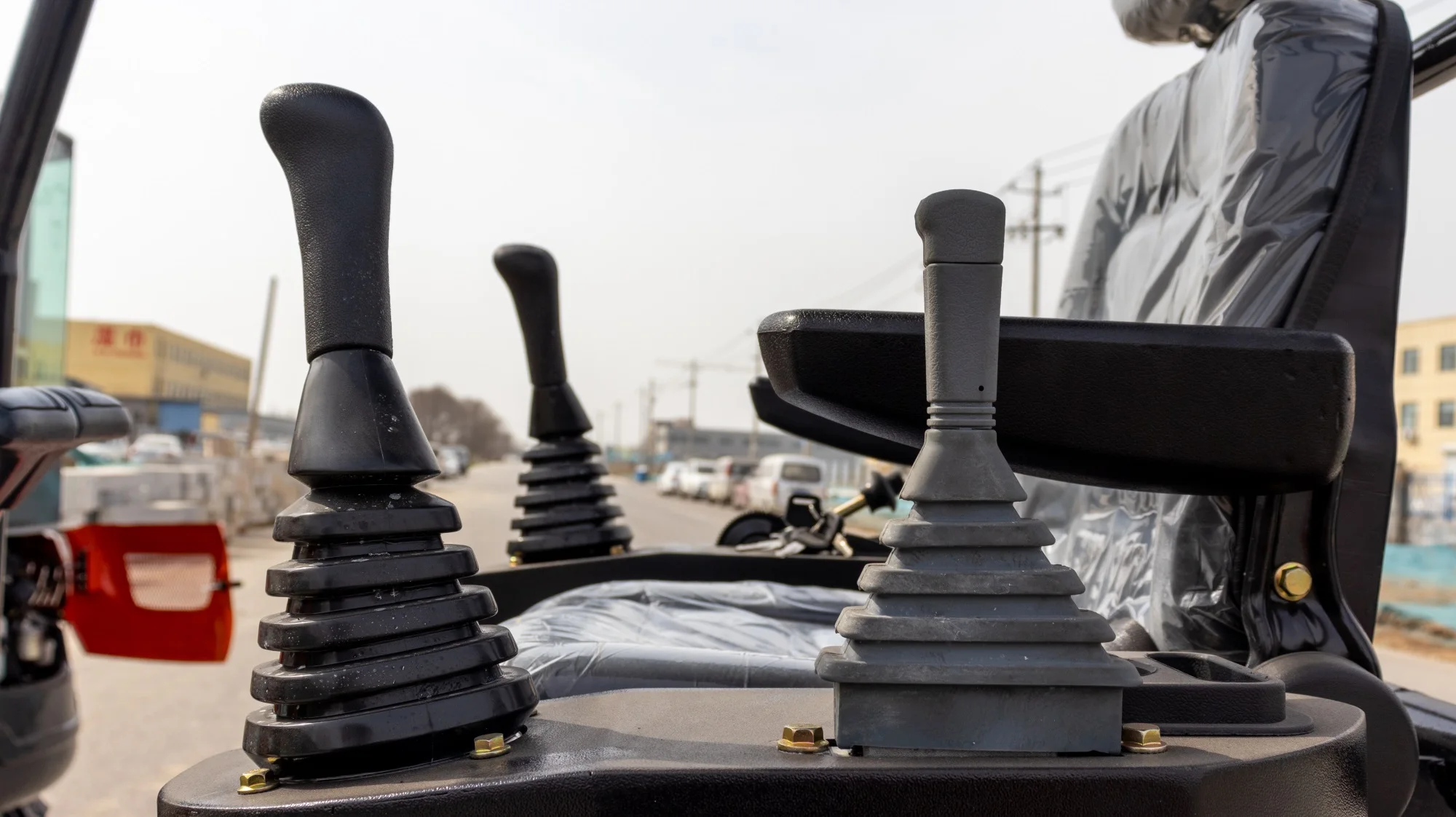

Details Images

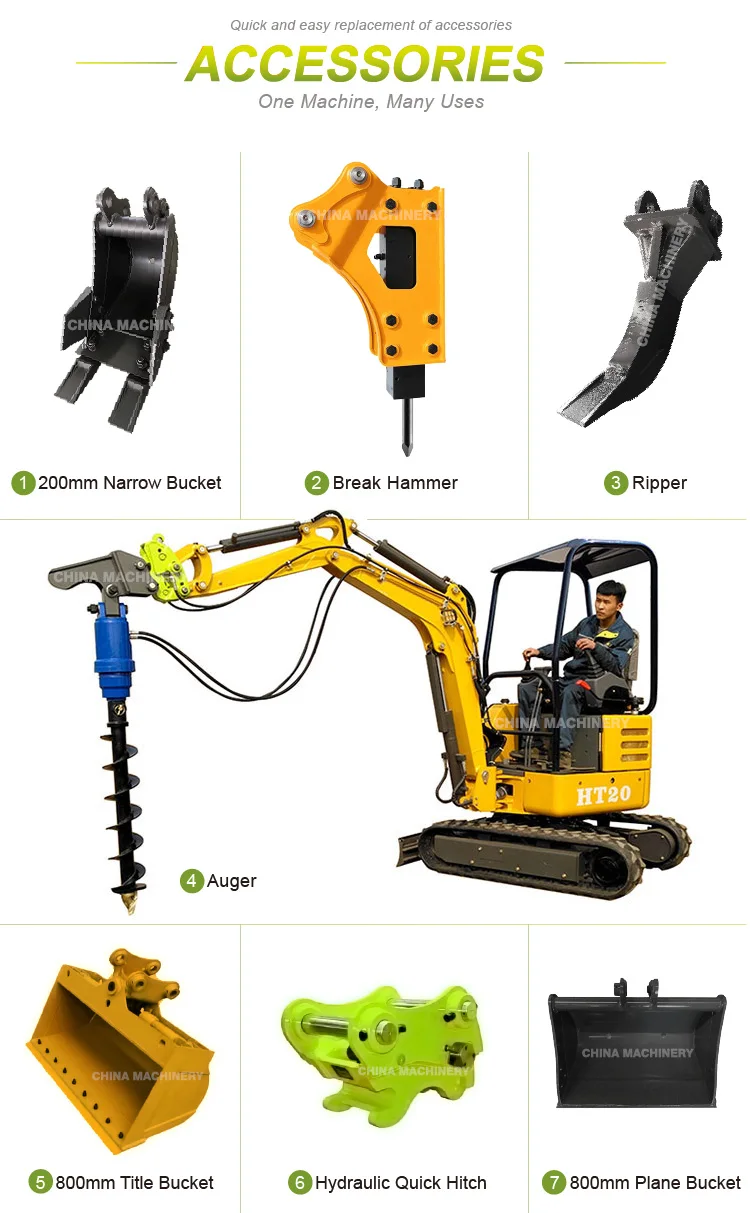

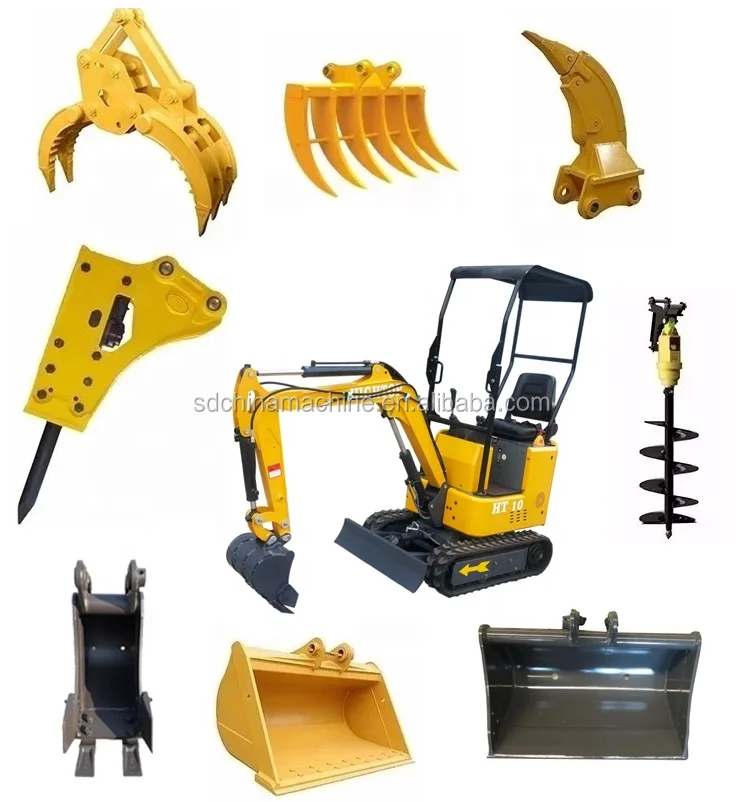

Accessories

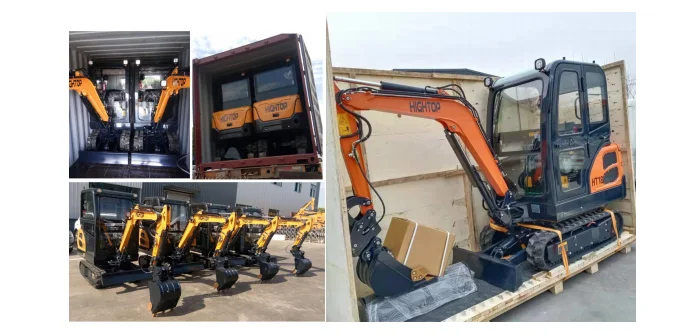

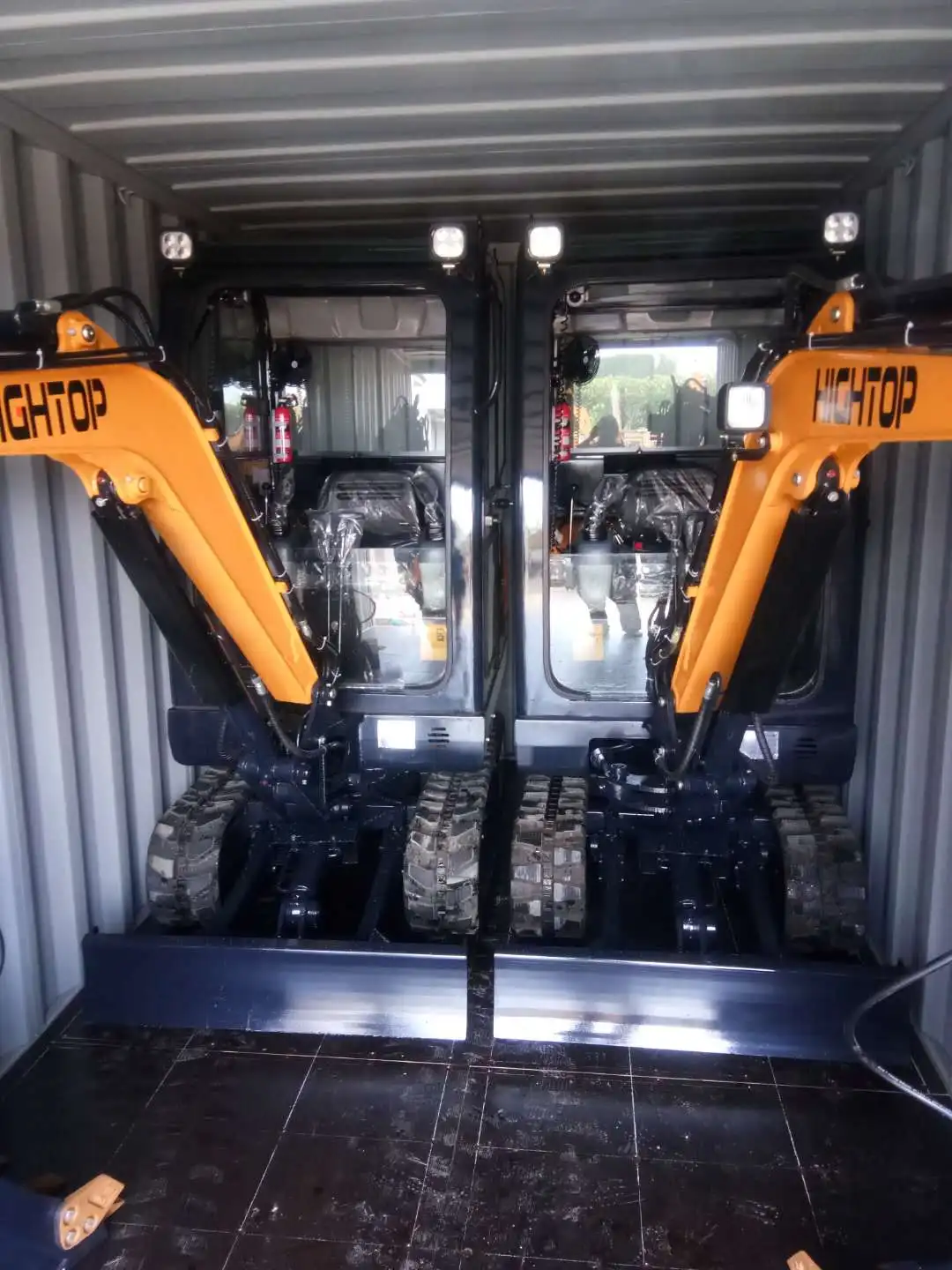

Packing & Delivery

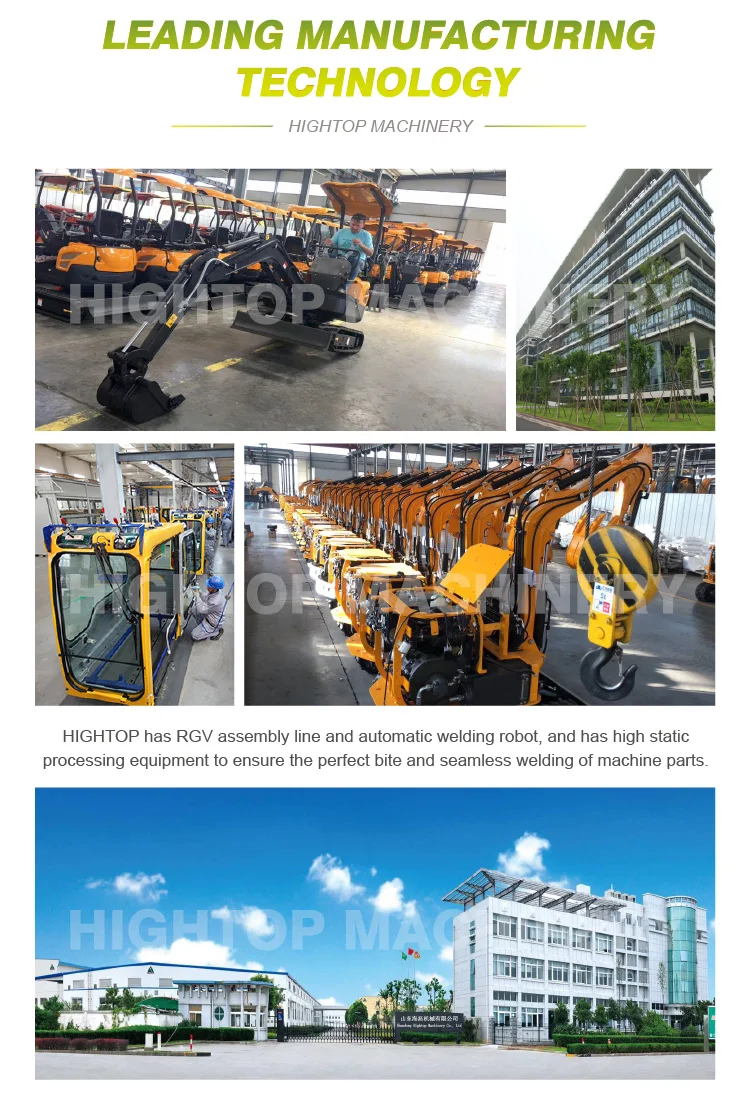

Company Profile
