Disc Filter for Wastewater treatment

Product Overview

Description

 Micro F

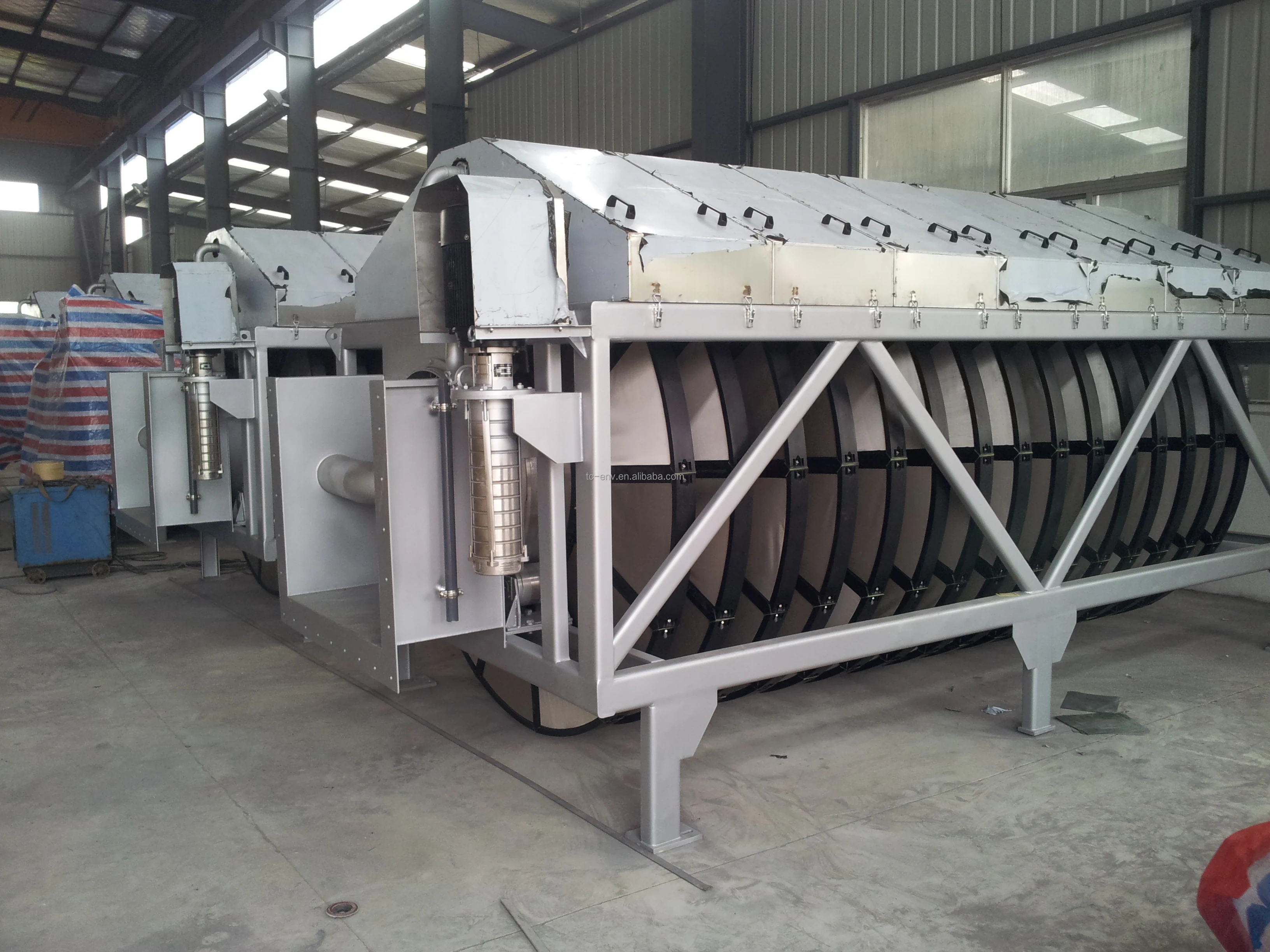

Disc Filter for  Wastewater treatment









Advantages



1. continuous filtration even during the backwash
2. high capacities on small footprint
3. higher filtration area per disc
4. lower power consumption during backwash
5. low operational cost
6. possibility of sedimentation in the filter pit
7. no aerosol pollution during backwash cycle
8. exceptionally low noise pollution
9. long span life of filtration cloth – doesn´t threat to tear the cloth



Function and  Principle



1. This type of filtration comes with 100% immersed disc design involving different type of filtration cloth than used on conventional 65 % immersed disc filters. Cleaning process involves suction instead of backwashing, so the impurities are caught from the outside in this case.



2. The untreated water including the impurities flows into the filter pit. There is a filter including the filtration cloth on the segments, which forms individual discs. Whole system is 100 % immersed. Water passes through the filtration cloth inside the hollow shaft retaining the impurities on its surface.
We offer the filter in size 2.2 m.
Filtration runs continuously.









Variability







1. depending on the required filter capacity – max. capacity 1180 l/s, max. no. of disc 44 pcs

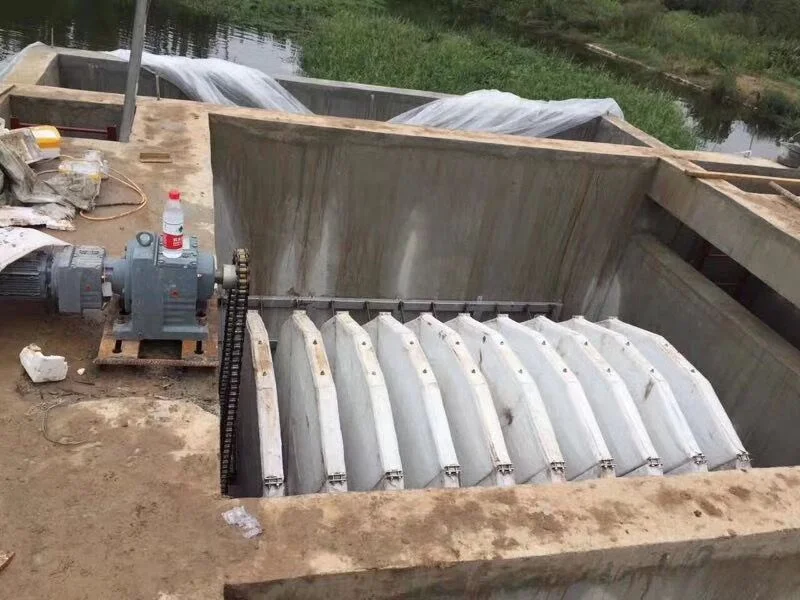

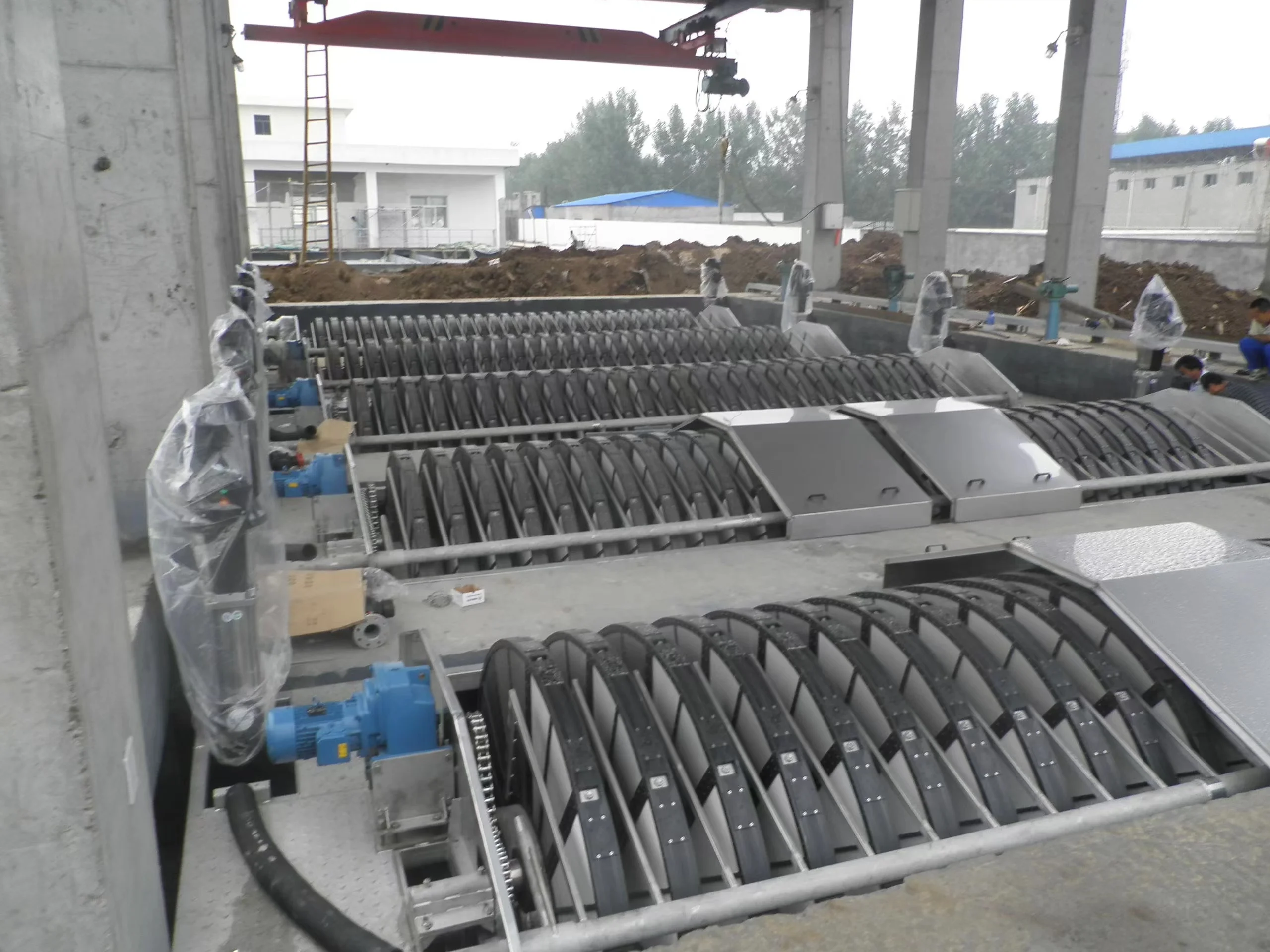

2. depending on location – in concrete channel or steel tank
3. depending on the required quality of filtered water
4. depending on the sludge discharge method – by gravity or by pump
