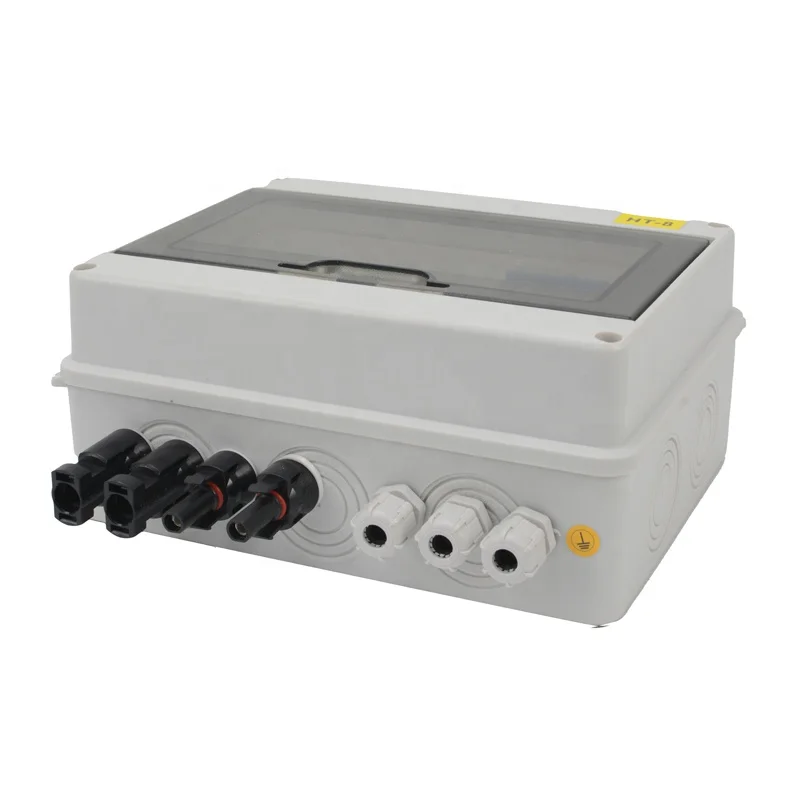

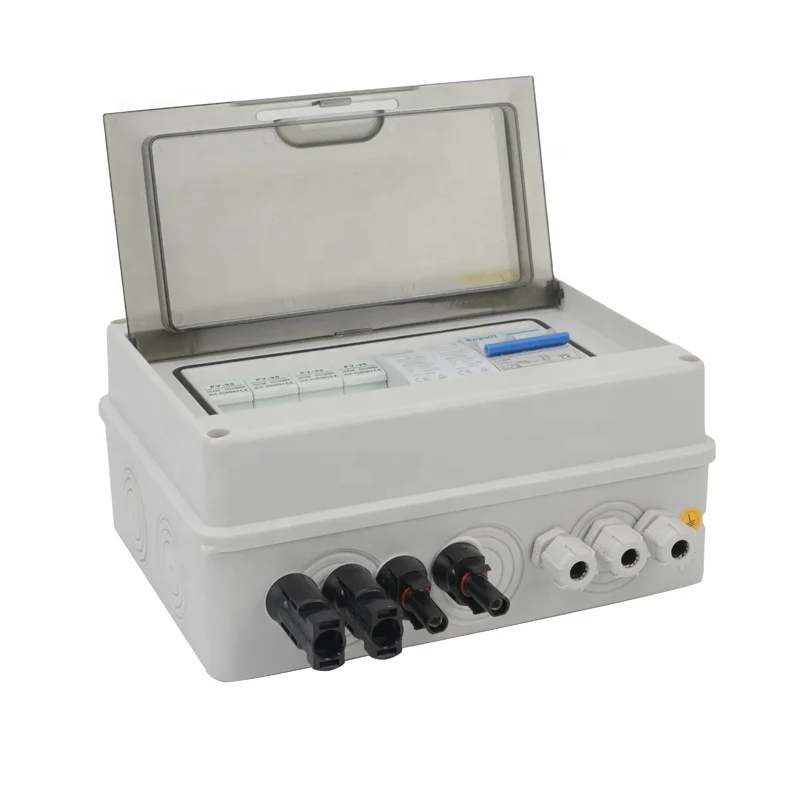

Ip65 Combiner Box 2 In 1 Out 600V 25A 2 Strings Solar Panel Photovoltaic Dc Pv Combiner Box
Ip65 Combiner Box 2 In 1 Out 600V 25A 2 Strings Solar Panel Photovoltaic Dc Pv Combiner Box
Ip65 Combiner Box 2 In 1 Out 600V 25A 2 Strings Solar Panel Photovoltaic Dc Pv Combiner Box
Ip65 Combiner Box 2 In 1 Out 600V 25A 2 Strings Solar Panel Photovoltaic Dc Pv Combiner Box
Ip65 Combiner Box 2 In 1 Out 600V 25A 2 Strings Solar Panel Photovoltaic Dc Pv Combiner Box
Ip65 Combiner Box 2 In 1 Out 600V 25A 2 Strings Solar Panel Photovoltaic Dc Pv Combiner Box
Ip65 Combiner Box 2 In 1 Out 600V 25A 2 Strings Solar Panel Photovoltaic Dc Pv Combiner Box

Ip65 Combiner Box 2 In 1 Out 600V 25A 2 Strings Solar Panel Photovoltaic Dc Pv Combiner Box

Share on (1600542627240):


Price:$19.50 - $23.00

Quantity:


Product Overview

Description







Product Name:
Ip65 Combiner Box 2 In 1 Out 600V 25A 2 Strings Solar Panel Photovoltaic Dc Pv Combiner Box
Model:
SPL-2/1
Material
PC+ABS
Protection Grade
IP65

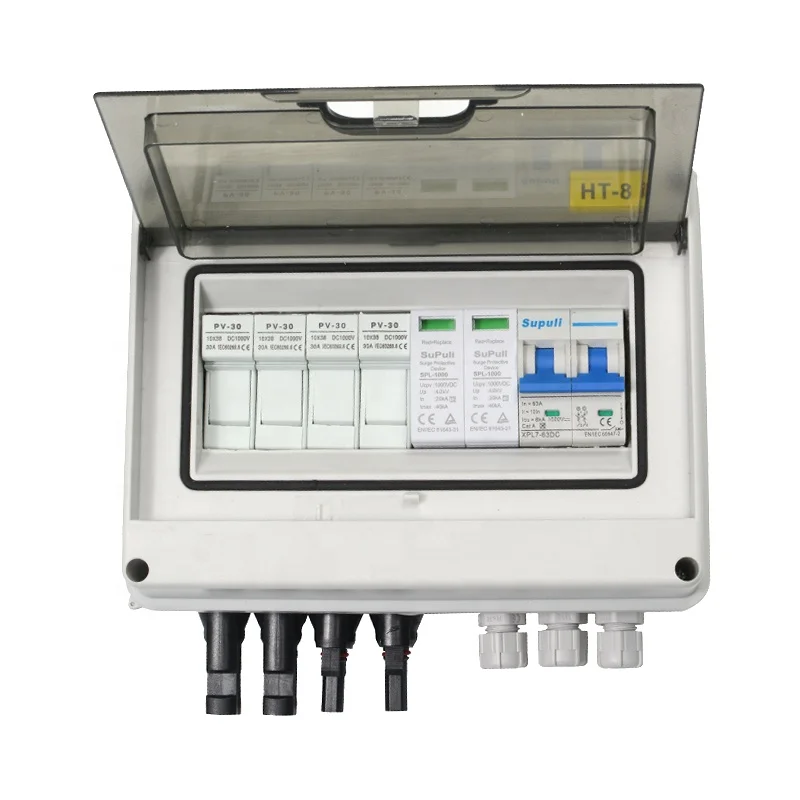

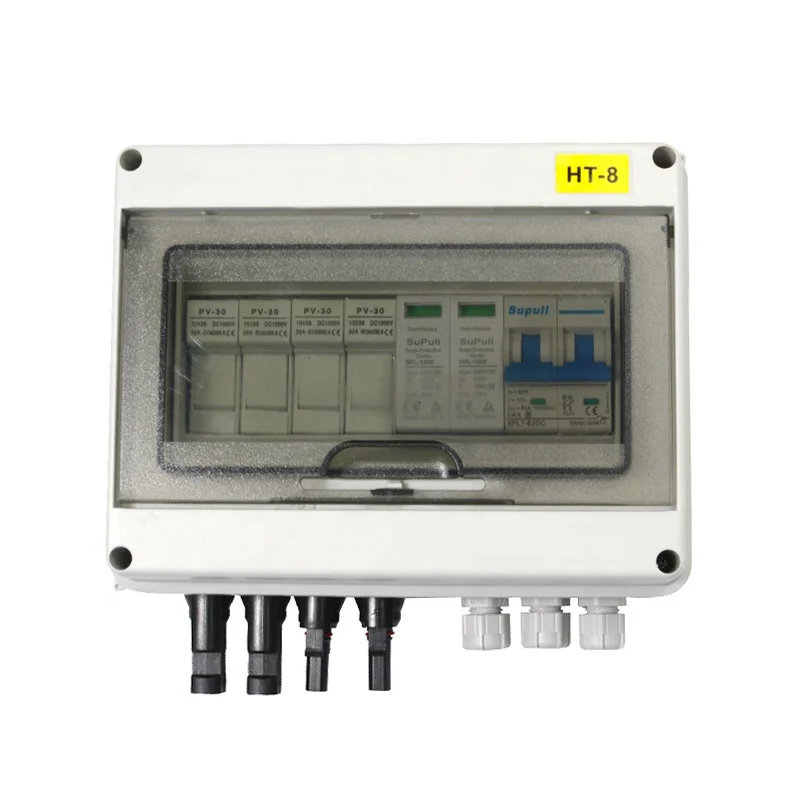

Product Information
1:Fuse Holder 1000V 32A *4
2:Fuse 25A*4
3:DC Surge Protector 2Pole 40KA  *1
4:DC circuit breaker 1000V 63A *1


Solar PV DC 2 in 2 out Pv Combiner Box For Household
Rated voltage of photovoltaic system
DC 600V/DC 1000V
Max input amp for each string
15A/25A/32A
Input strings
2
Number of output strings
1
Number of inverter MPPT
1
Number of output strings
1
Nominal discharge current
20KA
Maximum discharge current
40KA
Protection grade
IP65
Output switch
DC circuit breaker
Solar connector
MC4
Box material
PVC
Installation method
Wall mounting type
Operating temperature
-25℃-+60℃
Installation: indoors/outdoors
Yes
