MP3 Decoder Board FM Radio USB Kit APE BT Wireless Audio Speaker MP3 Player Module With Volume Knob LCD Screen Display
- Category: MP3 Players >>>
- Supplier: Shenzhen Aiyinyuan Technology Co. Ltd.
Share on (1600542804821):
Product Overview
Description
MP3 Decoder Board FM Radio USB Kit APE BT Wireless Audio Speaker MP3 Player Module With Volume Knob LCD Screen Display
Product Description
Product Name | LCD screen board |
Power Input | DC 5V/12V |
Functions | Wireless BT Blue tooth/FM radio/Calling/Recording/AUX/TF card/USB/LCD display screen |

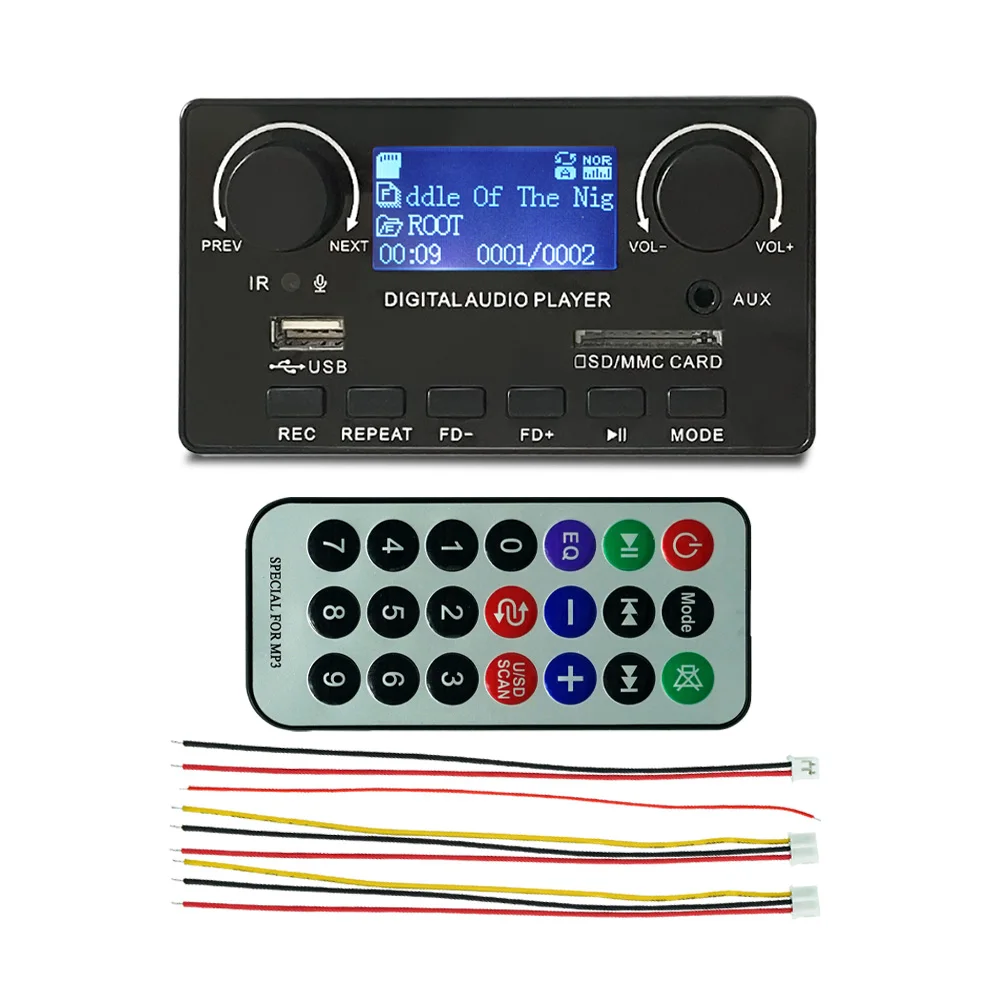

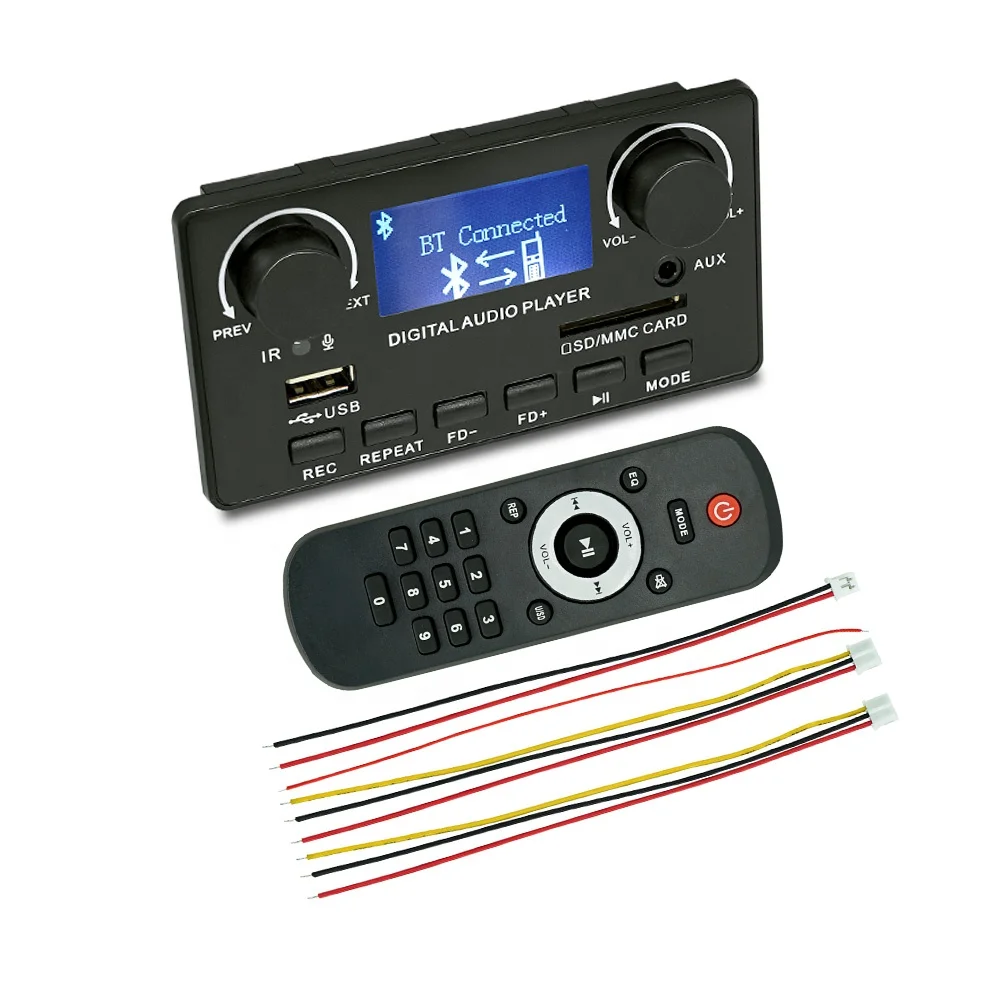

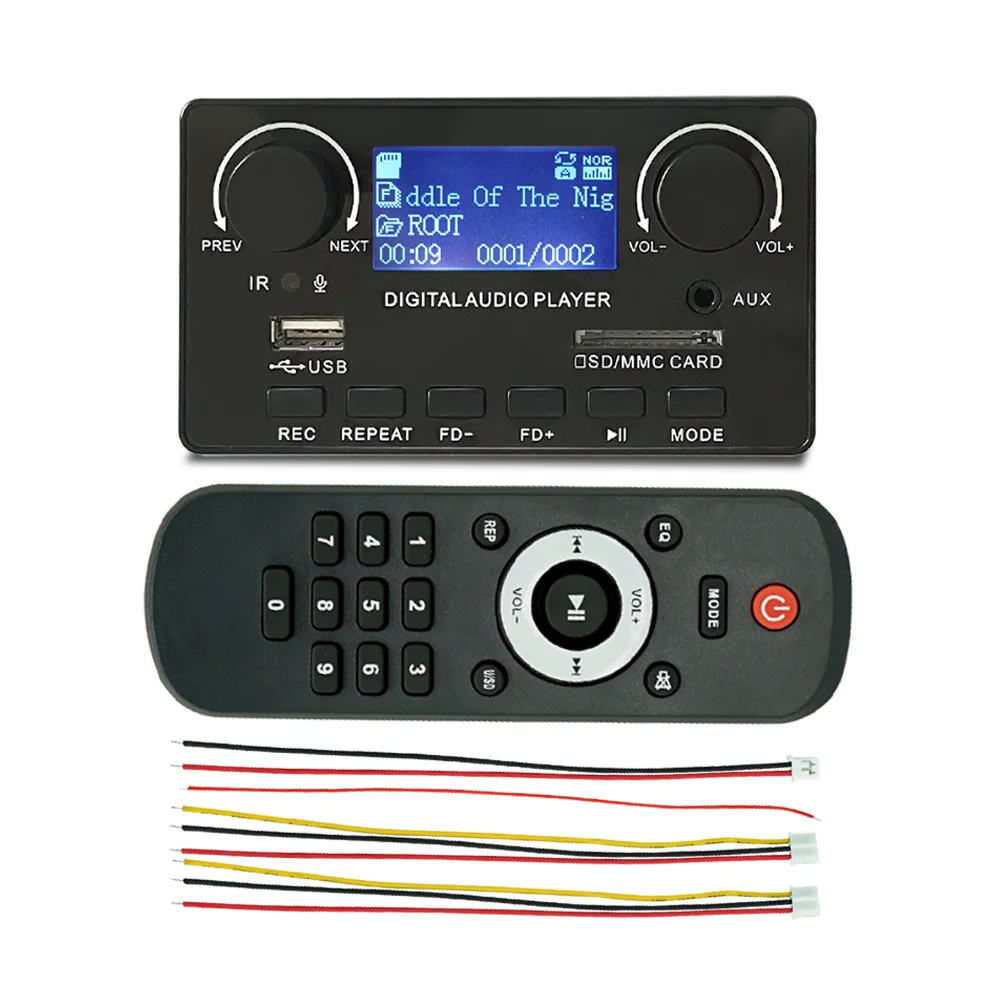

Accessories | remote controller/ connection cables |
Panel Color | black |
Digital Dispaly | LCD screen display |
Using Scenarios | audio speakers/mp3 player/portable speaker/amplifier speaker |
Warranty Period | 2 years |
Common Products MOQ | 1 pcs |
OEM MOQ | 500pcs |

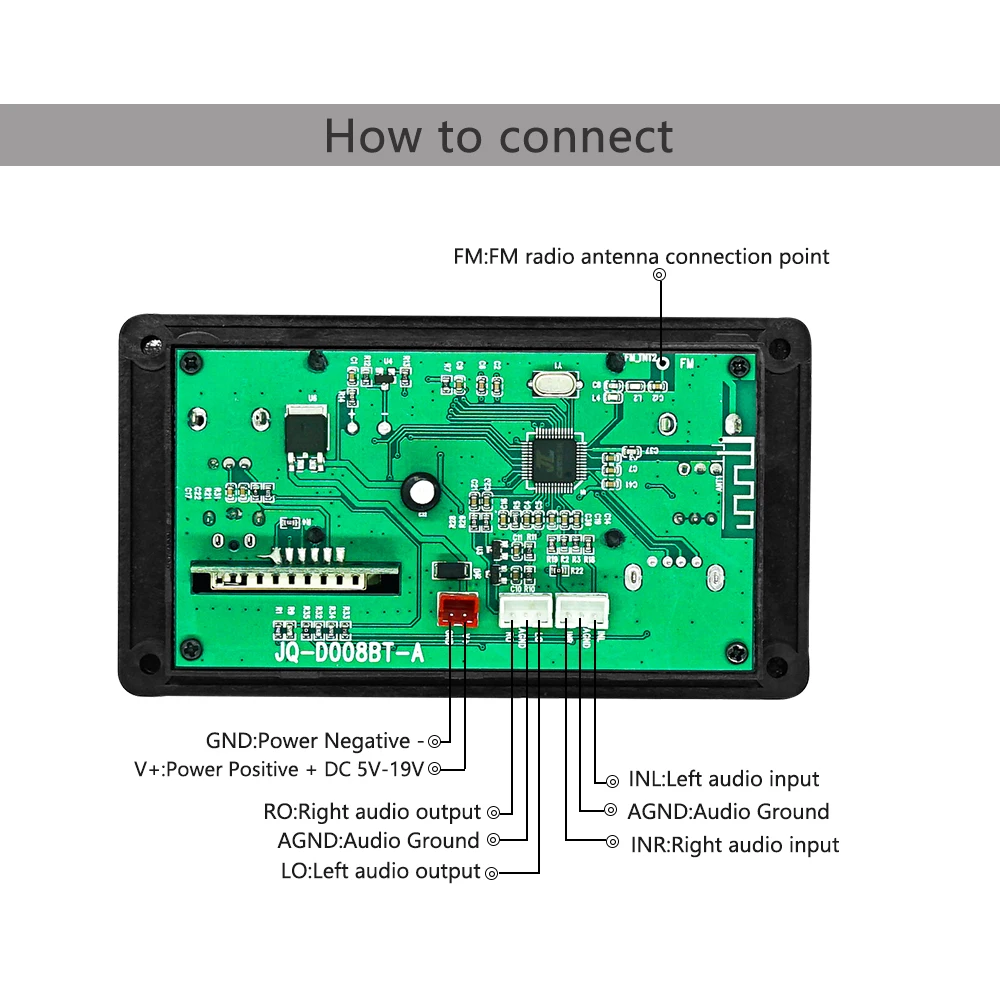

User Manual:

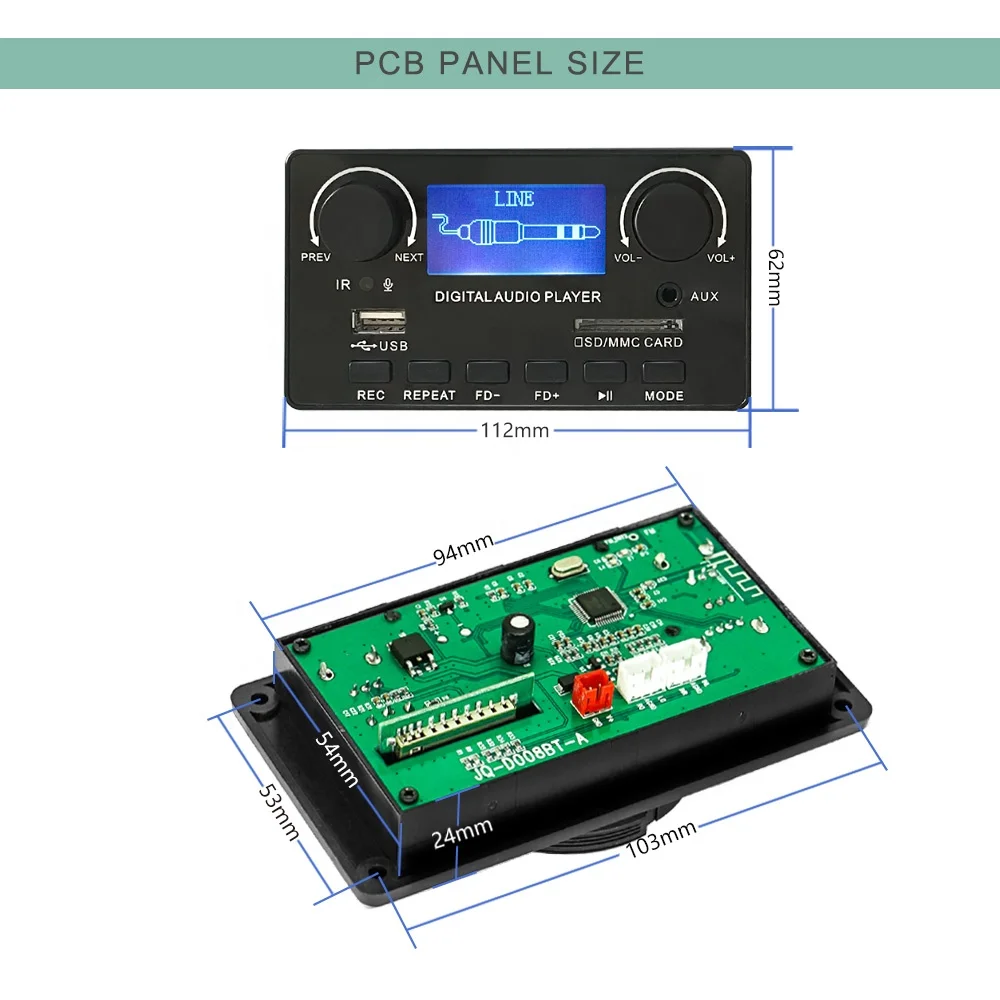

Plastic Panel details:
Front Panel Size:112*62mm;Screw hole distance：103*53mm
Install hole size:94x54mm
Specifications:
Function Introduction:
Support Wireless BT Blue tooth call function,MIC Calling and Record speaking,Recording(AUX FM BT),Changing folders, double decoding MP3/WMA/WAV/APE/FLAC format music,read USB disk, read SD Card ,radio FM,external audio input line in,big infrared remote control,power off memory ,power supply 5V or 12V optional.
Major Function:
1,Double decoding,support MP3/WMA/WAV format music;
2,Support Wireless BT Blue tooth music and Wireless BT Blue tooth call function;
3,Display with digital tube;
4,Support USB/TF card;
5,Power off memory functions;
6,Support 5-10 meters distance infrared remote control operation;
7,Support LINE-IN(AUX)/ LINE-OUT;
8,Support FM(87.5MHZ-108.0MHZ);
9,Buttons:REC/REPEAT/FD-/FD+/PAUSE/ MODE;
10,Support power automatic protection system(the PCBA will not burn out if the positive and negative power is reverse,it only not working);
11,The highest volume level is 30;
12,Support for pause / single loop play / replay all the repertoire.
Specifications:
Function Introduction:
Support Wireless BT Blue tooth call function,MIC Calling and Record speaking,Recording(AUX FM BT),Changing folders, double decoding MP3/WMA/WAV/APE/FLAC format music,read USB disk, read SD Card ,radio FM,external audio input line in,big infrared remote control,power off memory ,power supply 5V or 12V optional.
Major Function:
1,Double decoding,support MP3/WMA/WAV format music;
2,Support Wireless BT Blue tooth music and Wireless BT Blue tooth call function;
3,Display with digital tube;
4,Support USB/TF card;
5,Power off memory functions;
6,Support 5-10 meters distance infrared remote control operation;
7,Support LINE-IN(AUX)/ LINE-OUT;
8,Support FM(87.5MHZ-108.0MHZ);
9,Buttons:REC/REPEAT/FD-/FD+/PAUSE/ MODE;
10,Support power automatic protection system(the PCBA will not burn out if the positive and negative power is reverse,it only not working);
11,The highest volume level is 30;
12,Support for pause / single loop play / replay all the repertoire.
13,With knob control volume and changing song knob switch;
14,Recording BT/FM/AUX;
15,Folders functions;

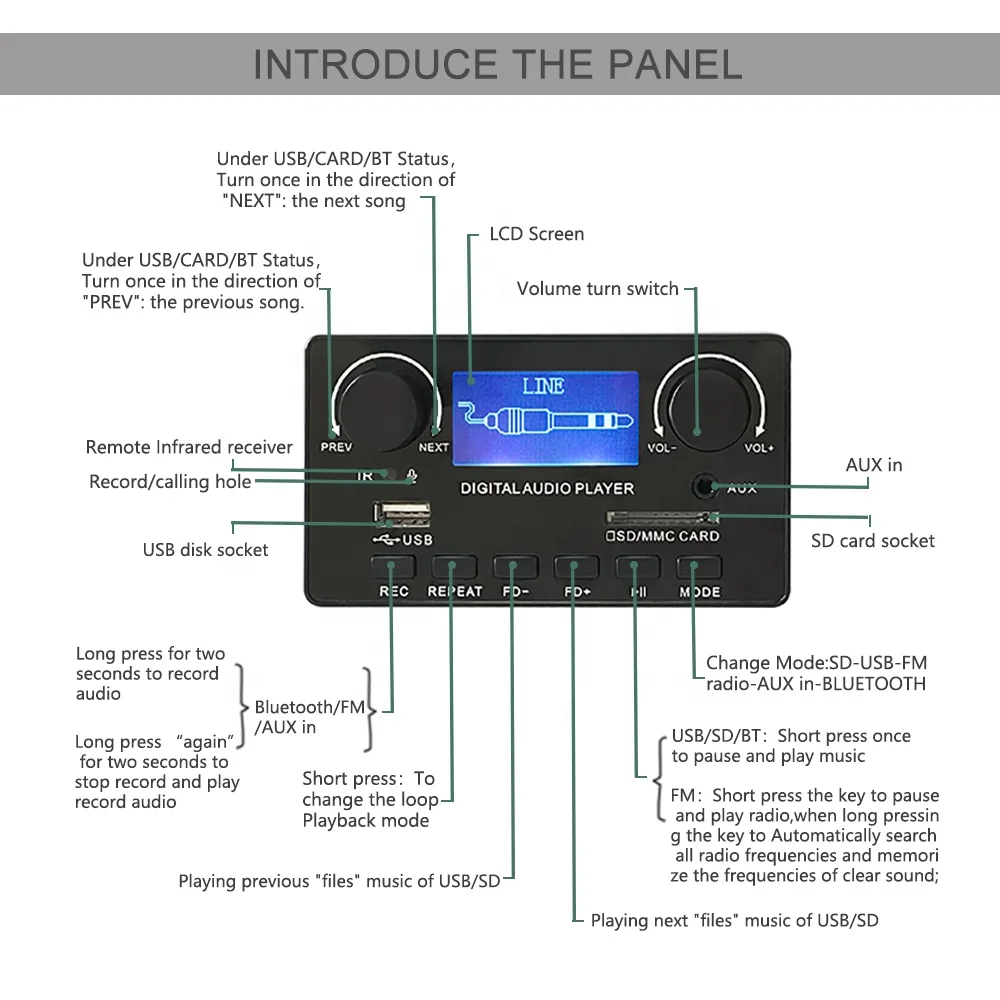

Button Operation Instructions:
Button Operation Instructions:
1,"REC" button,Long pressing 2 seconds "REC" when playing USB/SD card,the MIC recording outside voice to the USB/SD card,pressing again 2 seconds ,it will stop recording and automatic playing the recording;When working the wireless BT/FM/AUX,Long pressing 2 seconds"REC",will record the wireless BT/FM/AUX playing voice to the USB/SD card,pressing the "REC" will stop record and automatic playing the recording files.
2,"REPEAT" button, Short press it when playing USB/SD card,Changing the loop playback mode:ONE single song loop playback/All songs loop playback;
3,"FD-" button, short press is playing previous files music of USB/SD card;
Long pressing is playing music fast backward;
4,"FD+" button, short press is playing Next files music of USB/SD card;
Long pressing is playing music fast forward;
5,"Pause" button,(play/pause):
6,"MODE" button:Short press is switching the USB/SD/FM/AUX/BT MODE.
Long pressing is playing music fast forward;
5,"Pause" button,(play/pause):
Short press the "Pause" is Pause playing when USD/CARD/BT/FM/AUX states;
Long pressing is automatic searching fm stations and playing them when fm radio state;
6,"MODE" button:Short press is switching the USB/SD/FM/AUX/BT MODE.
