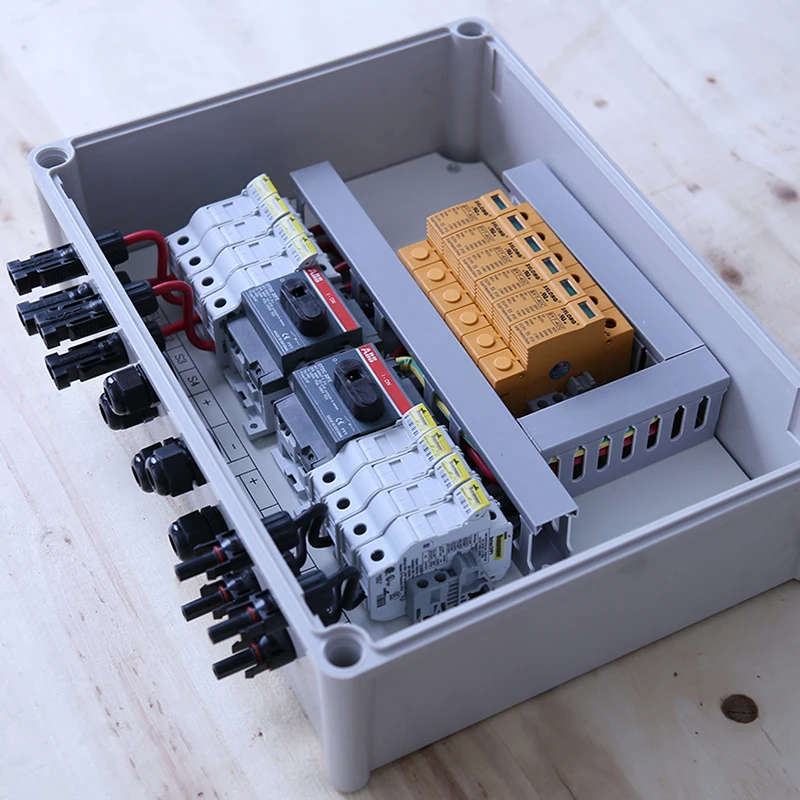

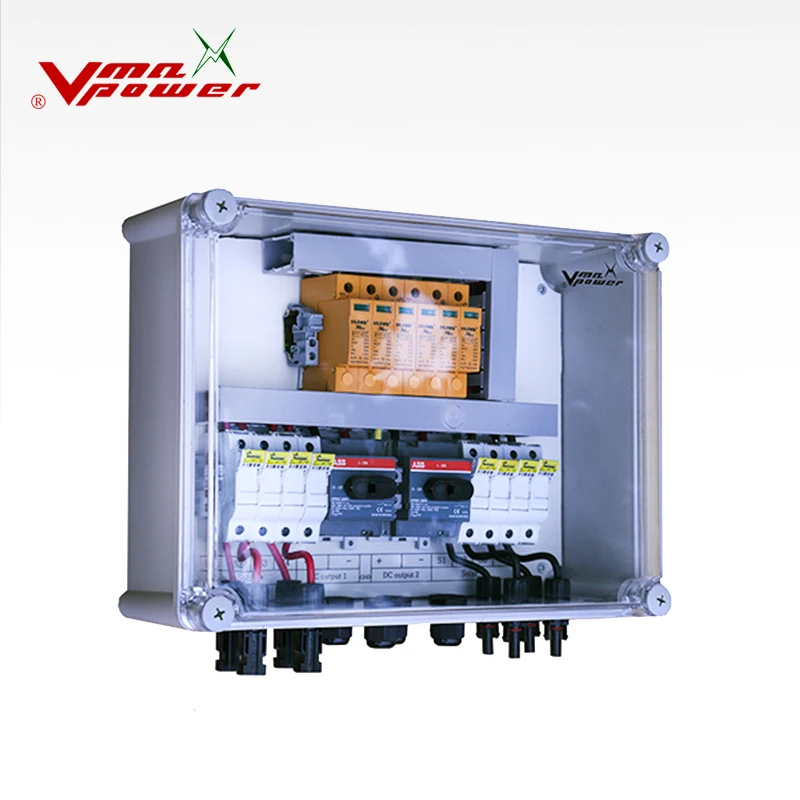

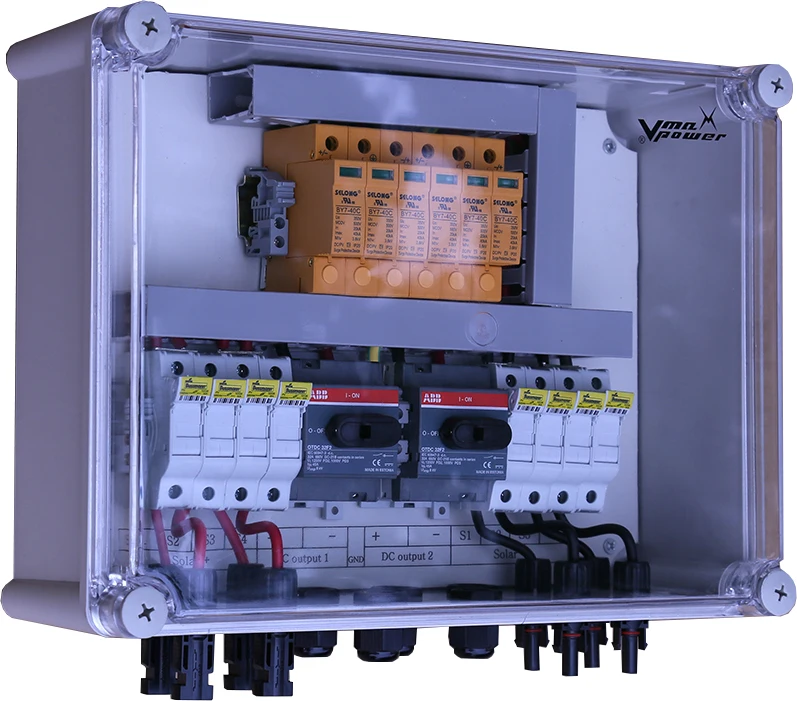

PV Combiner Box 2/4/6/8/10/12/14/16 input 1 output AD DC Solar Wall Mounted
- Category: >>>
- Supplier: Beijing Multifit Electrical Technology Co. Ltd.
Share on (1600543009849):
Product Overview
Description
Product Description
Hot Sale Cheap Goods From China DC And AC PV Array Combiner Box 12 String Solar Array Combiner Box

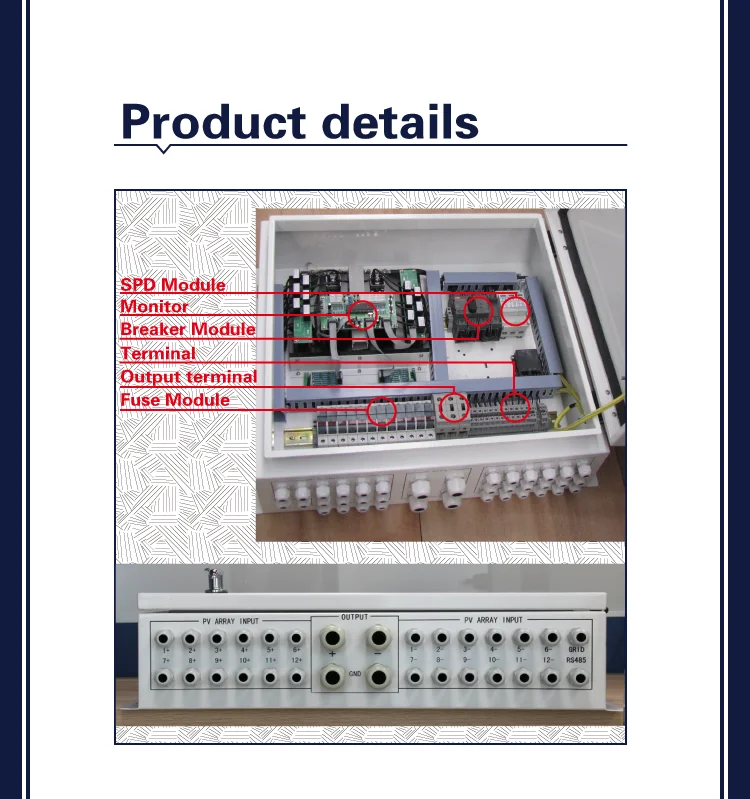

For large scale grid-connected PV systems, a DC combining device will be installed in between the PV arrays and the inverters to minimize the cable length, increase the reliability and stability, and also for the ease of maintenance. Multifit PV Array Combiner Box is a standardized product developed to use with solar power system to provide a turnkey solution for PV power plants. Based on the DC input voltage range of the inverter, a quantity of the same PV strings can be connected to form a PV array. Then different PV arrays can input into the PV array combiner box, which including lightning protection devices and circuit breakers, to output a DC current for the inverter connection.
Features of pv array combiner box:
·Applicable for outdoor PV systems
·4/6/8/10/12/16/24 PV string inputs with maximum string current at 20A
·Wide DC voltage input range with maximum open-circuit voltage up to 1000V
·With PV dedicated DC fuses with maximum voltage not less than 1000V
·With PV dedicated high voltage lightning protection device
·Both +ve & -ve poles equipped with a 4-pole circuit breaker with the allowable DC voltage not less than 1000V
·Monitoring feature optional for each string of PV array box
·Waterproof terminals
·Lighting Protection
With the Monitor and RS485 Communicate port

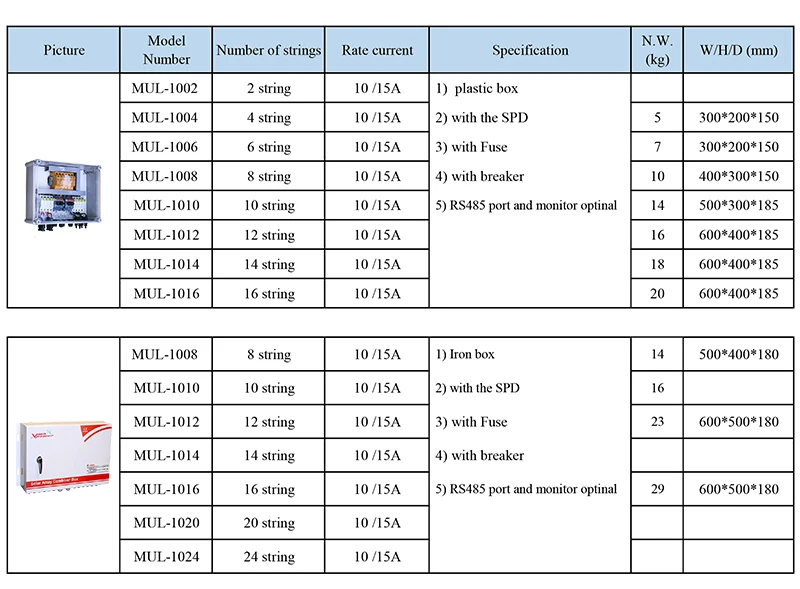

| Model Number | Max No. of strings | Specification | |
| MUL-1002 | 2 string | 10 /15A | 1.Plastic box 2.With the SPD 3.With Fuse 4.With Breaker 5.without RS485 port and monitor |
| MUL-1004 | 4 string | 10 /15A | |
| MUL-1006 | 6 string | 10 /15A | |
| MUL-1008 | 8 string | 10 /15A | |
| MUL-1010 | 10 string | 10 /15A | |
| MUL-1012 | 12 string | 10 /15A | |
| MUL-1014 | 14 string | 10 /15A | |
| MUL-1016 | 16 string | 10 /15A | |
Datasheet

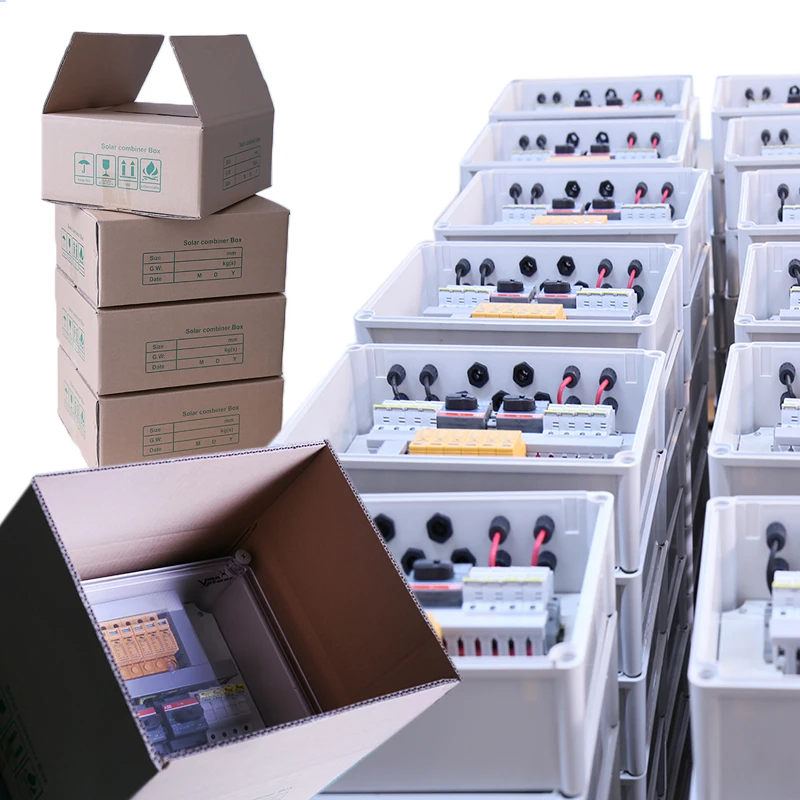

Packaging & Shipping
Our Services
ONE. Trade Assurance
TWO. Certifications
THREE. Exhibitions
Company Information
FAQ
Q1.Are you a factory or trading company?
A: We are a factory.we produce the power inverter.the solar charge controller and solar array box and solar power system.we also OEM& ODM the green energy product with the top class factory in china
Q2. Where is your factory located? How can I visit there?
A:Our factory is located in Beijing,the Capital of China, about 1 hours bus ride from Beijing airport or Beijing train station .All our clients, from home or abroad, are warmly welcome to visit us!
Q3. How can I get some samples?
A: We are honored to offer you samples.
Q4. How does your factory do regarding quality control?
A: Quality is priority. multifit people always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ISO9001 authentication
Q5.Where is your loading port?
A:Nearest loading Port is the TianJin Port China.the largest port in northern china or any Fob China Port
Q6. How do you ship the products?
A: - Sea Freight - Air Mail - Bulk Air Freight
- Express Air Courier: DHL ,UPS, FedEx, EMS,Aramex - Ex-Works - appoint your own freight forwarder to collect the goods from our warehouse.
Q7: How much does shipping cost?
A:It depends on the quantity of goods, the shipping method, and the country. Use the website, Online inquiry to our sales.
Q8: How can I speak to multifit about product questions or other inqueries?
A:please click the below picture or contact here according to the chart information.
